1M-1GHz Broadband RF Power Amplifier Module 2W HF FM VHF UHF

1M-1MPLF9QTVEQWL
5420
5706 You save: 285
In stock
Black Friday Deals: Enjoy Savings and Unbeatable Offers All Week Long!
Promotion expires within:
14 Days
Price in points: 56 points
Shipping time and rates:
+
Add to wish list Compare Ask a question
Delivery
  • Without marking: Maximum 10 - 15 business days
  • Fast delivery: Maximum 10 business days
  • 5-Day Delivery: Maximum 5 business days in the EU
  • We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Payment options
Our advantages

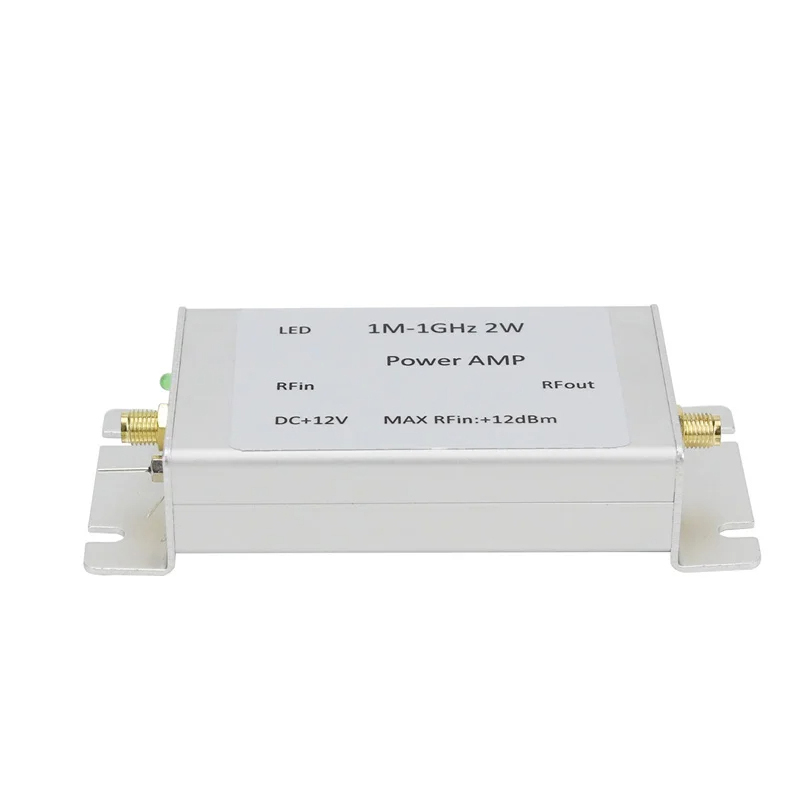

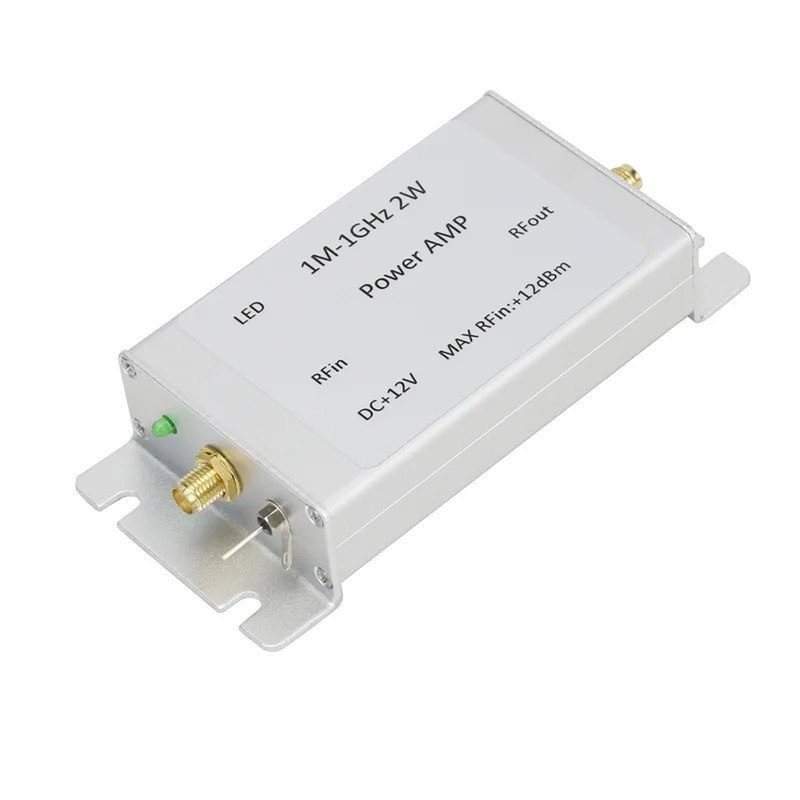

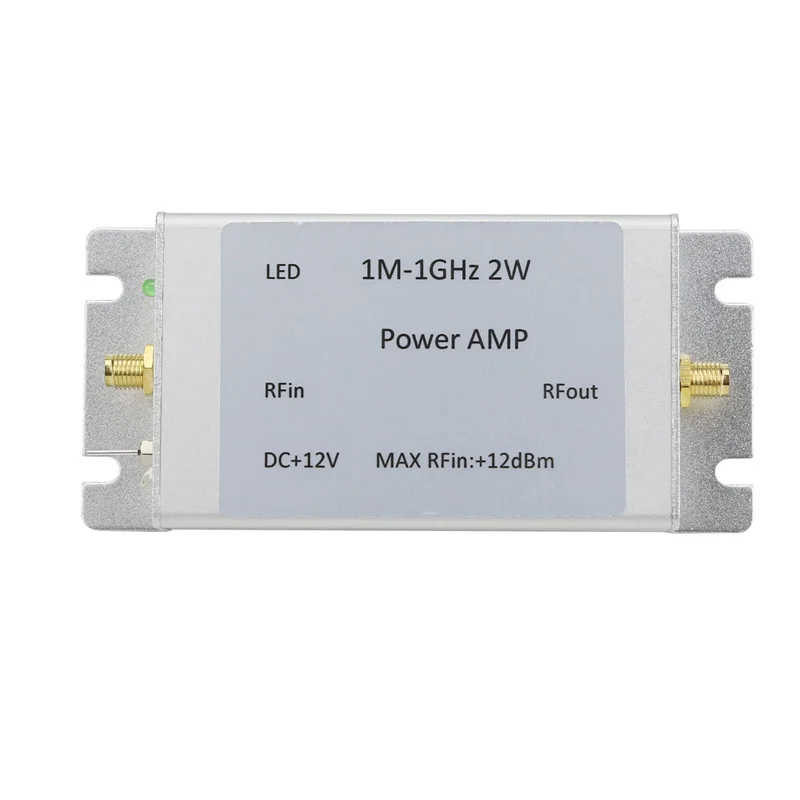

The RVPA11000-1 is a high-performance broadband RF power amplifier featuring a P-channel LMOS tube as the final amplifier stage. It delivers an impressive 37 dB small signal linear gain across a wide frequency range of 1MHz to 1GHz, making it ideal for demanding RF applications. With a saturation output power of 2W, this amplifier excels when powered by a 15V supply, ensuring greater output power.

Performance Features:

  • Frequency Range: 1-1000 MHz (1MHz-1GHz)
  • Gain: 37 dB (typical)
  • Saturated Output Power: 35 dBm
  • Power Supply: +12V @ 400mA (static)
  • Dimensions: 110 x 50.5 x 23 mm

Electrical Parameters (at 15V, TA=+25℃):

  • Saturated Output Power: 33 dBm (typical)
  • P1dB: 31 dBm (typical)
  • Linear Gain: Max: 38.5 dB; Typical: 37 dB; Min: 36.5 dB
  • Gain Flatness: Max deviation ±1 dB
  • Static Current: 440 mA (typical)
  • Dynamic Current: Max 600 mA
  • Impedance: 50Ω (input/output)

Use Limit Parameters:

  • Power Supply Voltage: +15V
  • Max Input Power: 12 dBm
  • Operating Temperature: -20℃ to 50℃

Precautions:

  1. Store in a dry environment.
  2. Ensure reliable connection to a 50-ohm load before powering on.
  3. Use external heat dissipation for long-term operation.

Package Includes:

  • 1 x RVPA11000-1 RF Power Amplifier
