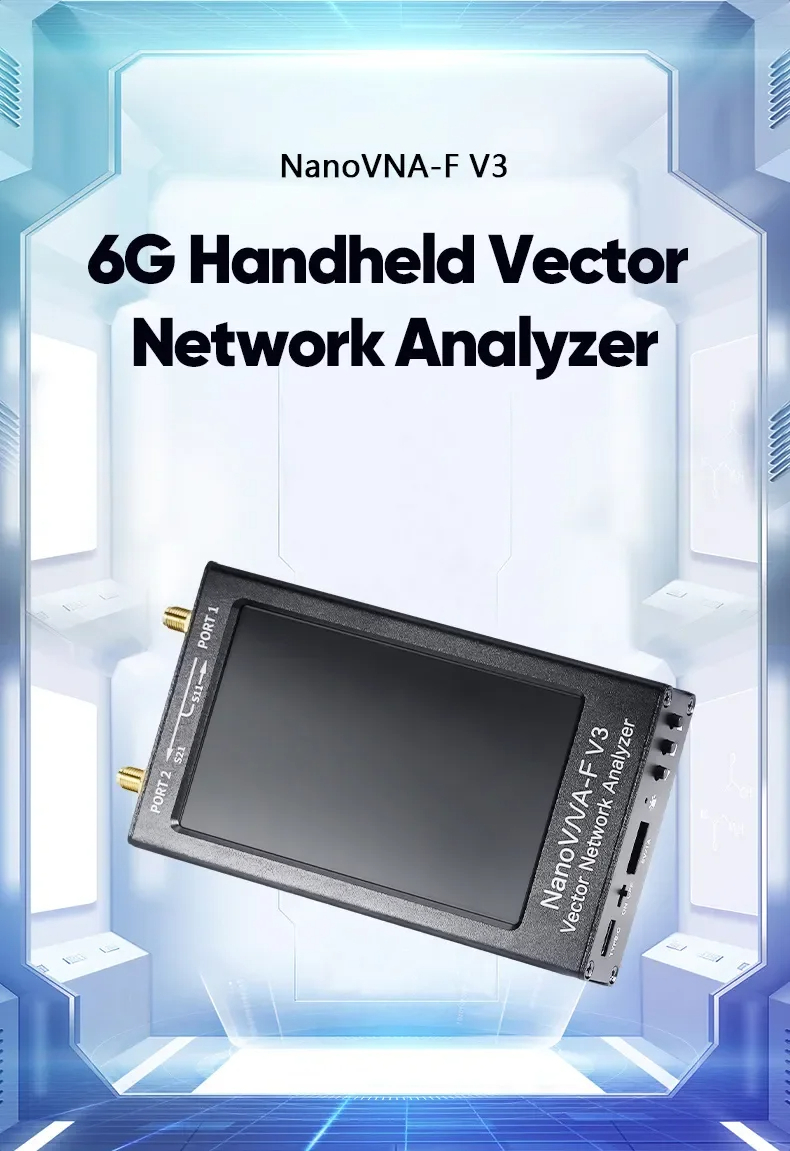

NanoVNA-F V3 1MHz-6GHz Portable Vector Network Analyzer VNA for MF/HF/VHF/UHF/SHF

Write a review
28111
36111
You save: 80.00
In stock
14 Days
Price in points: 304 points
Shipping time and rates:
Delivery
  • Without marking: Maximum 10 - 15 business days
  • Fast delivery: Maximum 10 business days
  • 5-Day Delivery: Maximum 5 business days in the EU
  • We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Payment options
Our advantages
Add to this product
  • Spectrum Analyzers

NanoVNA-F V3 is a Portable Vector Network Analyzer (VNA) with frequency range of 1MHz~6GHz. It can be used for S11 and S21 measurements. The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB.

NanoVNA-F V3 is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands, such as
shortwave antennas, ISM band antennas, WiFi antennas, Bluetooth antennas, GPS antennas, etc. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components. NanoVNA-F V3 supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. In addition, NanoVNA-F V3 supports TDR function which is useful for cable lengths measurement.

NanoVNA-F V3 is designed with metal case, which is durable and can effectively shield
electromagnetic interference. The dimension of NanoVNA-F V3 is 125 x 75 x 20mm/4.9 x 3 x 0.8". The RF interface of NanoVNA-F V3 is SMA connector witch can be used to connect DUTs directly. With the optimally designed signal processing system, the scan speed of NanoVNA-F V3 is up to 200 points/s and the maximum scanning points is up to 801.

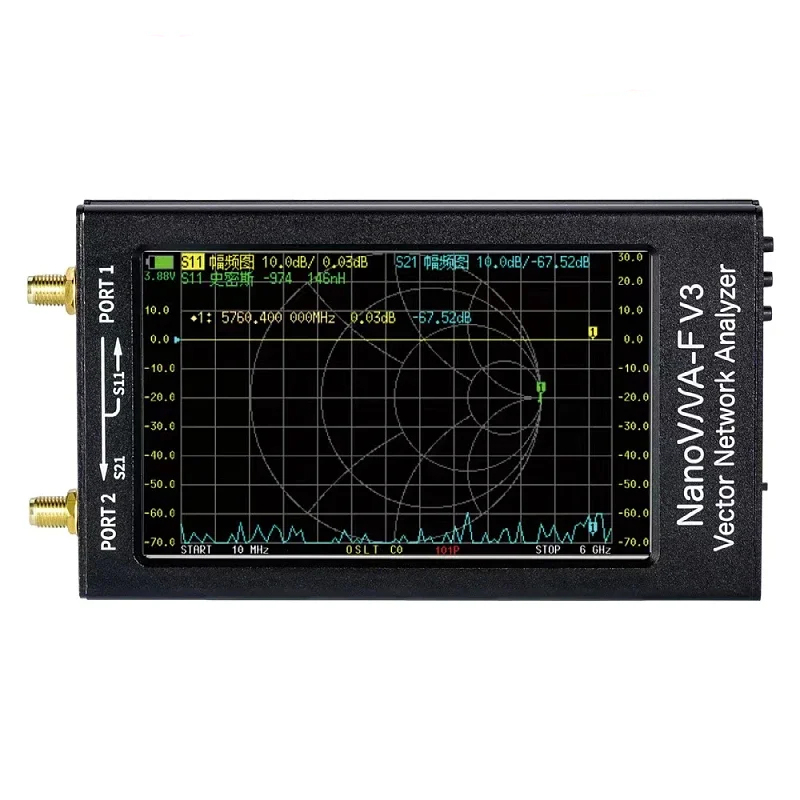

The screen of NanoVNA-F V3 is a 4.3-inch high-brightness IPS with resistive panel, which allows users to see the screen contents clearly in outdoor. NanoVNA-F V3 adopts a full touch screen design, with 3 physical buttons, users can quickly set frequency range, scale, turn on/off traces, add/delete markers, and so on. The operation is quite convenient and smooth.

The NanoVNA-V3 has 4500mAh lithium-ion batteries with a battery life of up to 5 hours. The charging interface is USB Type-C, and the Type-C cable can be used to charge the device and also for data transfer.

Features:
- Frequency range: 1MHz-6GHz
- S21 dynamic range: 65dB and S11 dynamic range: 50dB
- 4.3" high-brightness IPS display with resistive touch panel
- Metal case can effectively shield electromagnetic interference
- SMA connector is stable and durable to use
- Full touch screen and 3 physical buttons enable convenient and smooth operation
- Dimensions: 125 x 75 x 20mm/4.9 x 3 x 0.8"
- Built-in 4500mAh lithium-ion batteries with endurance time up to 5 hours
- TDR function can be used to measure cable length
- Up to 4 reference traces
- Up to 4 markers, and the marker table can be dragged to anywhere on the screen
- 12 save/recall slots
- Charging via USB Type-C, and the charging voltage is 5V DC
- Designed with a 5V/1A USB power output port
- Firmware upgrade via virtual U disk with USB Type-C cable
- Comes with SMA calibration kit and 2 x 20cm/7.9" SMA-JJ RG405 coaxial cable
- Supports console commands and PC software

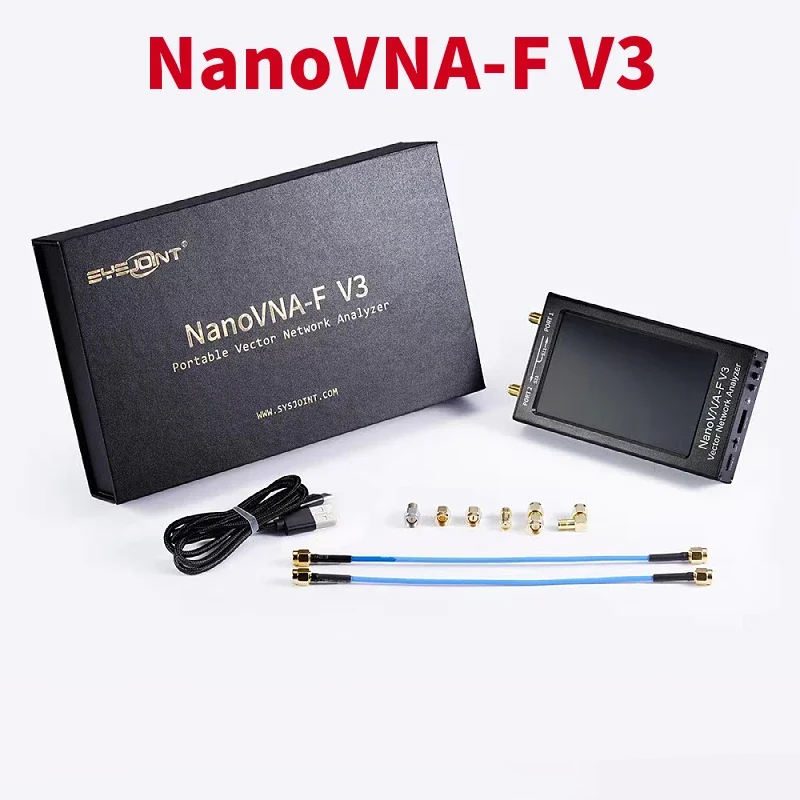

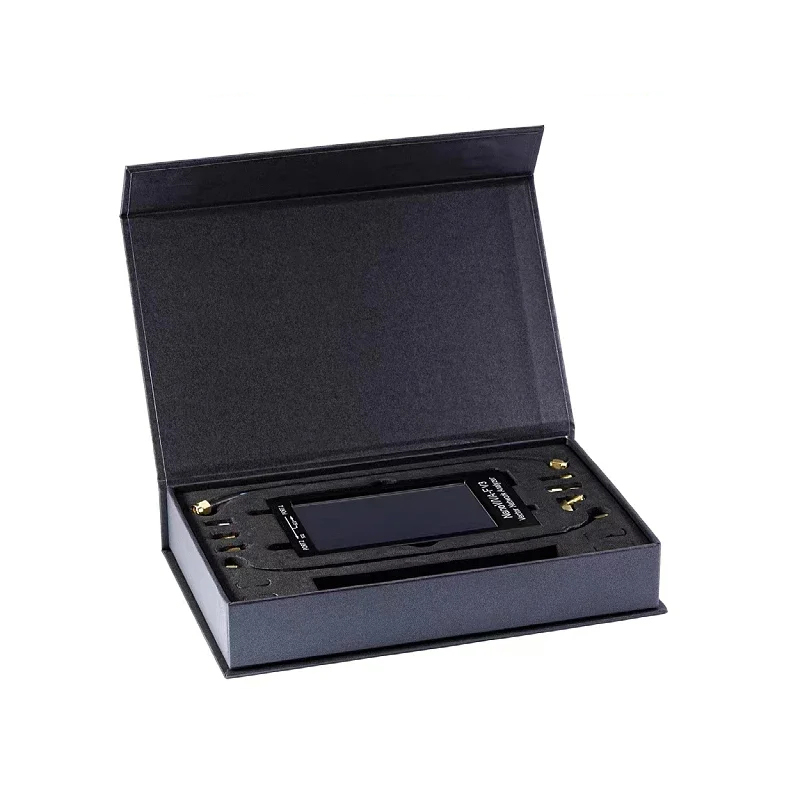

Package Included:

- 1 x NanoVNA-F V3
- 1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN and SHORT)
- 1 x SMA Female to SMA Female Connector
- 1 x SMA Male to SMA Male Connector
- 1 x SMA JKW Connector
- 2 x 20cm/7.9" RG405 Cables
- 1 x USB Type-C Data Cable

Reviews for NanoVNA-F V3 1MHz-6GHz Portable Vector Network Analyzer VNA for MF/HF/VHF/UHF/SHF

5
5 out of 5
Reviews: 3
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 star
0%
Marko Kimmel
Verified purchase
5
Comment
Very fast delivery, I recommend it!
Joseph Lefort
Verified purchase
5
Comment

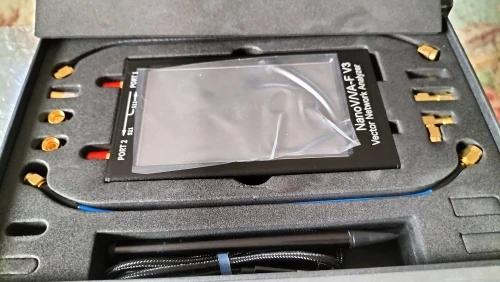

The case seems perfect in itself! The first measurements with a fast calibration are impeccable and consistent on my antennas.
Simen
Verified purchase
5
Comment

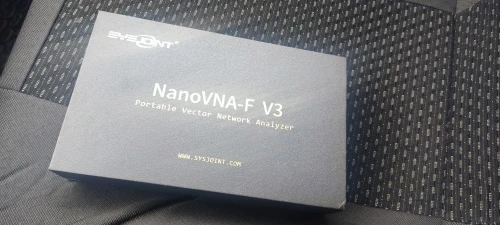

It came normally, apart from my country post service that is bad, well, that's it. Thanks to this device I will make antennas to the front to nail the Cusks into the ground
