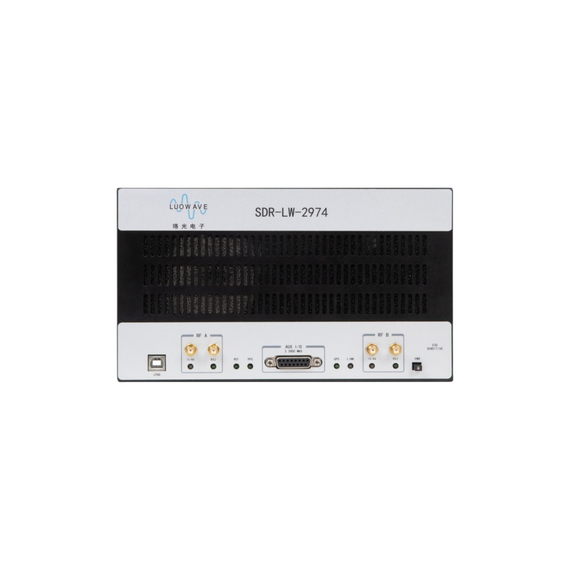

The Luowave SDR-LW 2974 is a high-performance embedded Software Defined Radio (SDR) platform, ideal for advanced wireless prototyping and research. Featuring 2 TX/RX channels, a frequency range of 10 MHz–44 GHz, and up to 160 MHz bandwidth per channel, it is powered by an Intel i7 processor and Xilinx Kintex-7 XC7K410T FPGA for real-time, low-latency signal processing[2][4][5].
Key Features and Specifications
- 2 TX & 2 RX channels (2x2 MIMO)
- Frequency range: 10 MHz–44 GHz
- Bandwidth: 160 MHz per channel
- FPGA: Xilinx Kintex-7 XC7K410T
- Processor: Intel i7, 16 GB memory, 1 GB DRAM
- ADC: 14 bits, 200 MSps; DAC: 16 bits
- Interfaces: 4 × USB 3.0, 2 × SFP+, 4 × PCIe Gen2 x4, 1 × RJ45 (1GbE), SFP (10GbE)
- Gain range: 0–31.5 dB, 0.5 dB stepping
- Operating temperature: 0–50°C
- Multiple form factors and robust build for lab or field use
Software Compatibility
Compatible with GNU Radio, USRP Hardware Driver (UHD), and open-source SDR frameworks. UHD support enables seamless integration with existing wireless research code and rapid prototyping of advanced systems[4][5].
Applications
- LTE and 802.11 device simulation
- MAC algorithm development
- MIMO system prototyping and heterogeneous networks
- RF compression sampling and spectral remote sensing
- Cognitive radio, beamforming, direction finding
