LILYGO SoftRF T-Beam SUPREME ESP32-S3 LoRa Development Board SX1262 433/868/915MHz GPS U-blox L76K WiFi Bluetooth 1.3 inch OLED, Frequency: 915MHz, Chip: MAX-M10S-00B
LILYGO SoftRF T-Beam SUPREME ESP32-S3 LoRa Development Board SX1262 433/868/915MHz GPS U-blox L76K WiFi Bluetooth 1.3 inch OLED
11082

LILYGO SoftRF T-Beam SUPREME ESP32-S3 LoRa Development Board SX1262 433/868/915MHz GPS U-blox L76K WiFi Bluetooth 1.3 inch OLED

LLYG-LLYG-6T8TCH_D37B
Price in points: 113 points
+
Add to wish list Compare Ask a question
  • View all variations as list
Delivery

These are some of the delivery methods we use. However, availability and delivery times may vary depending on your country.

Payment options
Mastercard Visa IDeal Bancontact
Explore and use a variety of other convenient payment methods available at the checkout page.
Our advantages
  • Timely Updates: Receive regular updates about your order through email.
  • Easy Returns: We offer hassle-free returns for your convenience.
  • Flexible Payments: Choose from various payment methods to suit your preferences.
  • Best Prices: Enjoy the benefit of the best prices on our products.

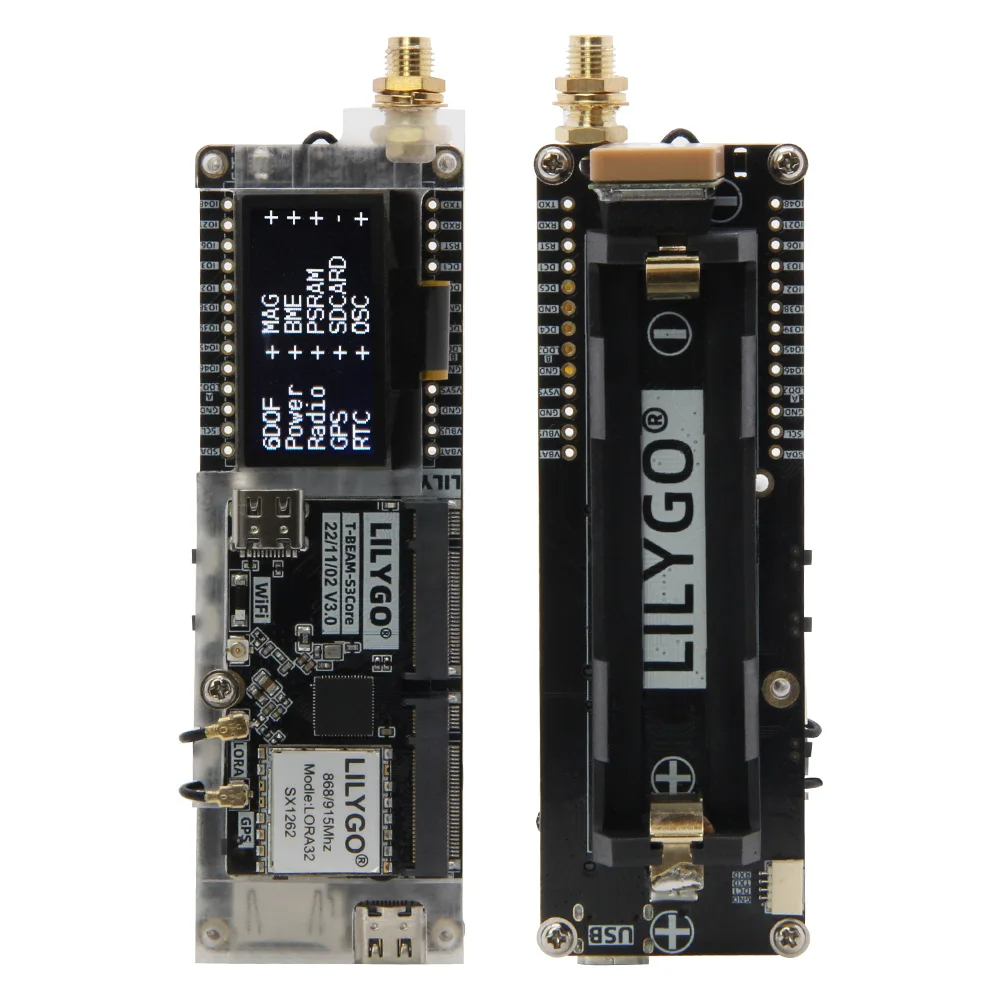

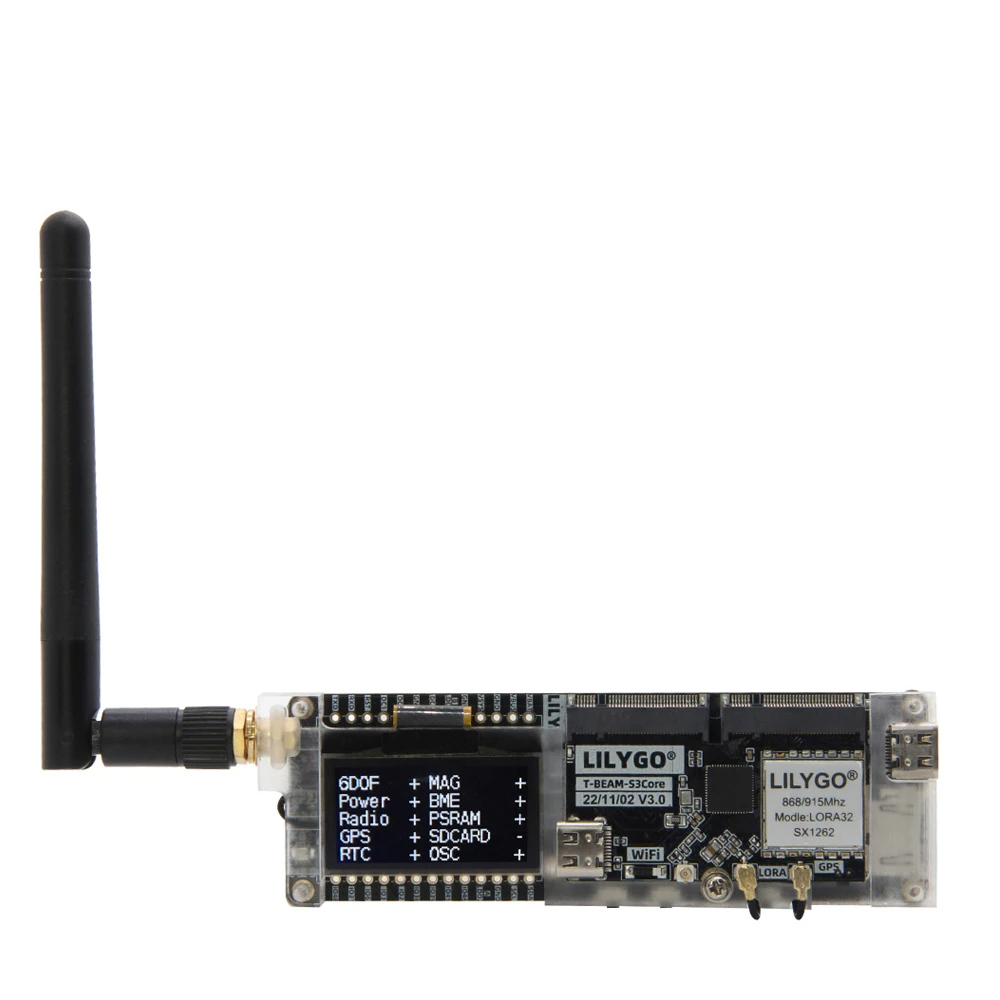

The LILYGO SoftRF T-Beam SUPREME ESP32-S3 Development Board is a collaborative IoT and LoRa platform designed by LILYGO and SoftRF. It features the powerful ESP32-S3FN8 dual-core LX7 microprocessor combined with the SX1262 LoRa module supporting 868/915MHz frequencies, and an integrated GPS with the option of U-blox MAX-M10S-00B or L76K chip for precise positioning.

Highlighted Features

  • LoRa SX1262 module for 868MHz and 915MHz operation (selectable by model)
  • ESP32-S3FN8 dual-core LX7 processor with WiFi 2.4GHz and Bluetooth 5 (LE)
  • Integrated GPS with U-blox MAX-M10S-00B or L76K chip options
  • 1.3 inch SH1106 OLED display with 128x64 resolution for real-time data and status
  • 8MB Flash and 8MB PSRAM for advanced applications and multitasking
  • Six-axis IMU QMI8658 for motion and orientation sensing
  • Low power consumption for battery-powered and remote IoT deployments
  • Multiple development options: Arduino, PlatformIO IDE, and MicroPython
  • Onboard buttons: Boot, Reset, and Power for easy control

Connectivity and Expansion

  • 12C interface for display and peripherals
  • UART, SPI, I2C, and GPIO expansion for sensors and modules
  • GPS and LoRa antenna connectors

Usage Notes

This board is intended for experimental and verification testing. Please ensure you select the correct LoRa frequency (868/915MHz) for your region and comply with local wireless regulations.

Features for LILYGO SoftRF T-Beam SUPREME ESP32-S3 LoRa Development Board SX1262 433/868/915MHz GPS U-blox L76K WiFi Bluetooth 1.3 inch OLED

Chip
MAX-M10S-00B
Frequency
915MHz

Reviews for LILYGO SoftRF T-Beam SUPREME ESP32-S3 LoRa Development Board SX1262 433/868/915MHz GPS U-blox L76K WiFi Bluetooth 1.3 inch OLED

No reviews found

Ask question

No questions yet
