The 10M-6GHz Low Noise Amplifier is a precision RF module designed for sensitive receiver systems requiring high gain and low noise. With a flat 30dB gain across 10MHz to 6GHz and a noise figure of just 5dB, it enhances signal clarity in critical applications like GPS, radar, and software-defined radio.
Key Specifications
- Frequency Range: 10MHz – 6GHz
- Gain: 30dB (frequency-dependent)
- Noise Figure: 5dB (frequency-dependent)
- Power Supply: TYPE-C cable (<100mA)
- P1dB: +2dBm @ 2GHz
- Interfaces: SMA female (50Ω input/output)
- Dimensions: 45×30×14mm (excluding SMA)
- Weight: 66g (including cable)
Package Includes

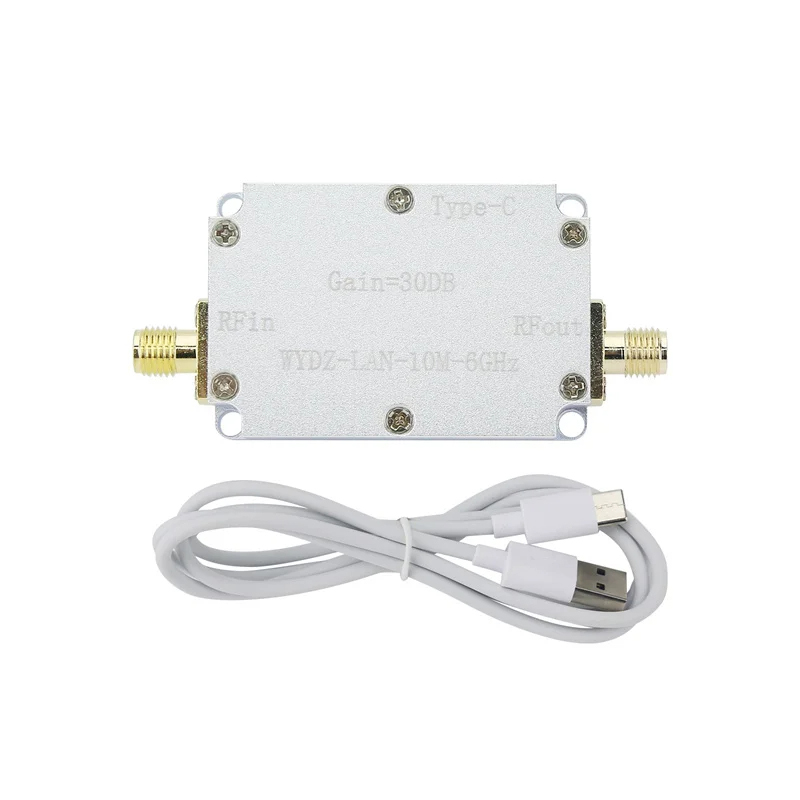

- 1× LNA Amplifier (Aluminum alloy shell)
- 1× TYPE-C power cable
Application Scenarios
- Beidou/GPS receiver signal enhancement
- FM radio/radar receiver front-ends
- EMC testing and compliance systems
- SDR (Software Defined Radio) signal chains
- IF (Intermediate Frequency) amplification stages
