LILYGO Meshtastic T-Beam SUPREME ESP32-S3 Development Board SX1262 LoRa Module 433/868/915MHz GPS WiFi Bluetooth 1.3 inch OLED

Write a review

€82⁴⁹ €96¹¹

Add to cart

LILYGO Meshtastic T-Beam SUPREME ESP32-S3 Development Board SX1262 LoRa Module 433/868/915MHz GPS WiFi Bluetooth 1.3 inch OLED

CODE:

LLYG-LLYG-3MRHYG

Write a review

€82⁴⁹ €96¹¹ -14%

In stock

Frequency:

Chip:

Price in points: 85 points

+ −

Add to wish list Compare Ask a question

View all variations as list

Column filling

Sort by Price	Sort by Availability	Sort by CODE	Sort by Frequency	Sort by Chip
€82⁴⁹ €96¹¹	In stock + −	LLYG-LLYG-3MRHYG	Frequency: 433MHz	Chip: L76K
€112²⁵	In stock + −	LLYG-LLYG-3MRHYG_F2CA	Frequency: 433MHz	Chip: MAX-M10S-00B
€93²⁸ €96¹¹	Out of stock	LLYG-LLYG-3MRHYG_F2BD	Frequency: 868MHz	Chip: L76K
€114²¹	In stock + −	LLYG-LLYG-3MRHYG_F2D0	Frequency: 868MHz	Chip: MAX-M10S-00B
€88³⁸ €96¹¹	In stock + −	LLYG-LLYG-3MRHYG_F2C4	Frequency: 915MHz	Chip: L76K
€115¹⁹	In stock + −	LLYG-LLYG-3MRHYG_F2D6	Frequency: 915MHz	Chip: MAX-M10S-00B

Delivery

DHL express - Fast

Delivery time varies by country

from 3 EUR

UPS express - Reliable international shipping

Delivery time varies by country

from 3 EUR

These are some of the delivery methods we use. However, availability and delivery times may vary depending on your country.

Check delivery carriers

Payment options

Explore and use a variety of other convenient payment methods available at the checkout page.

More details

Our advantages

Timely Updates: Receive regular updates about your order through email.
Easy Returns: We offer hassle-free returns for your convenience.
Flexible Payments: Choose from various payment methods to suit your preferences.
Best Prices: Enjoy the benefit of the best prices on our products.

LILYGO Meshtastic T-Beam SUPREME ESP32-S3 Development Board SX1262 LoRa Module 433/868/915MHz GPS WiFi Bluetooth 1.3 inch OLED, Frequency: 433MHz, Chip: L76K

Description
Features
Reviews
Products questions

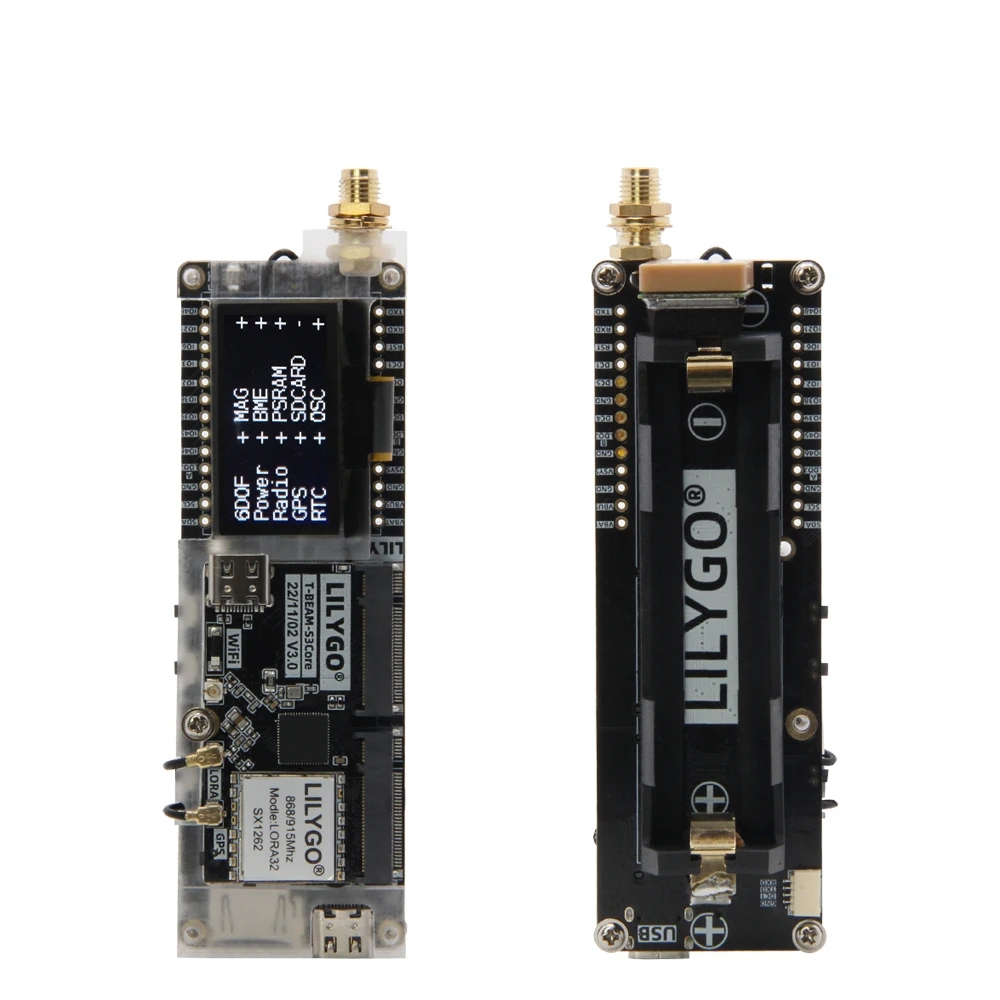

The LILYGO Meshtastic T-Beam SUPREME ESP32-S3 Development Board is a collaborative module from LILYGO and Meshtastic, designed for advanced IoT and LoRa experimentation. Powered by the ESP32-S3FN8 dual-core LX7 processor, it integrates a LoRa SX1262 module, GPS (U-blox MAX-M10S-00B or L76K), and a bright 1.3 inch SH1106 OLED display.

Main Features

ESP32-S3FN8 dual-core LX7 microprocessor for high-performance wireless applications
LoRa SX1262 module supporting 433, 868, or 915 MHz frequencies

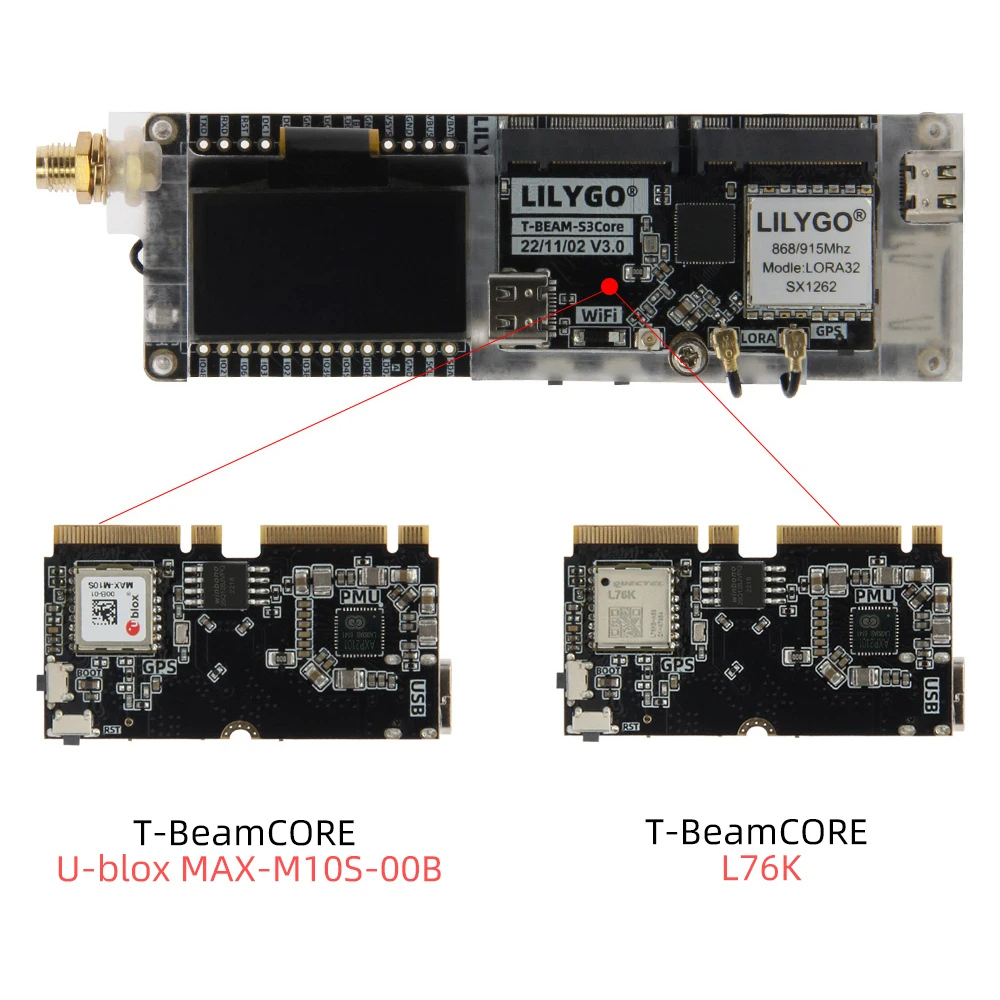

GPS receiver with U-blox MAX-M10S-00B or L76K chip options
2.4 GHz Wi-Fi and Bluetooth 5 (LE) for versatile connectivity
1.3 inch SH1106 OLED display with 128x64 resolution
8MB Flash and 8MB PSRAM for storage and multitasking
Six-axis IMU QMI8658 for motion and orientation sensing
Low power consumption for battery-powered projects
Development support for Arduino, PlatformIO IDE, and MicroPython
Onboard boot, reset, and power buttons for convenient operation

Usage Notes

This board is intended for experimental and verification testing. Please comply with local wireless regulations and select the correct LoRa frequency for your region.
