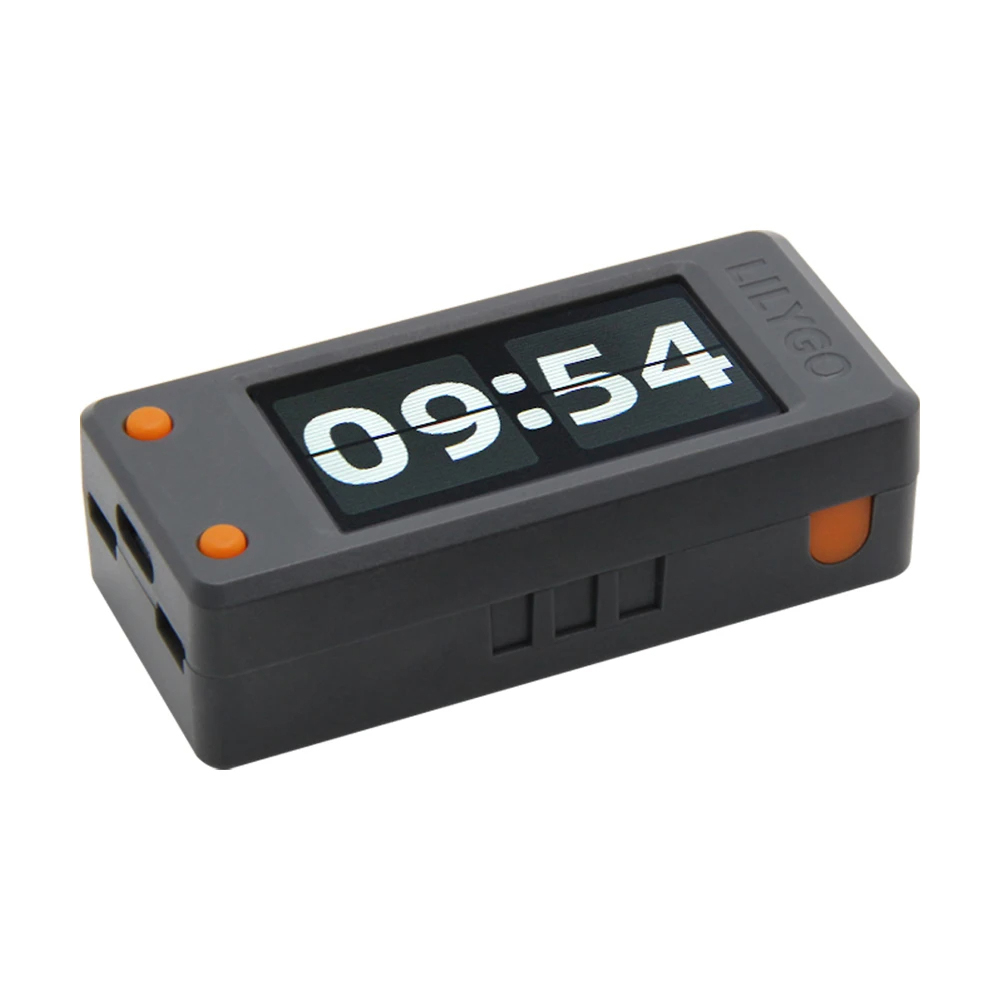

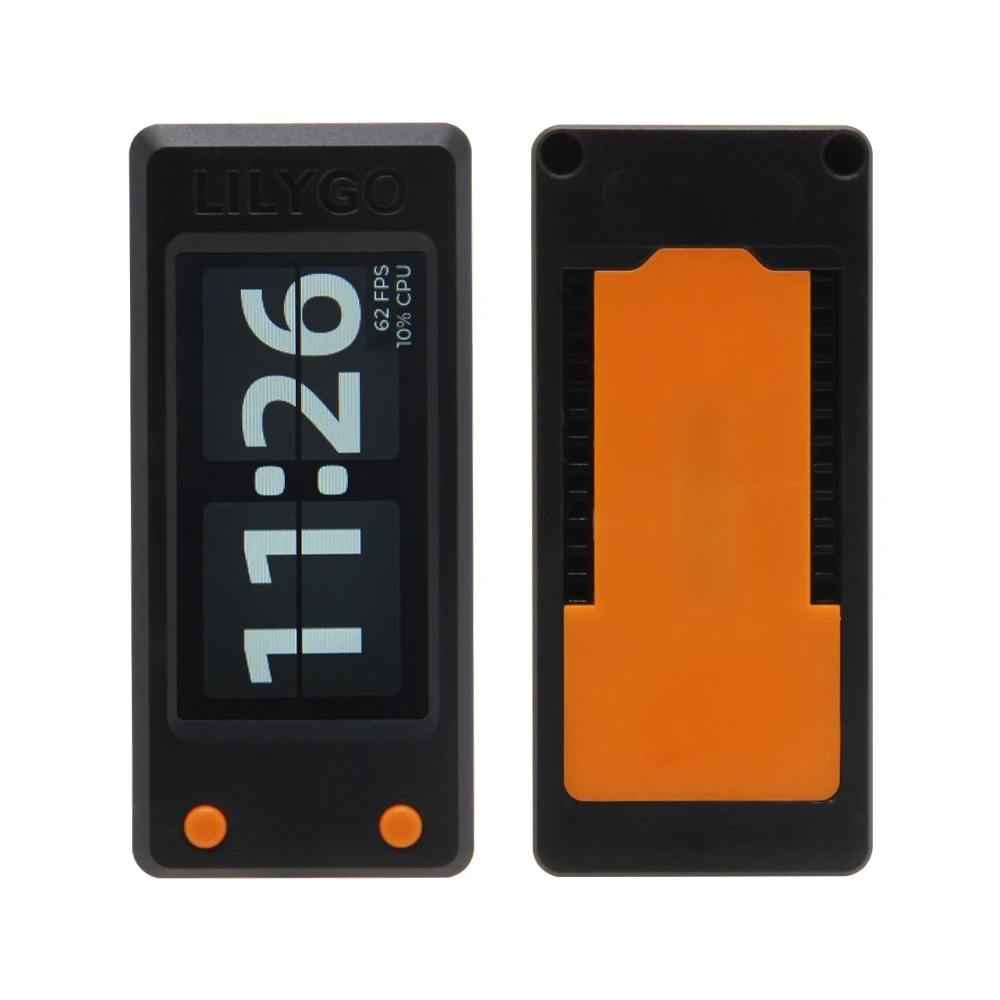

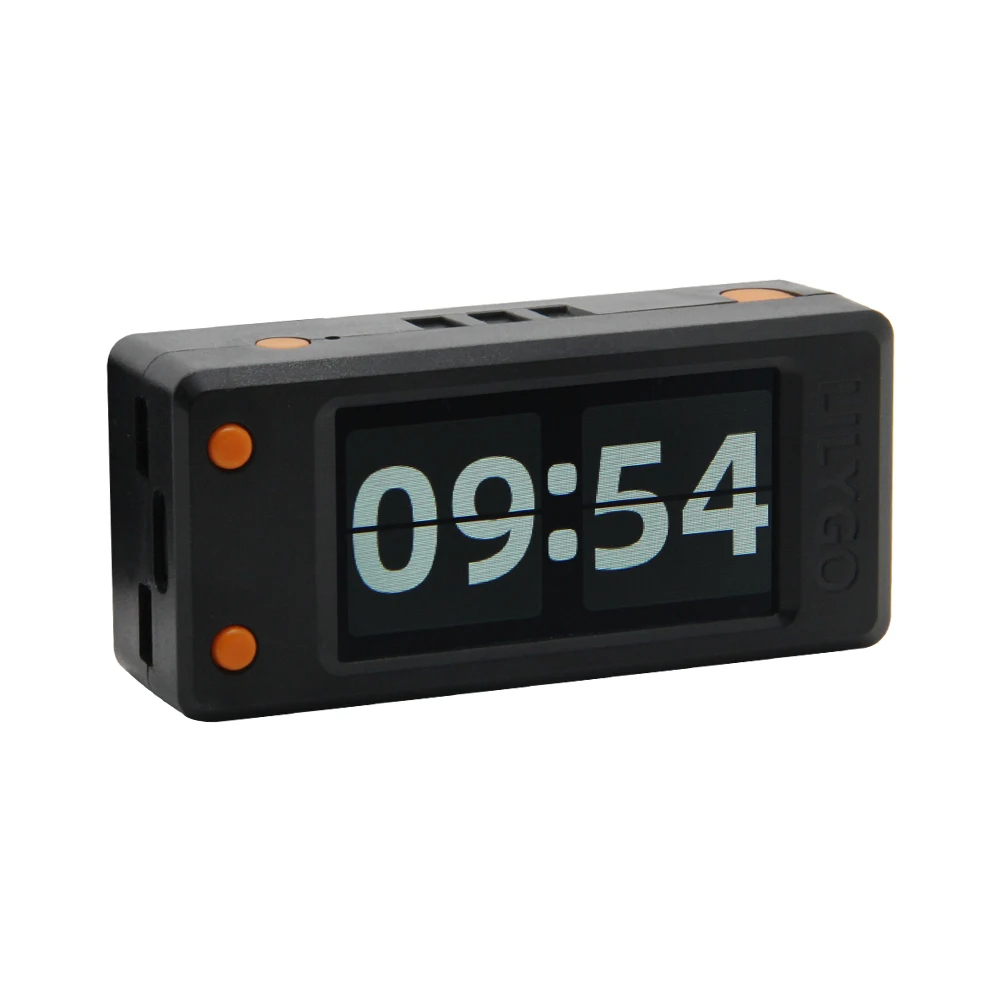

LILYGO T-Display-S3 Black ESP32-S3 Development Board ST7789 1.9inch LCD Screen Display Module With Shell For Arduino

LLYGLLYGRSDP3C5V
$4283
In stock
14 Days
Price in points: 43 points
Shipping time and rates:
+
Add to wish list Compare Ask a question
Delivery
  • Without marking: Maximum 10 - 15 business days
  • Fast delivery: Maximum 10 business days
  • 5-Day Delivery: Maximum 5 business days in the EU
  • We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Payment options
Our advantages

T-Display-S3 Introduction

  • The T-Display series has added a new member.
  • It comes with the latest ESP32-S3 [Wi-Fi 802.11, BLE 5 + BT mesh].
  • The screen has also been expanded from the original 1.14 inches to 1.9 inches, and an acrylic plate has been added to fix it.
  • This will be the second LILYGO model Display with an acrylic plate fixed.
  • The overall design continues the design of the T-Display series.

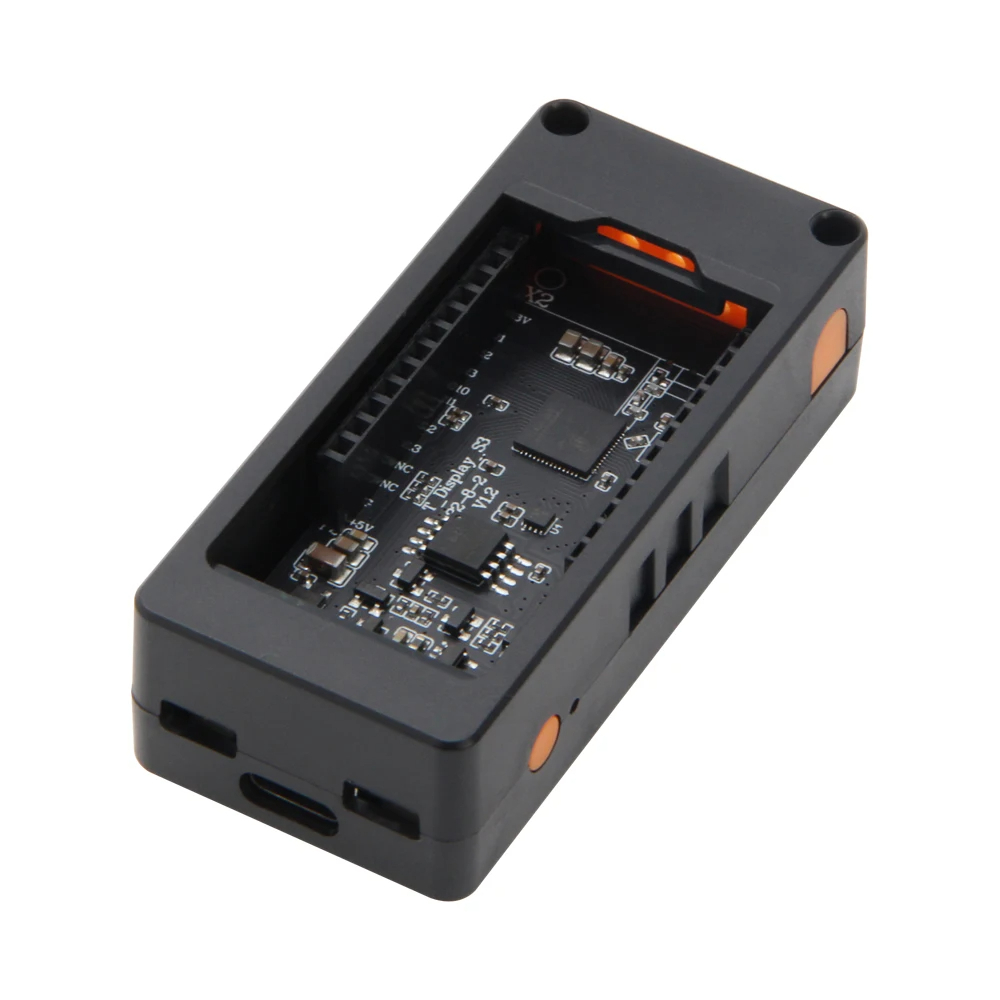

T-Display-S3 is a development board whose main control chip is ESP32-S3. It is equipped with a 1.9-inch LCD color screen and two programmable buttons. Communication using the I8080 interface Retains the same layout design as T-Display. You can directly use ESP32S3 for USB communication or programming.

Specifications

MCUESP32-S3R8 Dual-core LX7 microprocessor
Wireless ConnectivityWi-Fi 802.11, BLE 5 + BT mesh
Programming PlatformArduino-ide、 Micropython
Flash16MB
PSRAM8MB
Bat voltage detectionIO04
Onboard functionsBoot + Reset + IO14 Button
LCD1.9" diagonal, Full-color TFT Display
Drive ChipST7789V
Resolution170(H)RGB x320(V) 8-Bit Parallel Interface
Working power supply3.3v
Support

STEMMA QT / Qwiic

JST-SH 1.0mm 4-PIN

ConnectorJST-GH 1.25mm 2PIN

Features for LILYGO T-Display-S3

Color
Black
