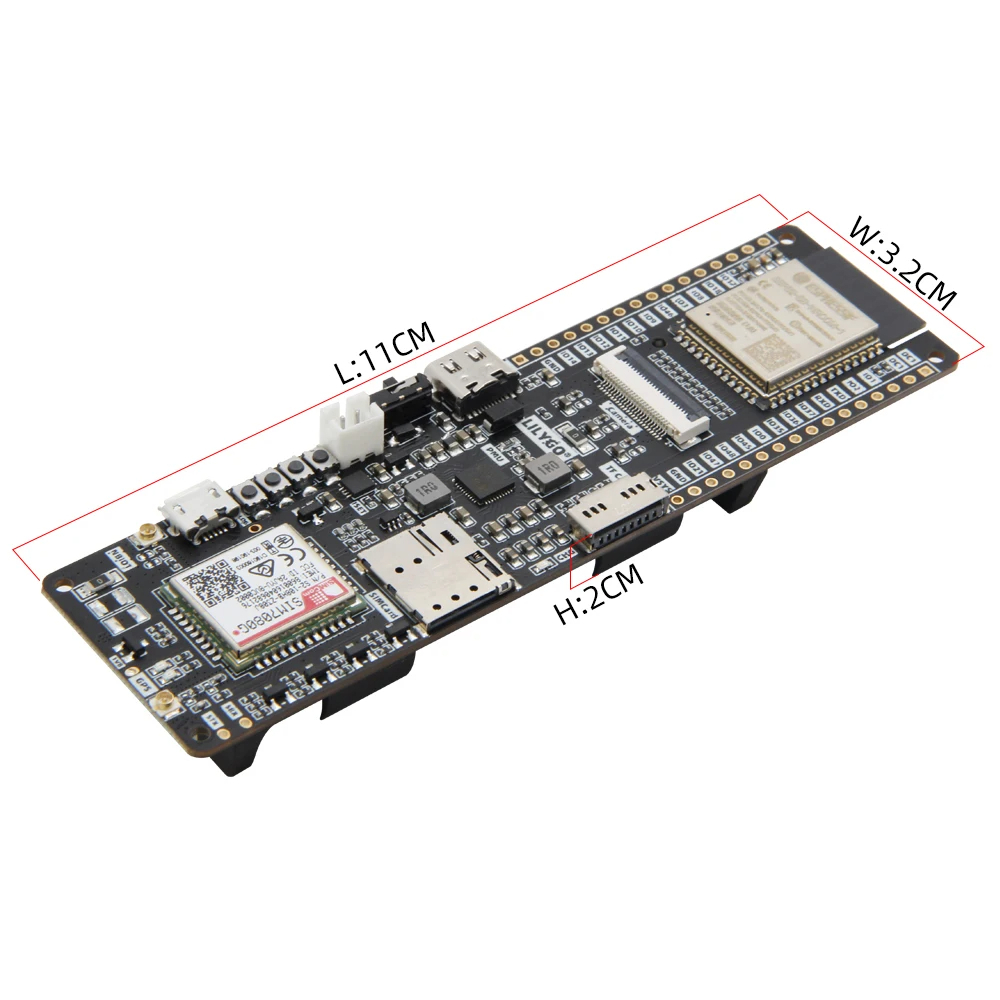

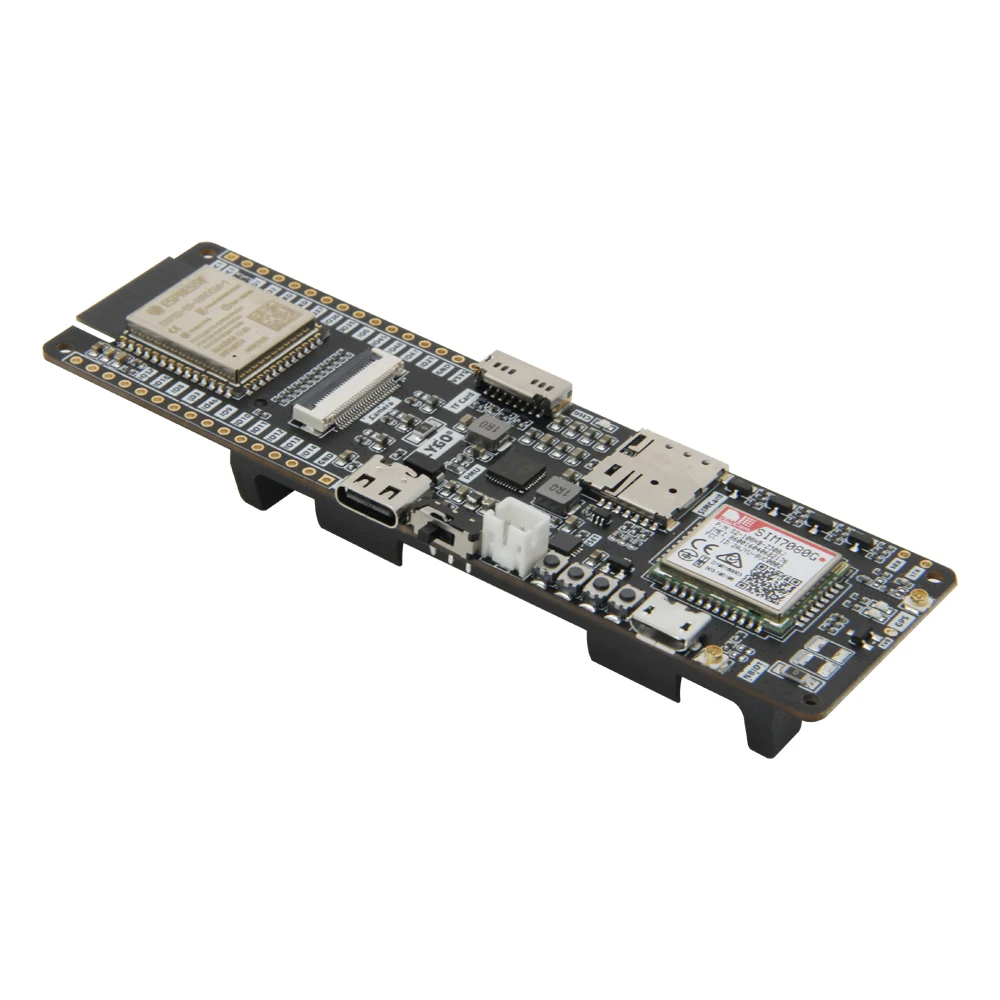

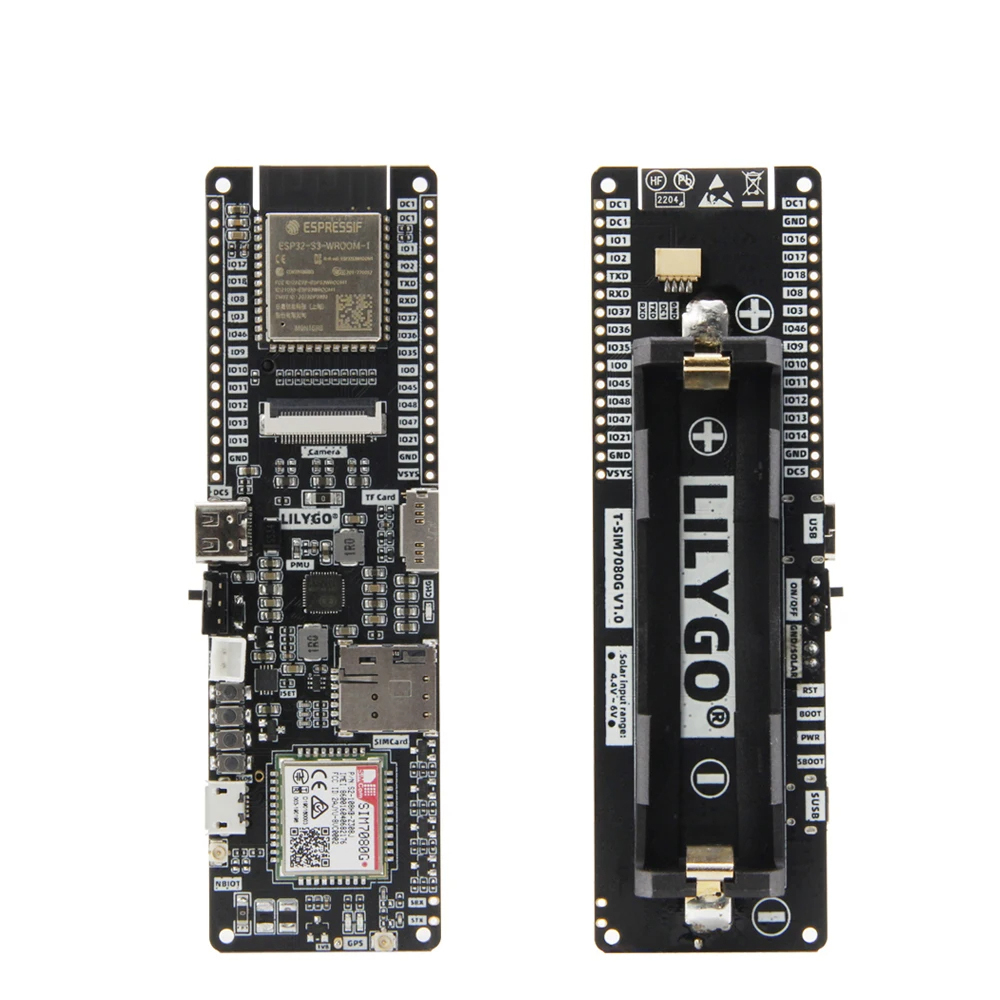

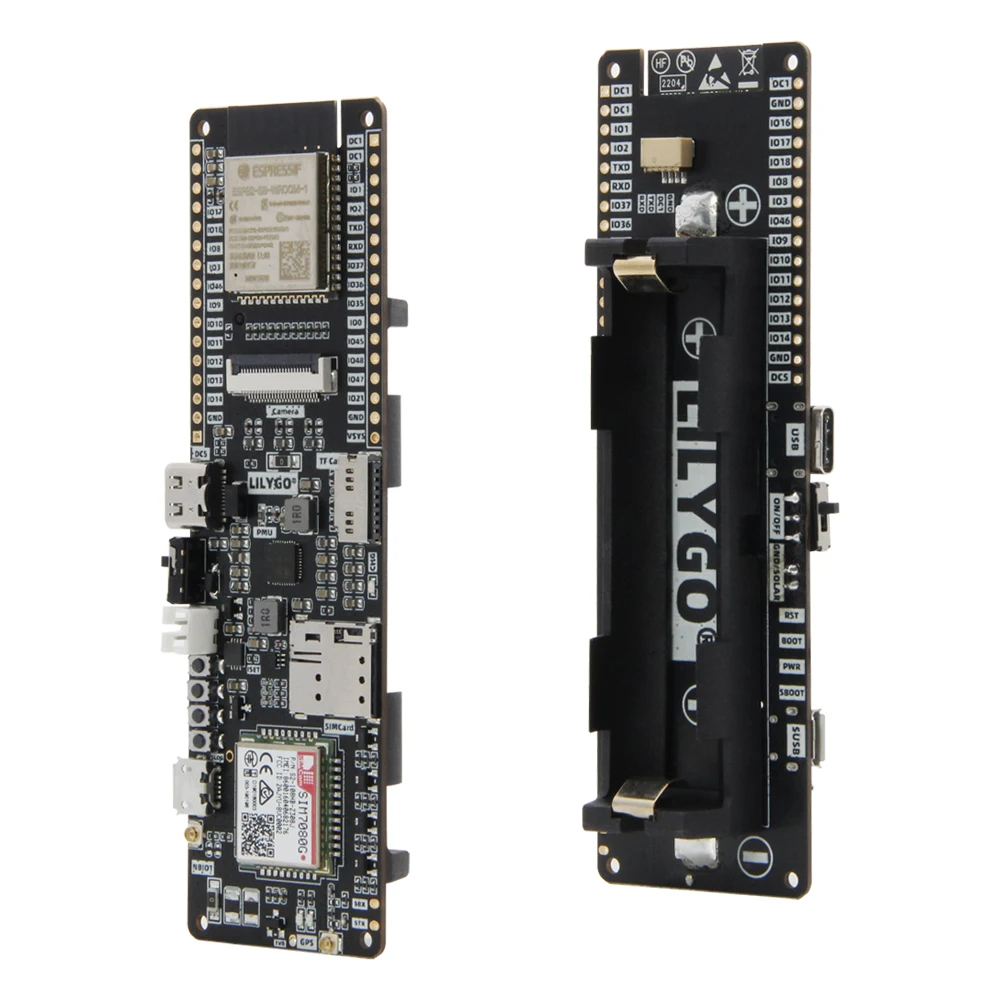

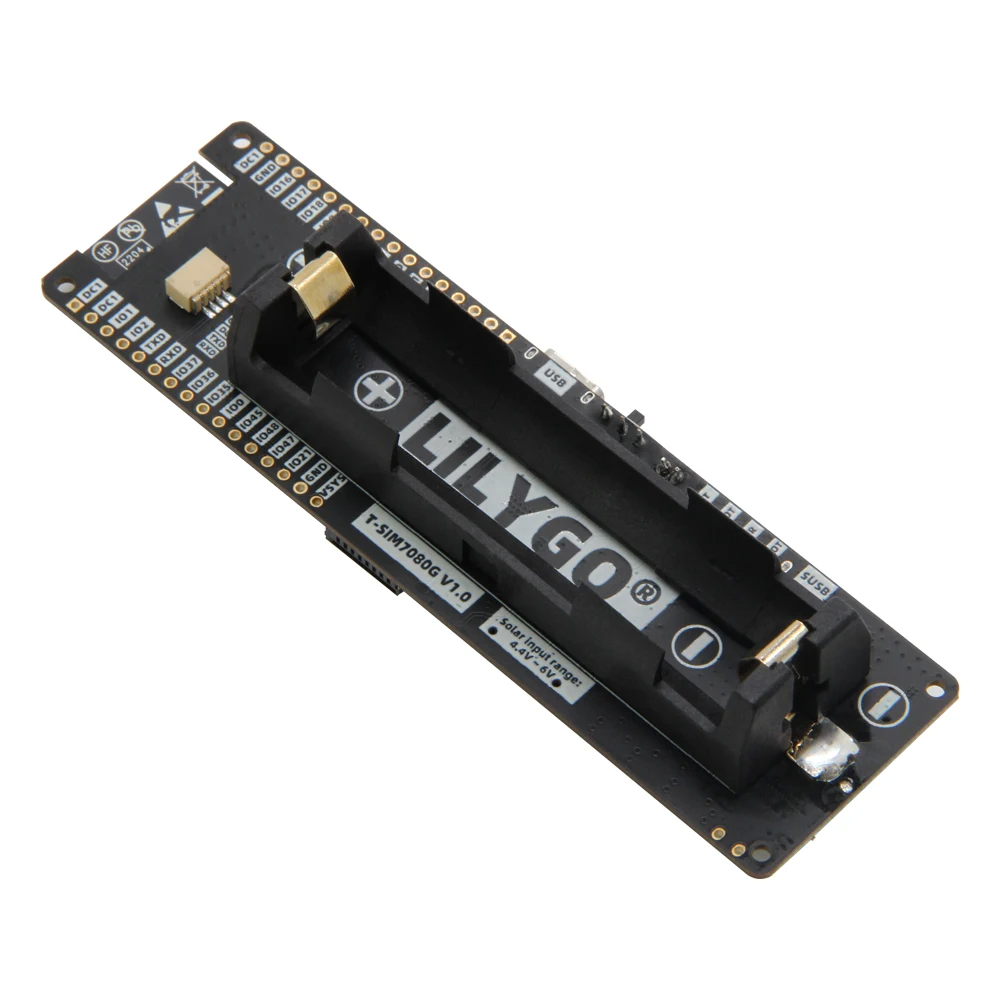

LILYGO T-SIM7080G-S3 ESP32-S3 SIM7080 Development Board Cat-M NB-IoT WiFi Bluetooth 5.0 GPS 16MB Flash 8MB PSRAM
- View all variations as list
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Model |
|---|---|---|---|
€6734
€7551
|
In stock
|
LLYG-LLYG-XNFSQL
|
Model:
|
|
€6734
€7551
|
In stock
|
LLYG-LLYG-XNFSQL_DB50
|
Model:
|
These are some of the delivery methods we use. However, availability and delivery times may vary depending on your country.
- Timely Updates: Receive regular updates about your order through email.
- Easy Returns: We offer hassle-free returns for your convenience.
- Flexible Payments: Choose from various payment methods to suit your preferences.
- Best Prices: Enjoy the benefit of the best prices on our products.
LILYGO T-SIM7080G-S3 is a compact board made for IoT and low-power mobile data projects. It uses an ESP32-S3 chip and the SIM7080G module, so you get Cat-M and NB-IoT cellular support, WiFi, Bluetooth 5.0, and GPS all in one. With 16MB Flash and 8MB PSRAM, it handles multitasking and data storage with ease.
You can connect it to global Cat-M and NB-IoT networks for reliable coverage. GPS, GLONASS, BeiDou, and Galileo are supported for accurate location tracking. The board is designed for efficiency, with PSM as low as 3.2uA and sleep current at just 0.6mA, making it great for battery-powered field devices.
It features a SIM card slot, TF card slot, and multiple interfaces: I2C, SPI, UART, SDIO, I2S, and CAN. The board runs on 3.4–4.2V and is compatible with Windows, Linux, and Android. Supported protocols include TCP/IP, FTP, HTTP, HTTPS, MQTT, and more—ideal for smart city, telemetry, and remote monitoring solutions.
Main Features
- ESP32-S3 MCU, 240MHz
- SIM7080G Cat-M and NB-IoT module
- 16MB Flash, 8MB PSRAM
- WiFi 802.11 b/g/n, Bluetooth 5.0
- GPS, GLONASS, BeiDou, Galileo
- PSM 3.2uA, sleep 0.6mA
- I2C, SPI, UART, SDIO, I2S, CAN
- TF card, SIM card slots
- 3.4–4.2V supply voltage
- Works with Windows, Linux, Android
Where It Excels
- IoT with cellular data
- Remote monitoring and logging
- Smart city and asset tracking
- Mobile telemetry and low-power sensors
