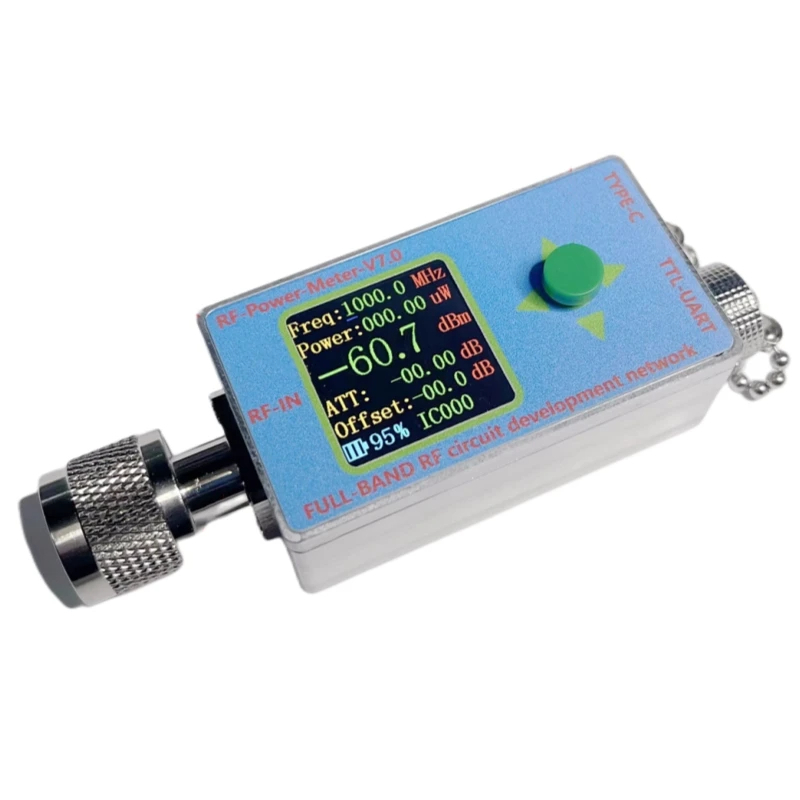

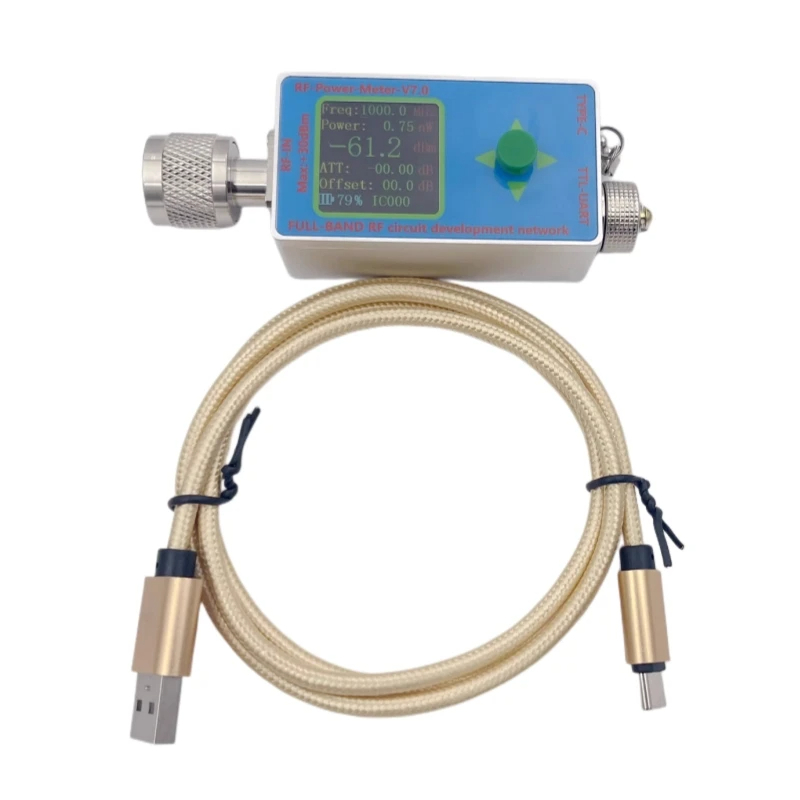

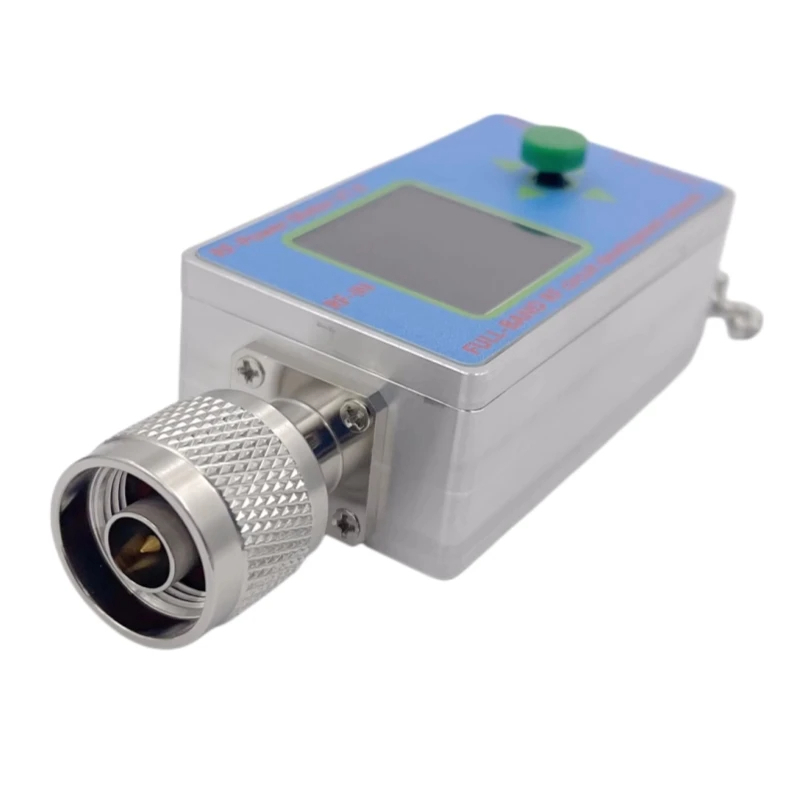

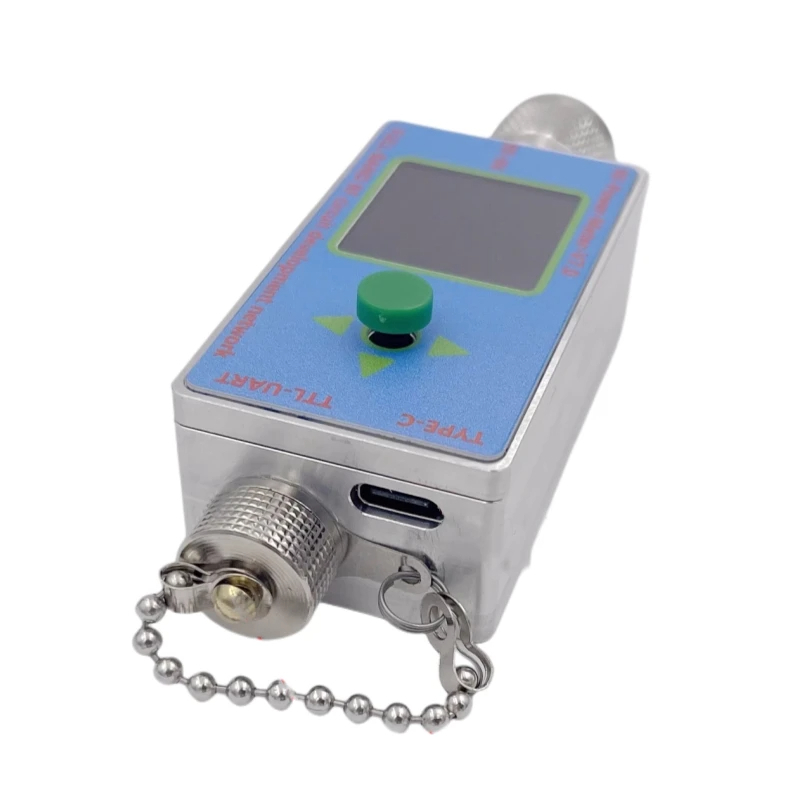

The RF Power Meter V7.0 is a high-performance, portable RF power meter supporting signals up to 10GHz. It features a 1.3-inch TFT LCD, built-in lithium battery for offline use, and a robust CNC aluminum alloy housing. With Type-C USB for power and high-speed data, and an N-type male RF input, it’s ideal for field and lab applications.
- Frequency Range: 100kHz – 10GHz (model dependent)
- Measuring Power Range: -60 ~ +30dBm (good linearity 0 ~ -40dBm)
- Resolution: ±0.1dBm
- Dynamic Range: 90dB
- Input Impedance: 50Ω
- Display: 1.3" TFT LCD
- Attenuator: Digital, 0–31.75dB, max input 30dBm (1W)
- PC Software: Data logging, export, and configuration
- Serial Interface: TTL via 4-port aviation plug
- Battery: Built-in lithium, USB Type-C charging (300mA)
- Size: 66 × 36 × 24mm (excluding N connector)
- Weight: <100g (aluminum CNC shell)
Applications
- Calibration and maintenance of RF equipment
- Standing wave ratio and return loss measurement
- Wireless interference detection
- RSSI and transmit power level detection
- Amplifier gain and network attenuation measurement
- Forward/reflected power in directional couplers
- GSM signal power measurement (GMSK modulation)

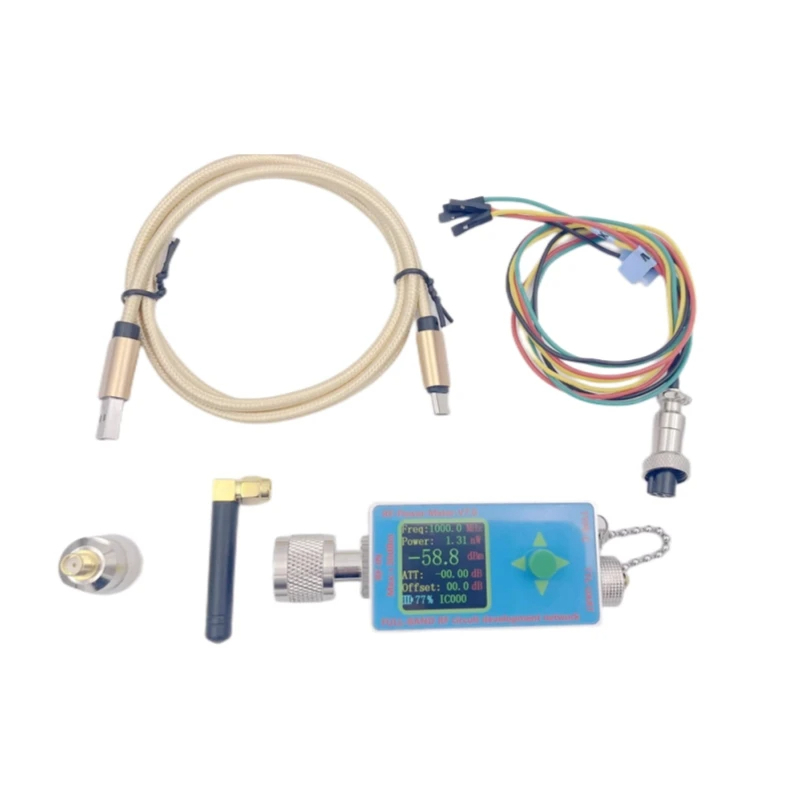

Package Includes
- 1 × RF Power Meter V7.0
- 1 × USB cable
- 1 × TTL cable (if purchased)
