SV6301A 7 inch 6.3GHz HF VHF UHF Vector Network Analyzer Antenna Analyzer SWR VNA NanoVNA Upgrade
These are some of the delivery methods we use. However, availability and delivery times may vary depending on your country.
- Timely Updates: Receive regular updates about your order through email.
- Easy Returns: We offer hassle-free returns for your convenience.
- Flexible Payments: Choose from various payment methods to suit your preferences.
- Best Prices: Enjoy the benefit of the best prices on our products.

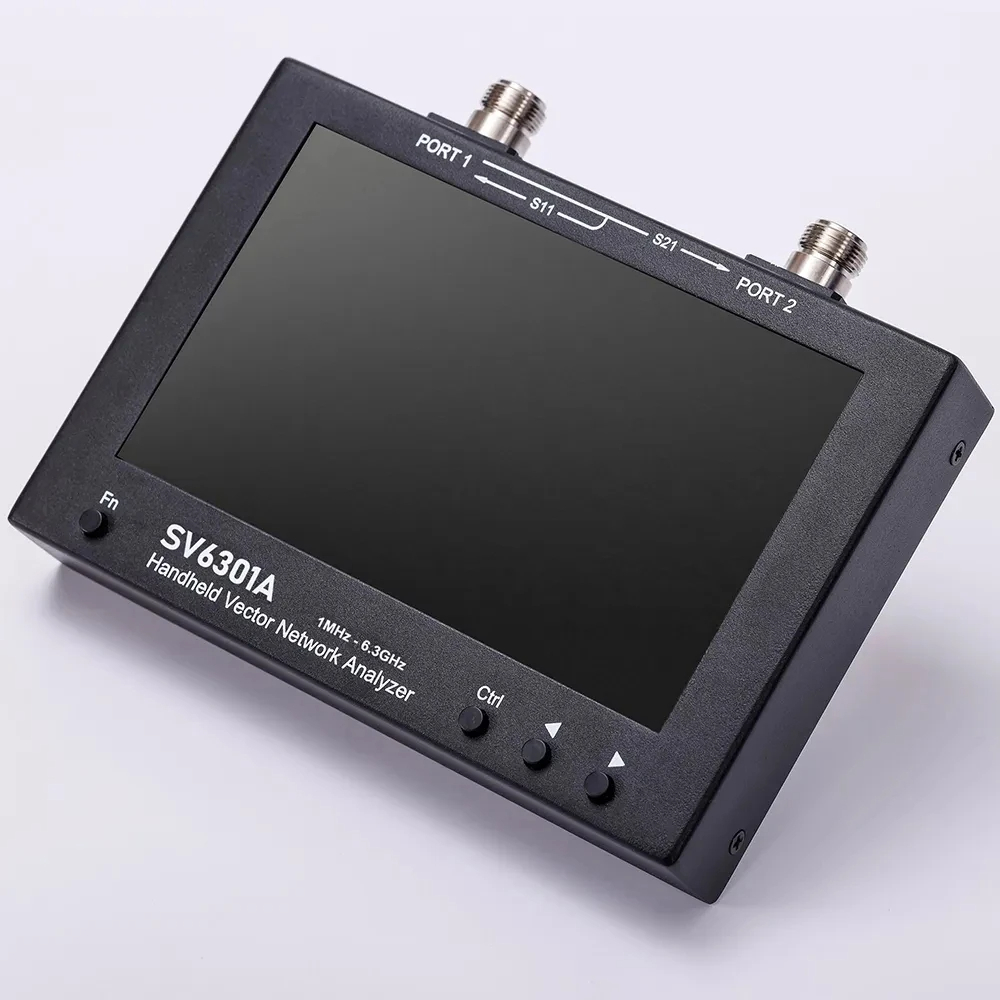

The SV6301A 7 inch 6.3GHz Vector Network Analyzer is a powerful and portable tool designed for precise testing of antennas, filters, amplifiers, cables, and other RF components across MF, LF, HF, VHF, and UHF bands. Featuring a large 7-inch IPS LCD with 1024x600 resolution and capacitive touch panel, it offers clear visibility even outdoors.
With a frequency range from 1MHz to 6.3GHz and 1001 measurement points, the SV6301A provides high accuracy with a dynamic range up to 100dB and low-noise RF design for precise results. It supports Time Domain Reflectometry (TDR) for cable length and fault detection, and stores calibration data, screenshots, and measurement files on an included 8GB TF card.
Powered by dual 18650 lithium batteries (3.6V/3350mAh each), it offers up to 3 hours of operation at 50% screen brightness. The device charges via USB Type-C (5V/2A recommended) and includes multiple physical buttons, a back bracket for ergonomic use, and N connectors with SMA adapters for versatile connectivity.
Key Features
- Frequency range: 1MHz - 6.3GHz covering MF/LF/HF/VHF/UHF bands
- 1001 measurement points with sweep speed of 500 points/sec
- High dynamic range: 100dB (below 3GHz), 65dB (above 3GHz)
- Low-noise RF design for accurate measurements
- 7-inch IPS LCD with capacitive touch panel, resolution 1024x600
- Time Domain Reflectometry (TDR) for cable length and fault detection
- 8GB TF card included for calibration, screenshots, and data storage
- Dual 18650 lithium batteries (3.6V/3350mAh) with 3-hour battery life
- USB Type-C charging port (5V/2A recommended)

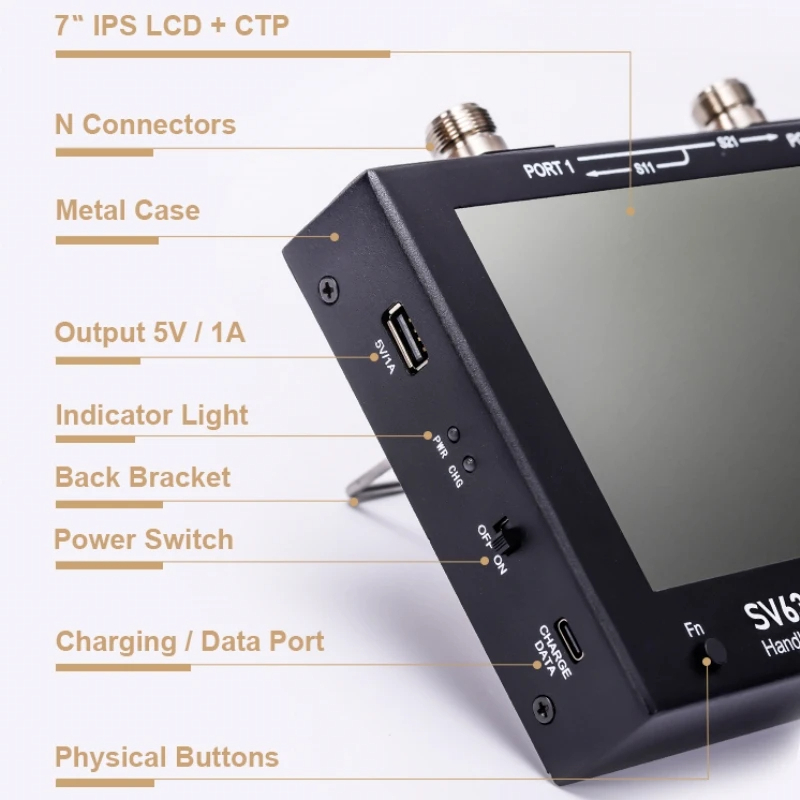

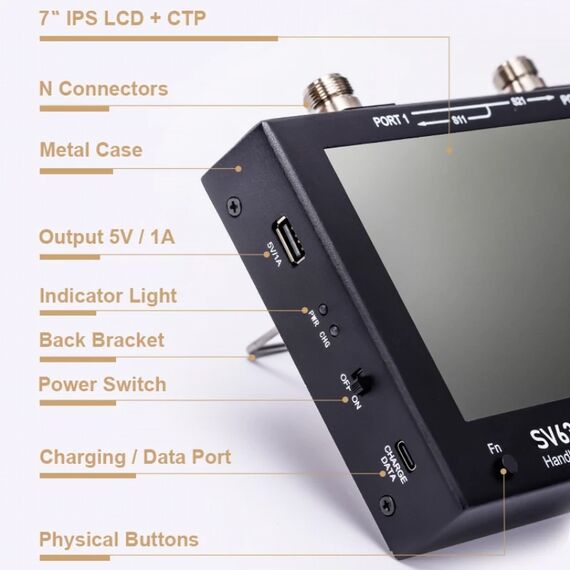

- Physical buttons, back bracket, N connectors with SMA adapters
Specifications
- Dimensions: 190mm x 130mm x 30mm
- Weight: 1.15kg (without accessories), 1.65kg (with accessories)
- Operating temperature: -10°C to 45°C
- Power consumption: 6.5W
- RF output power: -40dBm to -10dBm
- RF input power max: 0dBm
- Frequency accuracy: < ±1ppm
- S21 dynamic range: 75dB (< 3GHz), 65dB (> 3GHz)
- S11 dynamic range: 50dB (< 3GHz), 40dB (> 3GHz)
- Sweep points: 1001 (adjustable 101 to 1001)
- Sweep speed: 500 points/sec (f>25MHz)
- IF bandwidth: 12.5kHz default (adjustable down to 30Hz)
- Memory card: 8GB TF included
- Battery: Duo 18650 lithium 3.6V/3350mAh x2
- Charging: USB Type-C 5V/2A recommended
Package Contents

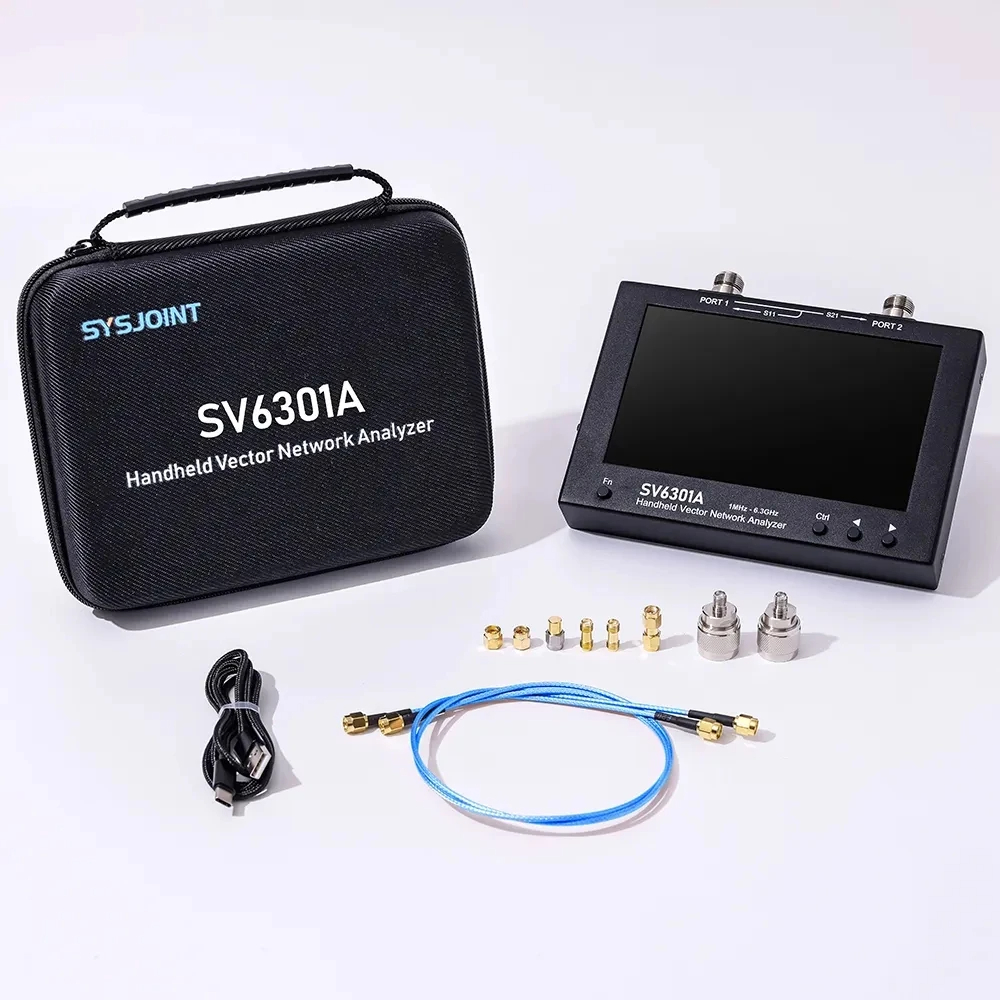

- SV6301A device
- 2 x N Male to SMA Female adapters
- Calibration kit: 3 gold-plated SMA loads (LOAD, OPEN, SHORT)
- 2 x SMA Female to SMA Female connectors
- 1 x SMA Male to SMA Male connector
- 2 x 60cm SS405 cables
- USB Type-C cable

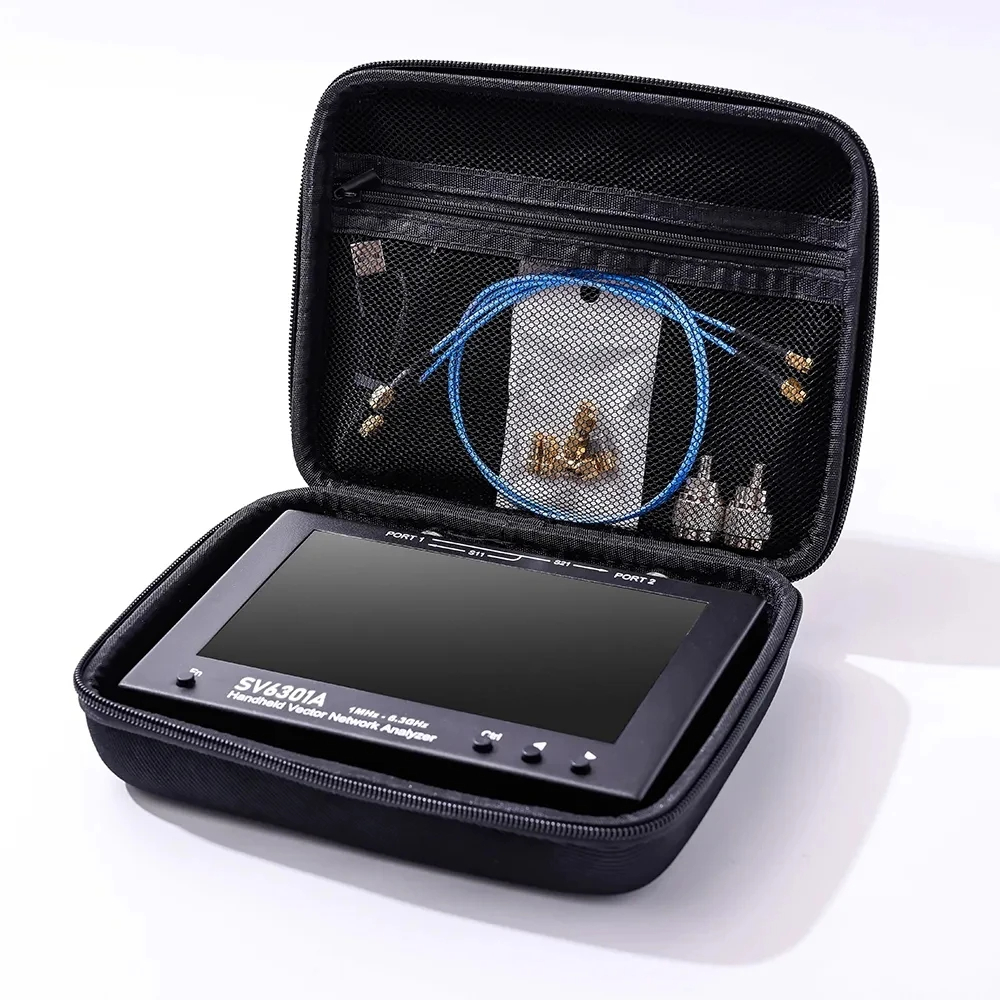

- Carrying bag
