LILYGO Helium T-Beam V1.2 ESP32 LoRa Development Board LoRaWAN 868MHz 915MHz GPS NEO-6M 18650 Battery Holder


These are some of the delivery methods we use. However, availability and delivery times may vary depending on your country.




- Timely Updates: Receive regular updates about your order through email.
- Easy Returns: We offer hassle-free returns for your convenience.
- Flexible Payments: Choose from various payment methods to suit your preferences.
- Best Prices: Enjoy the benefit of the best prices on our products.

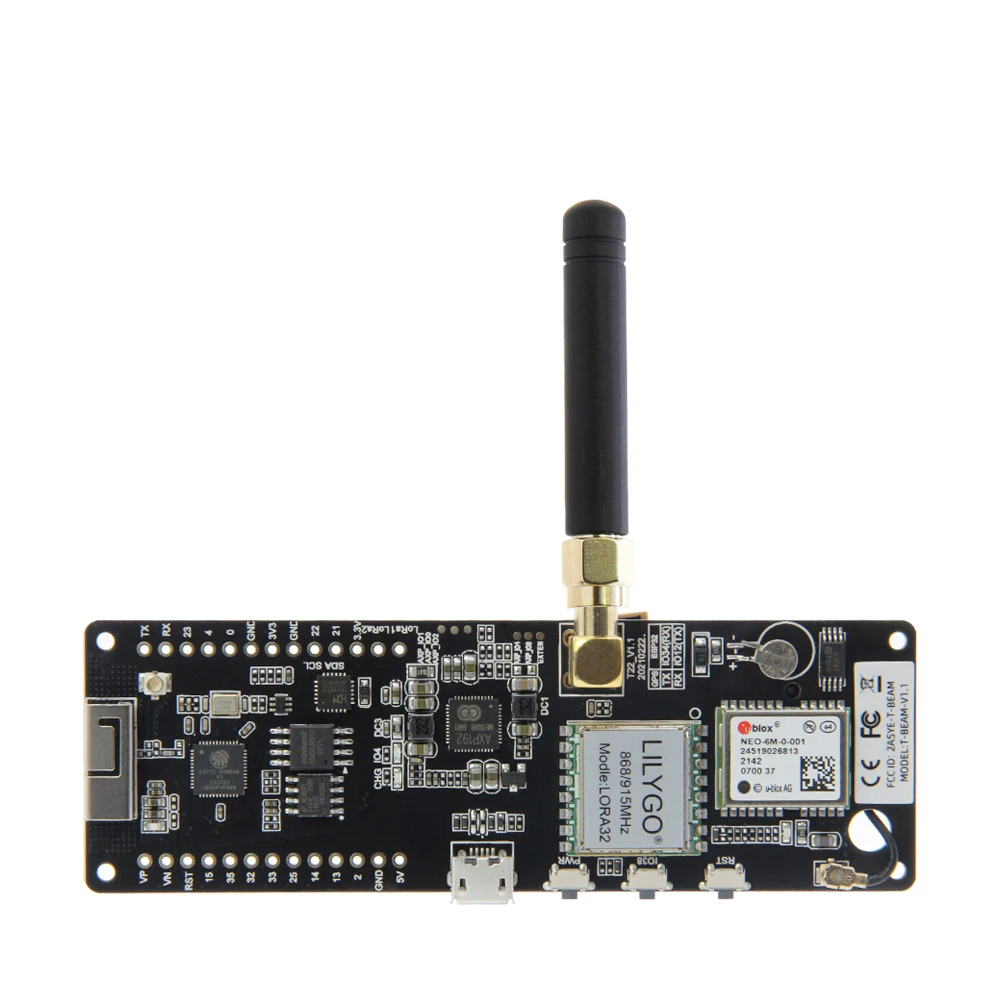

LILYGO Helium T-Beam V1.2 is a compact board for LoRaWAN, Helium, and GPS projects. It’s built around the ESP32, offers both 868MHz and 915MHz LoRa support, and includes a NEO-6M GPS for location tracking. The board runs on USB or a single 18650 battery, making it great for portable or outdoor setups. WiFi and Bluetooth 4.2 are onboard for extra connectivity.
Main Features
- ESP32 MCU with 4MB Flash and 8MB PSRAM
- LoRa SX1276 for 868MHz or 915MHz
- NEO-6M GPS module for accurate positioning
- WiFi 802.11 and Bluetooth 4.2
- AXP2101 power management, USB or 18650 battery
- RTC crystal for timed wake-up and low-power use
- Three buttons: Power, IO38, Reset
- High LoRa sensitivity and 300kbps data rate
- CH9102 USB-to-Serial for easy programming

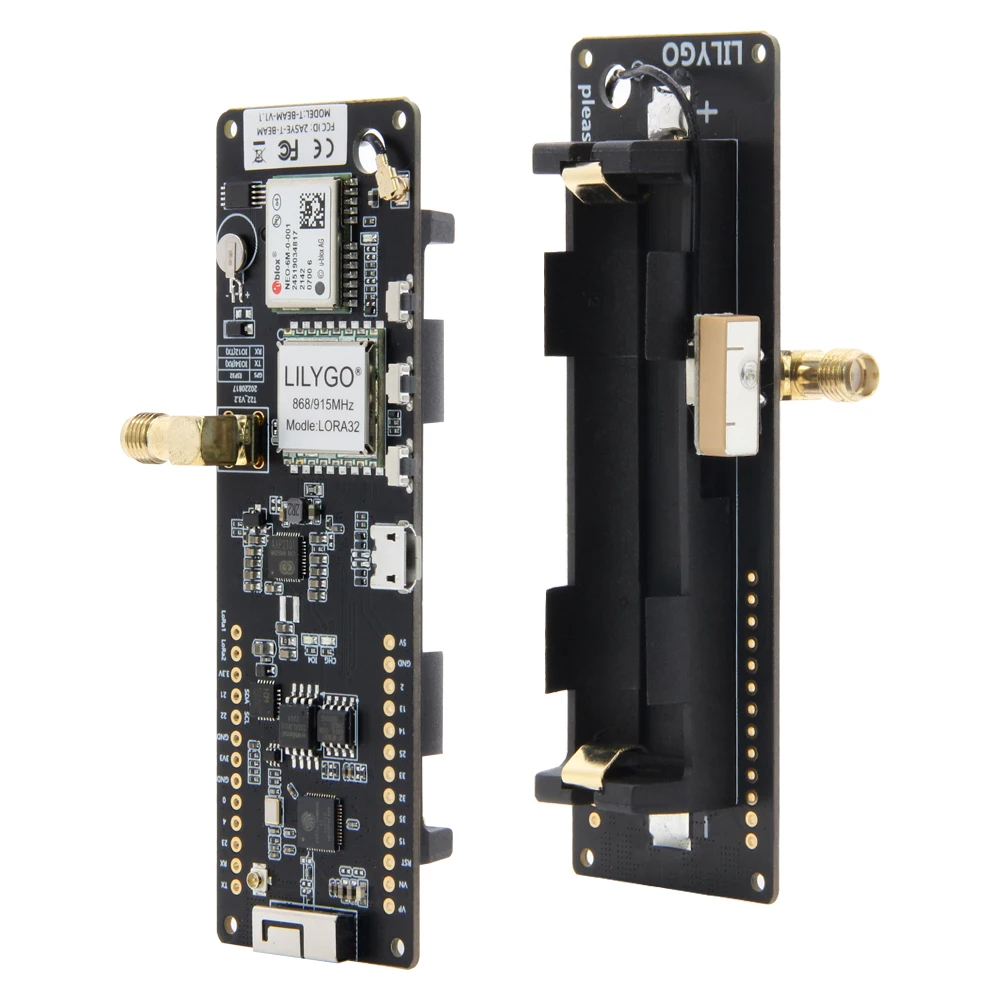

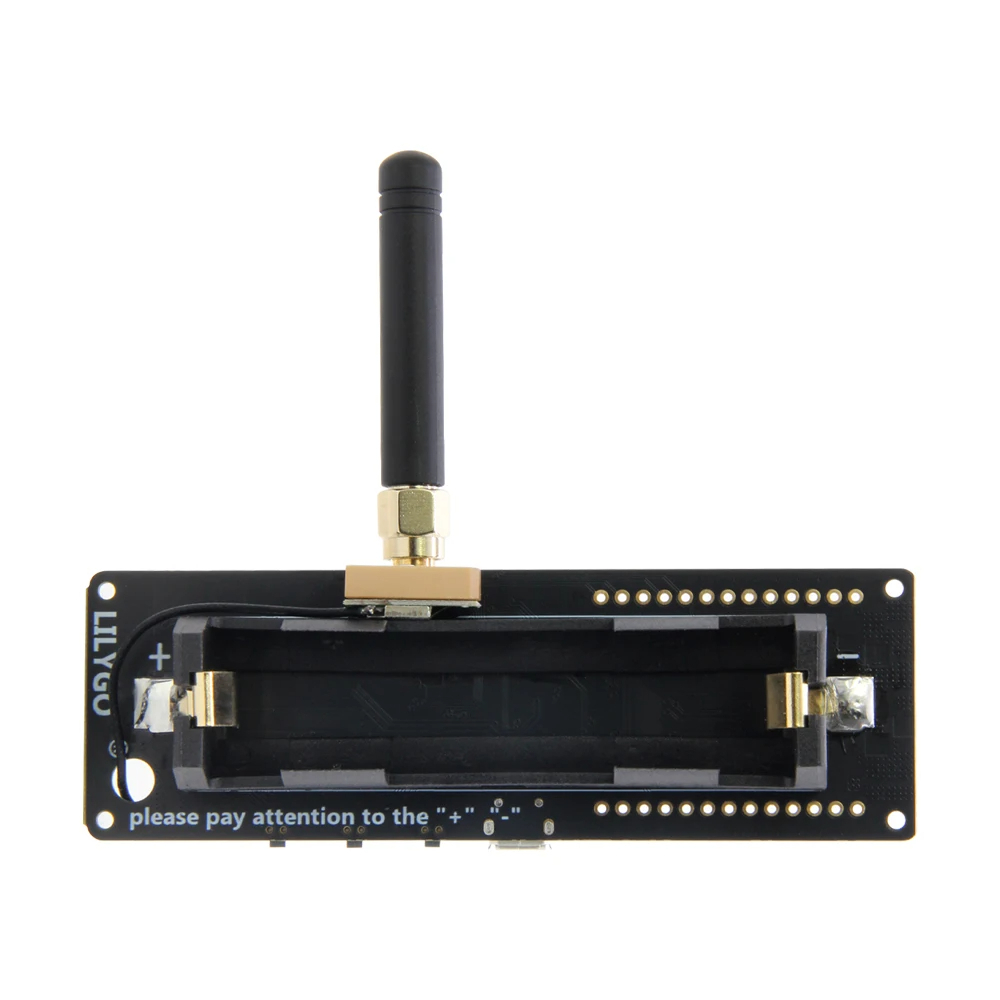

- Sturdy battery holder and SMA antenna connector
Where It Works Best
- Helium nodes and LoRaWAN coverage
- GPS asset tracking and remote monitoring
- Environmental sensors and field data loggers
- Smart city, disaster alert, and mobile IoT
