RFUWB UWBPA-10M1G-8W/16W 10-1000MHz Broadband RF Power Amplifier 8W/16W UWB RF Power Amp Module
€27769 €31414
RFUWB UWBPA-10M1G-8W/16W 10-1000MHz Broadband RF Power Amplifier 8W/16W UWB RF Power Amp Module
RFWB-MPLF-C3Y5PN
Delivery
DHL express - Fast
Delivery time varies by country
from 3 EUR
FedEx express - Reliable international shipping
Delivery time varies by country
from 3 EUR
We offer free shipping for orders over 415 EUR. Free shipping also applies to products marked with the Free Shipping sticker, even if the order total is below this amount. Availability and delivery times may vary depending on your country.
Payment options
Explore and use a variety of other convenient payment methods available at the checkout page.
Our advantages
- Order Protection: If your order is lost, we guarantee a replacement or a refund. Terms apply.
- Easy Returns: Enjoy a simple and hassle-free return process.
- Flexible Payments: Choose from multiple secure payment options that fit your needs.
- Best Prices: Get the best value on all our products.
Description

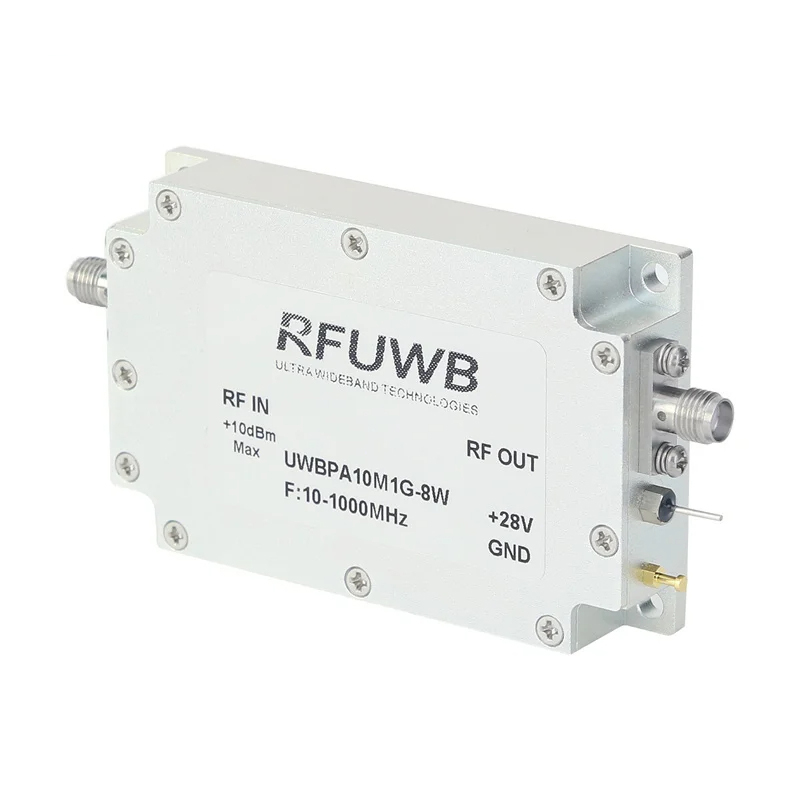

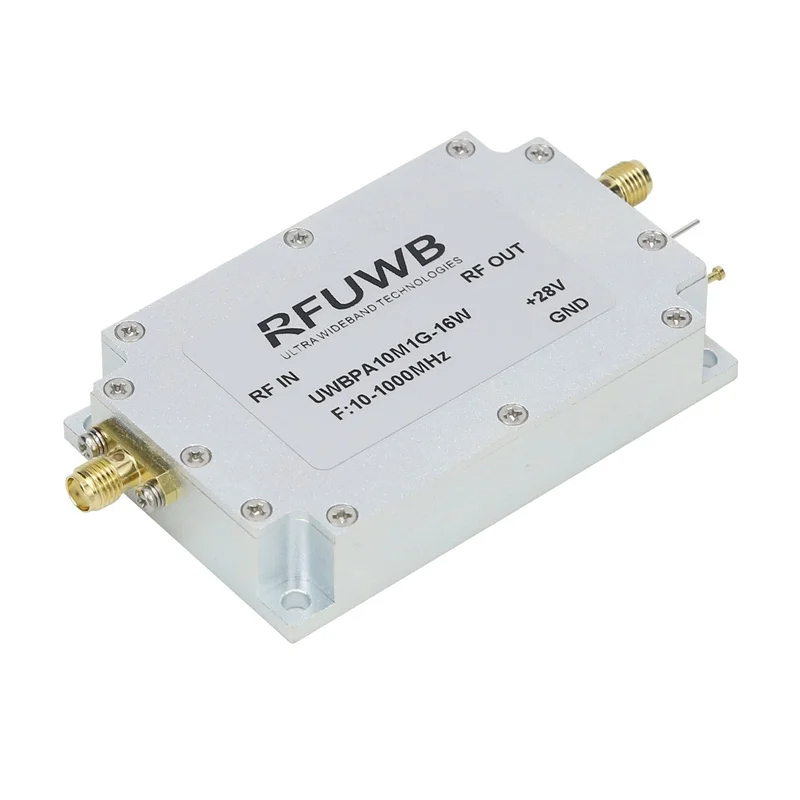

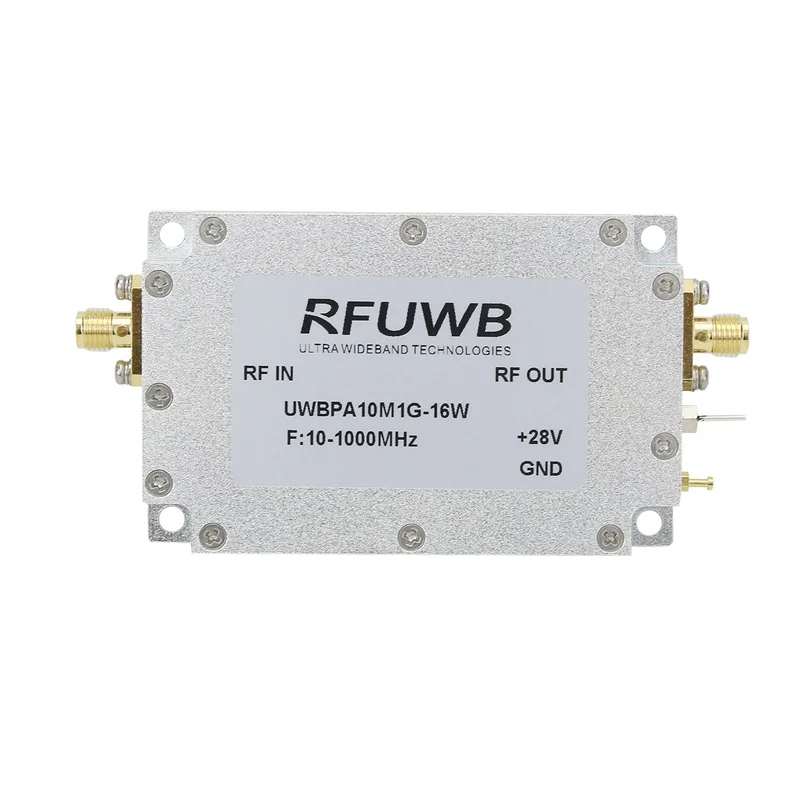

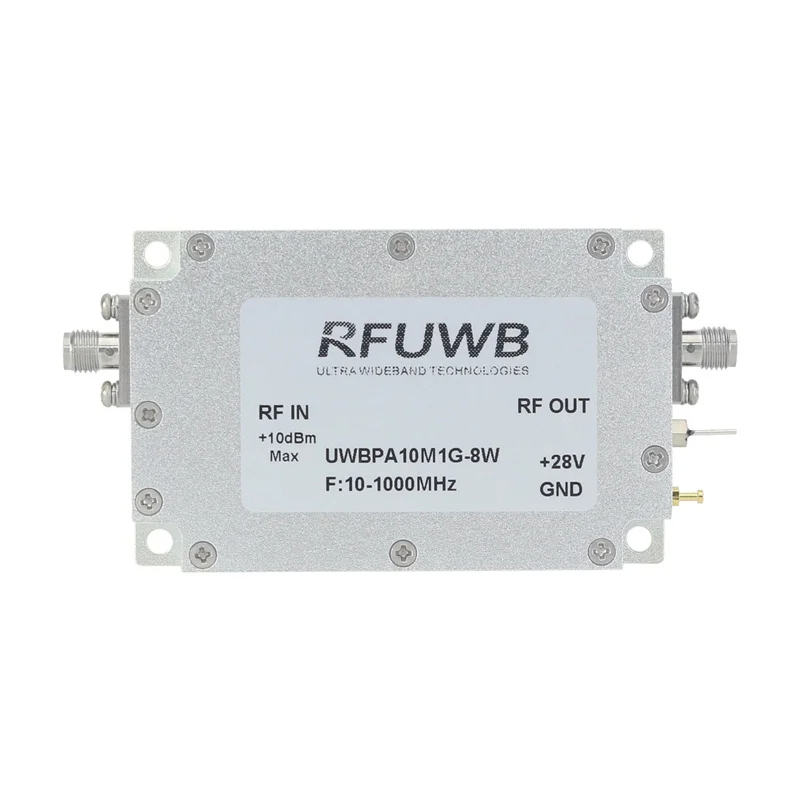

The RFUWB UWBPA10M1G-16W, UWBPA10M1G-8W is a high-performance broadband RF power amplifier available in two versions: 8W and 16W output power, covering 10–1000MHz. With a typical gain of 33dB, this Class AB linear LDMOS module is built for reliability and ruggedness, featuring built-in protection circuits and 50-ohm input/output impedance.
- Frequency Range: 10–1000MHz (0.01–1GHz)
- Output Power: 8W or 16W (typical 39dBm / 42dBm)
- Gain: 33dB (typical), flatness ±2dB
- Supply Voltage: 28V DC, current 0.15–1.2A
- Input/Output Impedance: 50Ω, SMA-Female connectors
- Operating Temp: -30°C to +60°C
- Dimensions: 76 x 48 x 15mm (excluding connectors)
- Cooling: Forced air required at 25°C
- Protection: Built-in circuits for safe operation
Applications
- Test equipment
- Communication systems
- RF research and development
- Signal amplification in broadband setups
Features
Power
8W
Products questions
Ask question
Titi
03/02/2026, 01:06
What side should the heat-sink be placed on? Top or bottom?
SDRstore Support
03/15/2026, 13:01

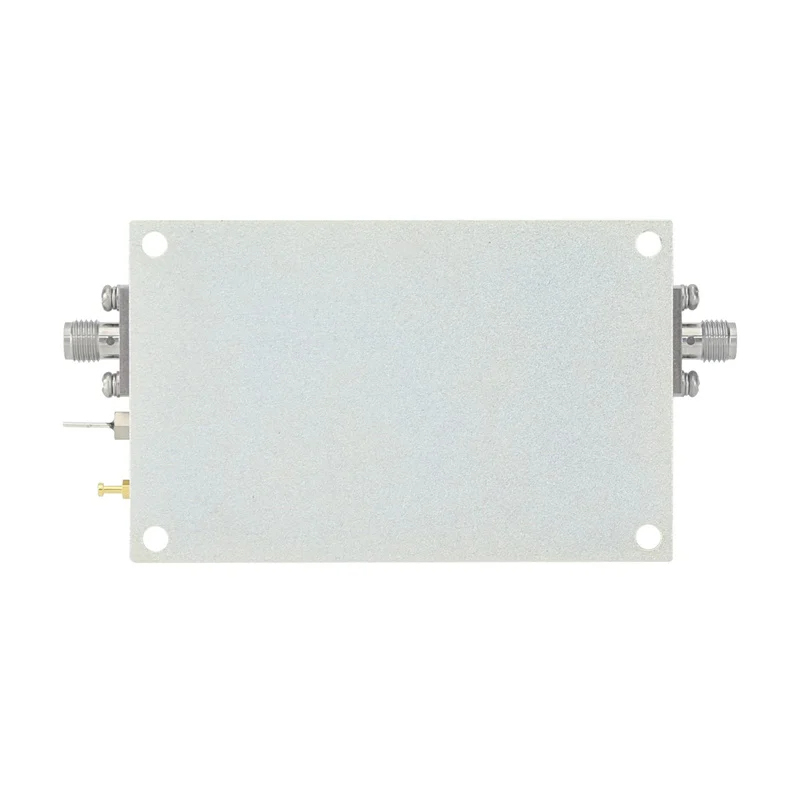

Hello, For this model, the heat sink should be placed on the bottom / base side of the amplifier, meaning the flat mounting side that is intended to transfer heat into a metal surface or heat sink. The top side with the components should remain unobstructed. The product listing also notes that forced-air cooling is required at 25°C, so a proper heat sink plus active airflow is recommended for safe operation.
