Microphase Z7-Nano FPGA Dev Board Zynq-7000 7010/7020, Dual GigE
MCRP-FPGB-FQH5PZ
Column filling
| Sort by Price | Sort by Availability | Sort by CODE | Sort by Version |
|---|---|---|---|
 €14818 €18371 | In stock | MCRP-FPGB-FQH5PZ | Version: |
 €21625 | In stock | MCRP-FPGB-Z8JBVW | Version: |
Delivery
DHL express - Fast
Delivery time varies by country
from 3 EUR
FedEx express - Reliable international shipping
Delivery time varies by country
from 3 EUR
We offer free shipping for orders over 415 EUR. Free shipping also applies to products marked with the Free Shipping sticker, even if the order total is below this amount. Availability and delivery times may vary depending on your country.
Payment options
Explore and use a variety of other convenient payment methods available at the checkout page.
Our advantages
- Order Protection: If your order is lost, we guarantee a replacement or a refund. Terms apply.
- Easy Returns: Enjoy a simple and hassle-free return process.
- Flexible Payments: Choose from multiple secure payment options that fit your needs.
- Best Prices: Get the best value on all our products.
Description

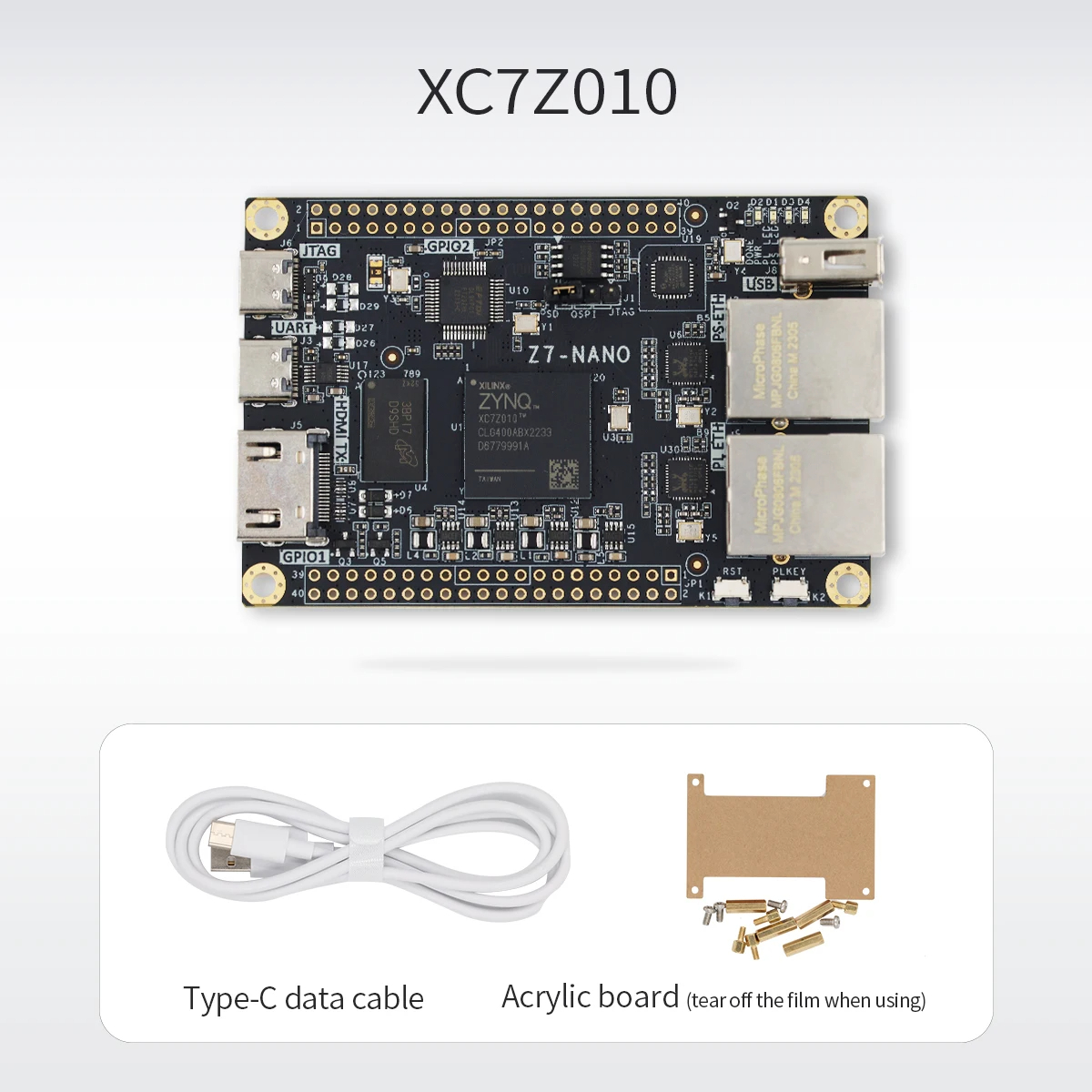

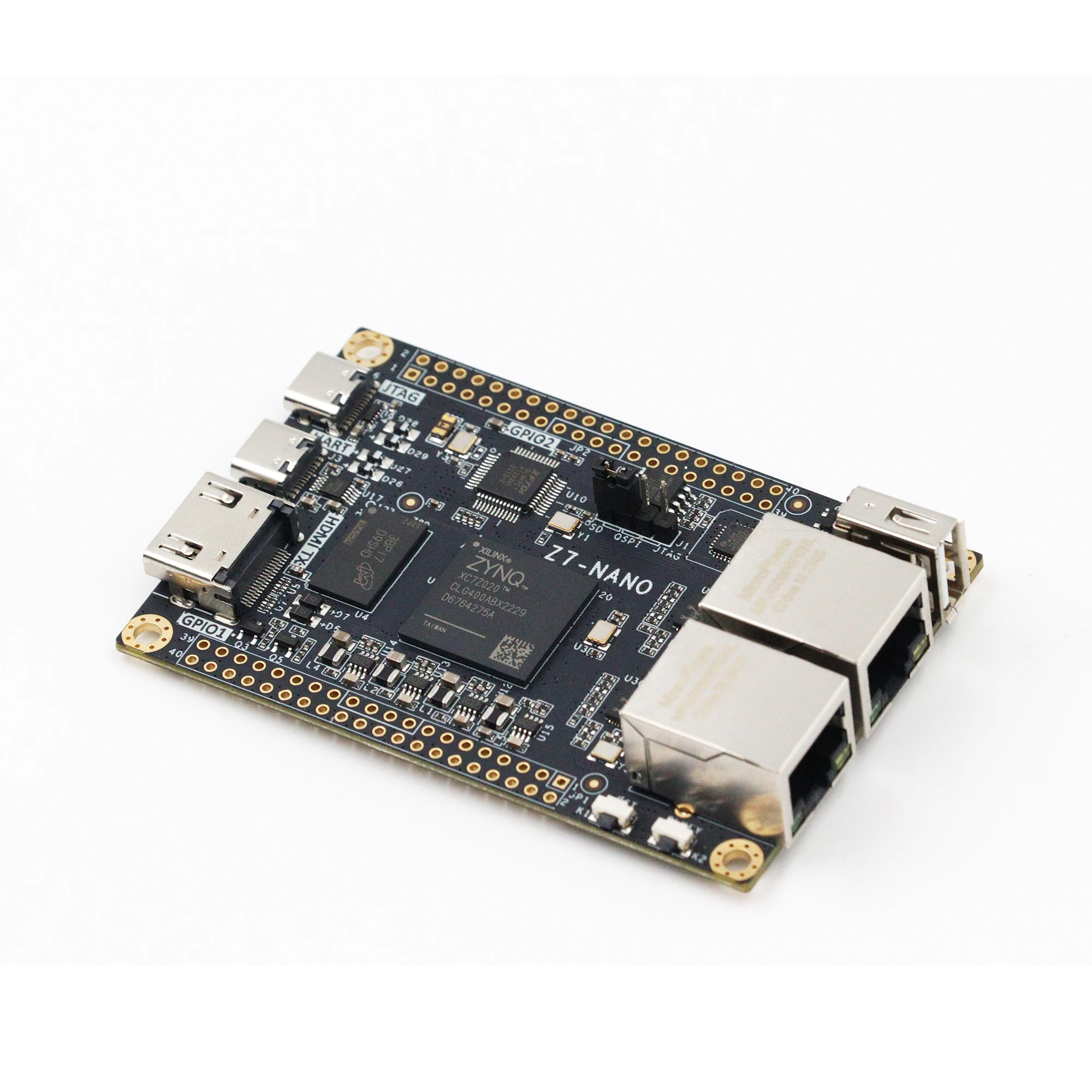

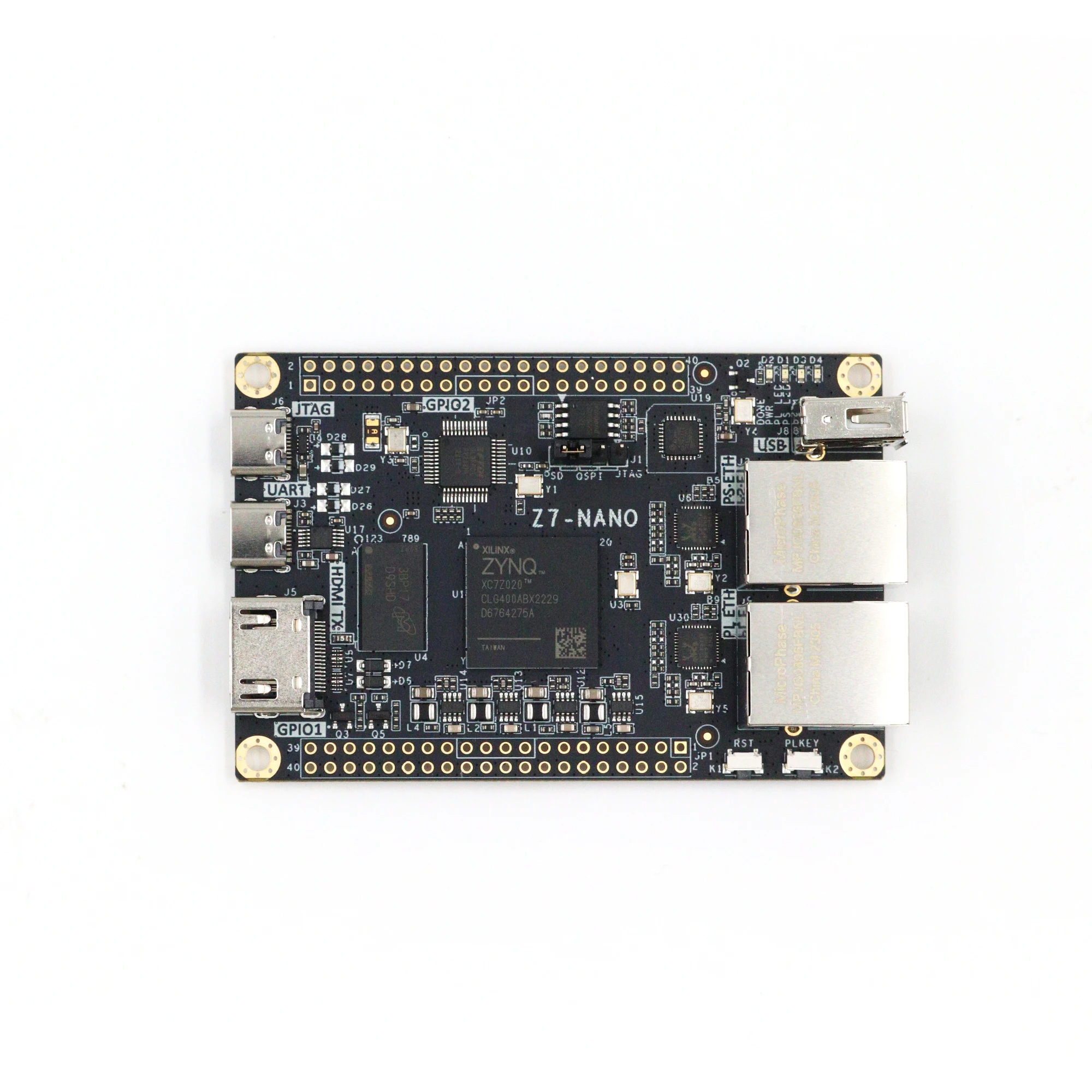

The Microphase Z7-Nano is a compact FPGA development board featuring the Xilinx Zynq-7000 SoC in two variants: Z7-Nano 7010 (XC7Z010CLG400-1) with 28K logic cells and 667 MHz dual-core Cortex-A9, or Z7-Nano 7020 (XC7Z020CLG400-2) with 85K logic cells and 766 MHz dual-core Cortex-A9.
Key Features and Specifications
- DDR3: 4 Gbit @ 1066 Mbps
- QSPI Flash: 128 Mbit for Zynq boot & user data
- On-board USB-JTAG for programming & debugging
- PS Clock: 33.3333 MHz; PL Clock: 50 MHz
- Buttons & LEDs: 1 PS button, 1 PS LED, 1 PL LED
- PCB: 8-layer immersion gold with power & ground planes
Connectivity & Peripherals

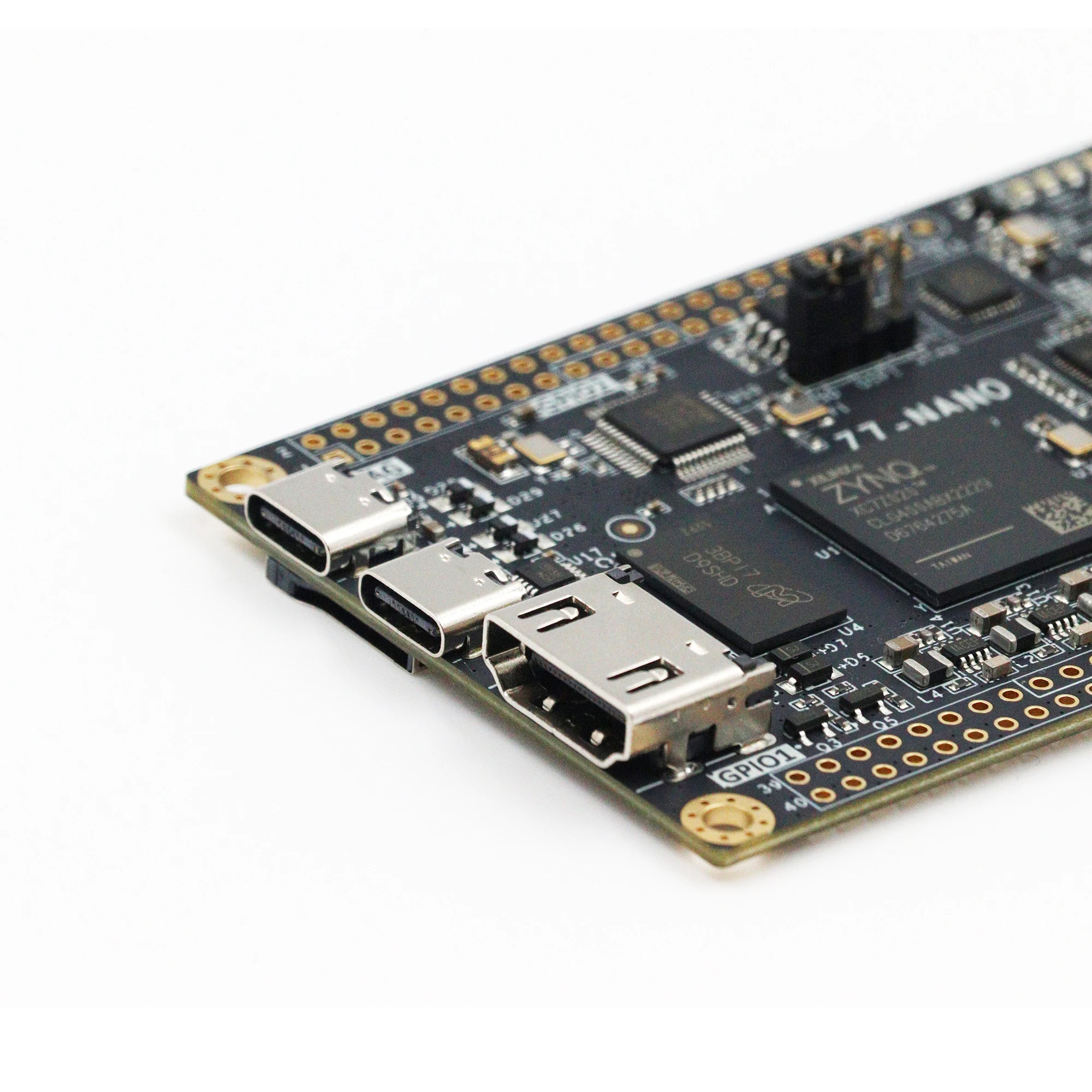

- HDMI TX (1080p@60 Hz) configurable as RX (720p@60 Hz)

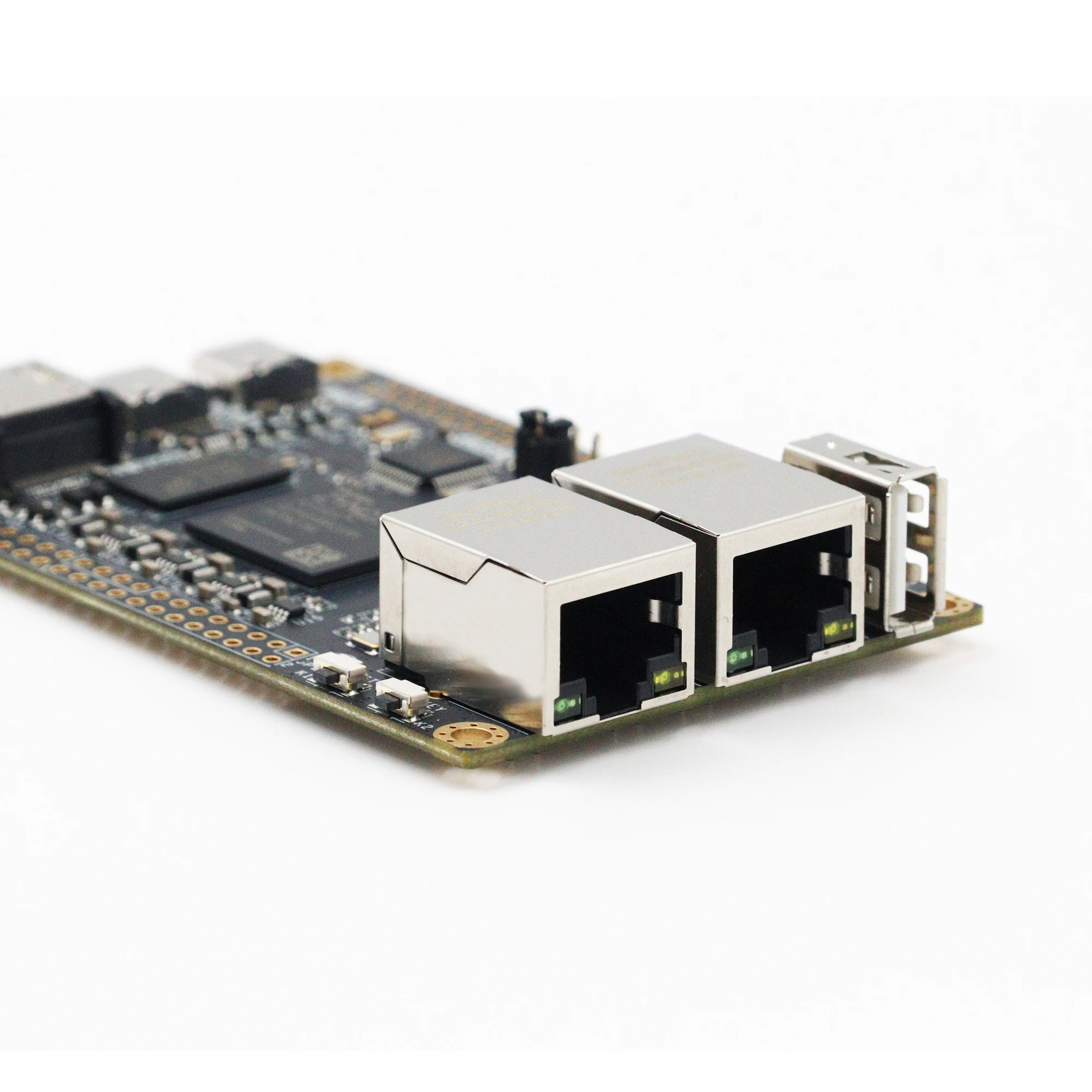

- Dual Gigabit Ethernet (PS & PL sides)
- USB Host & USB-UART for console & peripherals
- Micro SD slot for PYNQ and file storage
- GPIO Expansion: Two 40-pin headers (72 I/Os @ 3.3 V)
Applications
- PYNQ-based embedded and AI development
- FPGA prototyping and DSP acceleration
- Network & multimedia application testing
- Educational labs and research projects
Features
Brand Name
MicroPhase
Products questions
Ask question
roustam
12/16/2025, 21:35
Hello there, Do you have full technical support and documentation for this board: https://www.sdrstore.eu/fpga-development/fpga-boards/microphase-z7-nano-fpga-dev-board-zynq-7000-7010-7020-dual-gige/ Can I introduce myself that pack before buy ? It uses new chips or refurbished/reballed ? any warranty at least for 2..3 months ? Regards
SDRstore Support
12/27/2025, 22:48
Thank you for your question. We do provide technical support and documentation for the Microphase Z7-Nano FPGA development board. Some documentation is available directly in the product description on the page you linked. If you need additional files or technical details, we can also send them upon request. The board is brand new, not refurbished or reballed. It uses the original new Zynq-7000 series components as specified. This product comes with a 2-year warranty in accordance with EU law, giving you peace of mind after your purchase. If you have any further questions or need more documentation before buying, just let us know.
