Deauther 32 LCD Kit ESP32-C5 5GHz WiFi Security Auditor
We offer free shipping for orders over 415 EUR. Free shipping also applies to products marked with the Free Shipping sticker, even if the order total is below this amount. Availability and delivery times may vary depending on your country.
- Order Protection: If your order is lost, we guarantee a replacement or a refund. Terms apply.
- Easy Returns: Enjoy a simple and hassle-free return process.
- Flexible Payments: Choose from multiple secure payment options that fit your needs.
- Best Prices: Get the best value on all our products.

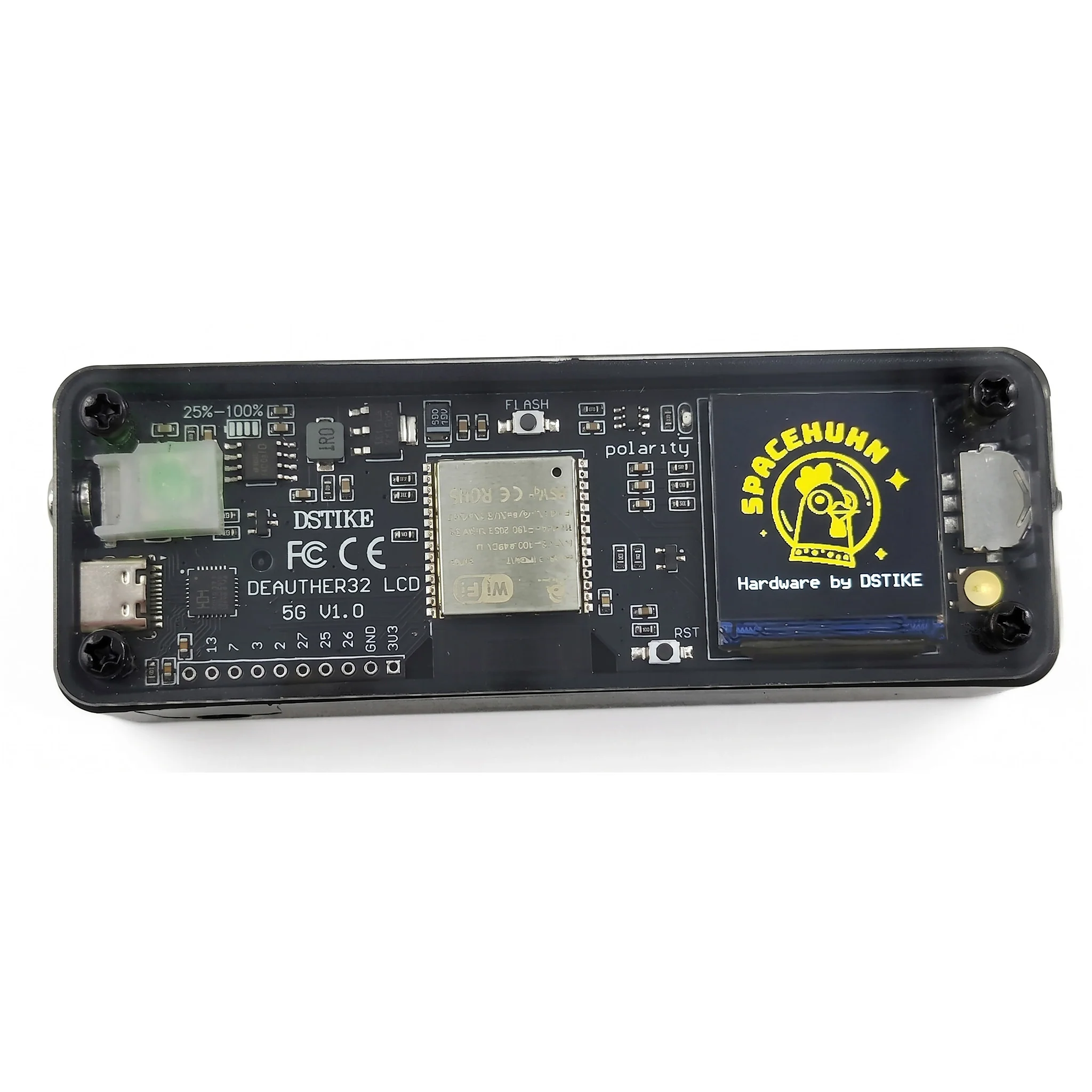

The Deauther 32 LCD Kit is a portable ESP32-C5 Wi-Fi security auditing and development platform designed for cybersecurity education, authorized wireless testing, and ESP32-C5 experimentation. Built around the dual-band ESP32-C5 SoC, this kit supports modern 2.4GHz and 5GHz Wi-Fi security research in a compact handheld format.
The board comes pre-flashed with upgraded Deauther firmware and includes a 1.3-inch ST7789 IPS HD display, USB Type-C connectivity, an integrated charging circuit, a 3-way scroll switch, and an 18650 flat-head battery slot for portable operation.
Important Legal Use Notice
This device is intended only for educational use, authorized security auditing, and testing networks or devices that you own or have explicit permission to assess. Unauthorized interference with wireless networks may be illegal. Always follow local laws, radio regulations, and responsible security testing practices.
ESP32-C5 Dual-Band Wi-Fi Platform
The Deauther 32 LCD Kit is powered by the ESP32-C5, a modern wireless SoC that supports both 2.4GHz and 5GHz Wi-Fi development. This makes it a more advanced option compared with traditional 2.4GHz-only ESP8266-based testing boards.
1.3-Inch IPS HD Display
The integrated 1.3-inch ST7789 IPS HD screen provides a clear interface for viewing scan information, device status, logs, menus, and real-time wireless testing data. The compact display makes the kit practical for handheld use, demonstrations, and portable lab setups.
Pre-Flashed and Ready for Development
The kit ships with optimized Deauther firmware pre-installed, allowing users to begin learning and testing in authorized environments without needing to flash firmware before first use. It is also suitable for developers who want to experiment with custom ESP32-C5 firmware and wireless applications.

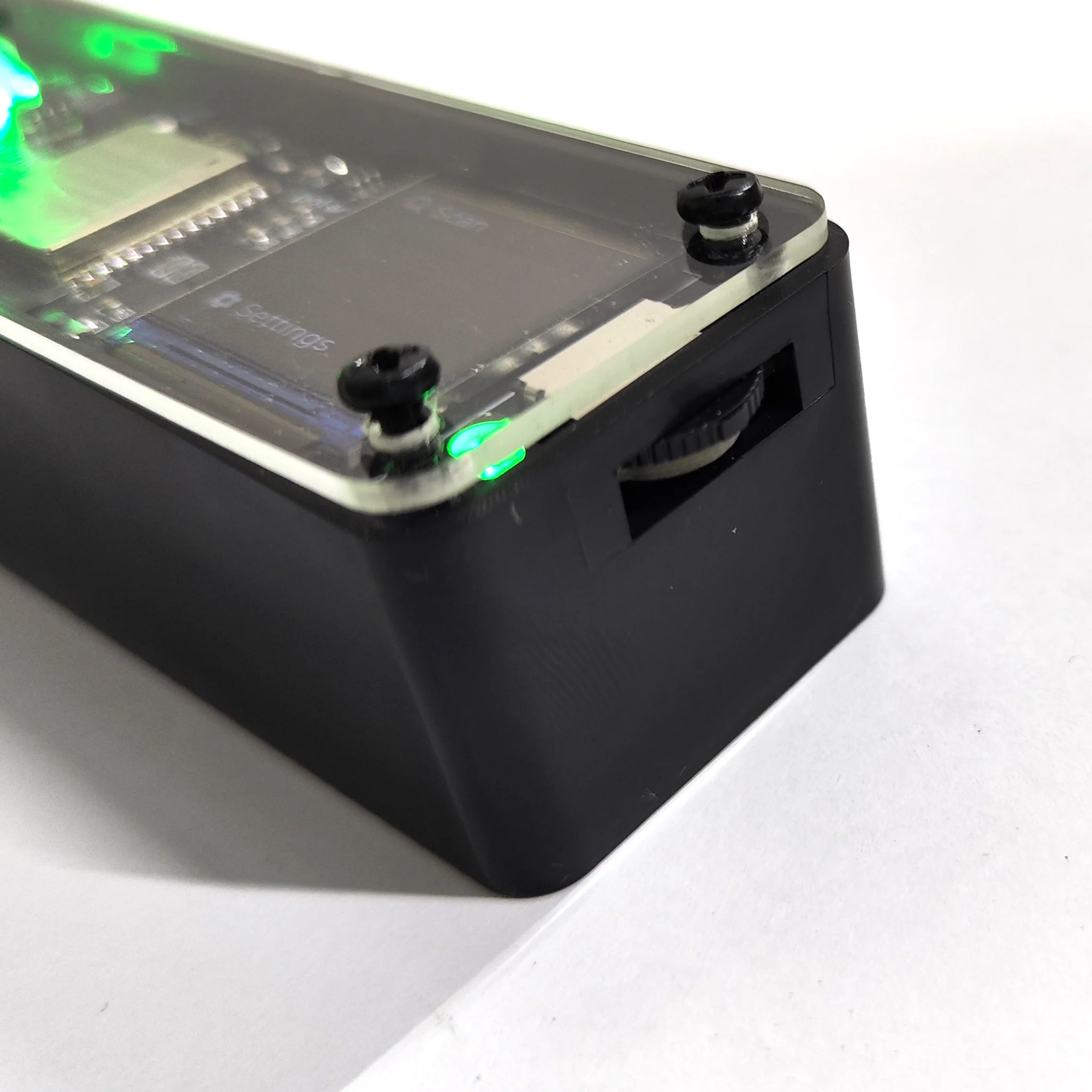

Intuitive Scroll Wheel Navigation
The onboard 3-way scroll/jog wheel switch allows quick menu navigation and one-handed operation. This makes it easier to move through scan results, settings, and device functions during demonstrations or field use.
18650 Battery Support
The rear of the board includes a slot for a standard flat-head 18650 lithium-ion battery, making the Deauther 32 LCD Kit suitable for portable operation.
Battery not included: due to shipping restrictions, the 18650 flat-head battery is not included. A compatible flat-head 18650 battery must be purchased separately.
Battery Polarity Warning
Please check the positive and negative markings carefully before inserting the battery. If the battery is installed backwards, the onboard red LED indicator will light up to signal reverse polarity. Correct the battery position immediately before normal use.
Key Features
- Portable Deauther 32 LCD Kit for Wi-Fi security education
- ESP32-C5 dual-band wireless SoC
- Supports 2.4GHz and 5GHz Wi-Fi development
- Pre-flashed upgraded Deauther firmware
- 1.3-inch ST7789 IPS HD display
- 3-way scroll/jog wheel switch for navigation
- USB Type-C data and charging interface
- Integrated charging circuit
- 18650 flat-head battery slot
- Reverse polarity warning with red LED indicator
- Compact handheld design for portable testing and demonstrations
- Suitable for cybersecurity education, research, and authorized auditing
Specifications
- Chip: ESP32-C5
- Wi-Fi bands: 2.4GHz and 5GHz
- Display: 1.3-inch ST7789 IPS HD screen
- Interface: USB Type-C
- Power: flat-head 18650 battery slot
- Battery: not included
- Controls: 3-way scroll/jog wheel switch
- Firmware: pre-flashed upgraded Deauther firmware

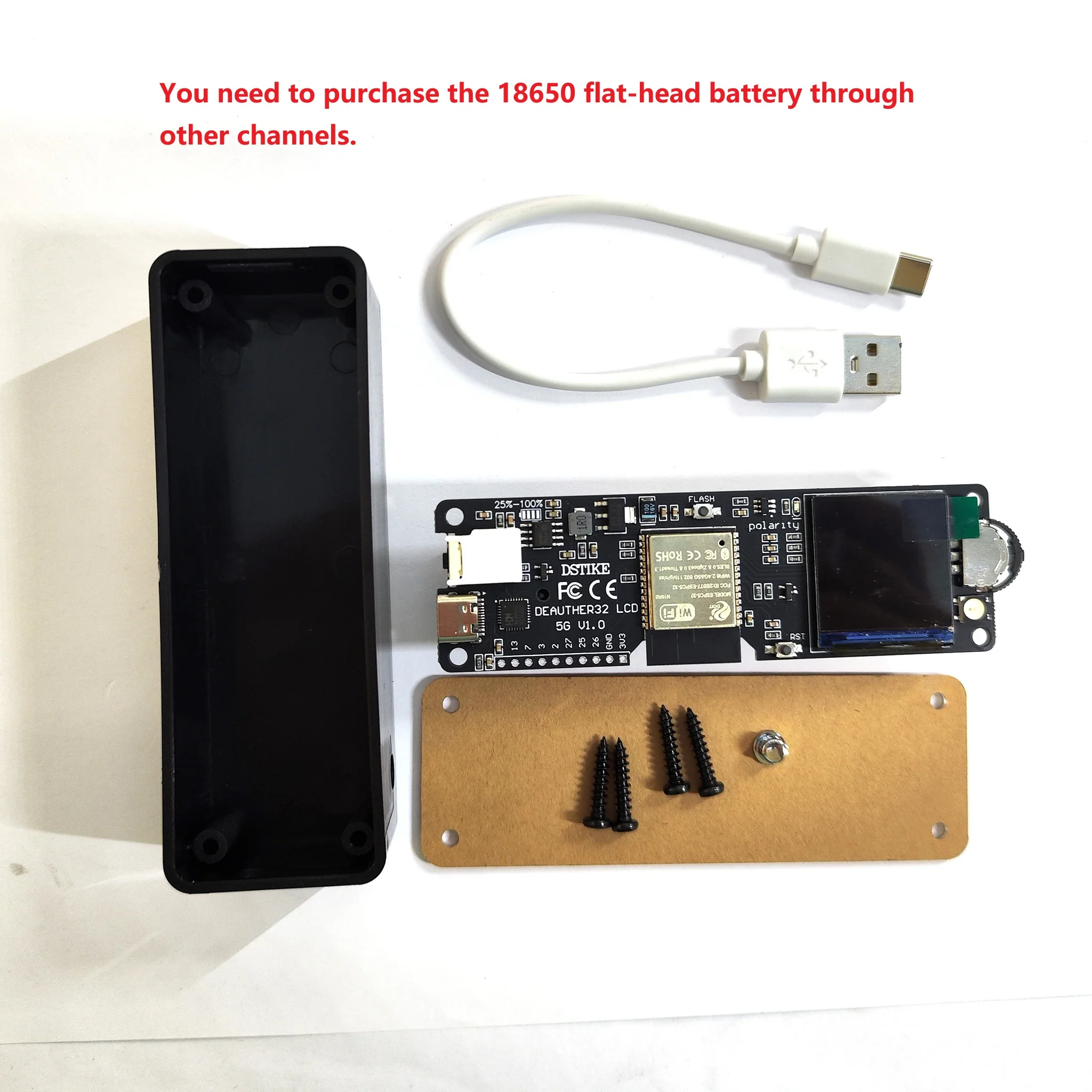

What’s Included in the Box?
- 1 × Deauther32 LCD mainboard, pre-flashed
- 1 × acrylic cover plate
- 4 × screws
- 1 × button
- 1 × USB Type-C data and charging cable
Ideal For
- Wi-Fi security education
- Authorized wireless security auditing
- ESP32-C5 firmware development
- Learning about 2.4GHz and 5GHz Wi-Fi behavior
- Cybersecurity labs and demonstrations
- Portable IoT and wireless development projects
Compact ESP32-C5 Wi-Fi Security Development Kit
The Deauther 32 LCD Kit is a practical choice for users who want a small, modern ESP32-C5 platform with 5GHz support, a built-in display, USB-C charging, portable battery operation, and pre-installed firmware for responsible wireless security learning and development.
