The DSTIKE Deauther PowerBank Kit is an ESP8266-based 2.4GHz Wi-Fi security testing and development board with an integrated 18650 battery charging and discharging system. It can also function as a portable 5V power bank, making it a practical tool for cybersecurity education, authorized wireless testing, ESP8266 development, and portable electronics projects.
The board comes pre-installed with ESP8266 Deauther software and supports 2.4GHz Wi-Fi testing features for learning how wireless networks behave in controlled environments. It can also be used like a standard ESP8266 development board for custom firmware, DIY projects, and IoT experimentation.
Important Legal Use Notice
This device is intended only for educational use and for testing networks and devices that you own or have explicit permission to assess. Unauthorized interference with Wi-Fi networks may be illegal in many countries. Always follow local laws and use this product responsibly.
ESP8266 Wi-Fi Security Testing Board
The DSTIKE Deauther PowerBank Kit is based on the ESP8266 platform and supports 2.4GHz Wi-Fi only. It is designed for learning about Wi-Fi security concepts, wireless network behavior, deauthentication awareness, beacon testing, probe request testing, and packet monitoring in authorized lab environments.
Built-In Power Bank Function
This board integrates 18650 battery charging and discharging functions, allowing it to provide 5V output for compatible devices. With 5V 1A charging input and 5V 1A output, it can serve as both a portable ESP8266 testing board and a small power bank for low-power devices.

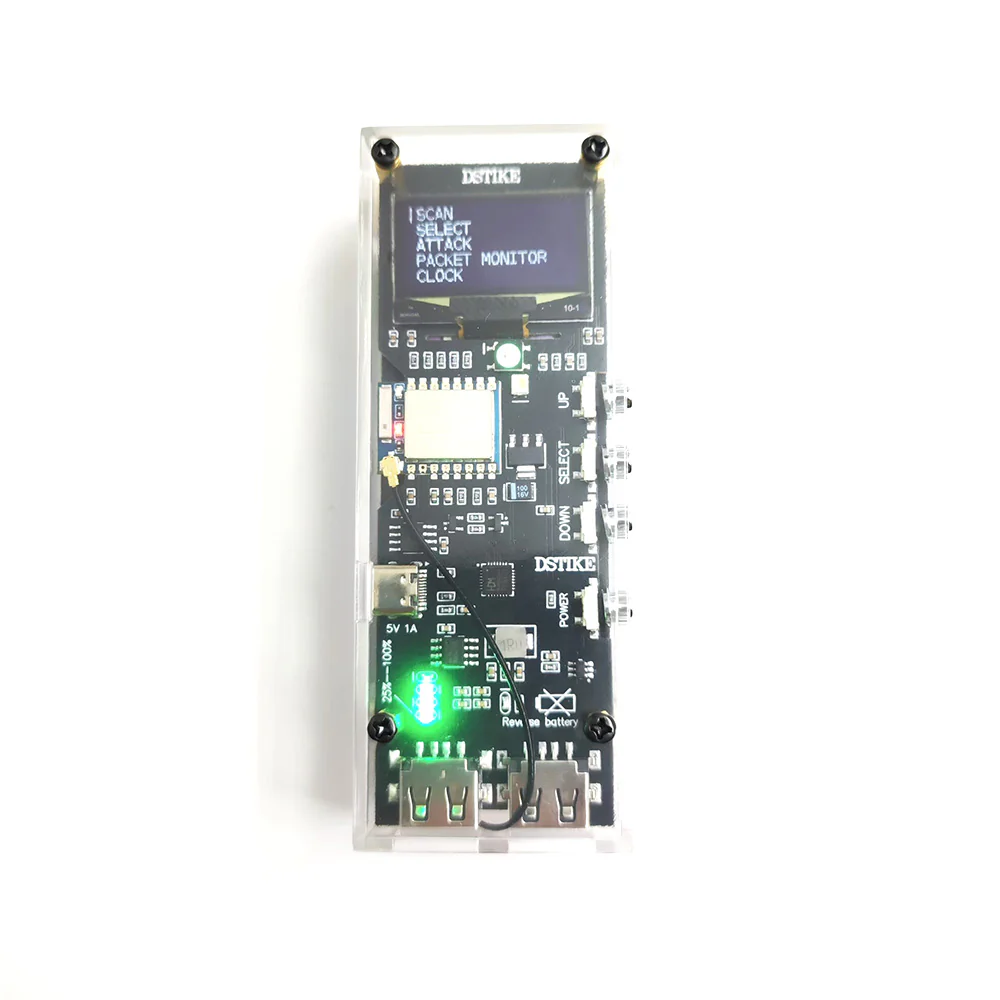

OLED Display and Onboard Controls
The integrated SH1106 1.3-inch OLED display provides a clear interface for device status and menu navigation. Onboard buttons make it possible to operate the device directly, while battery status LEDs show the power level in real time.
Key Features
- DSTIKE Deauther PowerBank Kit
- ESP8266-based 2.4GHz Wi-Fi development board
- Pre-installed ESP8266 Deauther software
- Integrated 18650 battery charging and discharging system
- Can function as a 5V portable power bank
- SH1106 1.3-inch OLED display
- DS3231 real-time clock module
- WS2812B RGB LED
- Highlight LED controlled by GPIO16
- 4 LEDs for real-time battery status

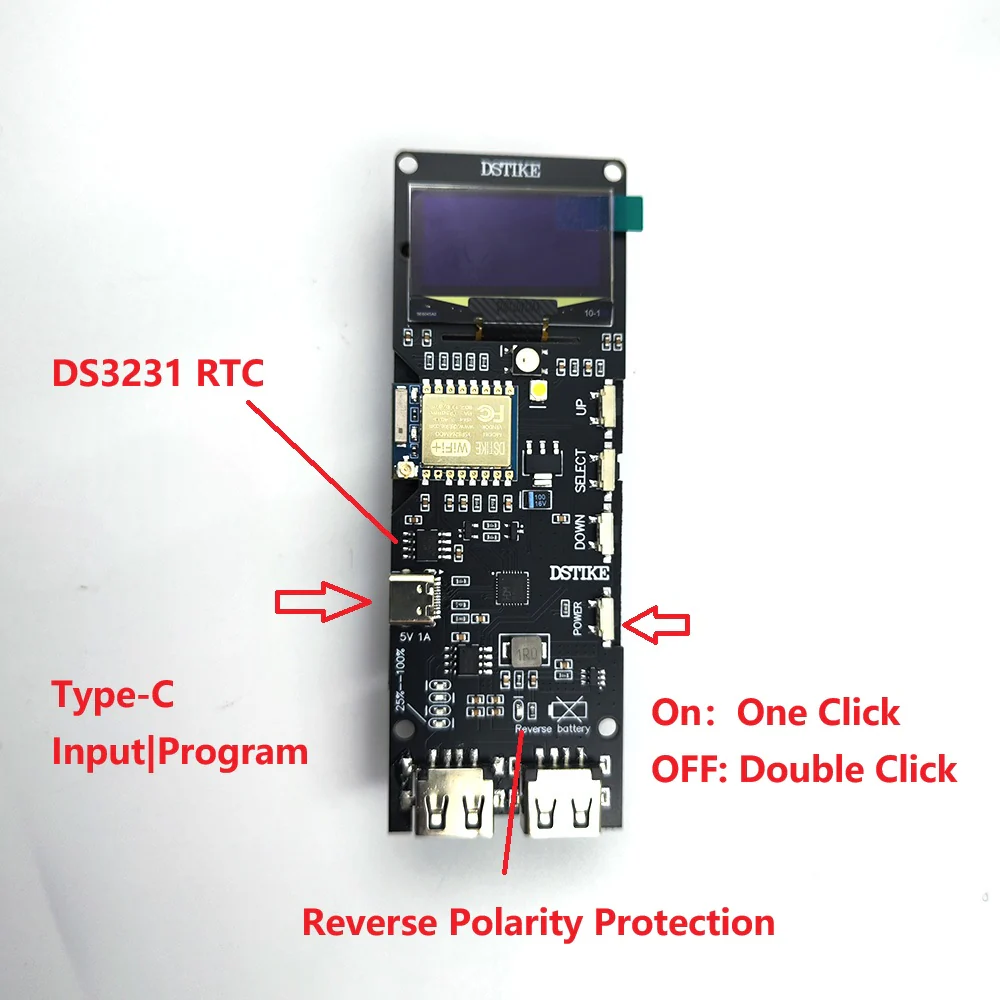

- Power button with click-to-turn-on and double-click-to-turn-off operation
- Protection against short circuit, overcharging, over-discharging, temperature issues, and polarity errors
- Suitable for Wi-Fi security education, authorized testing, and ESP8266 development
Supported Testing Functions
- Deauth testing for studying 2.4GHz Wi-Fi disconnection behavior in authorized environments
- Beacon testing for creating test SSIDs and learning how access points are advertised
- Probe request testing for understanding how devices search for known networks
- Packet monitor mode for viewing nearby Wi-Fi traffic information
- Adjustable real-time clock function
GPIO and Hardware Information
- Display: SH1106 1.3-inch OLED
- Display SDA: GPIO5 / D1
- Display SCL/SCK: GPIO4 / D2
- WS2812B LED: GPIO15 / D8
- Button Up: GPIO12
- Button Down: GPIO13
- Button Select: GPIO14
- Highlight LED: GPIO16
- RTC: DS3231, works when a battery is connected
Power Specifications
- Typical power usage: approximately 80–100mA

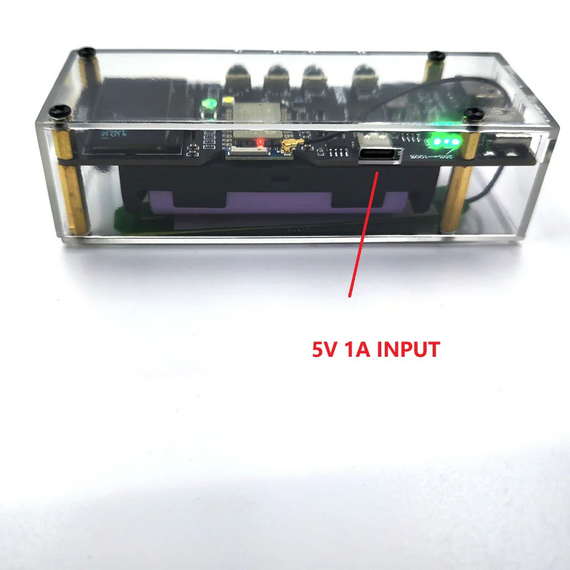

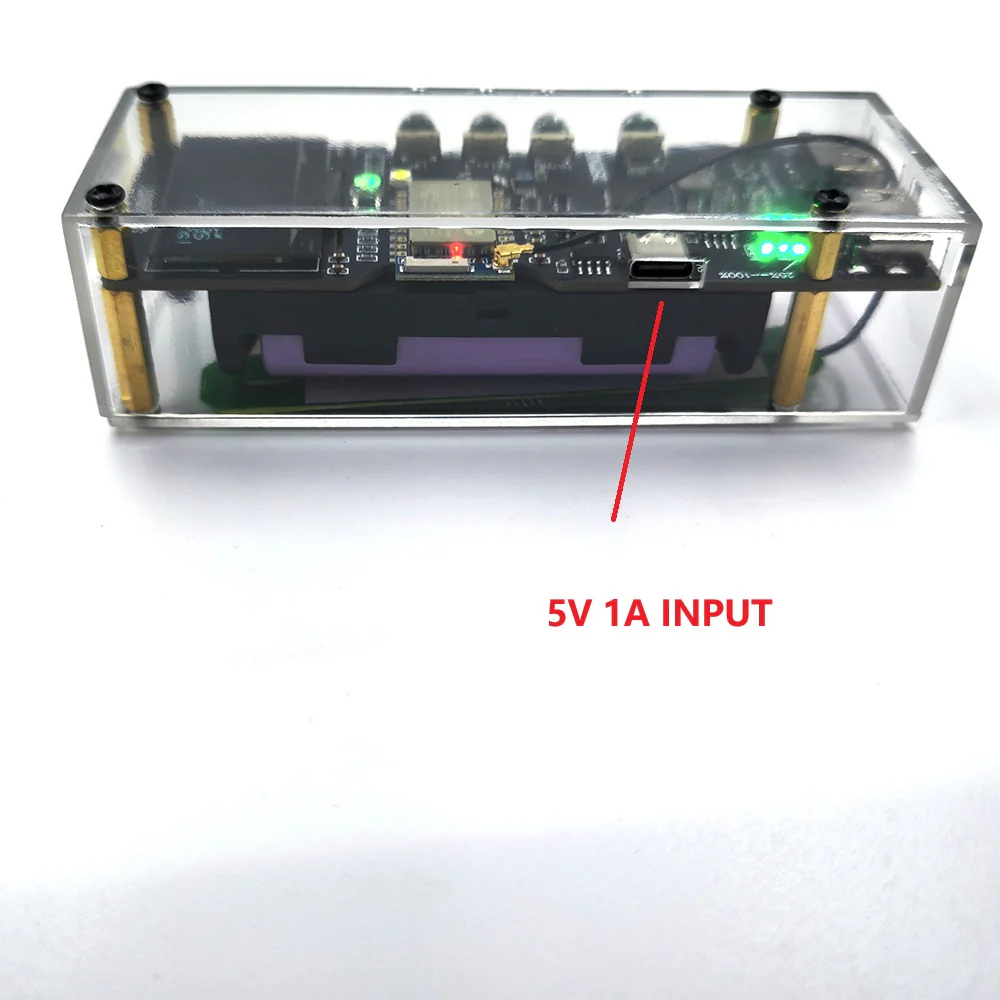

- Charging input: 5V 1A

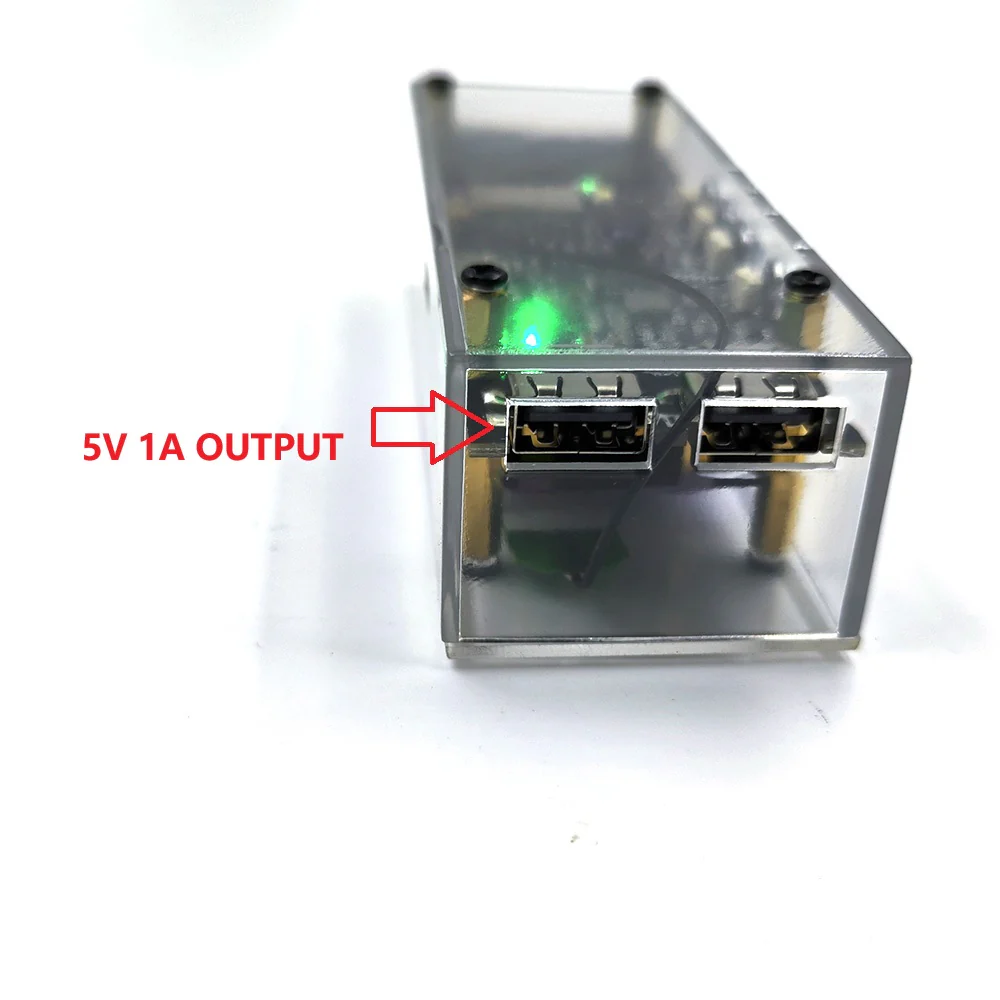

- Power output: 5V 1A

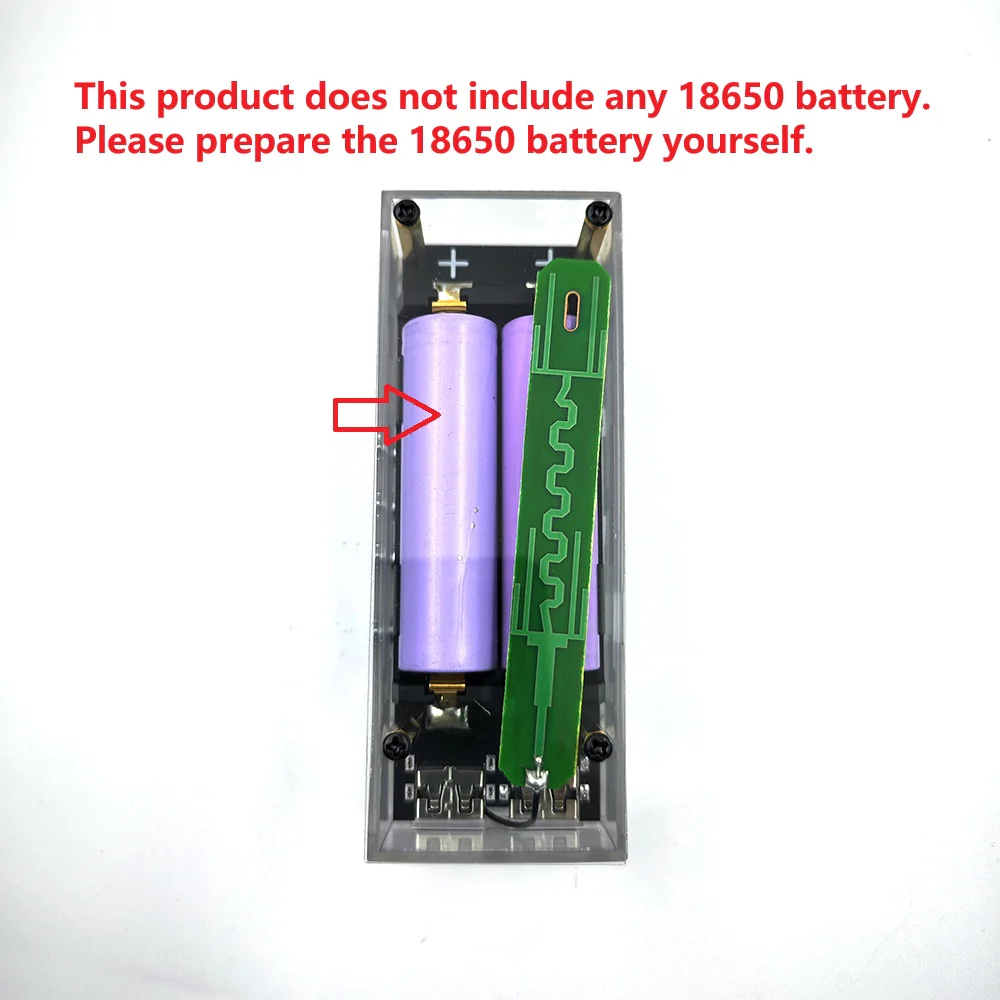

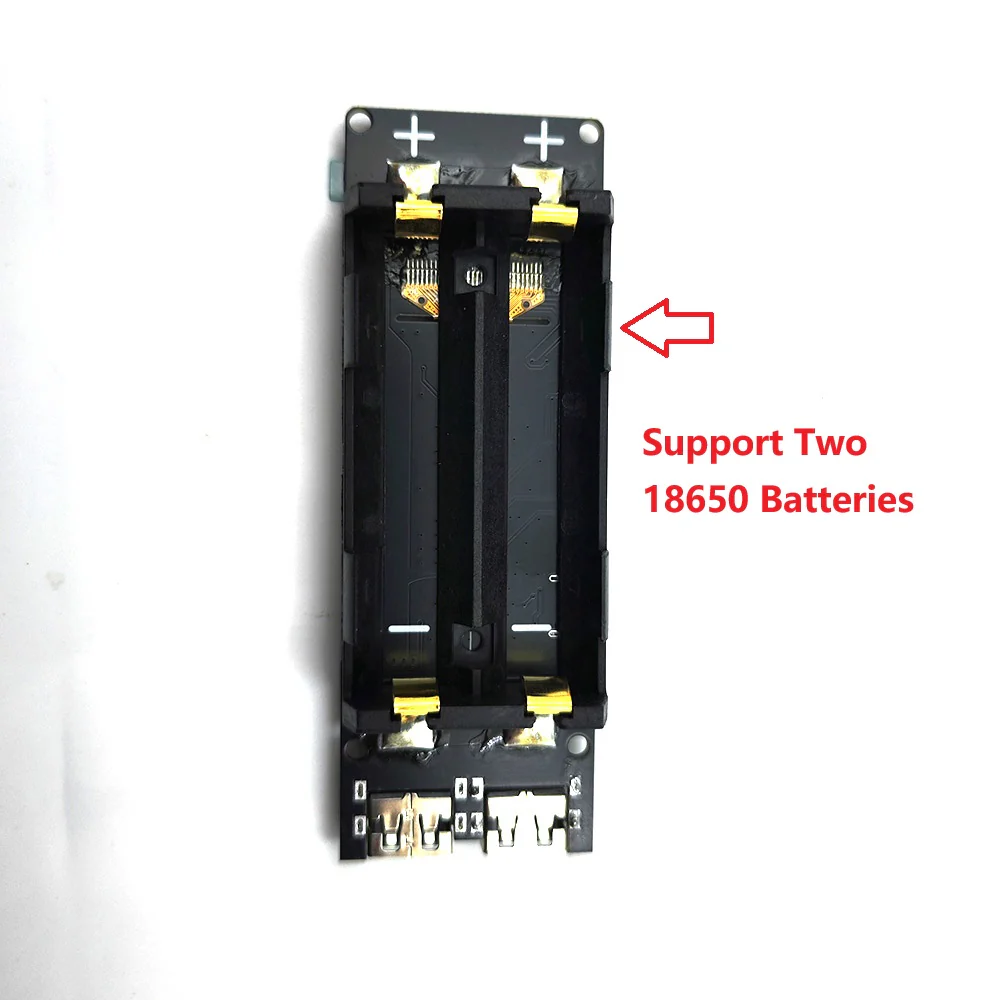

- Battery system: 18650 lithium battery charging and discharging support
- Battery indicators: 4 onboard LEDs
Ideal For
- Wi-Fi security education
- Authorized 2.4GHz wireless testing
- ESP8266 firmware development
- Portable IoT experiments
- DIY electronics and maker projects
- Learning about wireless network behavior
- Low-power portable power bank applications
Portable ESP8266 Security Testing and Development Kit
The DSTIKE Deauther PowerBank Kit combines Wi-Fi security education features, ESP8266 development flexibility, OLED display control, RTC functionality, battery management, and 5V power bank output in one portable board. It is a practical choice for users who want a compact tool for responsible wireless learning and custom electronics projects.
