The DSTIKE Deauther Watch X is a wearable ESP8266-based 2.4GHz Wi-Fi security testing and development device designed for cybersecurity education, authorized wireless research, ESP8266 learning, and portable maker projects. It combines a 1.3-inch OLED display, onboard buttons, buzzer, detachable antenna, transparent case, soft silicone strap, and built-in battery charging in a compact watch-style form factor.
Also known as the updated name for the Deauther Watch SE, the Watch X comes pre-installed with ESP8266 Deauther software for learning about 2.4GHz Wi-Fi behavior in controlled environments. It can also be used as a compact ESP8266 development platform for custom firmware, sensors, and DIY applications.
Important Legal Use Notice
This device is intended only for educational use and authorized testing on networks and devices that you own or have explicit permission to assess. Unauthorized Wi-Fi interference may be illegal. Always follow local laws and responsible security testing practices.
Portable 2.4GHz Wi-Fi Security Testing Watch
The DSTIKE Deauther Watch X is powered by a custom 4MB flash ESP-07 module based on the ESP8266 platform. It supports 2.4GHz Wi-Fi only and is suitable for learning about wireless security concepts, packet monitoring, beacon frames, probe requests, and Wi-Fi deauthentication awareness in authorized lab environments.
OLED Display and Onboard Controls

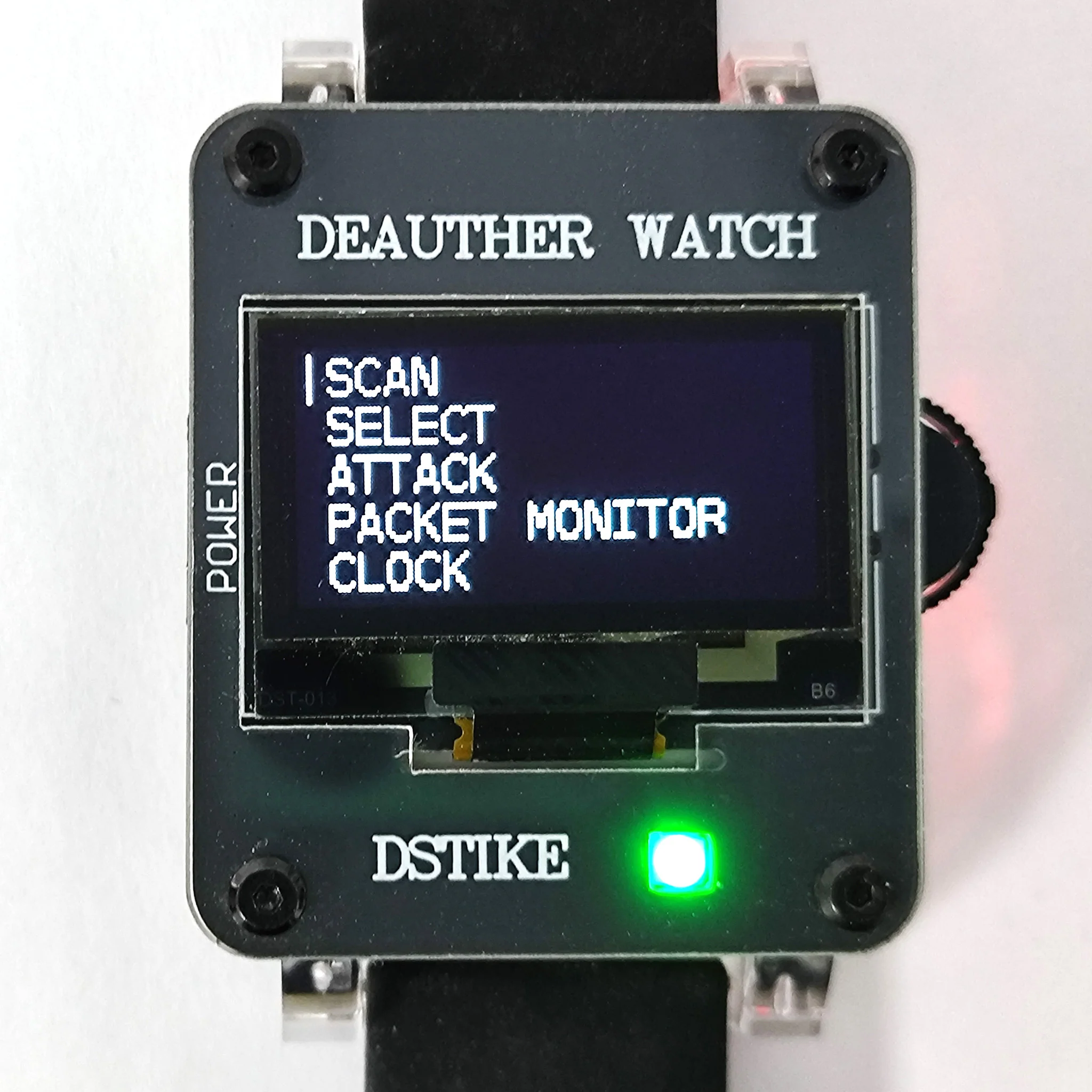

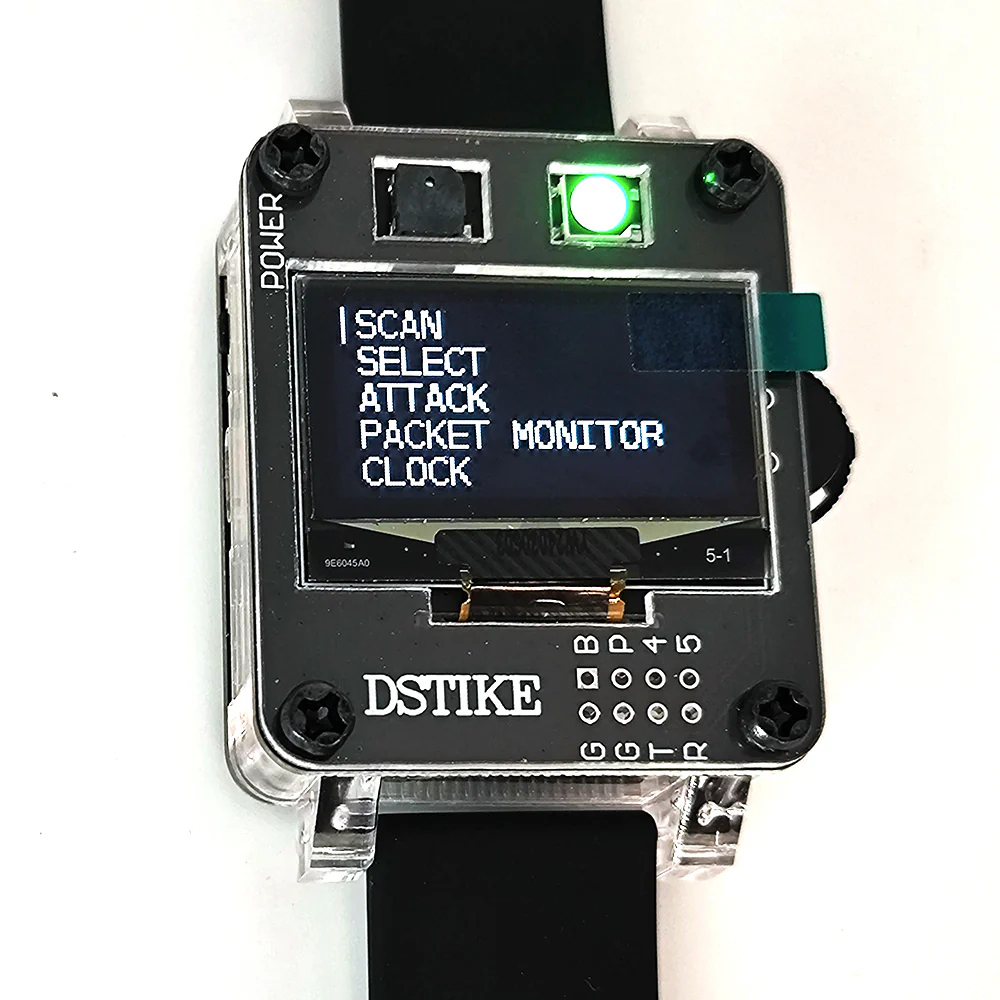

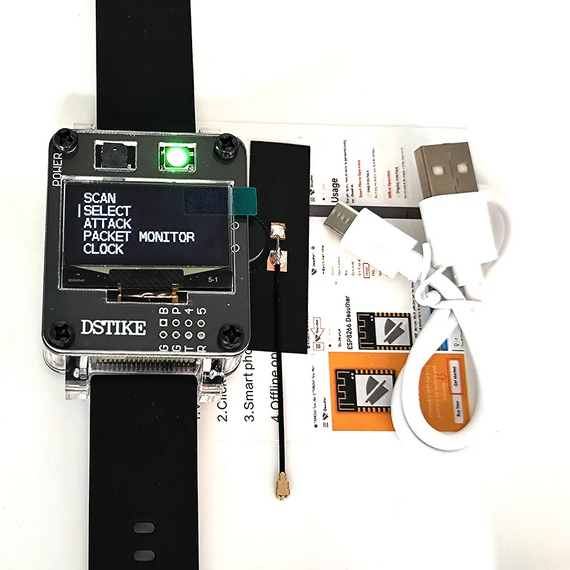

The built-in SH1106 1.3-inch OLED display provides a clear interface for status information and menu navigation. The device includes Up, Down, and Select buttons, plus a buzzer for audio feedback during demonstrations and custom projects.
Wearable Transparent Design

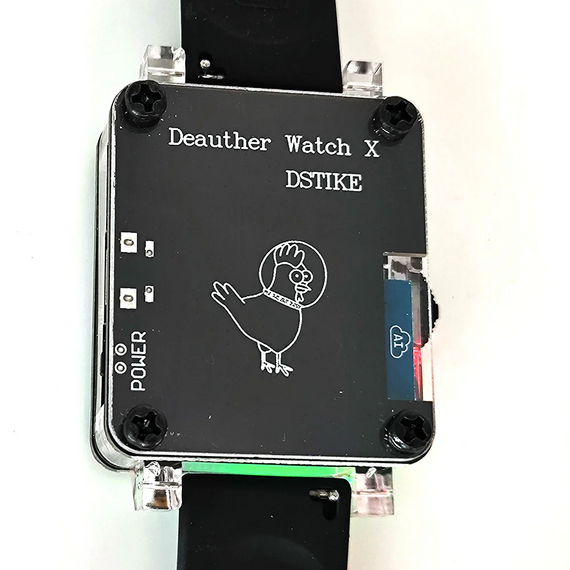

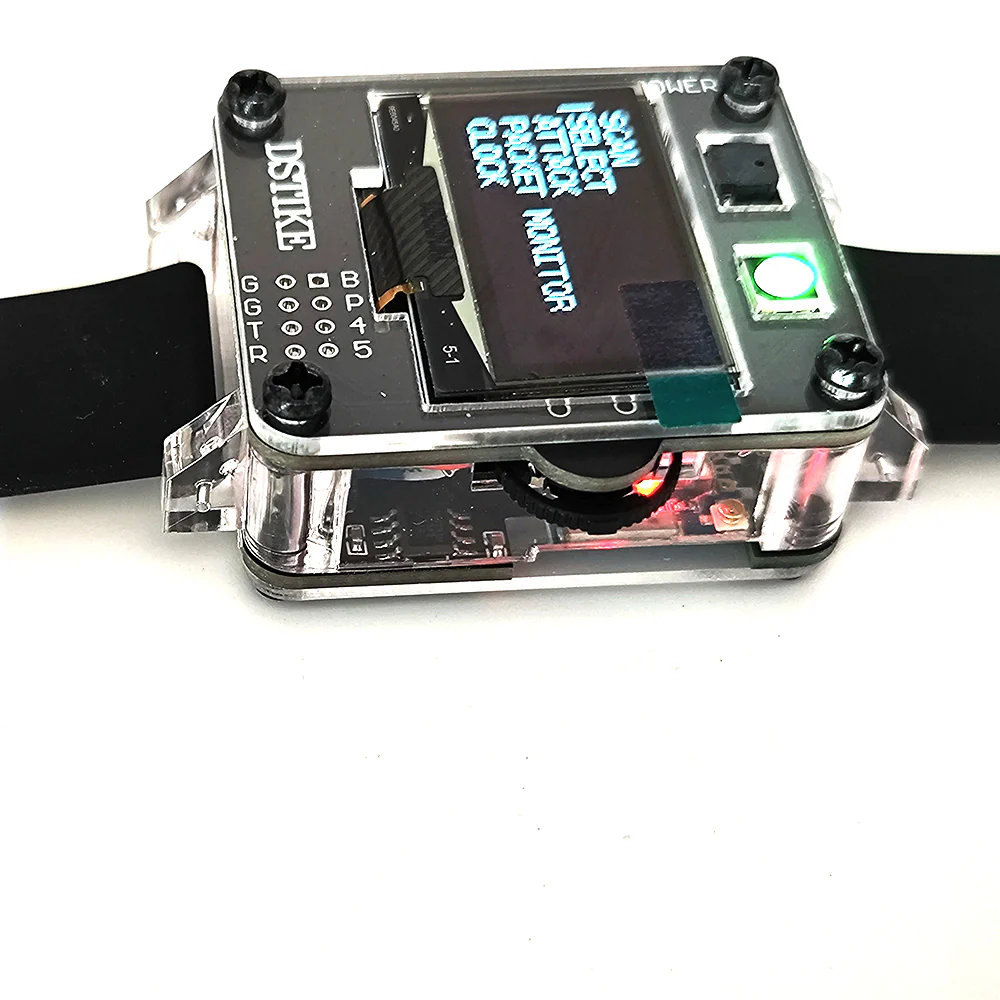

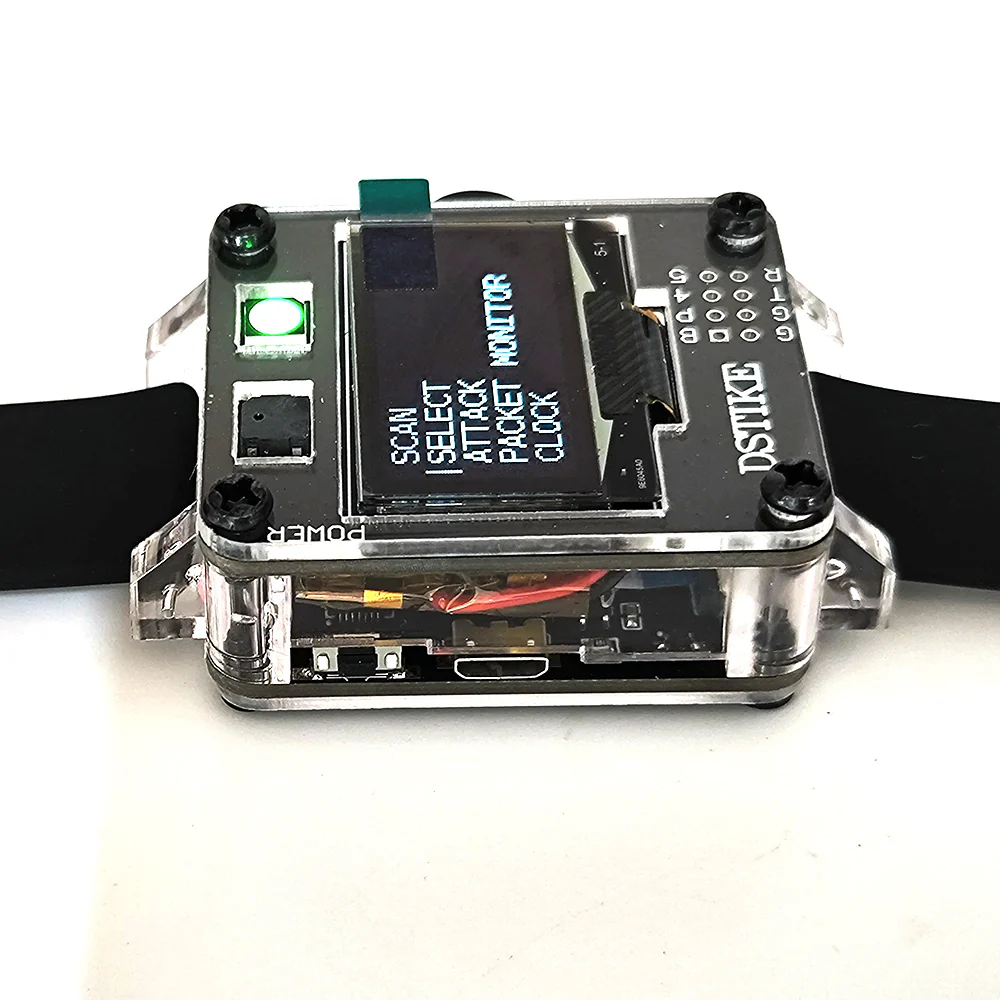

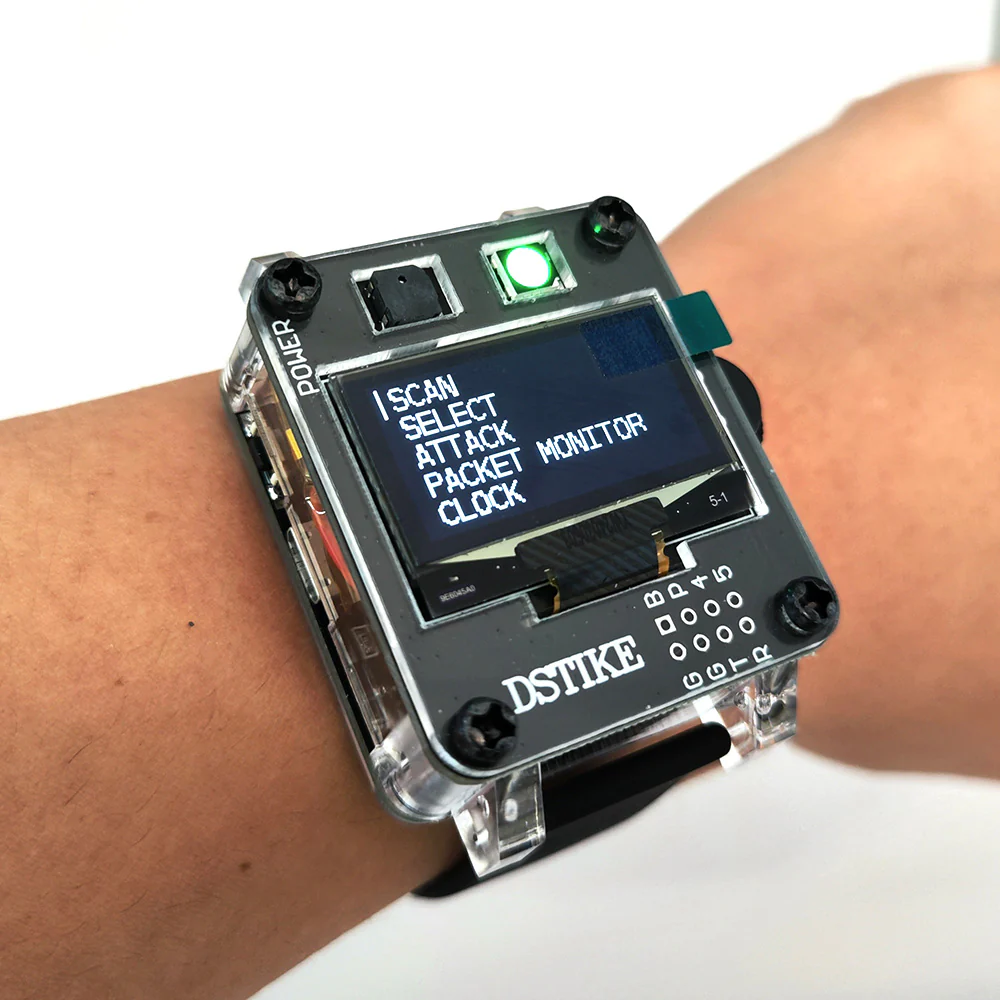

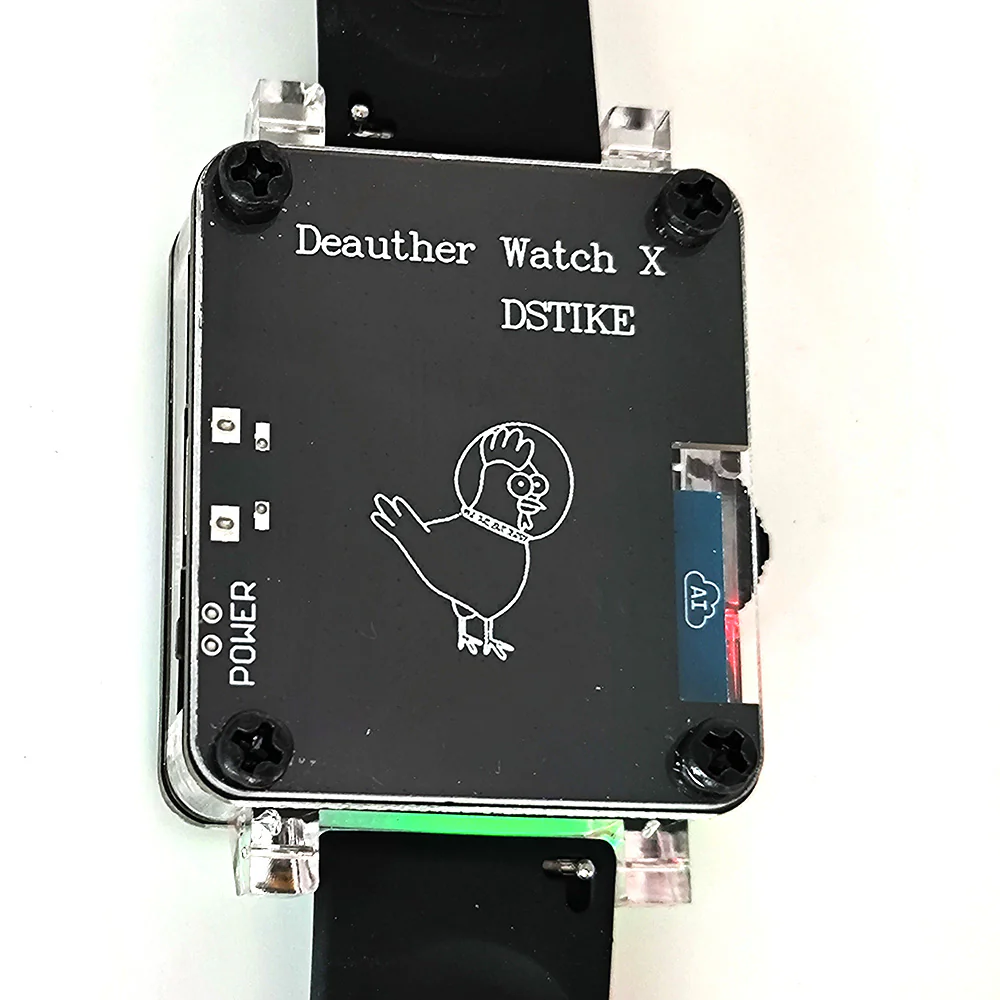

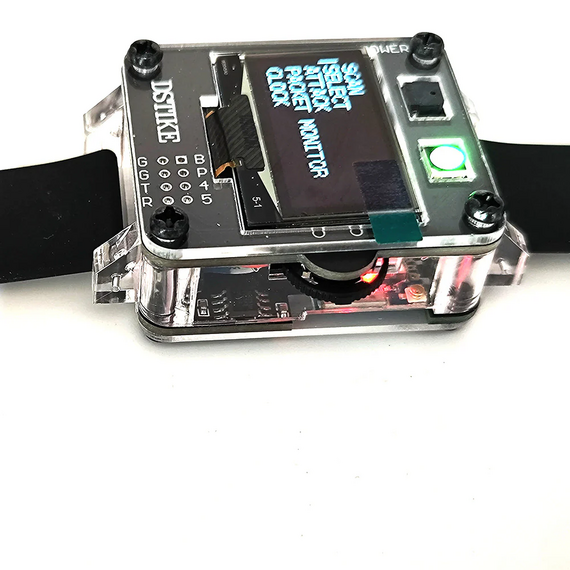

The Watch X features a transparent case with double acrylic protection and a soft silicone strap. Its compact watch-style design makes it convenient for portable wireless education, classroom demonstrations, cybersecurity labs, and ESP8266 development experiments.
Battery and Charging
The device includes a built-in battery system with 500mA charging current and charging status LEDs. The red LED indicates charging, while the green LED indicates that the battery is full. Press and hold the power switch for approximately 2 seconds to turn the watch on or off.
Key Features
- DSTIKE Deauther Watch X wearable Wi-Fi testing device
- ESP8266-based 2.4GHz Wi-Fi platform
- Custom 4MB flash ESP-07 module
- Pre-installed ESP8266 Deauther software
- SH1106 1.3-inch OLED display

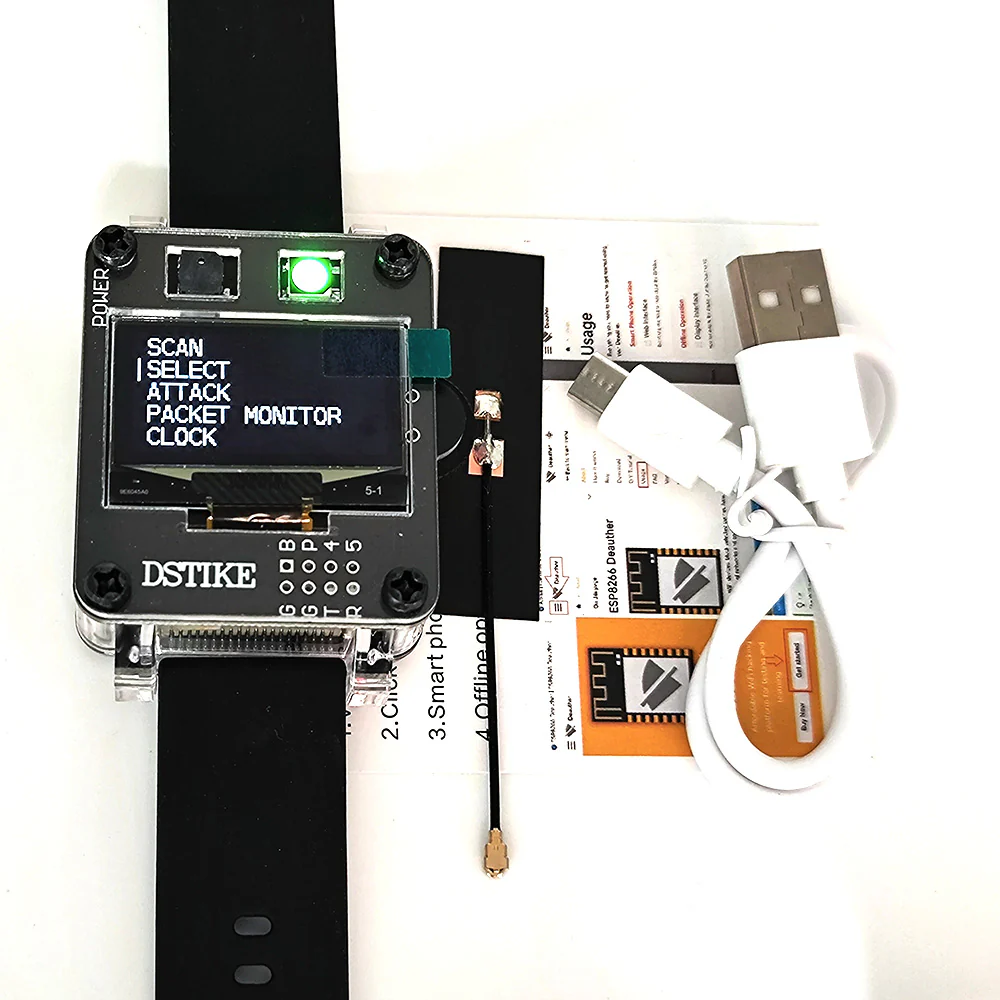

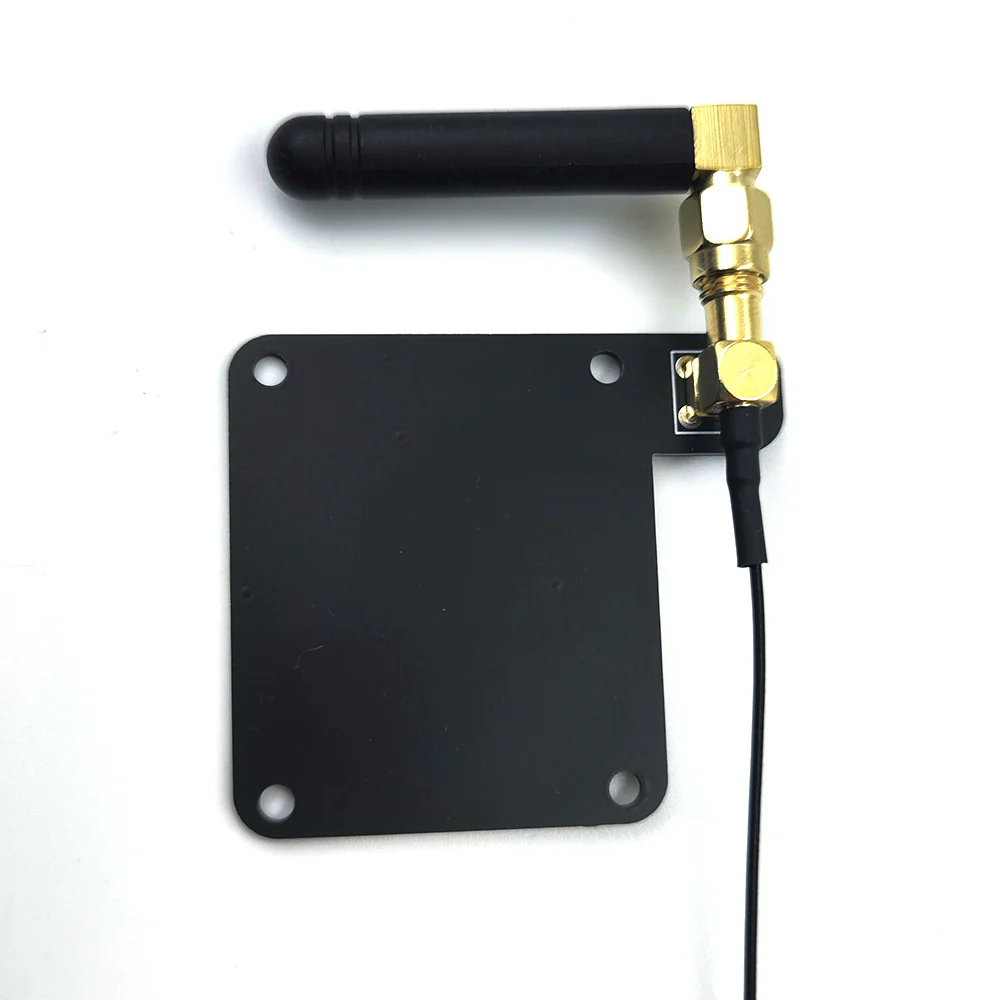

- Detachable antenna
- Built-in buzzer
- WS2812B LED
- Transparent case with double acrylic protection
- Soft silicone strap
- 500mA charging current
- Charging LED indicators: red for charging, green for full
- Power switch with 2-second on/off operation
- Protection against short circuit, overcharging, over-discharging, and temperature issues
Supported Educational Functions
- 2.4GHz Wi-Fi deauthentication awareness testing in authorized environments
- Beacon frame demonstrations for learning how Wi-Fi networks are advertised
- Probe request analysis for understanding how devices search for known networks
- Packet monitor mode for displaying nearby Wi-Fi traffic information
- ESP8266 development and custom firmware experimentation
GPIO and Hardware Information
- Display: SH1106 1.3-inch OLED
- Display SDA: GPIO5
- Display SCL/SCK: GPIO4
- WS2812B LED: GPIO15
- Button Up: GPIO12
- Button Down: GPIO13
- Button Select: GPIO14
- Buzzer: GPIO0
Deauther Watch Model Comparison
| Feature | Watch X | Watch Y | Watch Z |
|---|---|---|---|
| Previous Name | Deauther Watch SE | Deauther Watch V3S | Deauther Watch V4S |
| Battery | 500mAh | 1000mAh | 1000mAh |
| Antenna Range | 30–50m | 80–100m | 80–100m |

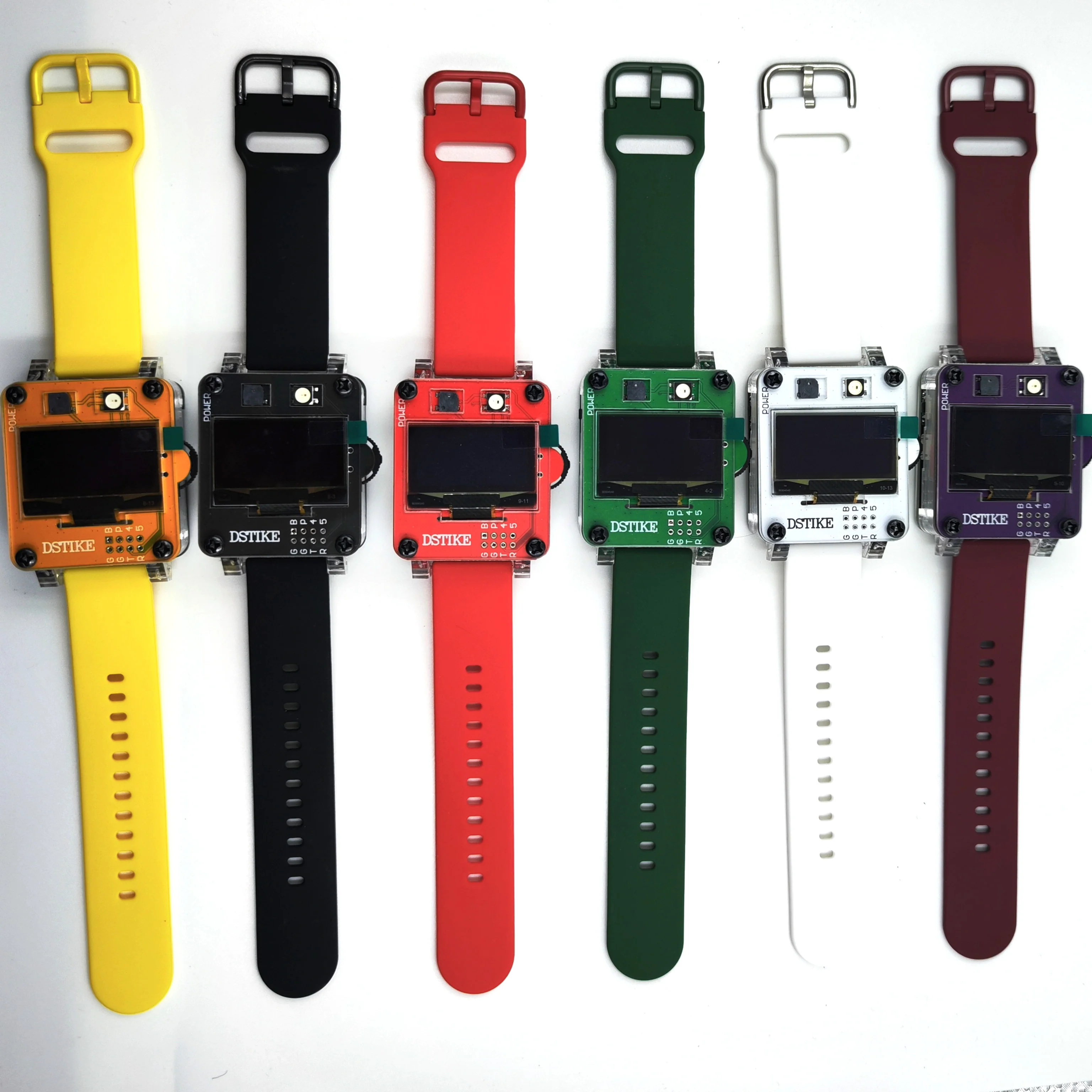

| Color | Black / Green / Red | Black | Black |
| USB | Micro USB | USB-C | USB-C |
| Buzzer | Yes | No | No |
| BadUSB | No | No | Yes |
| TF Card | No | No | Yes |
| Working Time | 5–6h | 9–10h | 9–10h |
| Weight | 62g | 80g | 99g |
| Size | 60 × 50 × 25mm | 80 × 50 × 25mm | 80 × 70 × 25mm |
Important Usage Notes
- The ESP8266 supports 2.4GHz Wi-Fi only and does not support 5GHz networks.
- The RTC chip can continue working after the watch is turned off.
- If the Wi-Fi chip indicator light is off, please charge the watch promptly.
- Working time can be adjusted in the device settings depending on configuration and usage.
Ideal For
- Cybersecurity education
- Authorized 2.4GHz Wi-Fi testing
- ESP8266 development
- Wireless security demonstrations
- Maker and DIY electronics projects
- Portable network security learning
Wearable ESP8266 Wi-Fi Security Learning Tool
The DSTIKE Deauther Watch X is a practical wearable platform for users who want to learn about 2.4GHz Wi-Fi security, ESP8266 development, wireless packet behavior, and portable cybersecurity concepts in a responsible and controlled way.
