The DSTIKE Deauther Watch X II is a wearable ESP8266-based 2.4GHz Wi-Fi security testing and development device designed for cybersecurity education, authorized wireless research, ESP8266 learning, and maker projects. It combines a 1.3-inch OLED display, USB-C connectivity, 700mAh battery, onboard controls, RGB LED, and a compact wearable form factor.
Compared with the original Deauther Watch X, the Watch X II upgrades the USB interface to USB-C, increases the battery capacity to 700mAh, changes the screw design to hexagonal screws, updates the RGB LED to WS2812B-2, and uses a 3D-printed power switch design.
Important Legal Use Notice
This device is intended only for educational use and authorized testing on networks and devices that you own or have explicit permission to assess. Unauthorized Wi-Fi interference may be illegal. Always follow local laws and responsible security testing practices.

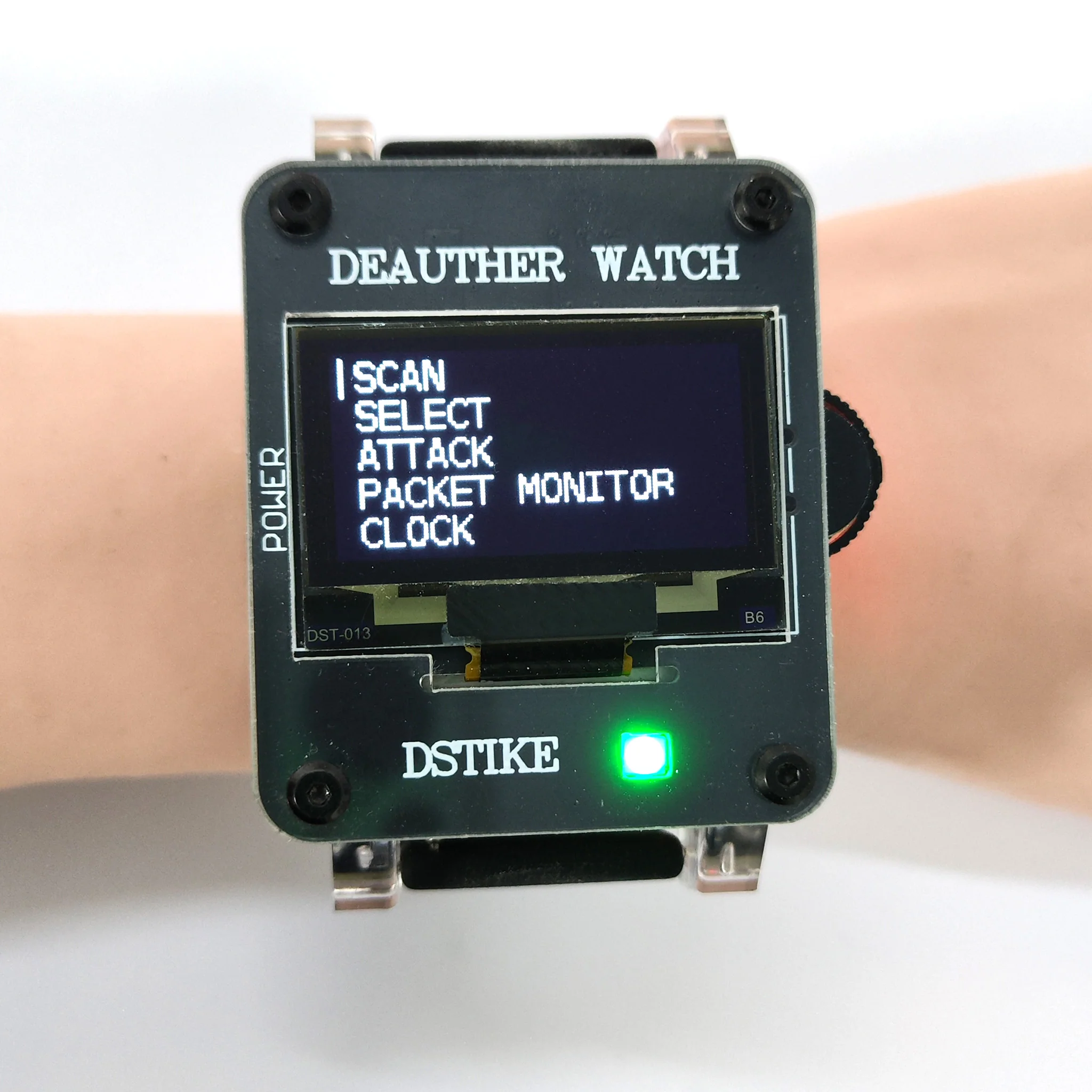

Wearable ESP8266 Development Board
The Deauther Watch X II is not just a wearable gadget. It is also an open-source ESP8266 development platform that can be programmed through the Arduino IDE. Users can modify firmware, build custom applications, and use the device for learning about wireless protocols, embedded development, and portable electronics.
2.4GHz Wi-Fi Security Testing Platform
The device comes pre-installed with ESP8266 Deauther software for learning about 2.4GHz Wi-Fi behavior in controlled environments. It can be used for wireless security education, packet monitoring, beacon frame demonstrations, probe request learning, and deauthentication awareness testing on authorized networks.
USB-C and Improved Battery Life
The Watch X II upgrades to USB-C for easier charging and firmware flashing. The built-in 700mAh lithium battery provides approximately 7 to 8 hours of active use depending on settings, brightness, and operating mode.
OLED Display and Intuitive Controls

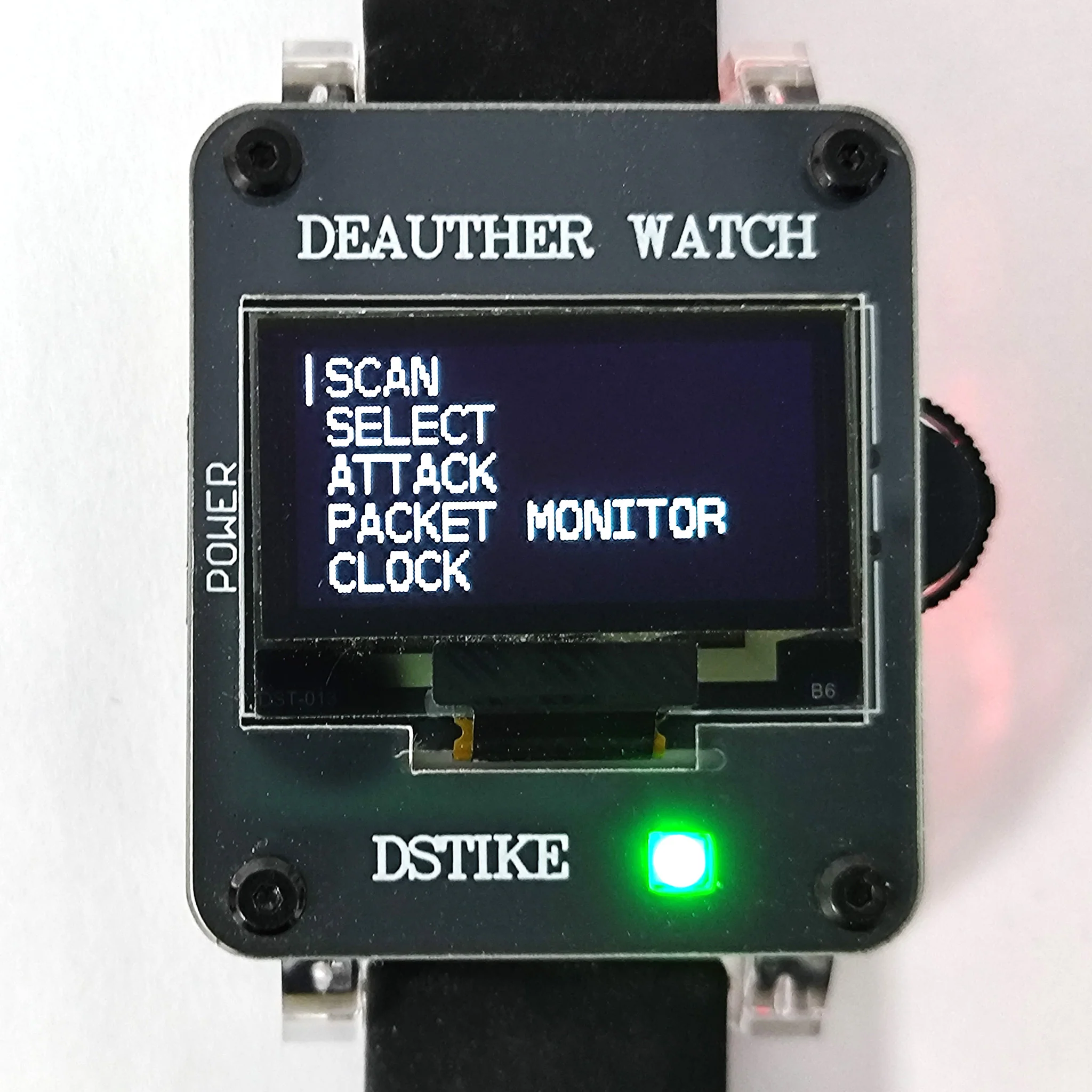

The integrated SH1106 1.3-inch OLED display provides a clear interface for menus, status information, and real-time device feedback. A 3-way momentary slide switch allows simple navigation through the interface.
Protected Wearable Design
The device includes a 3D-printed case and transparent acrylic cover, protecting the PCB while keeping the internal hardware visible. This gives the watch a practical maker-style design suitable for labs, classrooms, demonstrations, and desk setups.
Key Features
- DSTIKE Deauther Watch X II wearable Wi-Fi testing device
- ESP8266-based 2.4GHz Wi-Fi platform
- Custom 4MB ESP-07 module
- Pre-installed ESP8266 Deauther software
- SH1106 1.3-inch OLED display
- USB-C for charging and firmware flashing
- Built-in 700mAh lithium battery
- Approximate 7 to 8 hour active use time
- Built-in ceramic antenna
- 3-way momentary slide switch
- WS2812B-2 RGB LED
- GPIO16 LED for flashlight function
- 3D-printed case with transparent acrylic protection
- Open-source ESP8266 development platform

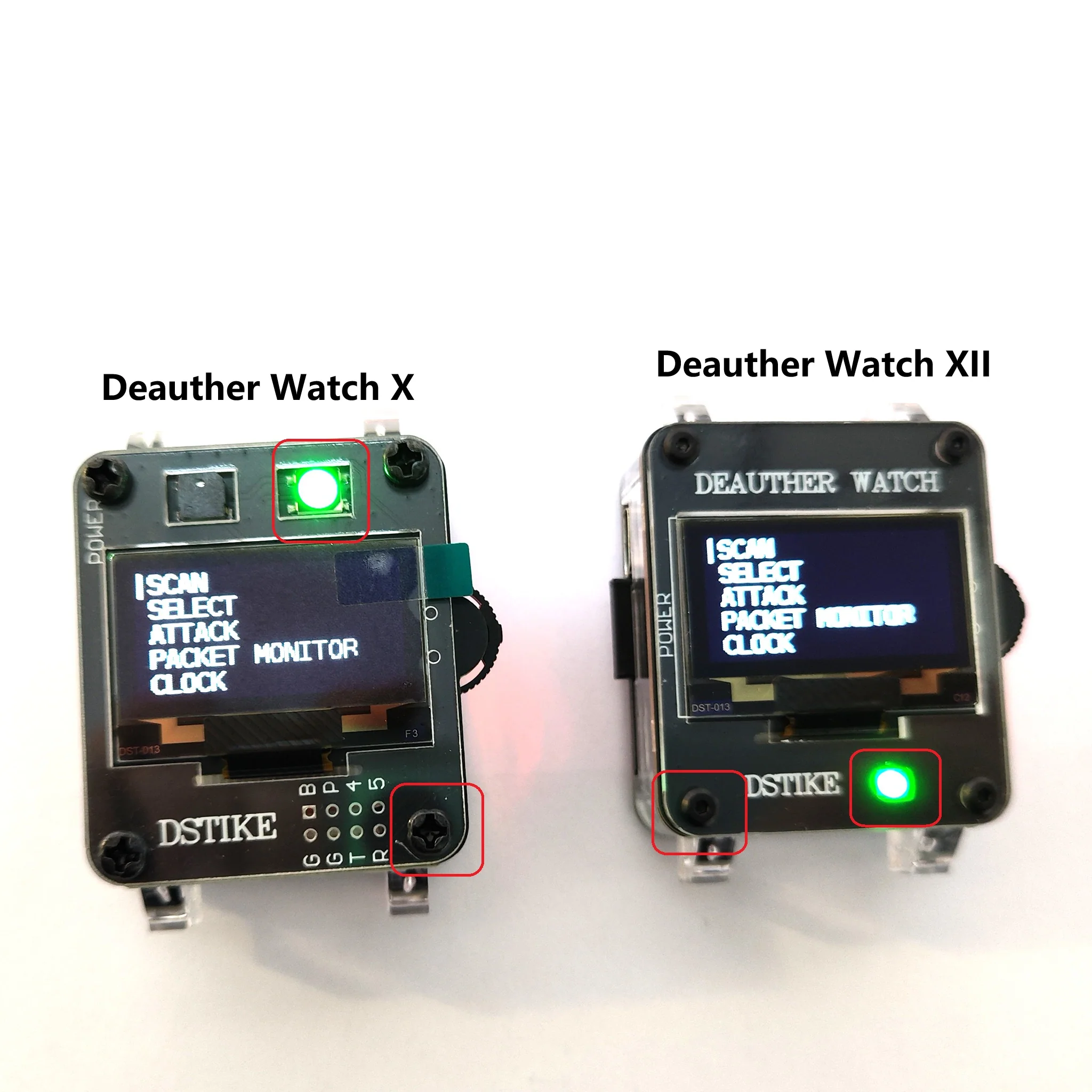

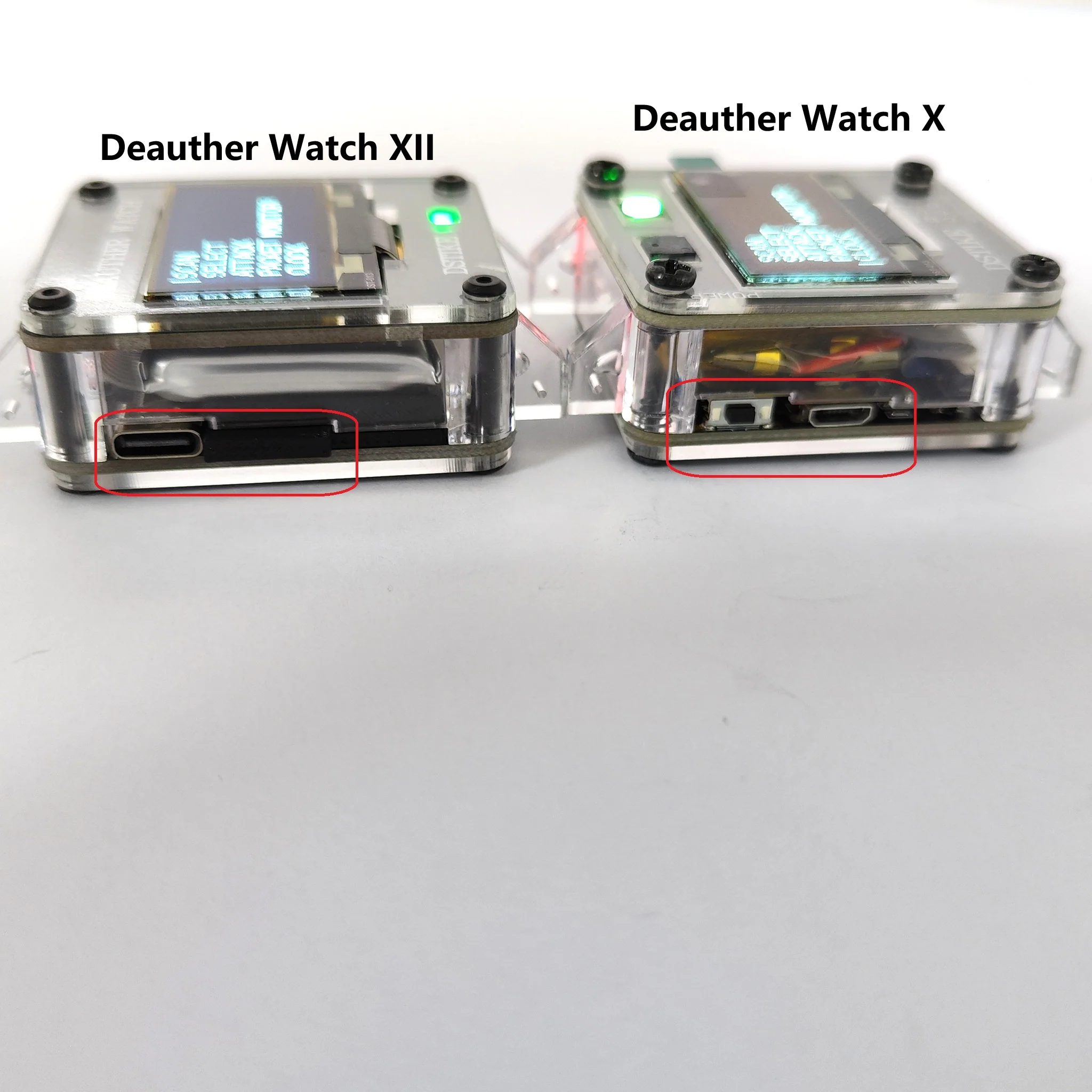

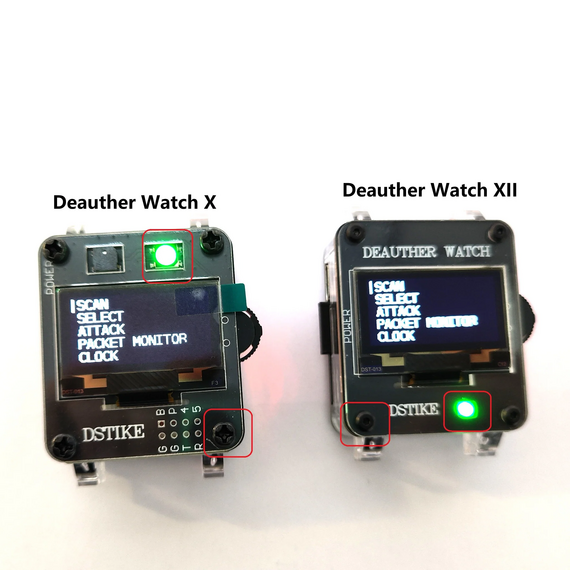

Watch X vs Watch X II Upgrade Comparison
| Feature | Deauther Watch X | Deauther Watch X II |
|---|---|---|
| USB | Micro USB | USB-C |
| Battery | 500mAh | 700mAh |

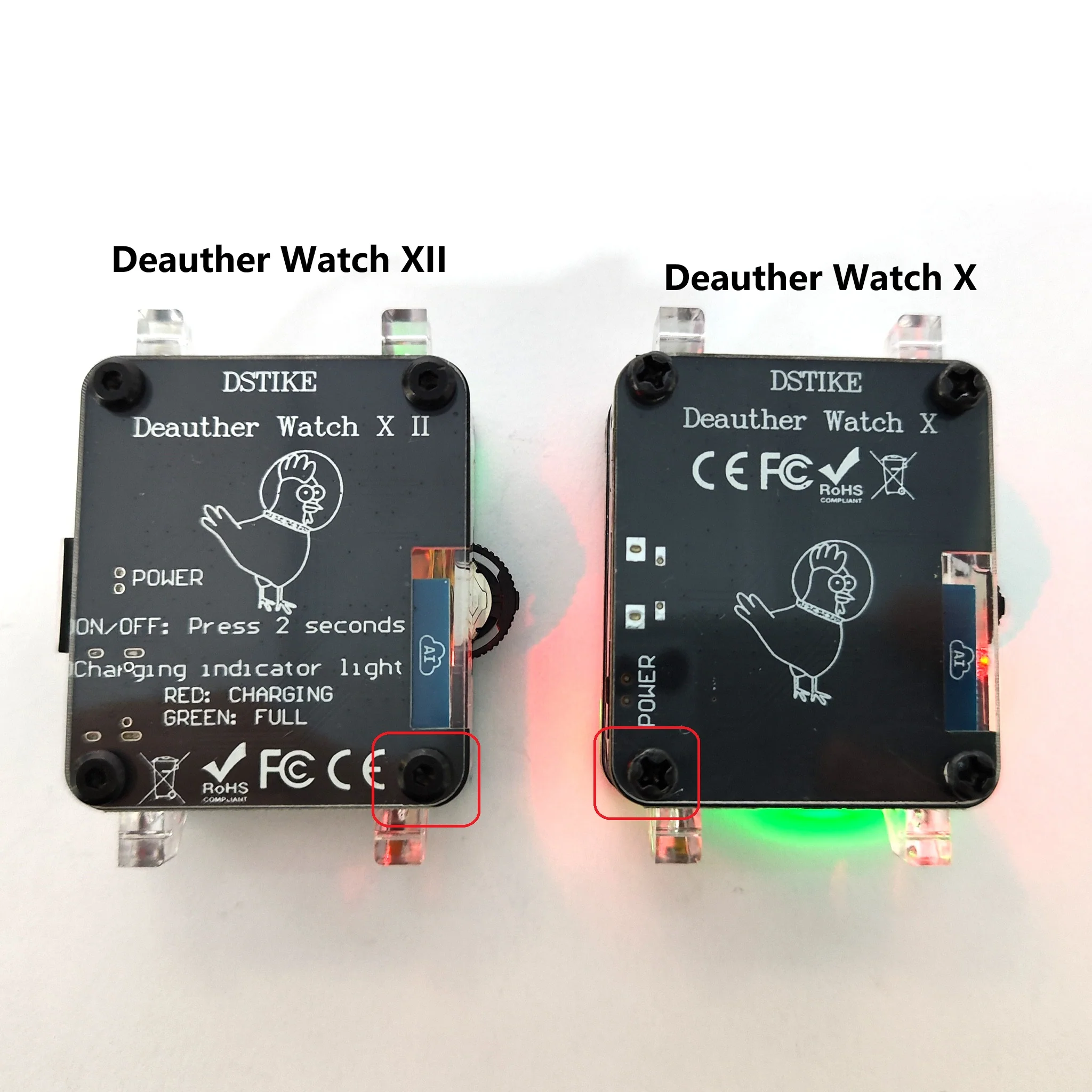

| Screw Type | Cross-head | Hexagonal |
| RGB LED | WS2812B | WS2812B-2 |
| Power Switch | Onboard | 3D-printed |
Supported Educational Functions
- 2.4GHz Wi-Fi deauthentication awareness testing in authorized environments
- Beacon frame demonstrations for learning how Wi-Fi networks are advertised
- Probe request analysis for understanding how devices search for known networks
- Packet monitor mode for displaying nearby Wi-Fi traffic information
- Real-time clock display
- LED flashlight function
- ESP8266 firmware development and custom projects
Technical Specifications
- Microcontroller: ESP8266, custom 4MB ESP-07
- Wireless support: 2.4GHz Wi-Fi only
- Battery: 700mAh lithium-ion
- Antenna: built-in ceramic antenna
- Connectivity: USB-C for charging and flashing
- Display: SH1106 1.3-inch OLED
- Display SDA: GPIO5
- Display SCL/SCK: GPIO4
- WS2812B RGB LED: GPIO15
- Button Up: GPIO12
- Button Down: GPIO13
- Button Select: GPIO14
- LED: GPIO16
Power and Charging

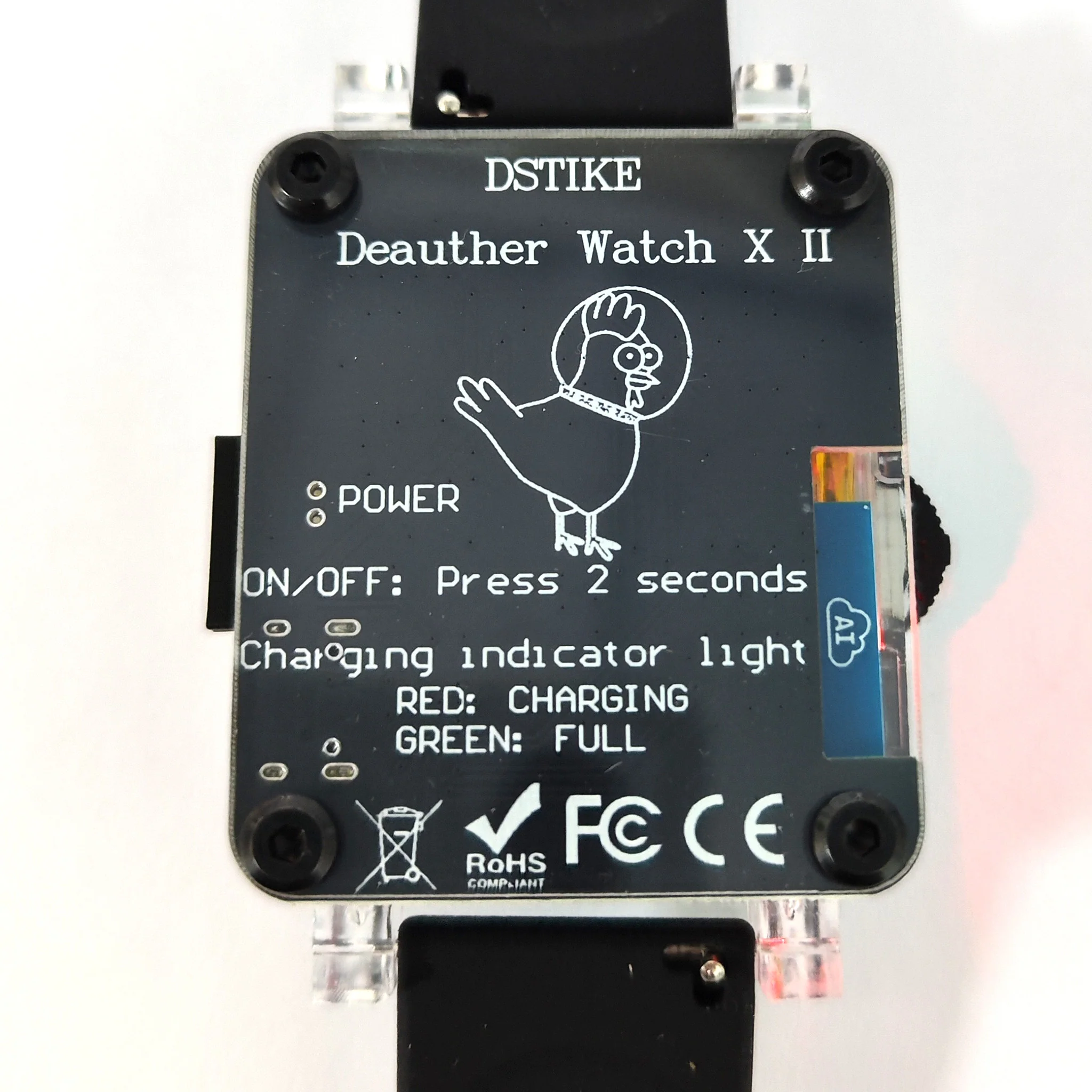

When the RGB indicator light is off, please charge the device. Typical charging time is approximately 4 to 5 hours. During charging, the indicator light is red, and when fully charged it changes from red to green.

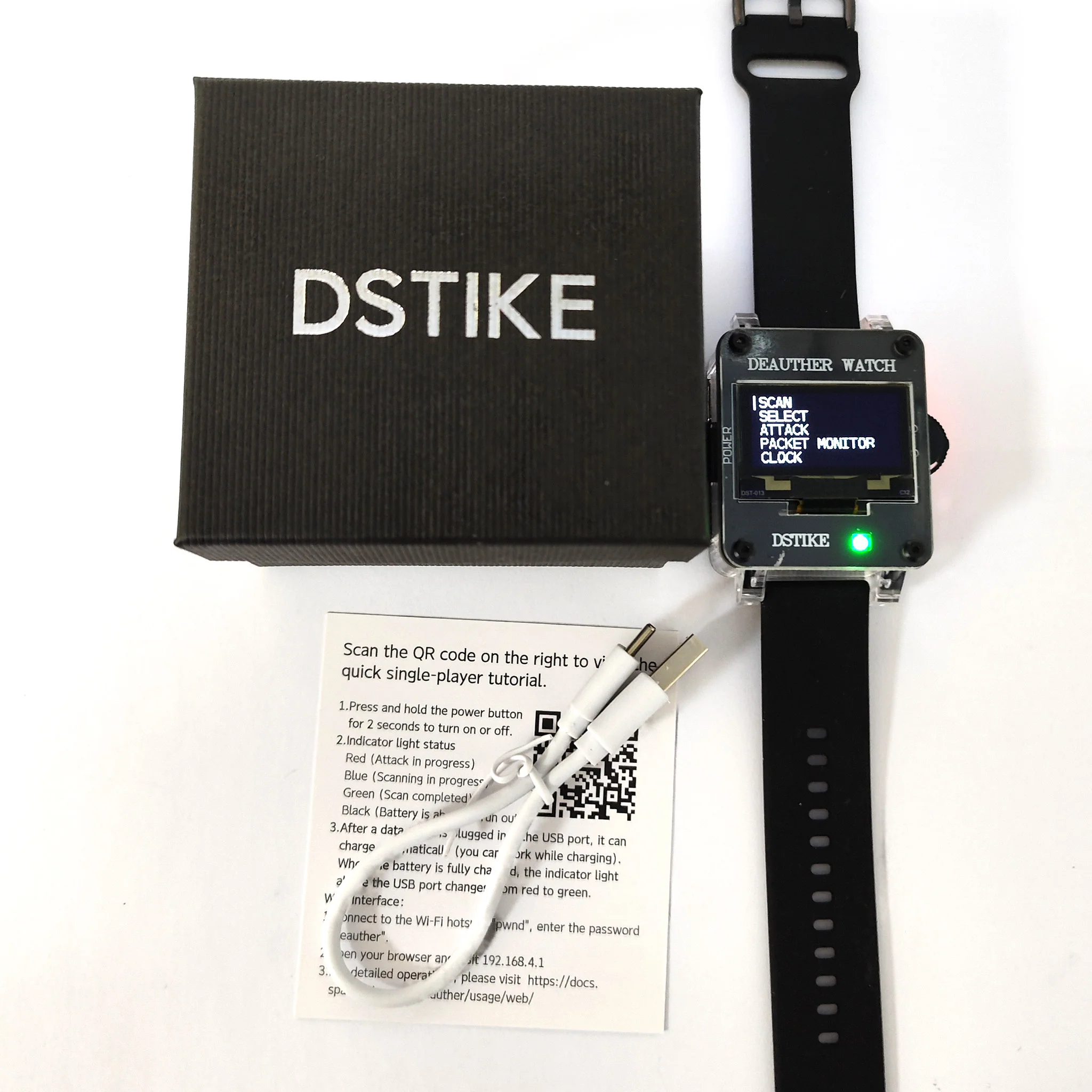

What’s in the Box?
- 1 × Deauther Watch X II, assembled
- 1 × USB data cable
- 1 × quick start guide
Important 5GHz Notice
This device is based on the ESP8266, which supports 2.4GHz Wi-Fi only. It does not support 5GHz Wi-Fi networks.
Ideal For
- Cybersecurity education
- Authorized 2.4GHz Wi-Fi testing
- ESP8266 development
- Wireless security demonstrations
- Arduino IDE learning
- Maker and DIY electronics projects
- Portable embedded development
Wearable ESP8266 Wi-Fi Security Learning Tool
The DSTIKE Deauther Watch X II is a practical wearable platform for users who want to learn about 2.4GHz Wi-Fi security, ESP8266 development, wireless protocol behavior, and portable embedded electronics in a responsible and controlled way.
