DSTIKE Deauther32 MiNi 5G ESP32-C5 WiFi Security Testing Board

The DSTIKE Deauther32 MiNi 5G ESP32-C5 is a compact Wi-Fi security testing and development board designed for cybersecurity education, authorized wireless research, IoT prototyping, and ESP32-C5 firmware development. Built around the ESP32-C5 RISC-V SoC, it offers a small form factor, USB Type-C connectivity, a color display, onboard RGB LED, battery management, and GPIO expansion for custom projects.

This board comes pre-flashed with Deauther firmware for immediate use in controlled lab environments, while also remaining flexible enough for custom firmware, embedded development, and IoT experimentation.

Important Legal Use Notice

This device is intended only for educational use, research, and authorized testing on networks and devices that you own or have explicit permission to assess. Unauthorized interference with wireless networks may be illegal. Always follow local laws and responsible security testing practices.

ESP32-C5 RISC-V Development Platform

The DSTIKE Deauther32 MiNi 5G is powered by the ESP32-C5, a modern RISC-V wireless SoC designed for advanced Wi-Fi development and protocol research. It is suitable for users who want to learn about ESP32-C5 architecture, wireless security concepts, and custom IoT firmware development.

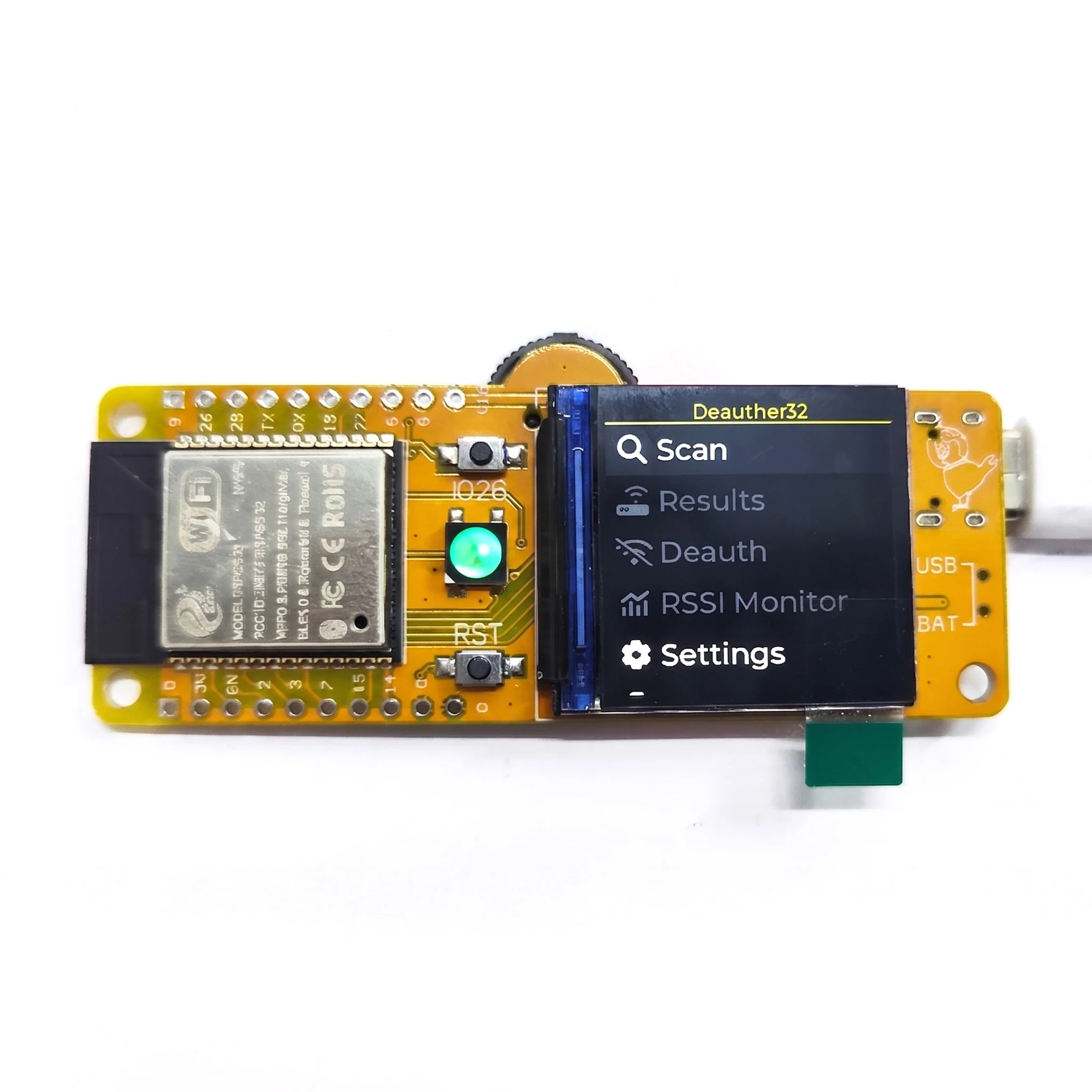

1.3-Inch HD IPS Display

The board features a crisp 1.3-inch ST7789 HD IPS display, making it easy to view device status, menus, RSSI information, and testing data during portable use. The color display improves usability compared with basic OLED-only development boards.

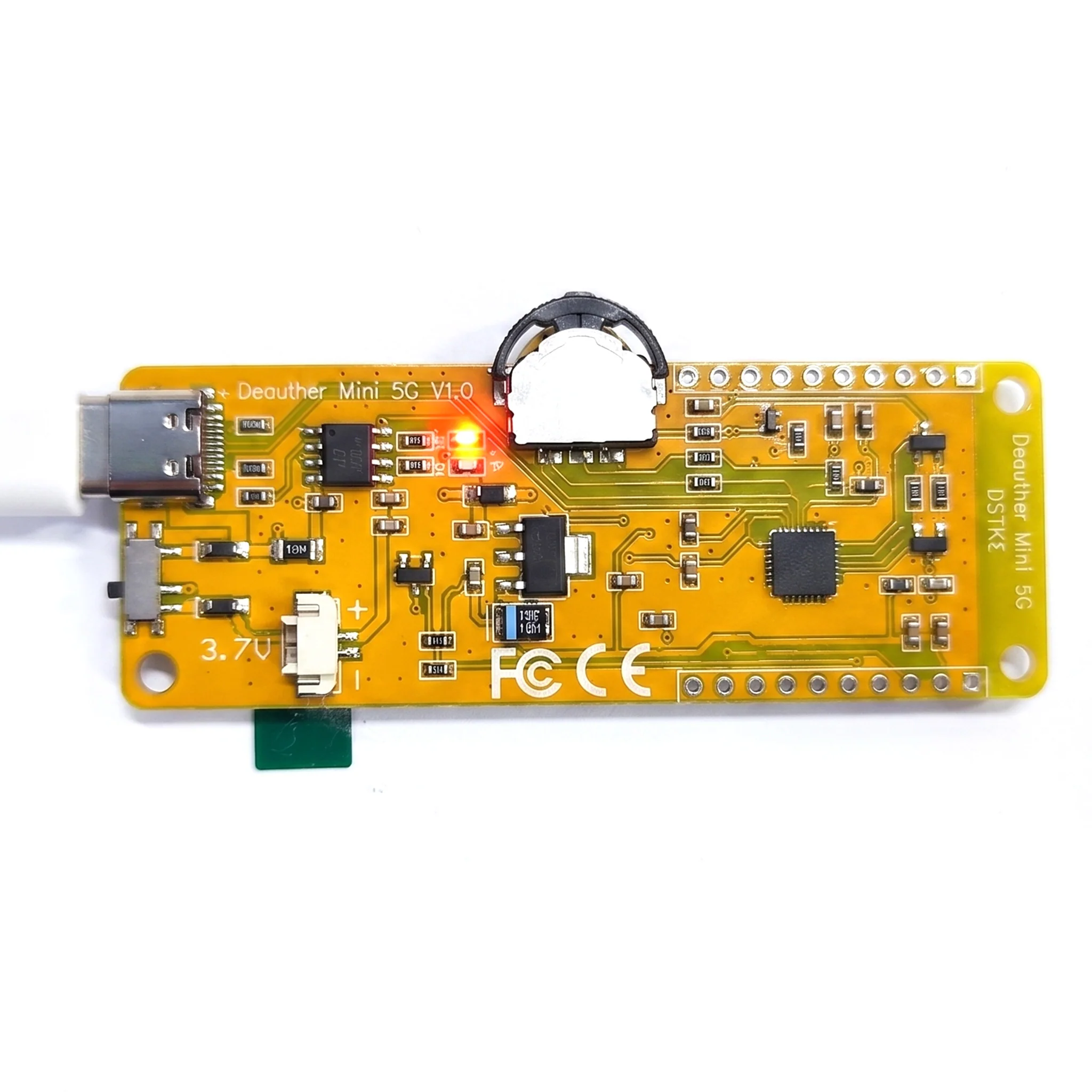

Dual Power Management

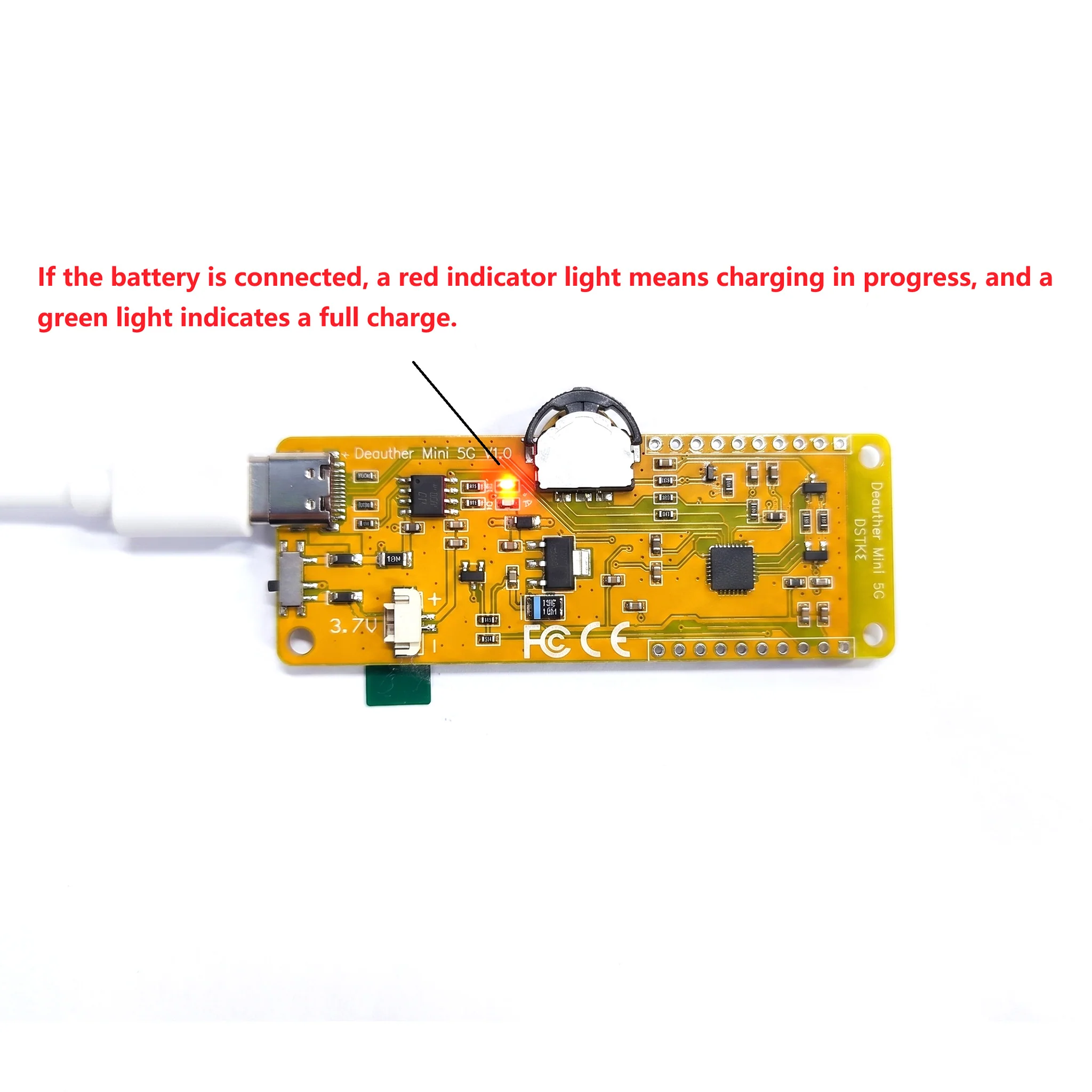

The integrated power management system supports both battery and USB operation. A dedicated selector switch allows users to toggle between battery power and USB power, while onboard charging indicators show the charging status.

• Red LED: charging
• Green LED: fully charged

Expansion Ready for Custom Projects

With 12 broken-out GPIOs, the Deauther32 MiNi 5G can be expanded with external sensors, peripherals, and custom hardware. This makes it useful not only as a Wi-Fi security education board, but also as a compact ESP32-C5 development platform for makers and engineers.

Key Features

• DSTIKE Deauther32 MiNi 5G development board
• ESP32-C5 RISC-V SoC
• Designed for Wi-Fi security education and authorized testing
• Pre-flashed Deauther firmware
• 1.3-inch ST7789 HD IPS display
• USB Type-C interface
• Battery and USB power selector switch
• Integrated charging management
• Charging status LEDs
• 12 GPIO breakout pins
• Reset button
• IO28 user button
• WS2812B addressable RGB LED
• Suitable for IoT prototyping and custom firmware development

Specifications

• Chip: ESP32-C5
• Architecture: RISC-V
• Display: 1.3-inch ST7789 HD IPS screen
• Interface: USB Type-C
• Lighting: WS2812B RGB LED
• Power: battery or USB power with selector switch
• Charging: integrated battery charging management
• GPIO expansion: 12 GPIOs

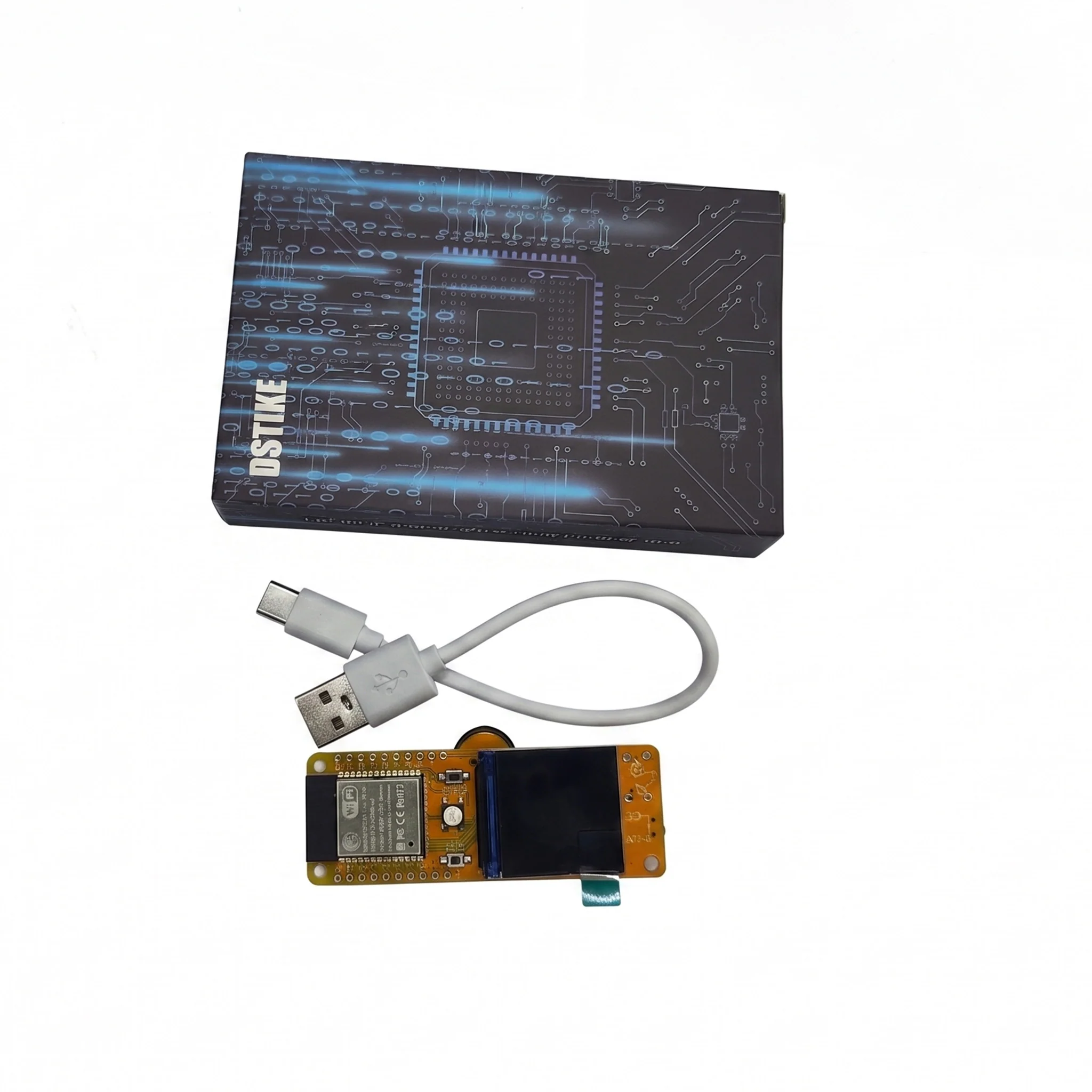

What’s in the Box?

• 1 × DSTIKE ESP32-C5 Deauther Board
• 1 × Type-C data cable

Ideal For

• Wi-Fi security education and authorized research
• ESP32-C5 and RISC-V learning
• IoT prototyping
• Custom firmware development
• Portable wireless testing labs
• DIY electronics and maker projects

Compact Tool for Wireless Research and Development

The DSTIKE Deauther32 MiNi 5G is a practical choice for users who want a portable ESP32-C5 board with a built-in display, USB-C, battery support, GPIO expansion, and pre-installed firmware for controlled wireless security education and development work.
