DSTIKE Deauther32 Watch MINI ESP32-C5 Dual-Band WiFi 6 Security Testing Watch
We offer free shipping for orders over 415 EUR. Free shipping also applies to products marked with the Free Shipping sticker, even if the order total is below this amount. Availability and delivery times may vary depending on your country.
- Order Protection: If your order is lost, we guarantee a replacement or a refund. Terms apply.
- Easy Returns: Enjoy a simple and hassle-free return process.
- Flexible Payments: Choose from multiple secure payment options that fit your needs.
- Best Prices: Get the best value on all our products.

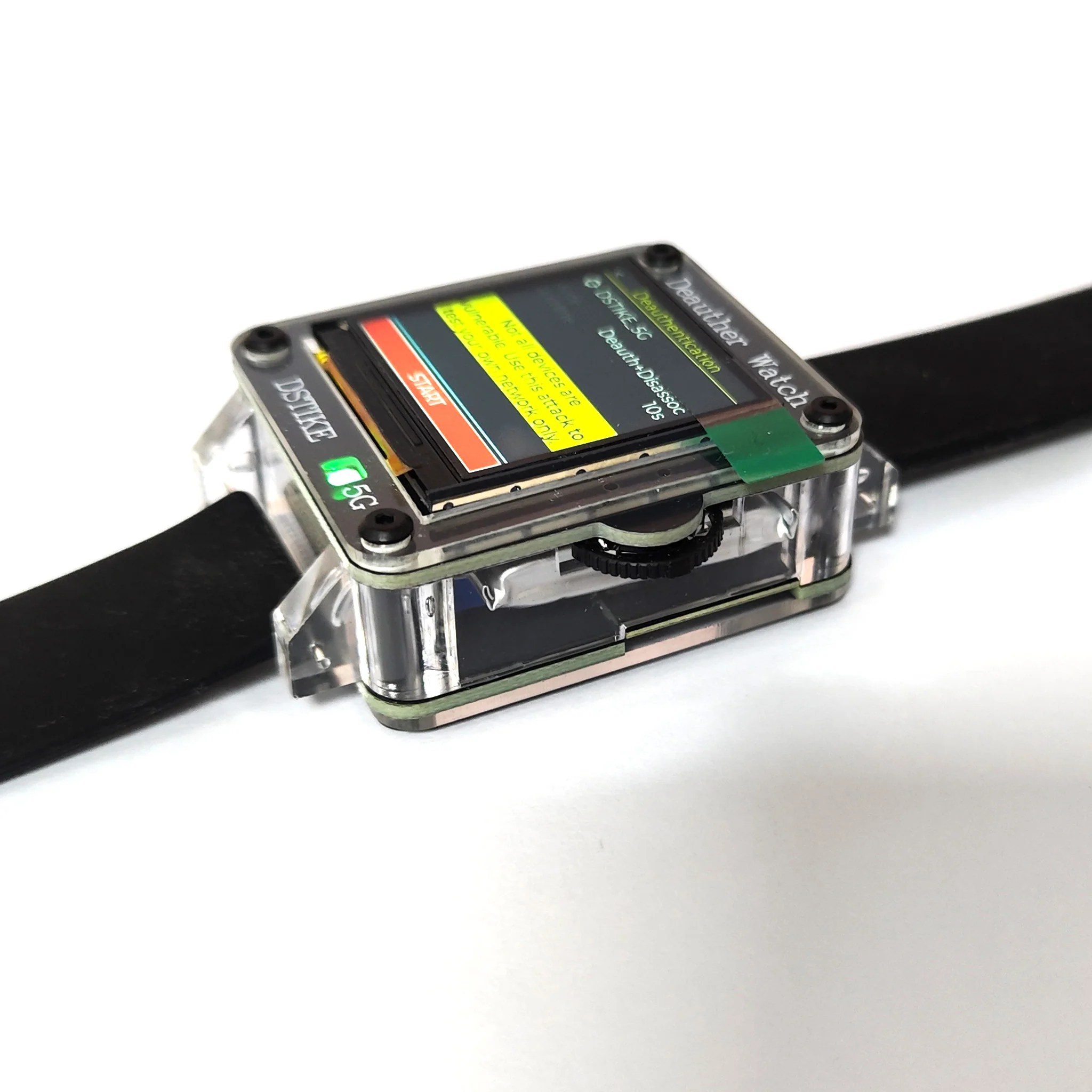

The DSTIKE Deauther32 Watch MINI is a compact wearable Wi-Fi security testing and development device powered by the Espressif ESP32-C5 RISC-V MCU. As the next generation of the DSTIKE Deauther Watch series, it upgrades from older ESP8266-based hardware to a modern dual-band platform with support for both 2.4GHz and 5GHz Wi-Fi research in authorized environments.
With a 1.54-inch IPS color display, 700mAh battery, USB-C connectivity, RGB status LED, and redesigned Deauther32 user interface, the Watch MINI is built for cybersecurity education, wireless protocol learning, signal monitoring, and portable ESP32-C5 development.
Important Legal Use Notice
This device is intended only for educational use, research, and authorized testing on networks and devices that you own or have explicit permission to assess. Unauthorized Wi-Fi interference may be illegal. Always follow local laws, radio regulations, and responsible security testing practices.
ESP32-C5 Dual-Band Wi-Fi Platform
The Deauther32 Watch MINI uses the Espressif ESP32-C5, a RISC-V wireless microcontroller with WiFi 6 support. Unlike previous 2.4GHz-only models, this watch is designed for learning and testing across both 2.4GHz and 5GHz Wi-Fi bands in controlled lab environments.

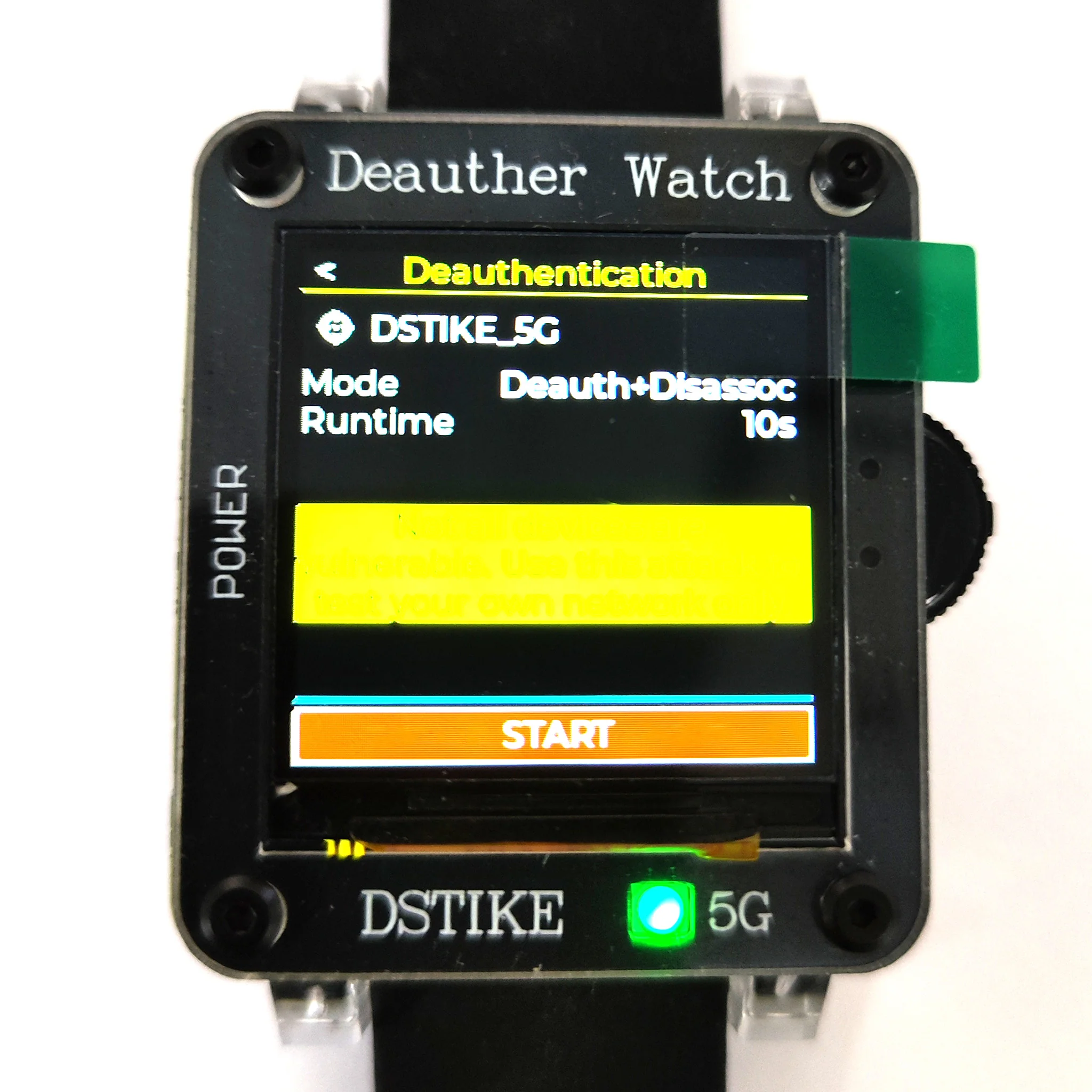

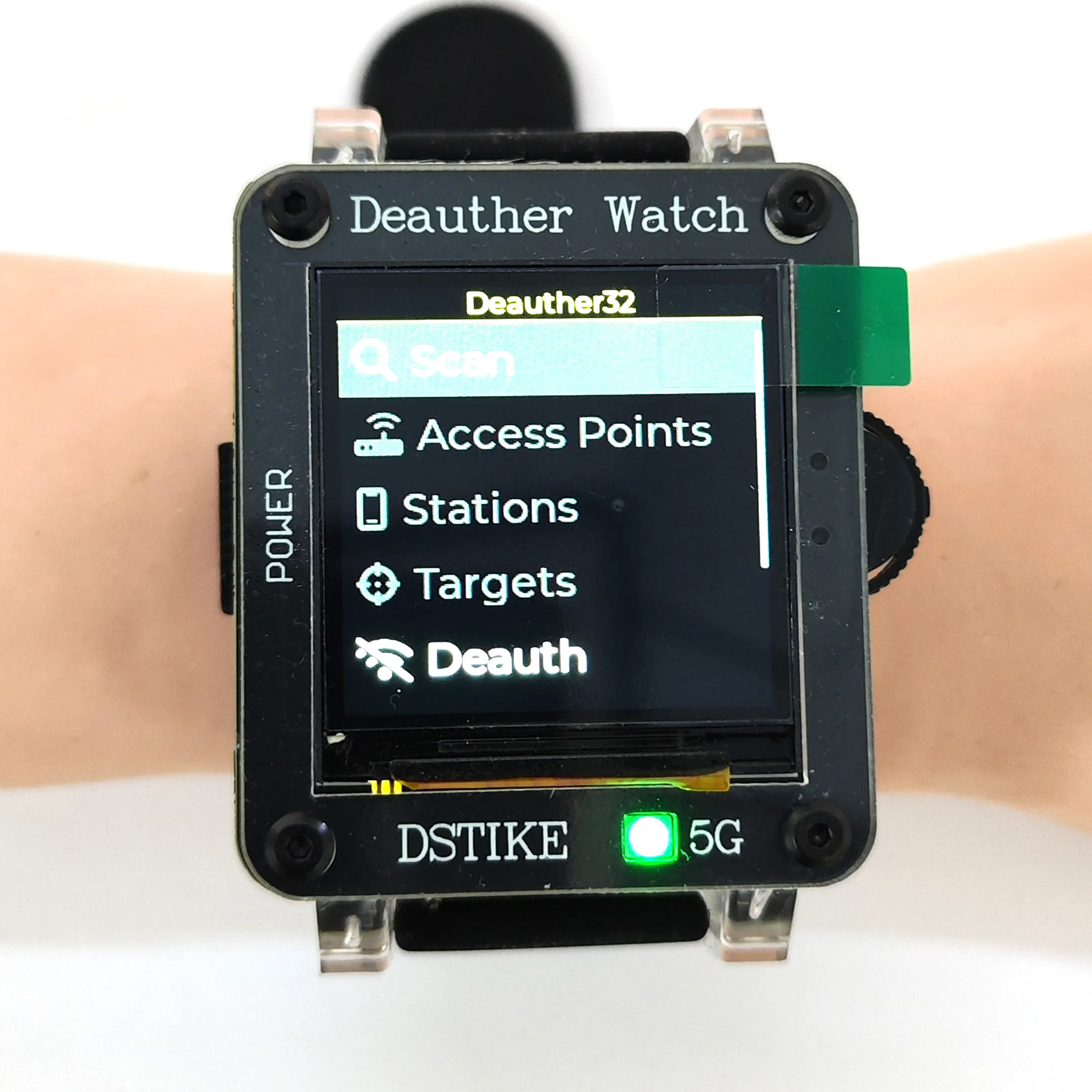

1.54-Inch IPS Color Display
The monochrome OLED display used on older models has been replaced with a 1.54-inch IPS color screen. The redesigned color interface improves menu navigation, status visibility, scanning information, and signal monitoring during portable use.
RGB Status LED Feedback
The front RGB LED provides quick visual feedback without needing to check the screen constantly. The color-coded indicator helps show the current device state during authorized testing and demonstrations.
- Blue: scanning in progress
- Red: active test mode
- Green: scan completed or ready state

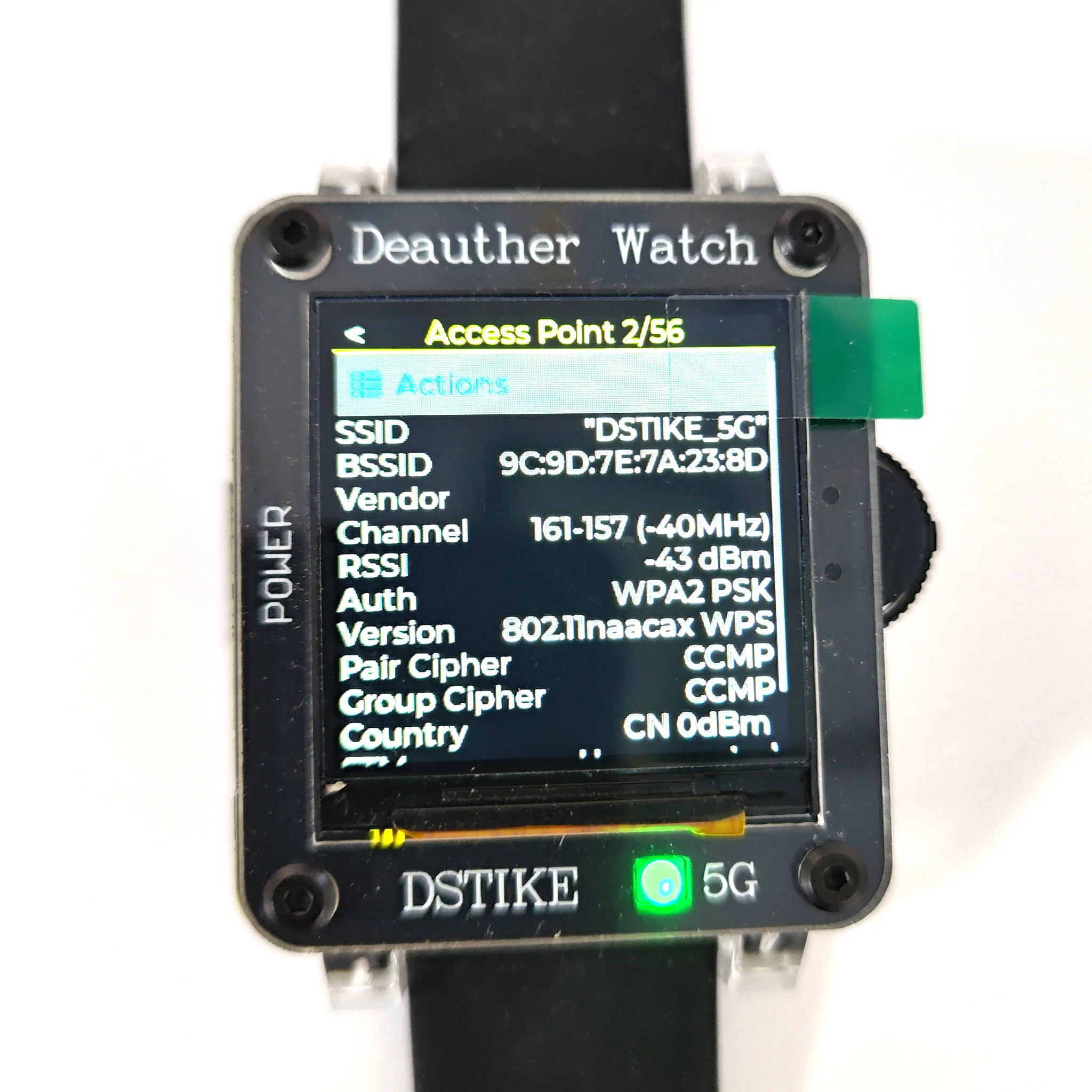

RSSI Signal Strength Monitor
The built-in RSSI monitor provides real-time signal strength visualization for selected Wi-Fi targets. This can help users study signal changes, understand wireless coverage, and learn about physical signal tracking in controlled environments.
Key Features
- DSTIKE Deauther32 Watch MINI wearable Wi-Fi testing device
- ESP32-C5 RISC-V 32-bit MCU
- Dual-band 2.4GHz and 5GHz Wi-Fi support
- WiFi 6 support
- 1.54-inch IPS color display
- 700mAh lithium-ion battery
- Internal dual-band antenna

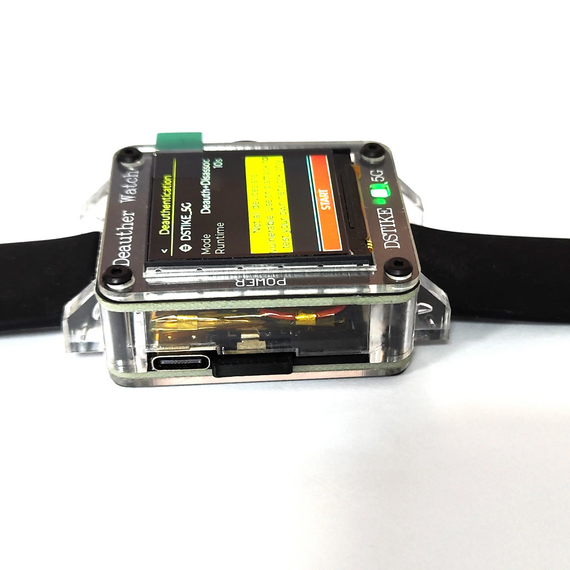

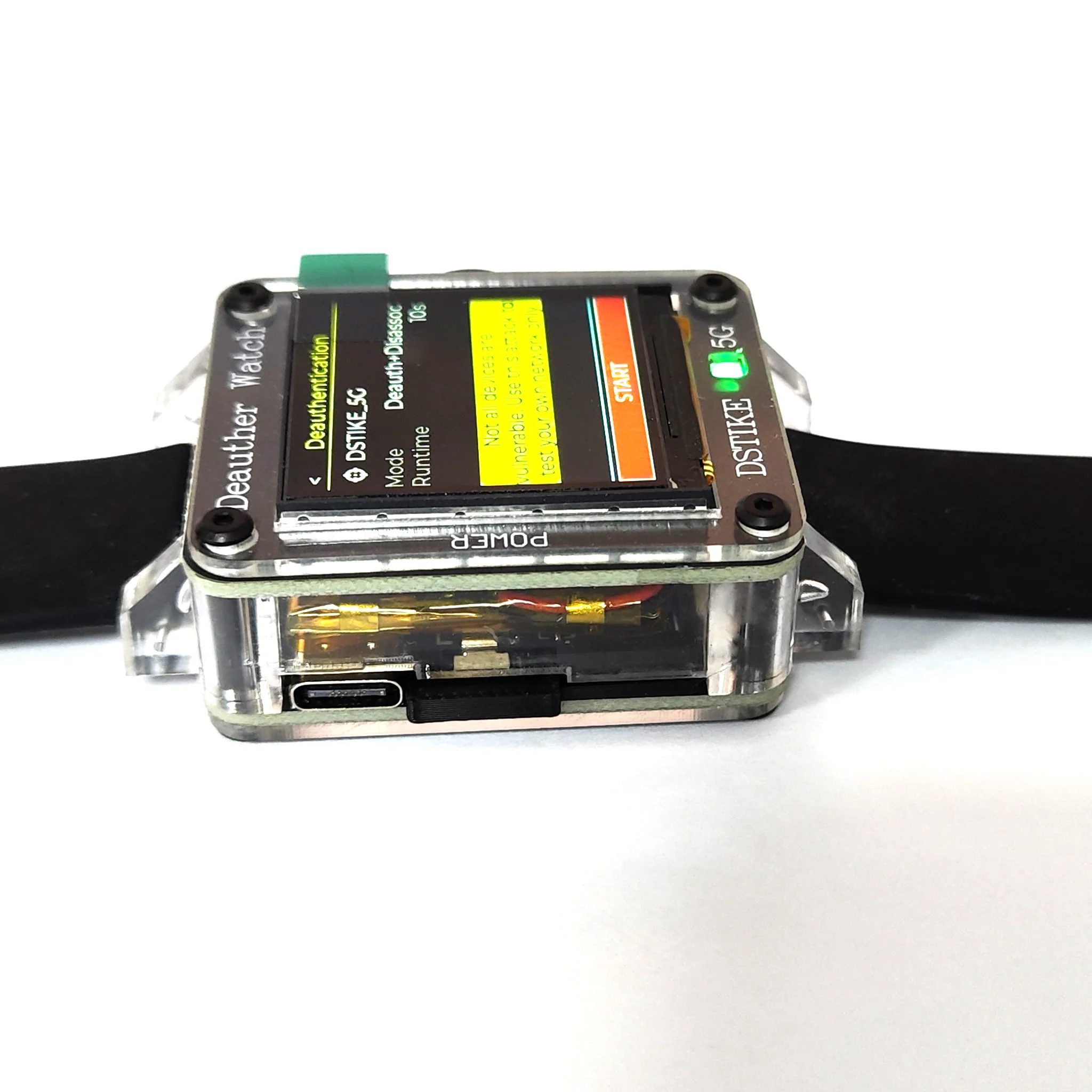

- USB-C for charging and flashing
- 3-way slide switch and power button
- RGB status LED for scan, active test, and ready states
- Deauther32 color-optimized user interface
- RSSI signal strength monitoring dashboard
- Designed for cybersecurity education, research, and ESP32-C5 development
Technical Specifications
- Microcontroller: Espressif ESP32-C5
- Architecture: RISC-V 32-bit single-core
- Wireless support: 2.4GHz and 5GHz Wi-Fi
- Wi-Fi standards: 802.11ax WiFi 6, 802.11a/b/g/n
- Display: 1.54-inch IPS LCD color screen
- Battery: 700mAh lithium-ion
- Antenna: internal dual-band antenna
- Connectivity: USB-C for charging and firmware flashing
- Controls: 3-way slide switch and power button
- LED: RGB status LED
Deauther32 Watch Model Comparison
| Feature | Watch SE | Watch MINI | Watch PLUS | Watch MAX |
|---|---|---|---|---|
| MCU | ESP32-S3 | ESP32-C5 | ESP32-C5 | ESP32-C5 |
| Frequency | 2.4GHz only | 2.4GHz and 5GHz | 2.4GHz and 5GHz | 2.4GHz and 5GHz |
| Screen | 1.54-inch IPS color | 1.54-inch IPS color | 1.69-inch IPS color | 1.69-inch IPS color |
| WiFi 6 | Yes | Yes | Yes | Yes |
| Battery | 1000mAh | 700mAh | 1000mAh | 1000mAh |
| Breakout GPIOs | Yes | No | No | Yes |
| SD Support | Yes | No | No | No |
| External Antenna | Yes | No | No | Yes |
| Availability | On sale | On sale | Under design | Under design |

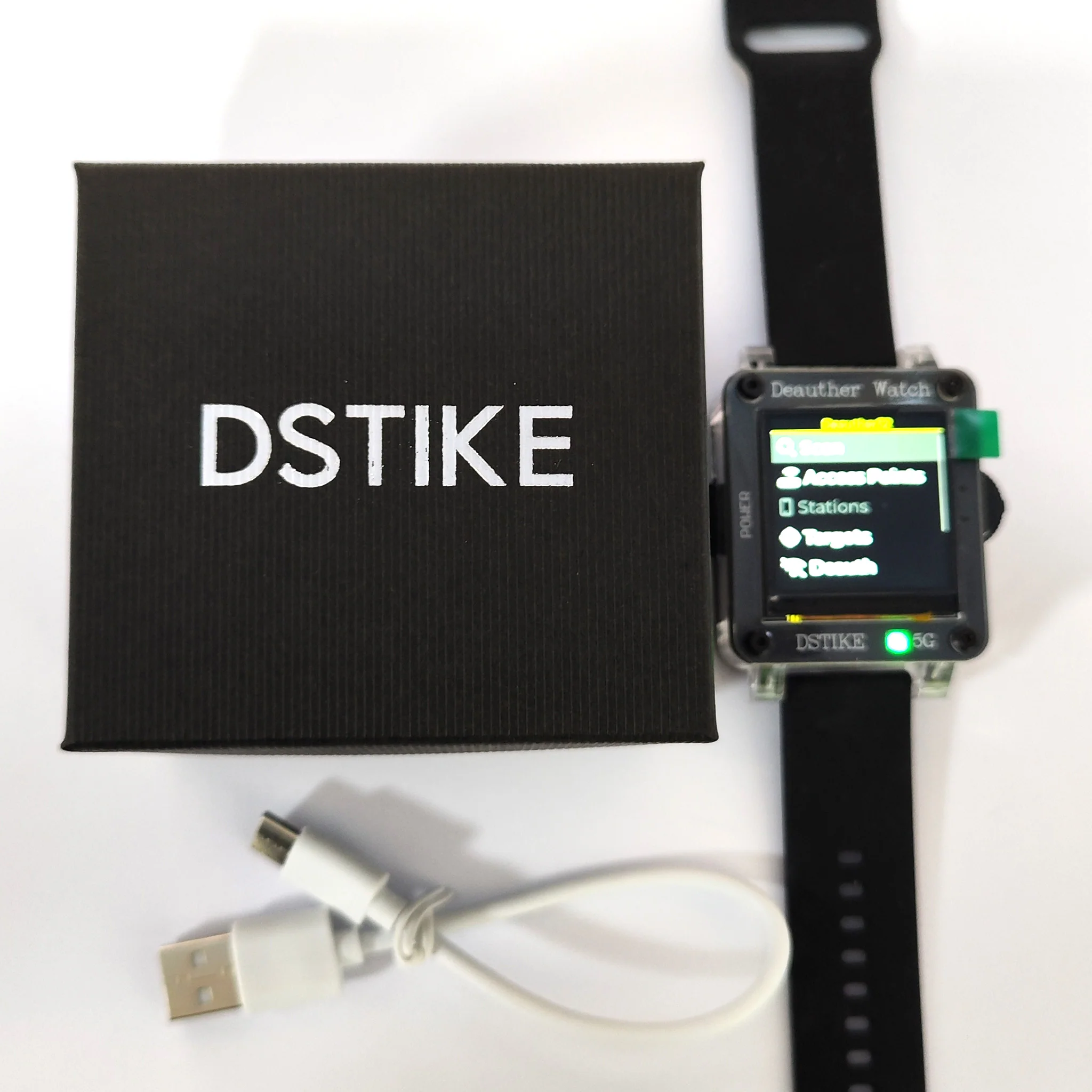

What’s in the Box?
- 1 × DSTIKE Deauther32 Watch MINI, assembled
- 1 × USB-C cable
5GHz Regulation Notice
5GHz wireless frequencies may be subject to stricter rules, including DFS regulations, depending on your country. Users are responsible for complying with all local radio and wireless testing laws.
Development Hardware Notice
The ESP32-C5 is a newer chip platform, and firmware development is still ongoing. This product is best suited for developers, researchers, cybersecurity students, and experienced users who understand that features may evolve through future firmware updates.
Wearable Dual-Band Wi-Fi Security Learning Tool
The DSTIKE Deauther32 Watch MINI is ideal for users who want a compact wearable platform for Wi-Fi security education, dual-band wireless research, RSSI monitoring, ESP32-C5 development, and portable cybersecurity demonstrations in authorized environments.
