DSTIKE ESP32-S3 Handheld Game Console N16R8 Open-Source Development Board

The DSTIKE ESP32-S3 Handheld Game Console is a compact open-source game development board designed for makers, developers, students, and retro gaming enthusiasts. Powered by the ESP32-S3 N16R8 with 16MB flash and 8MB PSRAM, it is ideal for building custom games, learning embedded programming, experimenting with graphics, and creating portable IoT projects.

With a transparent case, built-in rechargeable battery, 1.3-inch OLED display, six control buttons, dual buzzers, RGB LED, and USB Type-C connectivity, this handheld ESP32-S3 console is ready for both creative development and fun out of the box.

Open-Source ESP32-S3 Game Development Board

This handheld console is built around the ESP32-S3 N16R8 dual-core processor, giving developers a powerful platform for small games, interactive projects, graphics experiments, and embedded applications. It is compatible with the Arduino ecosystem and can be programmed as an ESP32S3 Dev Module.

Ready to Play Out of the Box

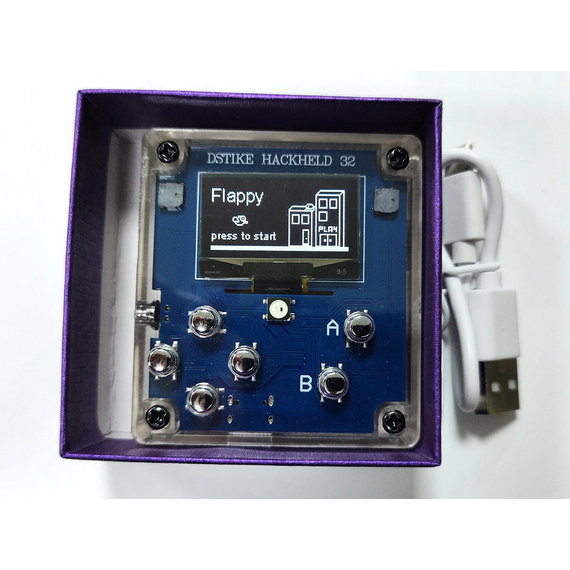

The console comes with a pre-installed Flappy Bird-style game, so it can be used immediately after charging. Developers can also modify the included game code, create their own games, or use the hardware as a portable ESP32-S3 development platform.

Portable Design with Built-In Battery

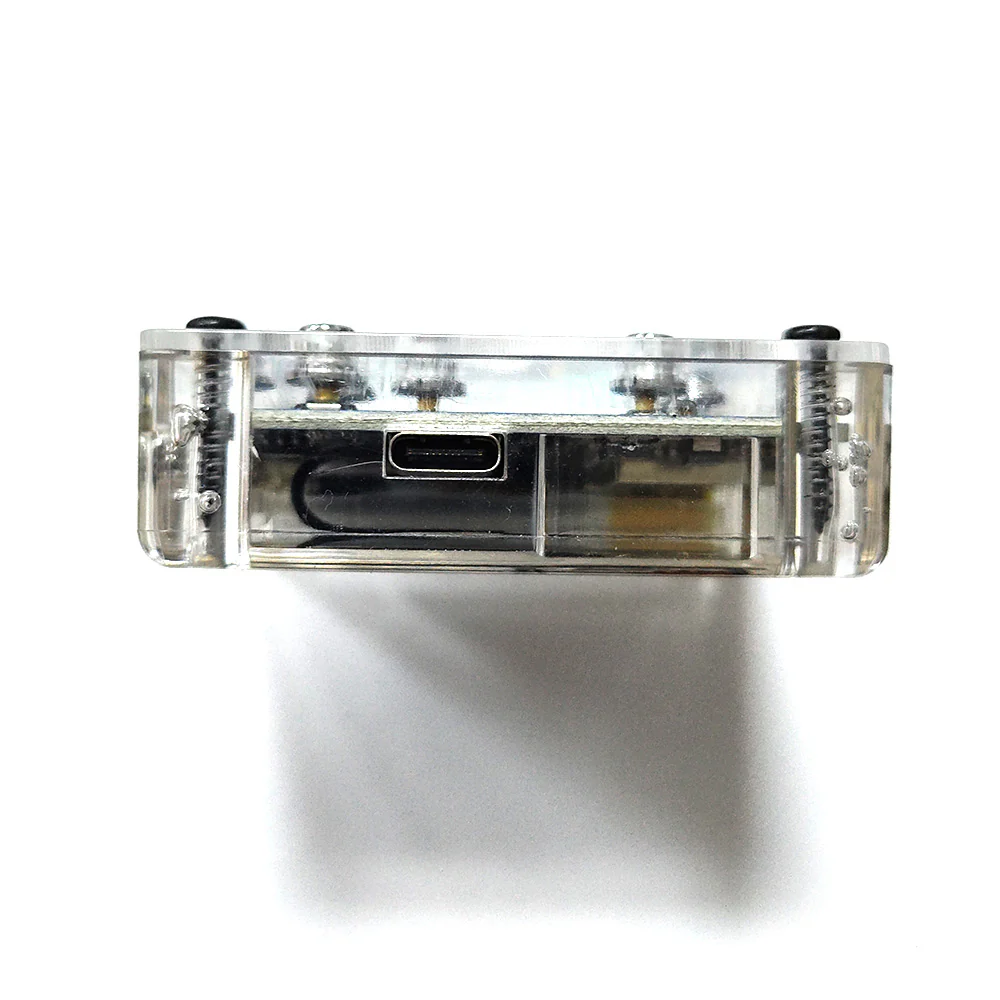

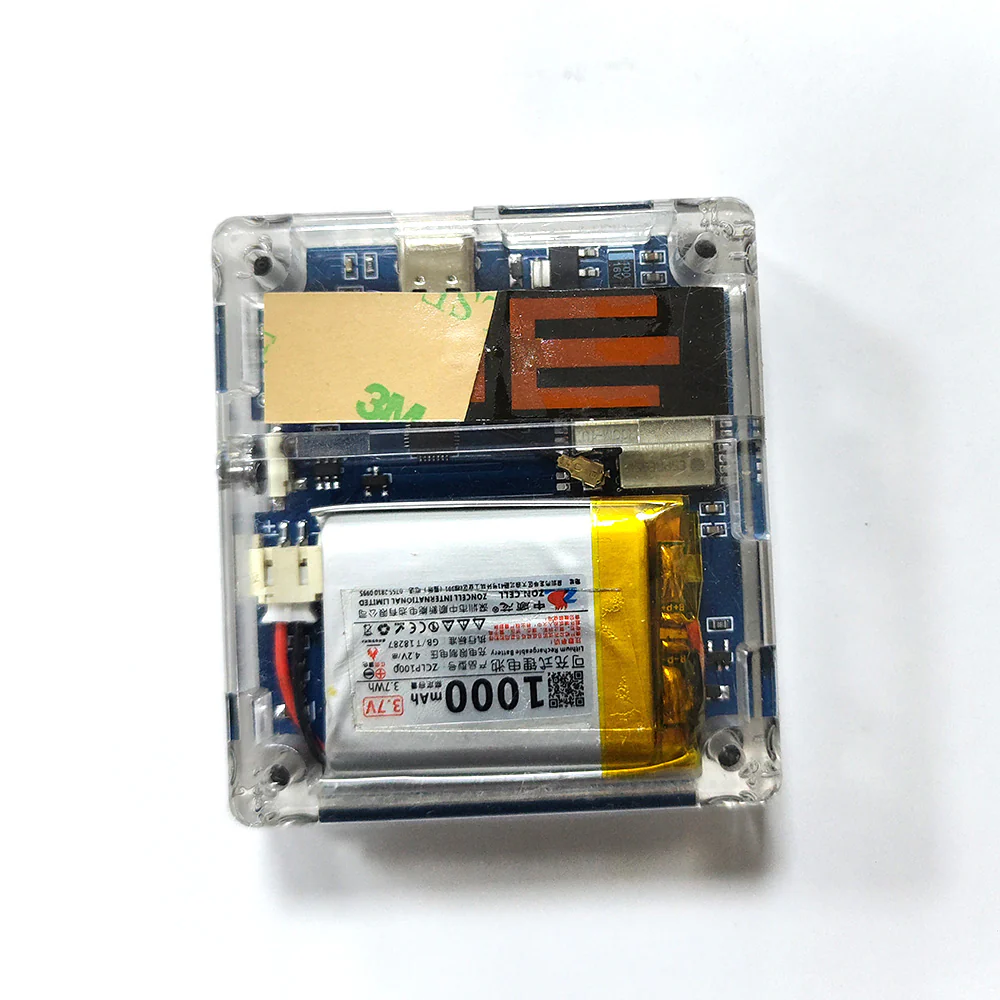

The built-in 1000mAh rechargeable battery provides portable operation for gaming, testing, and development. The USB Type-C port supports both charging and data transfer, making it easy to upload code, power the device, and continue development.

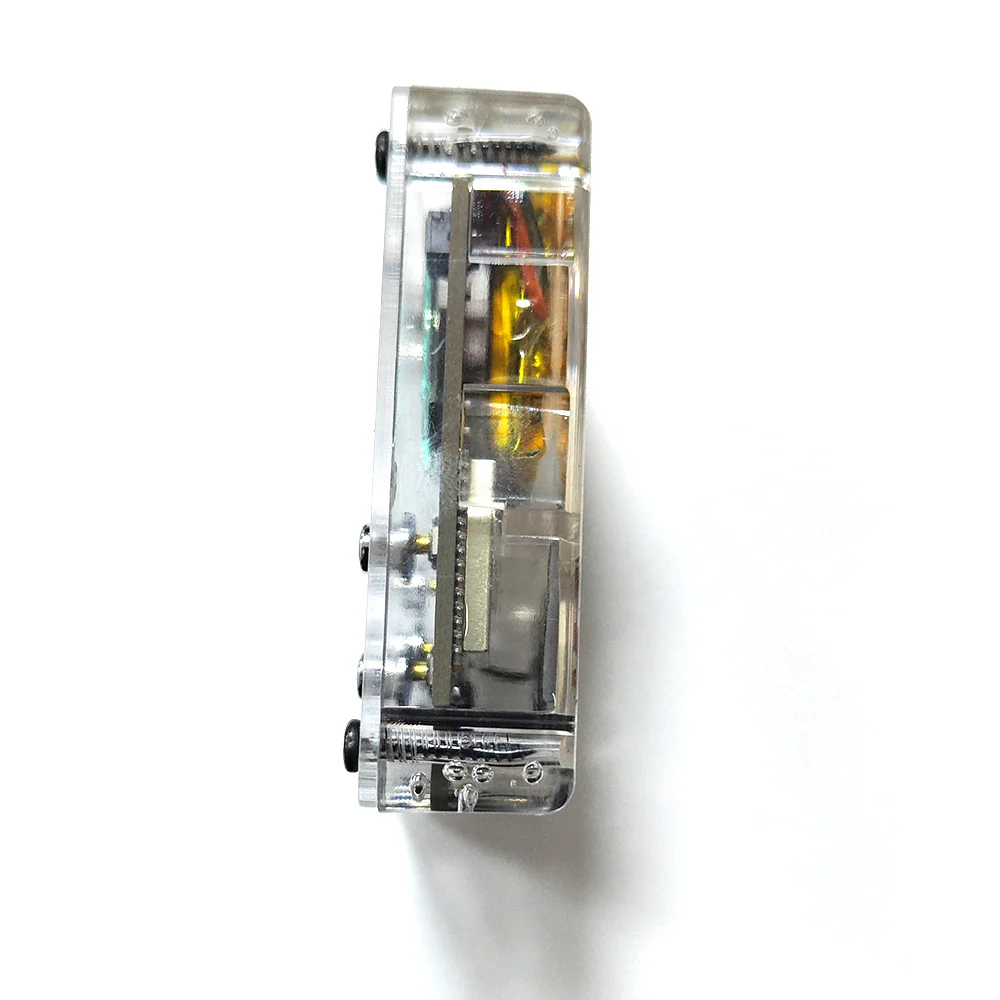

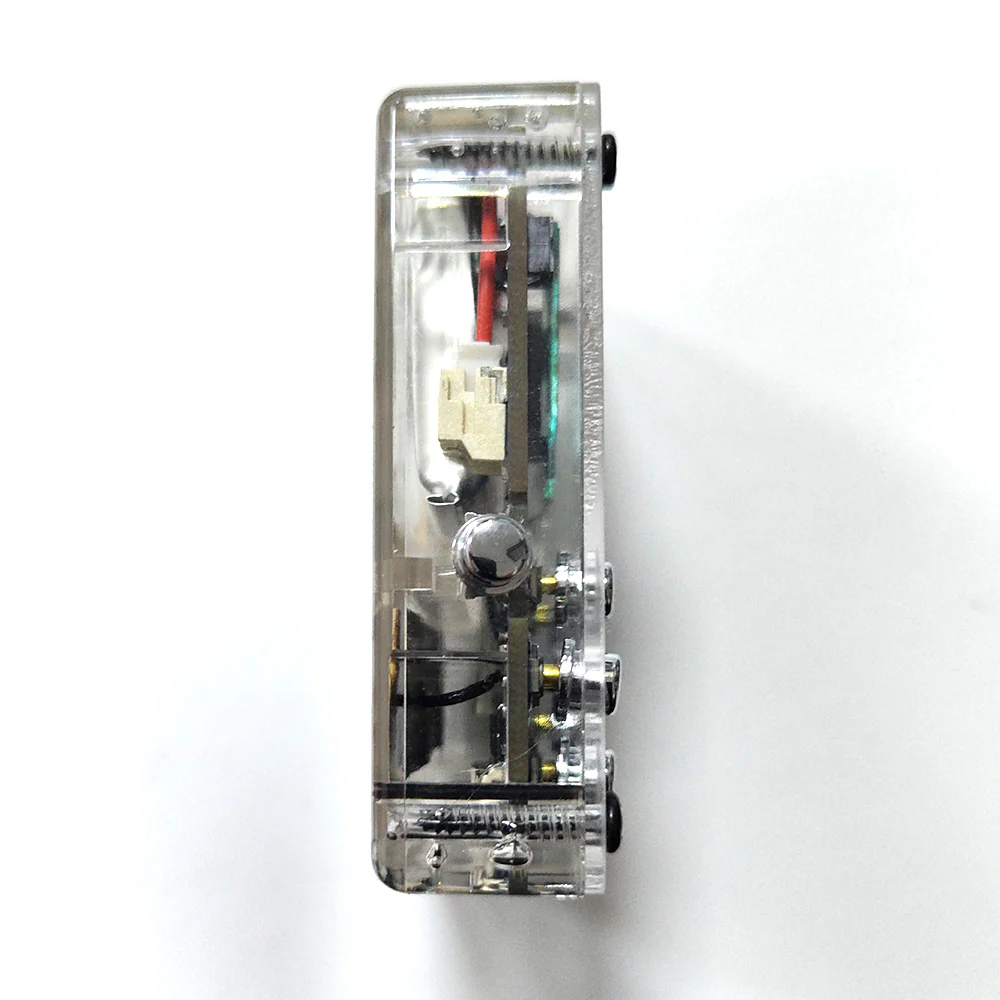

Transparent Case and Interactive Hardware

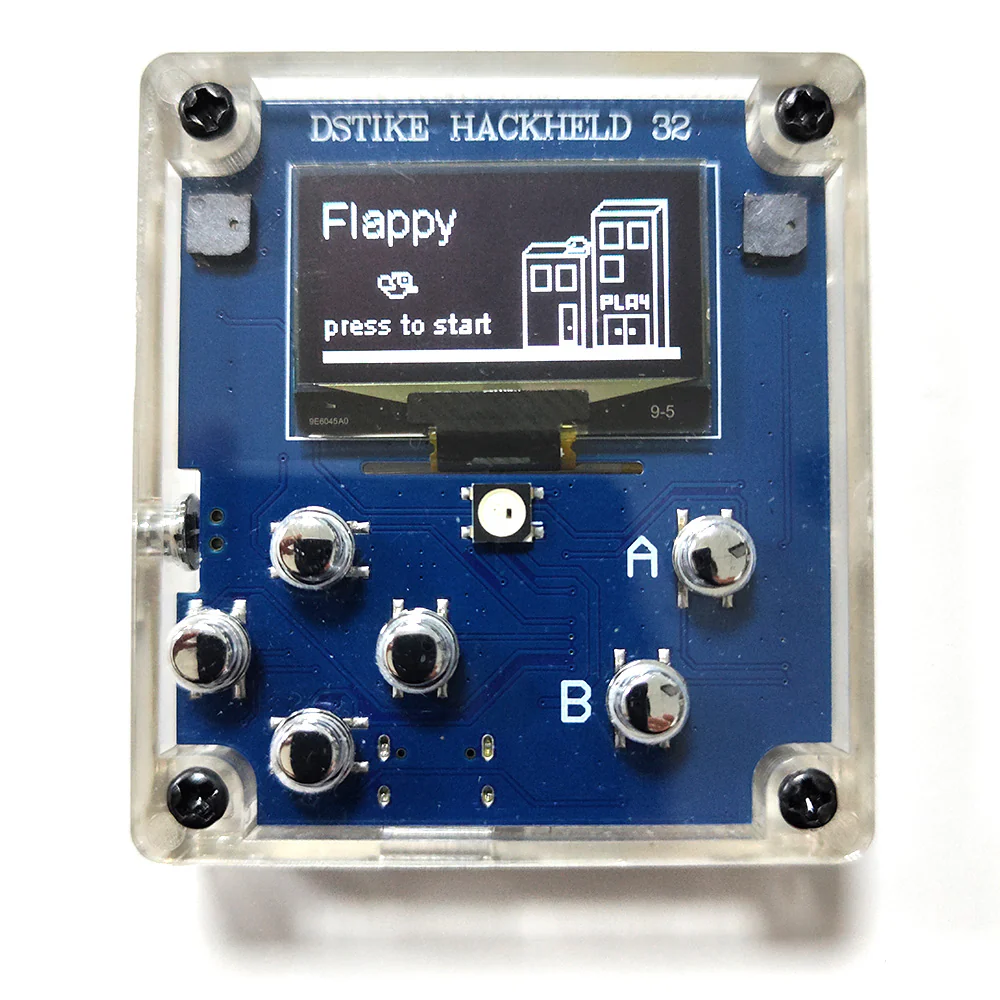

The transparent enclosure shows the electronics inside, giving the device a clean maker-style look. Six responsive buttons provide classic handheld controls, while dual buzzers and a WS2812B RGB LED add sound and visual feedback for games and interactive projects.

Key Features

• DSTIKE ESP32-S3 handheld game console
• ESP32-S3 N16R8 dual-core processor
• 16MB flash memory and 8MB PSRAM
• SH1106 1.3-inch OLED display
• Built-in 1000mAh rechargeable battery
• USB Type-C port for charging and data transfer
• Six responsive buttons: Up, Down, Left, Right, A, and B
• Dual buzzers for game sound effects
• WS2812B RGB LED for visual feedback
• Transparent case with visible internal electronics
• Pre-installed Flappy Bird-style game
• Arduino-compatible ESP32-S3 development platform
• Suitable for games, IoT projects, learning, and custom firmware development

Hardware Information

• MCU: ESP32S3 N16R8
• Flash: 16MB
• PSRAM: 8MB
• Buzzers: GPIO5 and GPIO40
• Button Up: GPIO38
• Button Down: GPIO35
• Button Left: GPIO36
• Button Right: GPIO37
• Button A: GPIO19
• Button B: GPIO20
• WS2812B RGB LED: GPIO1
• OLED display: SH1106 1.3-inch OLED
• OLED SDA: GPIO41
• OLED SCL: GPIO42

Arduino Development Settings

• Board: ESP32S3 Dev Module
• USB CDC On Boot: Disabled
• CPU Frequency: 240MHz WiFi
• Core Debug Level: None
• USB DFU On Boot: Disabled
• Flash Mode: QIO 120MHz
• Flash Size: 16MB
• Partition Scheme: 16M Flash with 3MB APP and 9.9MB FATFS
• PSRAM: OPI PSRAM
• Upload Mode: UART0 / Hardware CDC
• Upload Speed: 921600
• USB Mode: Hardware CDC and JTAG

Power and Charging

Press and hold the power switch for approximately 1.5 seconds to turn the console on or off. Charging begins when the USB Type-C cable is connected. A red LED indicates charging, and the LED near the power switch changes from red to green when charging is complete.

Ideal For

• ESP32-S3 game development
• Retro handheld game projects
• Arduino programming practice
• DIY electronics learning
• Portable IoT experiments
• STEM education
• Custom firmware development
• Maker and hobby projects

Compact Handheld Console for Makers

The DSTIKE ESP32-S3 Handheld Game Console is a fun and practical development board for anyone who wants to learn ESP32 programming, create portable games, modify open-source code, or build interactive embedded projects in a compact handheld format.
