DSTIKE ESP32 Zen Machine Password Reminder ESP32-S3 OLED Display
We offer free shipping for orders over 415 EUR. Free shipping also applies to products marked with the Free Shipping sticker, even if the order total is below this amount. Availability and delivery times may vary depending on your country.
- Order Protection: If your order is lost, we guarantee a replacement or a refund. Terms apply.
- Easy Returns: Enjoy a simple and hassle-free return process.
- Flexible Payments: Choose from multiple secure payment options that fit your needs.
- Best Prices: Get the best value on all our products.
The DSTIKE ESP32 Zen Machine Password Reminder is a compact ESP32-S3 powered desktop gadget that displays random quotes, reminders, custom messages, or personal prompts on a 1.3-inch OLED screen. It reads content from the included SD card, making it easy to edit the displayed text by simply modifying the TXT file.
Fully assembled and ready to use out of the box, this device is ideal for desk setups, makers, developers, productivity reminders, motivational quotes, simple password hints, and custom ESP32-S3 projects.
Custom OLED Message Display

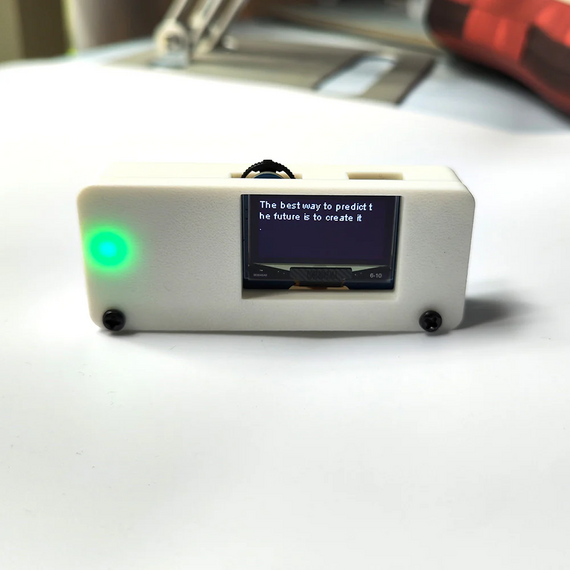

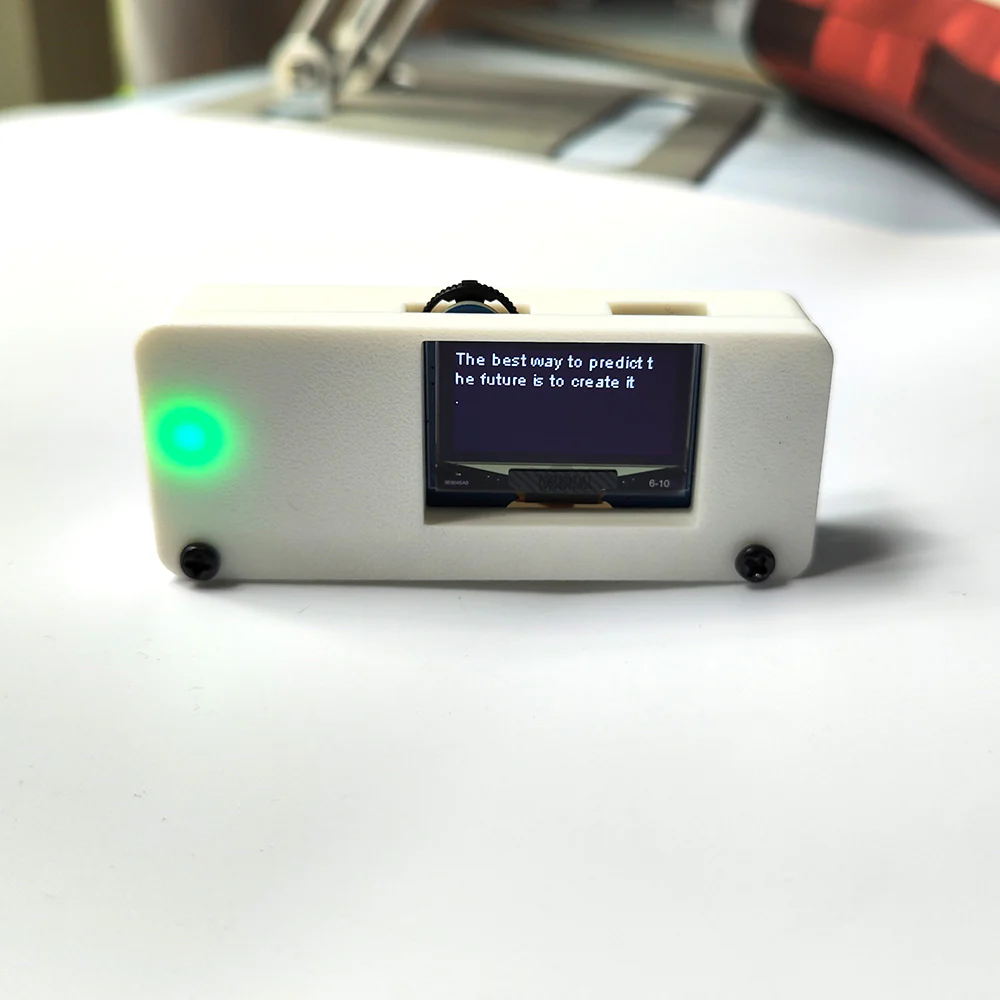

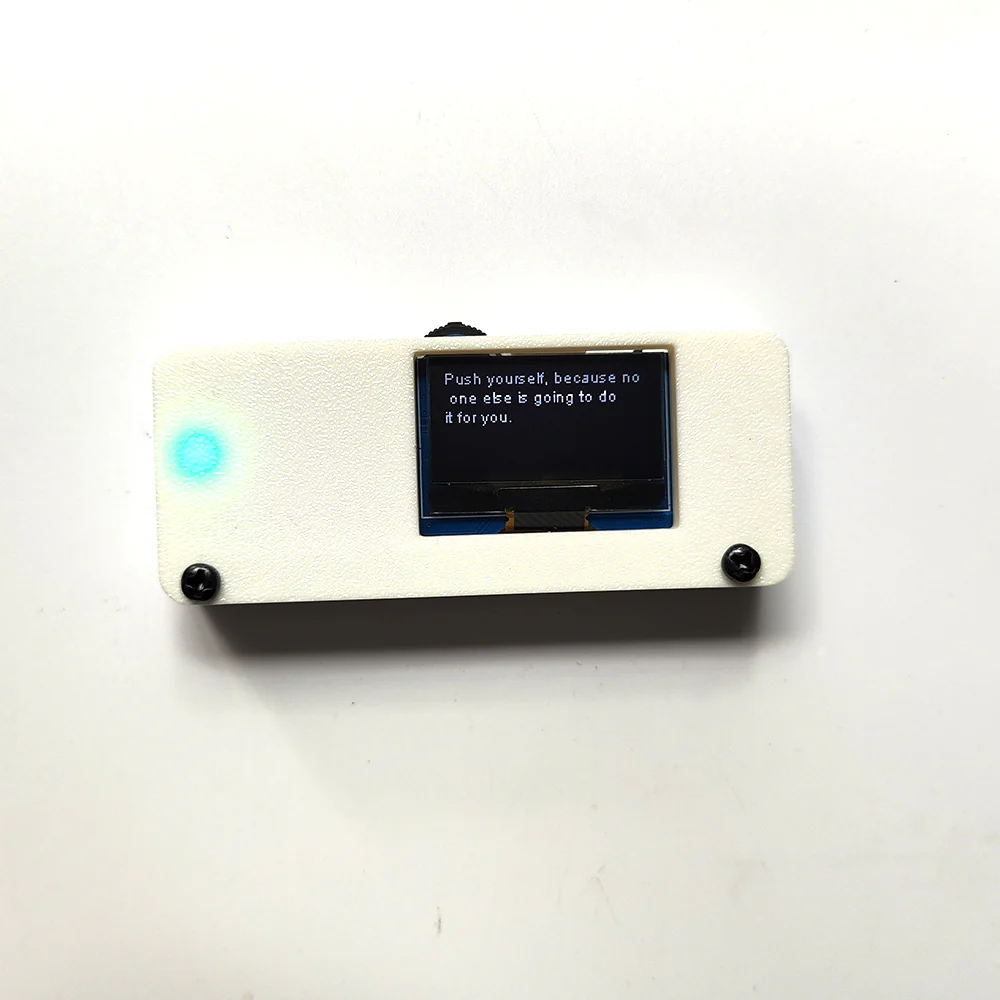

The Zen Machine randomly selects text content from the SD card and displays it on the OLED screen. You can customize the messages by editing the TXT file directly, making it useful for displaying quotes, reminders, notes, prompts, or your own creative text.
ESP32-S3 Development Platform

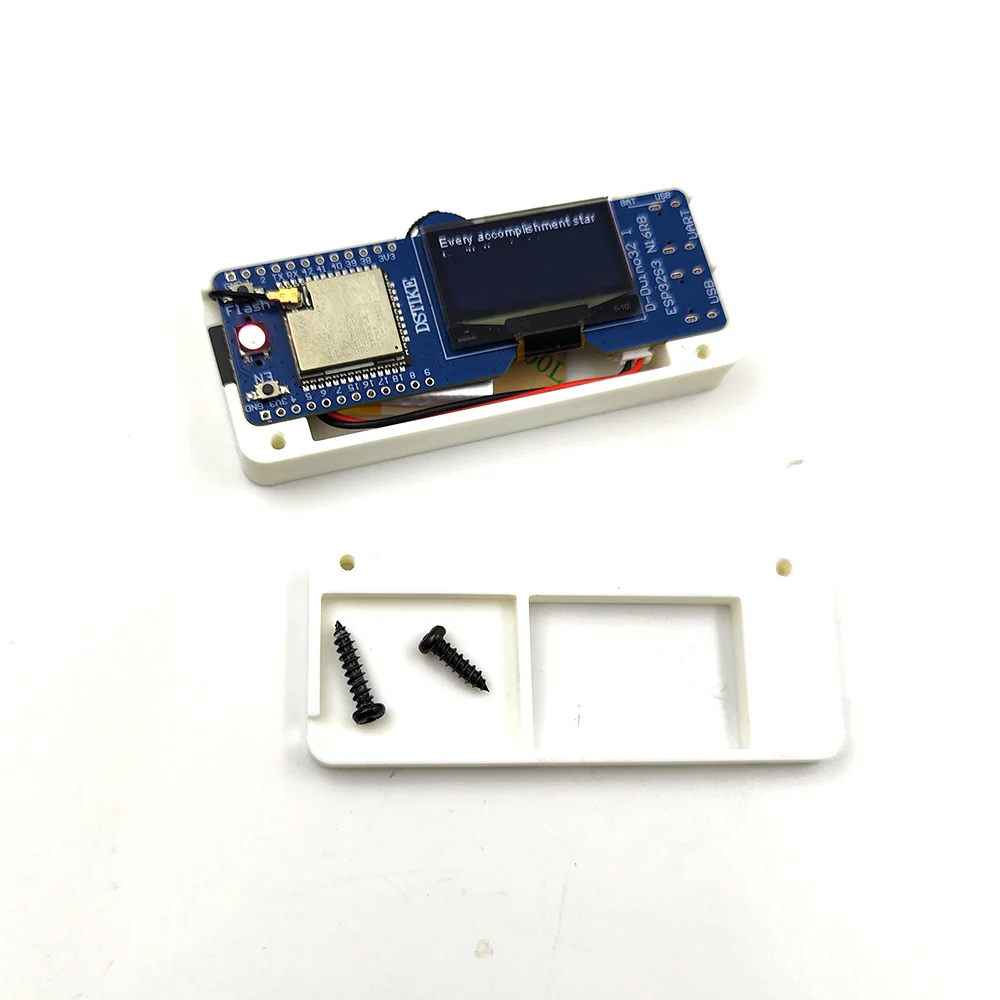

Powered by the ESP32S3 N16R8, the device can also be used as a compact ESP32-S3 development board. The included source code and SD card make it easier to study, modify, and build your own projects around the display, rotary switch, RGB LED, and storage interface.
Ready to Use with Battery Power

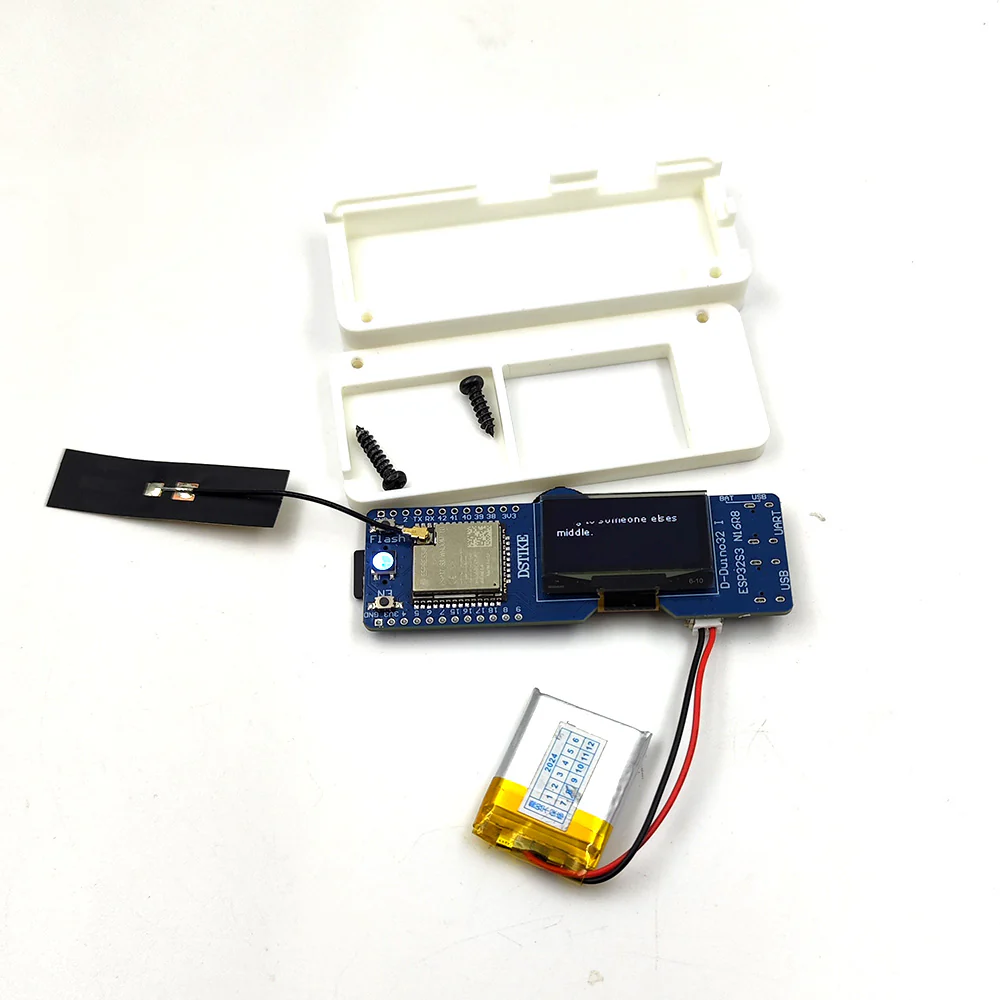

The device comes fully assembled and includes a 500mAh battery for portable operation. It also includes a Type-C data cable, SD card, and source code, giving users everything needed to start using or modifying the device quickly.
Easy Text Editing

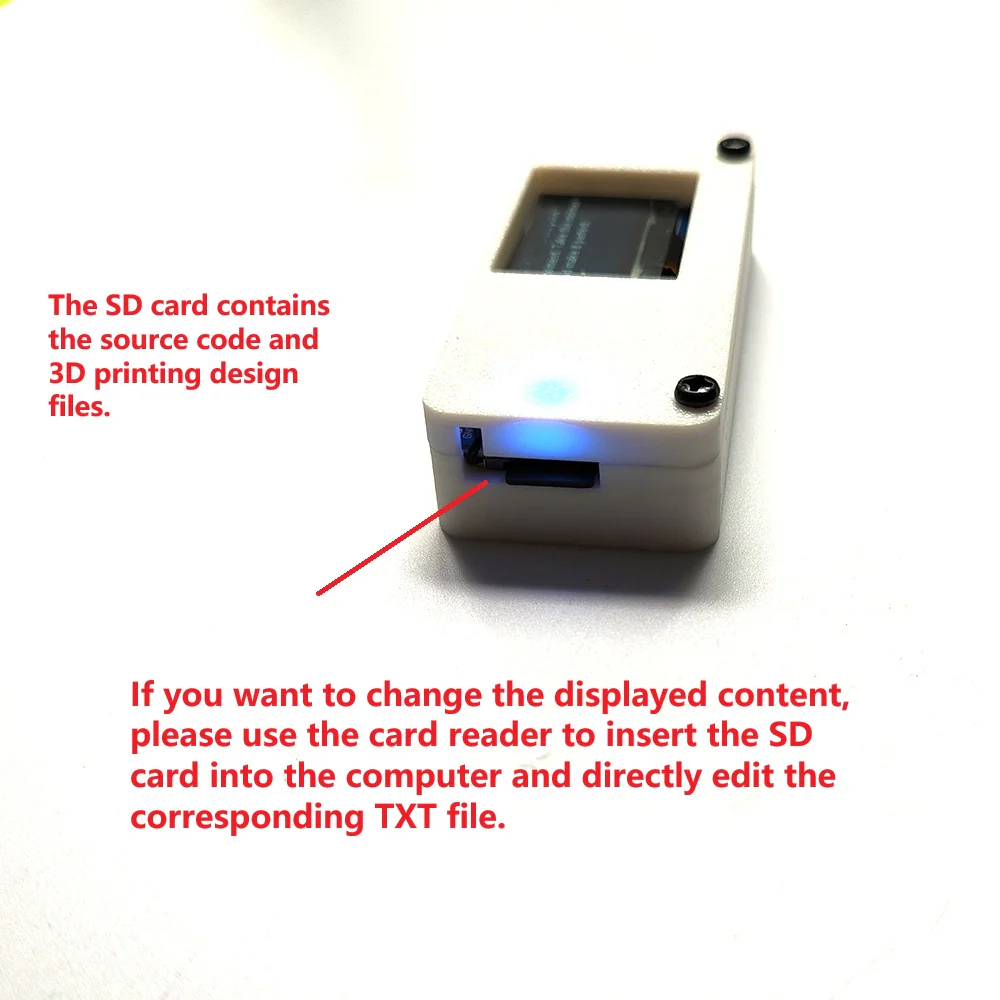

No complex setup is required for basic use. To change the displayed content, edit the TXT file on the SD card and add your own quotes, reminders, or short messages.
Important Password Safety Note
If using this device as a password reminder, avoid storing full sensitive passwords in plain text. For better security, use hints, partial reminders, or non-sensitive prompts instead.
Key Features
- DSTIKE ESP32 Zen Machine Password Reminder
- ESP32S3 N16R8 MCU
- SH1106 1.3-inch OLED display
- Random quote and custom text display
- Edit displayed content directly from the TXT file on the SD card
- Includes SD card and source code
- Built-in 500mAh battery
- 3dB FPC antenna

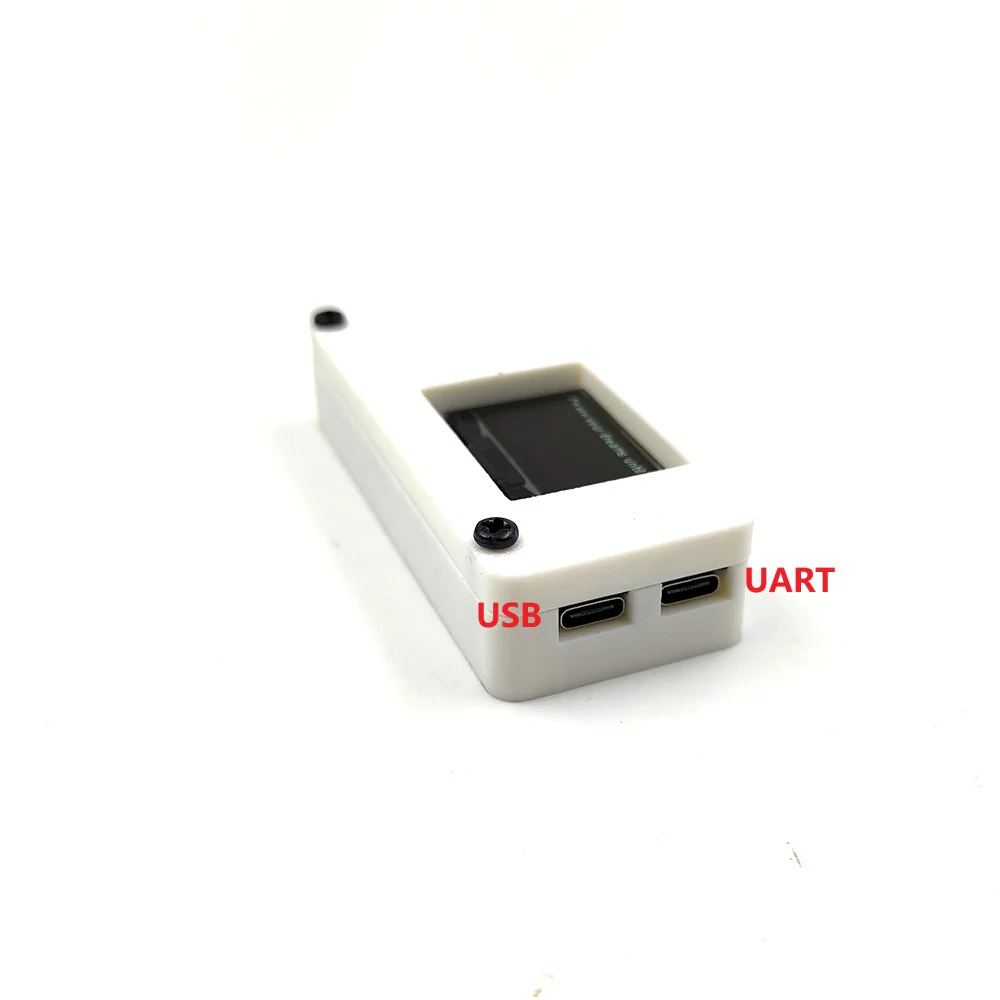

- USB Type-C charging and data connection
- Rotary switch controls
- WS2812B RGB LED
- Fully assembled and ready to use
- Suitable for desk decoration, reminders, ESP32-S3 learning, and custom development

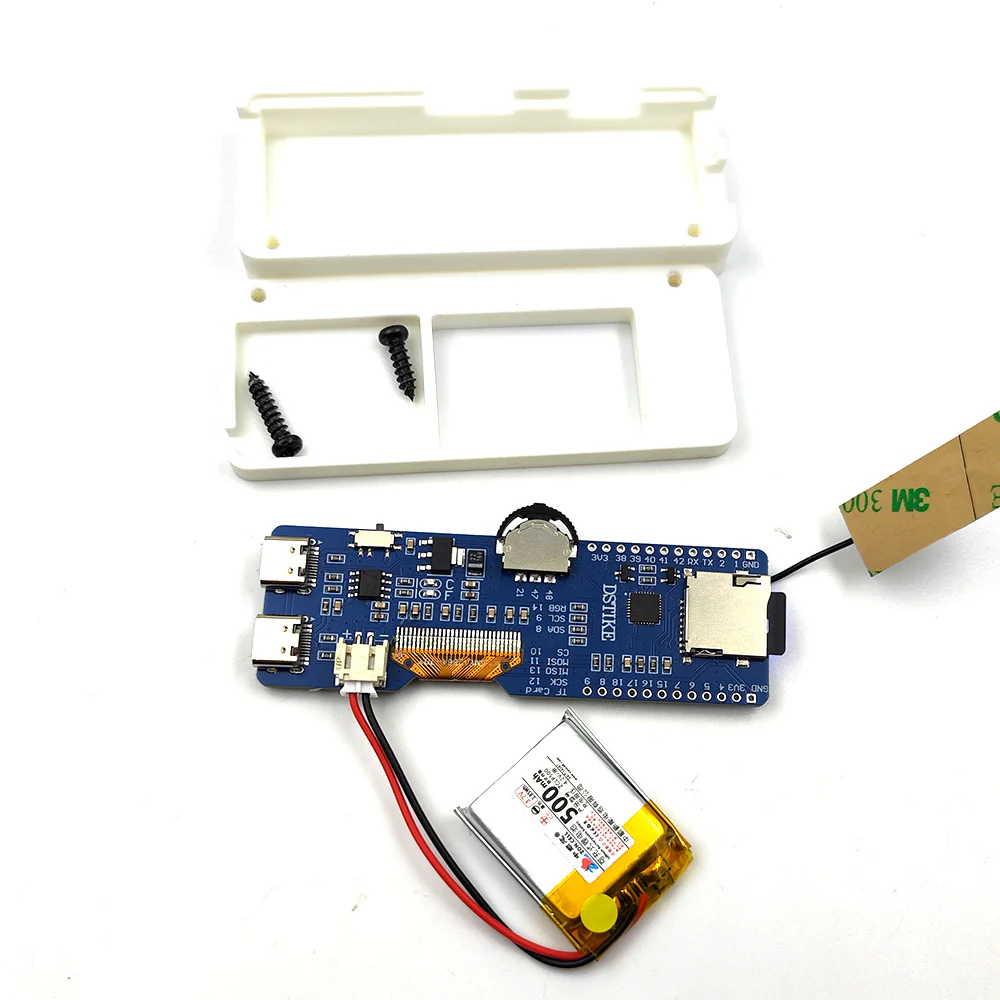

GPIO and Hardware Information
- MCU: ESP32S3 N16R8
- Display: SH1106 1.3-inch OLED
- Display SDA: GPIO8
- Display SCL: GPIO9
- Rotary switch left: GPIO48
- Rotary switch press: GPIO47
- Rotary switch right: GPIO21
- SD card CS: GPIO10
- SD card MOSI: GPIO11
- SD card MISO: GPIO13
- SD card SCLK: GPIO12
- RGB WS2812B: GPIO14
Charging Information

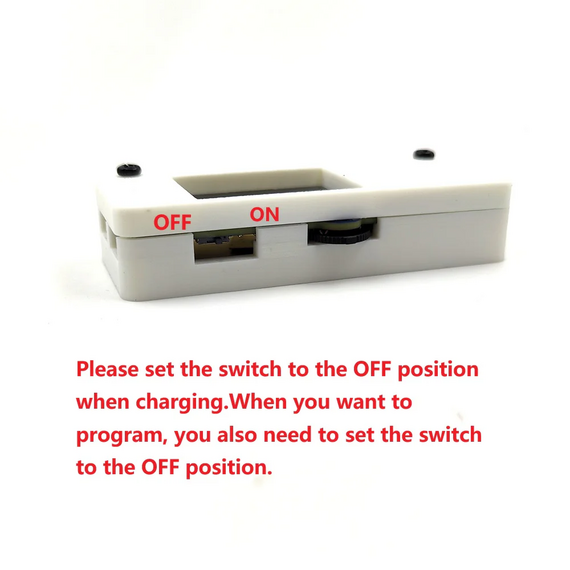

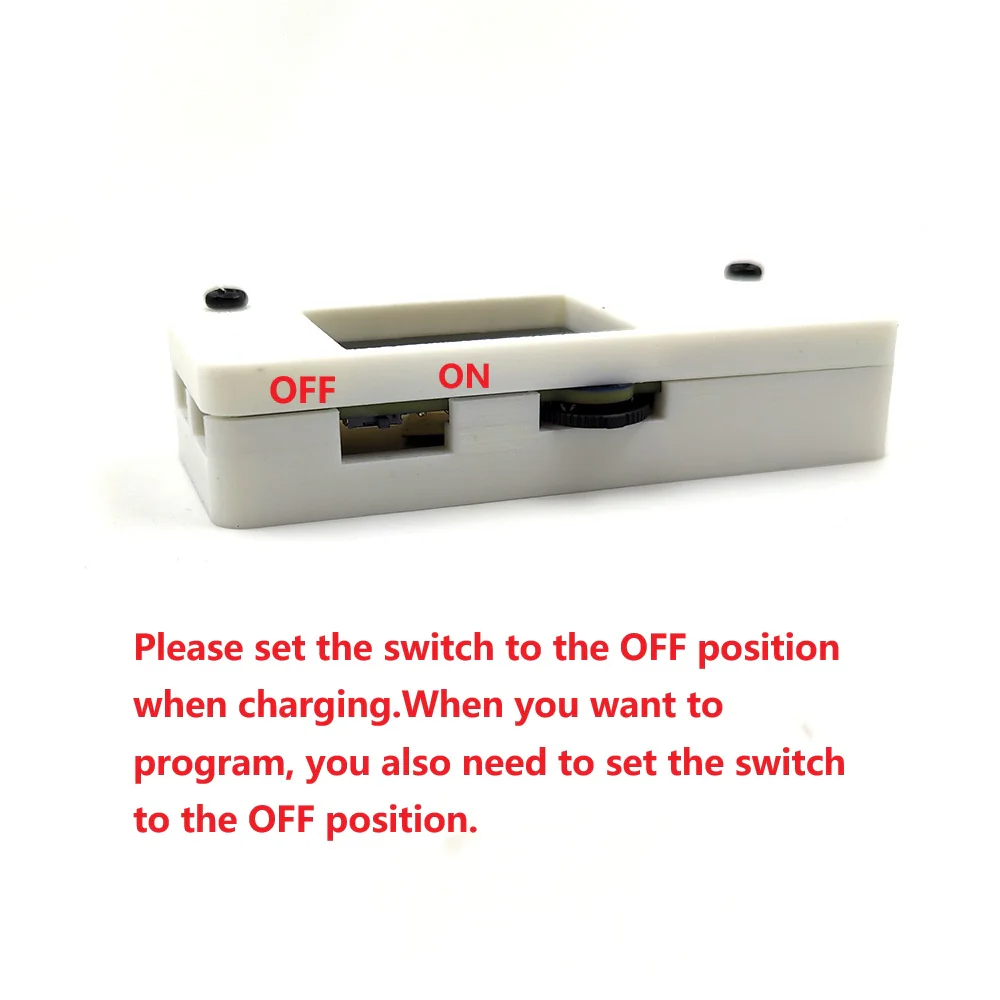

When connected to a USB port, the device will automatically start charging. Please set the switch to the OFF position while charging. When charging is complete, the indicator light behind the screen will change from red to green.
What’s Included?
- 1 × DSTIKE ESP32 Zen Machine Password Reminder
- 1 × USB Type-C data cable
- 1 × SD card with source code
- Built-in 500mAh battery
Ideal For
- Motivational quote display
- Password hints and personal reminders
- Desk setup decoration
- ESP32-S3 development
- Custom OLED display projects
- DIY electronics learning
- Portable reminder gadget projects
Compact ESP32-S3 Reminder and Display Gadget
The DSTIKE ESP32 Zen Machine Password Reminder combines a customizable OLED text display, SD card storage, ESP32-S3 development potential, battery-powered operation, and a fun desktop form factor. It is a practical and creative gadget for anyone who wants a simple programmable reminder display or ESP32-S3 project platform.
