DSTIKE HackHeld32 II ESP32-S3 2.4GHz WiFi Security Testing Handheld
We offer free shipping for orders over 415 EUR. Free shipping also applies to products marked with the Free Shipping sticker, even if the order total is below this amount. Availability and delivery times may vary depending on your country.
- Order Protection: If your order is lost, we guarantee a replacement or a refund. Terms apply.
- Easy Returns: Enjoy a simple and hassle-free return process.
- Flexible Payments: Choose from multiple secure payment options that fit your needs.
- Best Prices: Get the best value on all our products.
The DSTIKE HackHeld32 II is a compact ESP32-S3 handheld development board designed for Wi-Fi security education, IoT experiments, game development, and creative DIY electronics projects. Featuring a 1.54-inch color TFT display, eight physical buttons, a built-in buzzer, RGB LED, external GPIO expansion, and a transparent enclosure, it provides a practical all-in-one platform for makers and developers.
Powered by the ESP32S3 N16R8 with 16MB flash and 8MB PSRAM, the HackHeld32 II comes pre-flashed with Deauther 32 firmware for authorized 2.4GHz Wi-Fi testing and wireless security learning. It can also be used as a general ESP32-S3 development board for custom firmware, portable interfaces, sensor projects, and handheld applications.
Important Legal Use Notice
This device is intended only for educational use, research, and authorized testing on networks and devices that you own or have explicit permission to assess. Unauthorized interference with Wi-Fi networks may be illegal. Always follow local laws and responsible security testing practices.
ESP32-S3 Handheld Development Platform
The HackHeld32 II is built around the ESP32-S3 dual-core processor with Wi-Fi and Bluetooth 5.0 support. Its combination of processing power, display, controls, sound feedback, and GPIO expansion makes it suitable for wireless experiments, IoT prototypes, custom handheld tools, and interactive embedded projects.
1.54-Inch Color TFT Display
The integrated 1.54-inch ST7789 color TFT display provides a clear interface for menus, system status, data visualization, games, and testing dashboards. This makes the board easier to use as a standalone handheld device compared with basic ESP32 boards without a display.
Eight Buttons for Control and Navigation
The board includes eight responsive physical buttons: Up, Down, Left, Right, A, B, Menu Up, and Menu Down. These controls make it suitable for menu navigation, handheld games, portable testing tools, and custom user interfaces.
Portable Power and Charging
The integrated lithium battery charging circuit allows the HackHeld32 II to be used as a portable development device. Charging begins when the data cable is connected. Press the power or reset switch for approximately 1 second to power on, and hold the power switch for approximately 6 seconds to power off.
Key Features
- DSTIKE HackHeld32 II ESP32-S3 handheld board
- ESP32S3 N16R8 dual-core processor
- 16MB flash memory and 8MB PSRAM
- 2.4GHz Wi-Fi and Bluetooth 5.0 support
- Pre-flashed with Deauther 32 firmware
- 1.54-inch ST7789 color TFT display
- Eight physical buttons for navigation and control
- Built-in buzzer for sound feedback
- WS2812B RGB LED
- 6 external GPIO ports for expansion
- AXP2101 power management chip
- Integrated lithium battery charging circuit
- Transparent enclosure with visible internal hardware
- Suitable for Wi-Fi security education, IoT projects, games, and custom firmware development

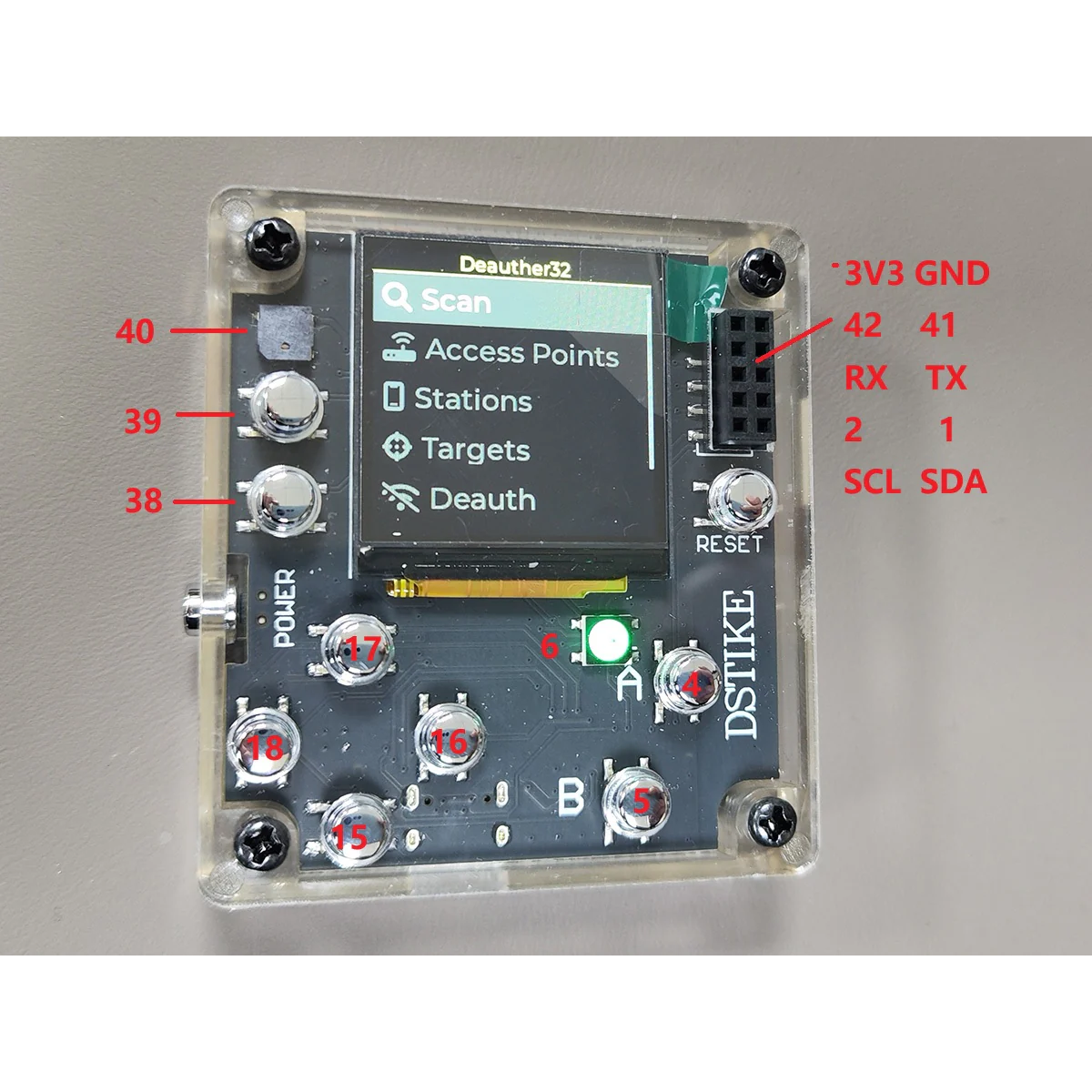

Hardware Information
- MCU: ESP32S3 N16R8
- Flash: 16MB
- PSRAM: 8MB
- Buzzer: GPIO40
- Button Up: GPIO17
- Button Down: GPIO15
- Button Left: GPIO18
- Button Right: GPIO16
- Button A: GPIO4
- Button B: GPIO5
- WS2812B RGB LED: GPIO6
- Display: ST7789 color TFT
- Display backlight: GPIO3
- Display DC: GPIO0
- Display CS: GPIO48
- Display SCK: GPIO47
- Display SDA: GPIO21
- Display reset: GPIO14
- Power chip: AXP2101
- I2C SDA: GPIO8
- I2C SCL: GPIO9
- IRQ: GPIO7
Arduino Development Settings
- Board: ESP32S3 Dev Module
- USB CDC On Boot: Enabled
- CPU Frequency: 240MHz WiFi
- Core Debug Level: None
- USB DFU On Boot: Disabled
- Erase All Flash Before Sketch Upload: Disabled
- Events Run On: Core 0
- Flash Mode: QIO 120MHz
- Flash Size: 16MB
- JTAG Adapter: Disabled
- Arduino Runs On: Core 1
- USB Firmware MSC On Boot: Disabled
- Partition Scheme: 16M Flash with 3MB APP and 9.9MB FATFS
- PSRAM: OPI PSRAM
- Upload Mode: USB-OTG CDC TinyUSB
- Upload Speed: 921600
- USB Mode: USB-OTG CDC TinyUSB
Ideal For
- ESP32-S3 development
- Wi-Fi security education and authorized testing
- IoT experiments
- Custom handheld devices
- Game development on ESP32
- Portable monitoring tools
- Creative DIY electronics projects
- STEM and cybersecurity learning
All-in-One ESP32-S3 Wireless Development Handheld
The DSTIKE HackHeld32 II combines a powerful ESP32-S3 module, color display, physical controls, portable power management, GPIO expansion, and pre-installed firmware in a transparent handheld design. It is a flexible choice for users who want a compact device for learning, experimenting, and building custom wireless or embedded projects.
