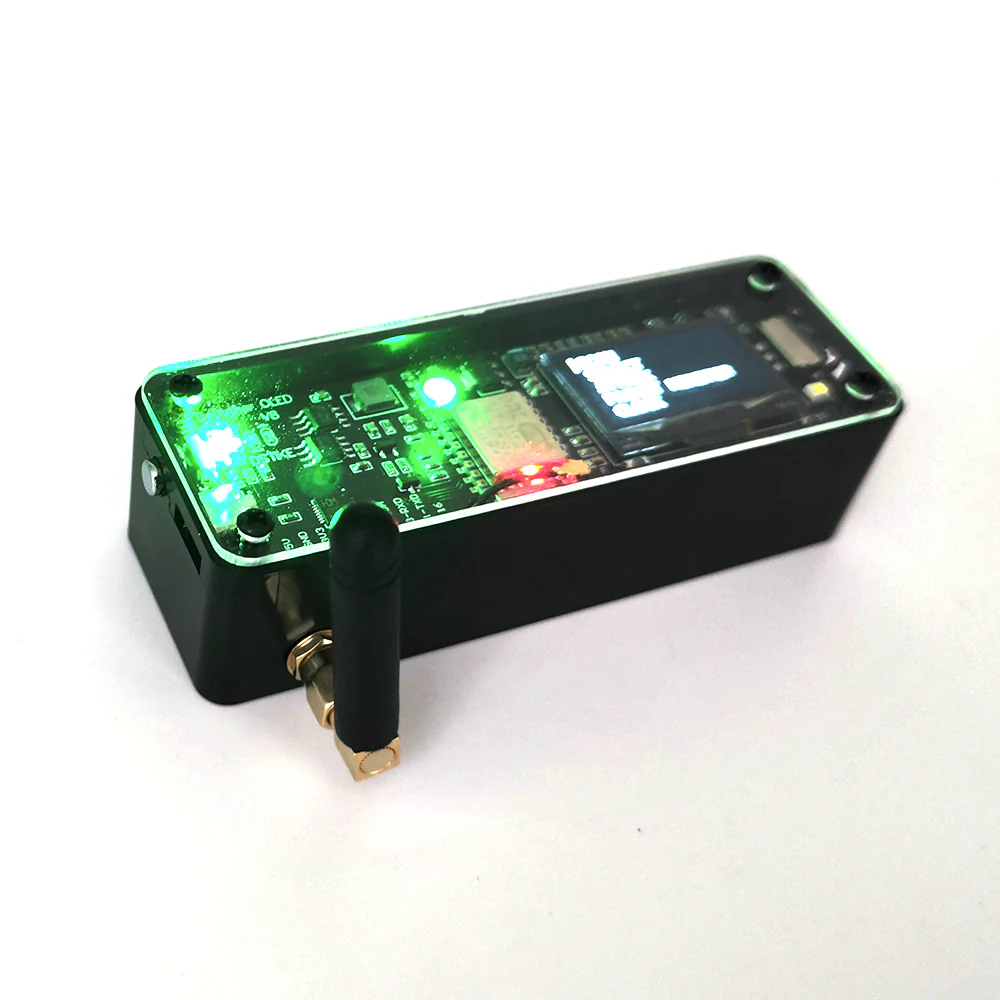

DSTIKE WiFi Deauther OLED V8 Kit ESP8266 2.4GHz Security Testing Board

The DSTIKE WiFi Deauther OLED V8 Kit is an ESP8266-based 2.4GHz Wi-Fi security testing and development board with an integrated OLED display, 18650 charging system, RTC module, battery status indicators, and onboard controls. It is designed for educational use, authorized Wi-Fi testing, ESP8266 development, and wireless security research in controlled environments.

This V8 version improves the previous V7 design with an upgraded battery protection chip and modified circuitry for better operating stability. It comes pre-installed with ESP8266 Deauther software and can also be used like a standard ESP8266 development board for custom projects.

Important Legal Use Notice

This device is intended only for testing your own networks, devices, and lab environments, or networks where you have clear permission. Wi-Fi deauthentication testing may be restricted or illegal in some countries when used without authorization. Always follow local laws and use this product responsibly.

V8 Hardware Upgrades

• Upgraded battery protection chip
• Modified circuit design for improved stability

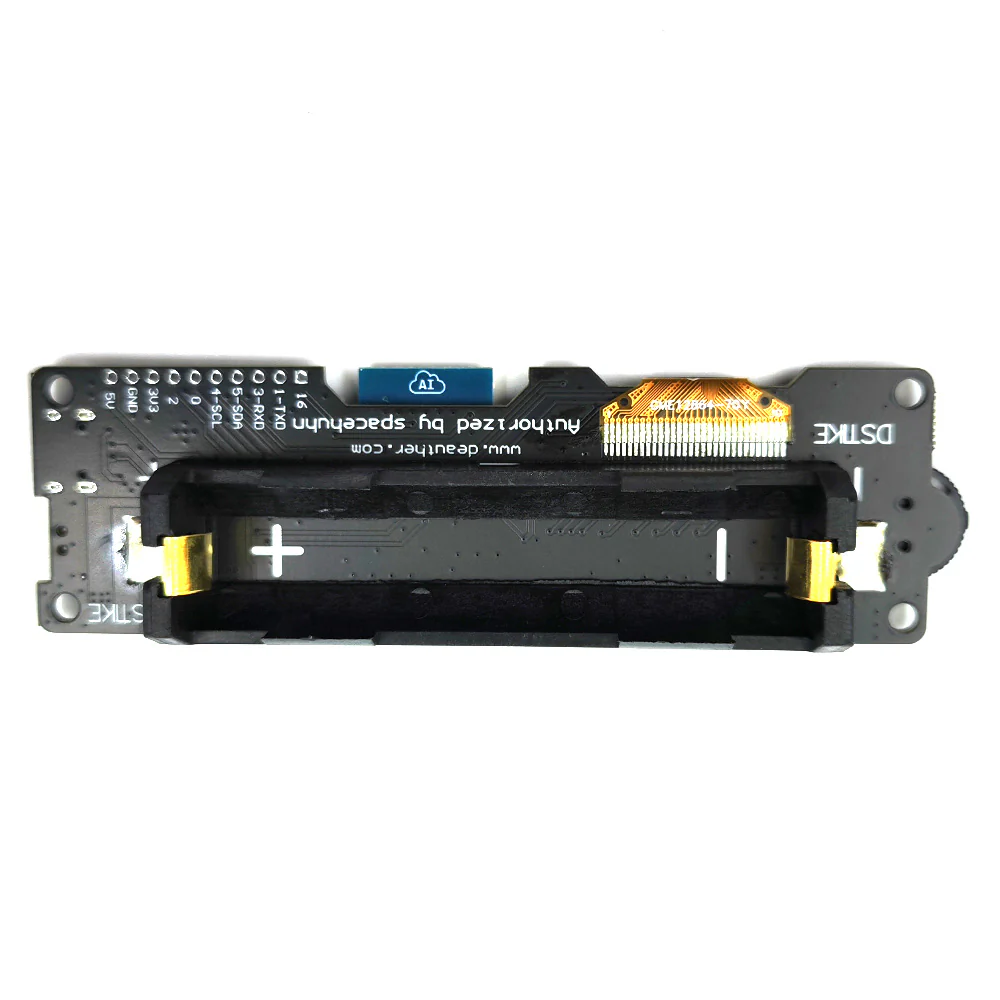

• Integrated 18650 charging system
• Built-in 1.3-inch OLED display
• Added DS3231 real-time clock module
• Added highlight LED controlled by GPIO16

2.4GHz Wi-Fi Security Testing Functions

The DSTIKE WiFi Deauther OLED V8 Kit supports several 2.4GHz Wi-Fi testing functions for learning and authorized security evaluation. The ESP8266 platform supports 2.4GHz Wi-Fi only and does not support 5GHz networks.

• Deauther testing for disconnecting selected 2.4GHz Wi-Fi devices in authorized environments
• Beacon testing for creating test SSIDs and simulated Wi-Fi network names
• Probe request testing for Wi-Fi tracker research and lab demonstrations
• Packet monitor mode for displaying nearby Wi-Fi traffic information
• Adjustable real-time clock function

Low Power Portable Design

The board is designed for portable use with low power consumption of approximately 80–100mA. With a suitable 3500mAh 18650 cell, battery life can reach up to 35 hours depending on usage, settings, and operating conditions.

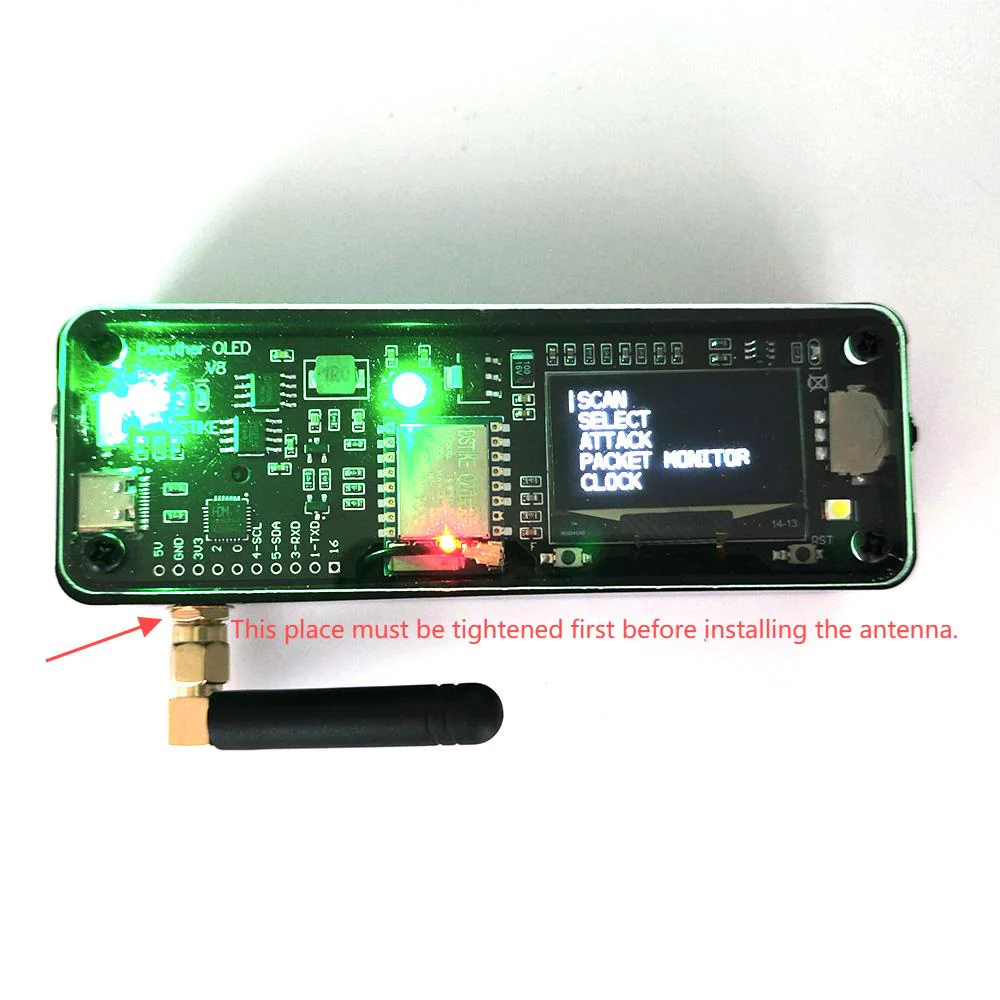

OLED Display and Controls

The integrated SH1106 1.3-inch OLED display allows direct interaction with the device. The board includes onboard buttons, a 3-way momentary slide switch, battery status LEDs, and a convenient power button with click-to-turn-on and double-click-to-turn-off operation.

Key Features

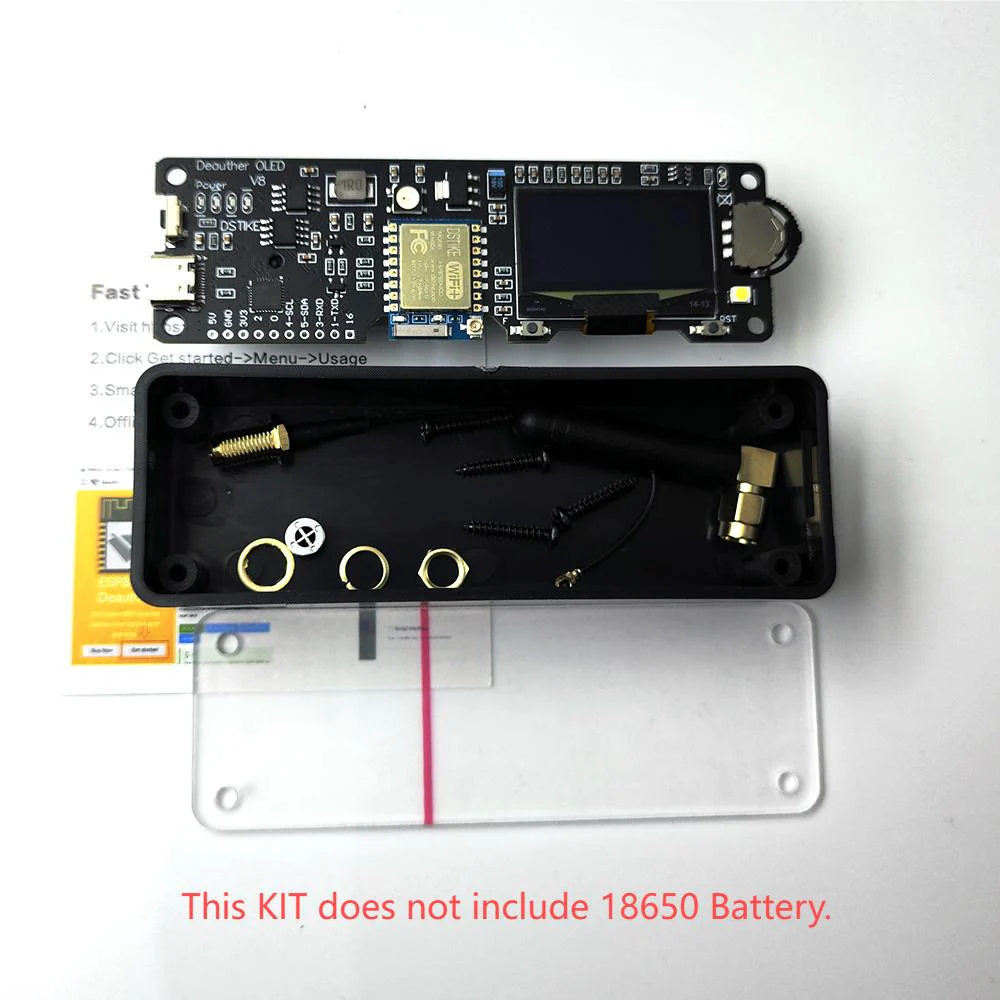

• DSTIKE WiFi Deauther OLED V8 Kit
• ESP8266-based 2.4GHz Wi-Fi development board
• Pre-installed ESP8266 Deauther software
• SH1106 1.3-inch OLED display
• Integrated 18650 charging system
• Charging current up to 1A
• DS3231 real-time clock module
• WS2812B LED on GPIO15
• Highlight LED on GPIO16
• 7 GPIO breakout pins
• 3.3V and 5V output pins

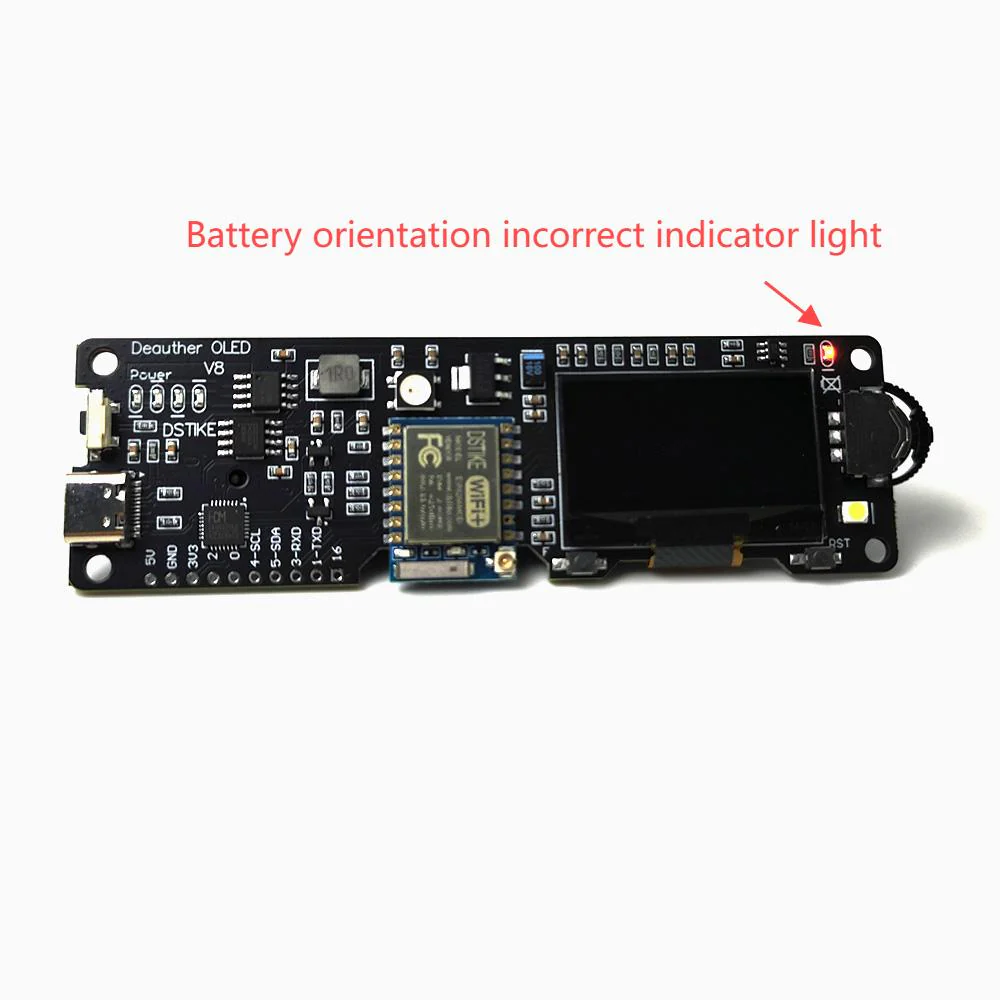

• 4 battery status LEDs
• Short-circuit, overcharge, over-discharge, temperature, and polarity protection
• Suitable for ESP8266 development and wireless security education

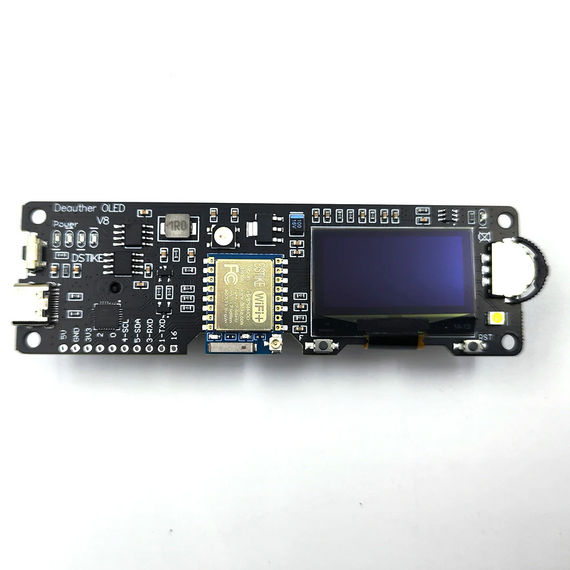

GPIO and Hardware Information

• Display: SH1106 1.3-inch OLED
• Display SDA: GPIO5 / D1
• Display SCL/SCK: GPIO4 / D2
• WS2812B LED: GPIO15 / D8
• Button Up: GPIO12
• Button Down: GPIO13
• Button Select: GPIO14
• Highlight LED: GPIO16
• RTC: DS3231, works when a battery is connected

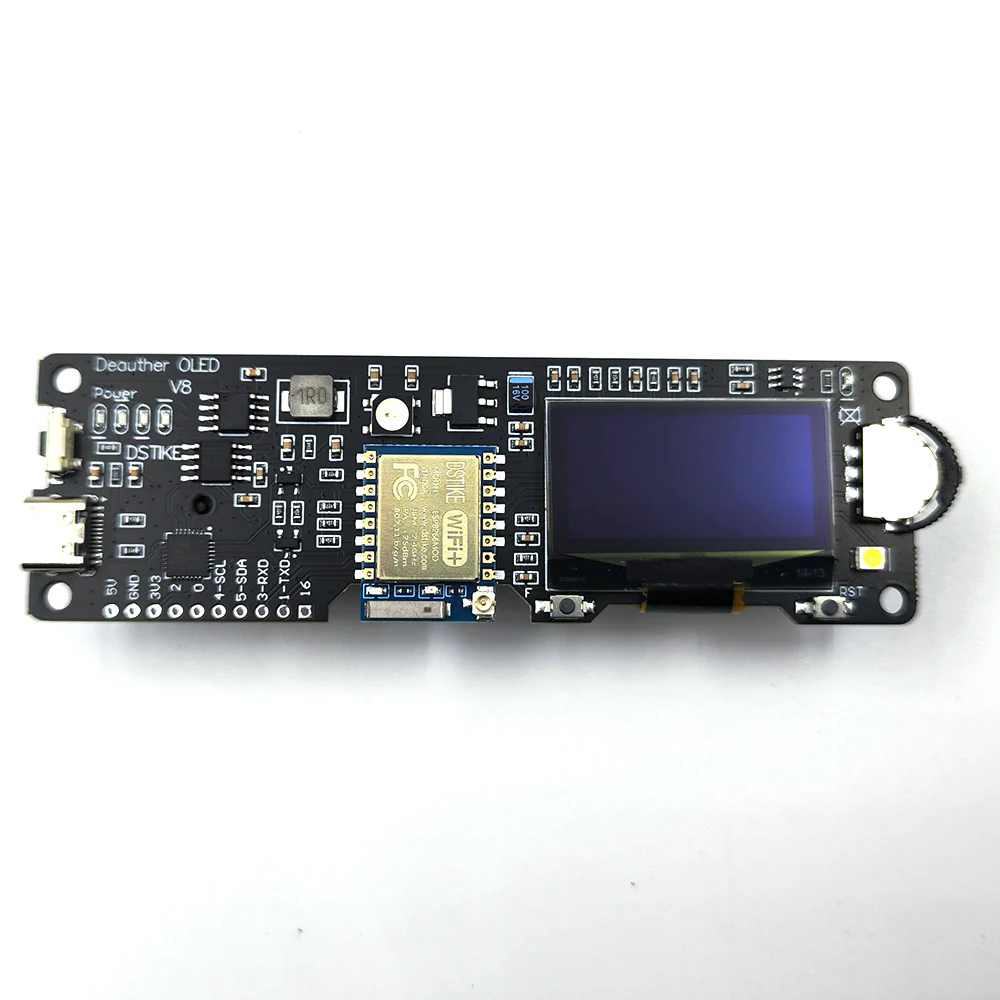

Breakout Pins

• GPIO16
• GPIO3 / RXD
• GPIO1 / TXD
• GPIO5 / SDA
• GPIO4 / SCL
• GPIO0
• GPIO2
• 3.3V
• GND
• 5V

ESP8266 Development Board for Custom Projects

Beyond Wi-Fi security education, the DSTIKE WiFi Deauther OLED V8 Kit can be used as a compact ESP8266 development board. The OLED display, RTC, GPIO breakout pins, LEDs, and battery-powered design make it useful for portable electronics, monitoring tools, learning projects, and custom firmware experiments.
