MicroPhase ANTSDR U200 SDR Board | AD9363 325 MHz–3.8 GHz, USB3.0
We offer free shipping for orders over 415 EUR. Free shipping also applies to products marked with the Free Shipping sticker, even if the order total is below this amount. Availability and delivery times may vary depending on your country.
- Order Protection: If your order is lost, we guarantee a replacement or a refund. Terms apply.
- Easy Returns: Enjoy a simple and hassle-free return process.
- Flexible Payments: Choose from multiple secure payment options that fit your needs.
- Best Prices: Get the best value on all our products.

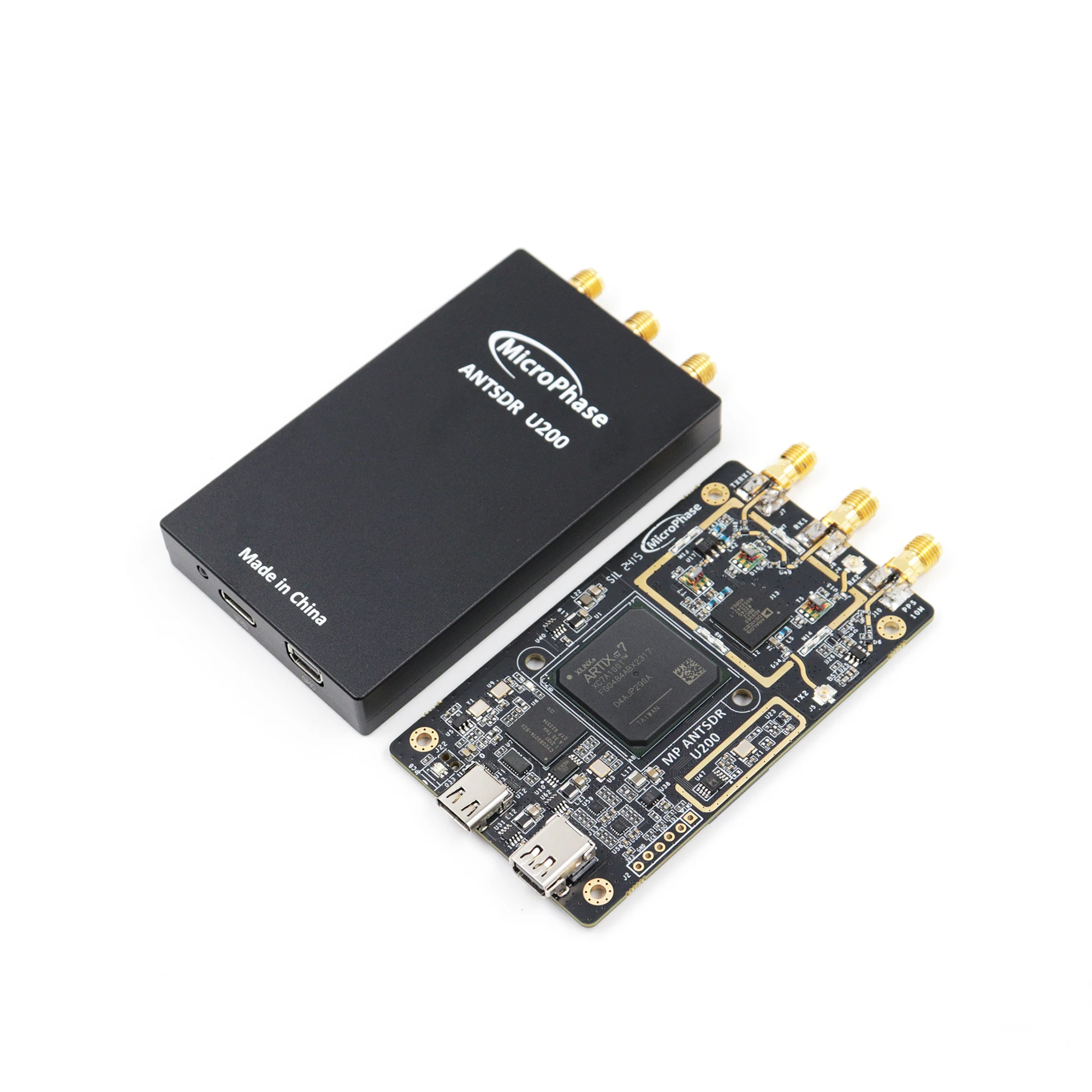

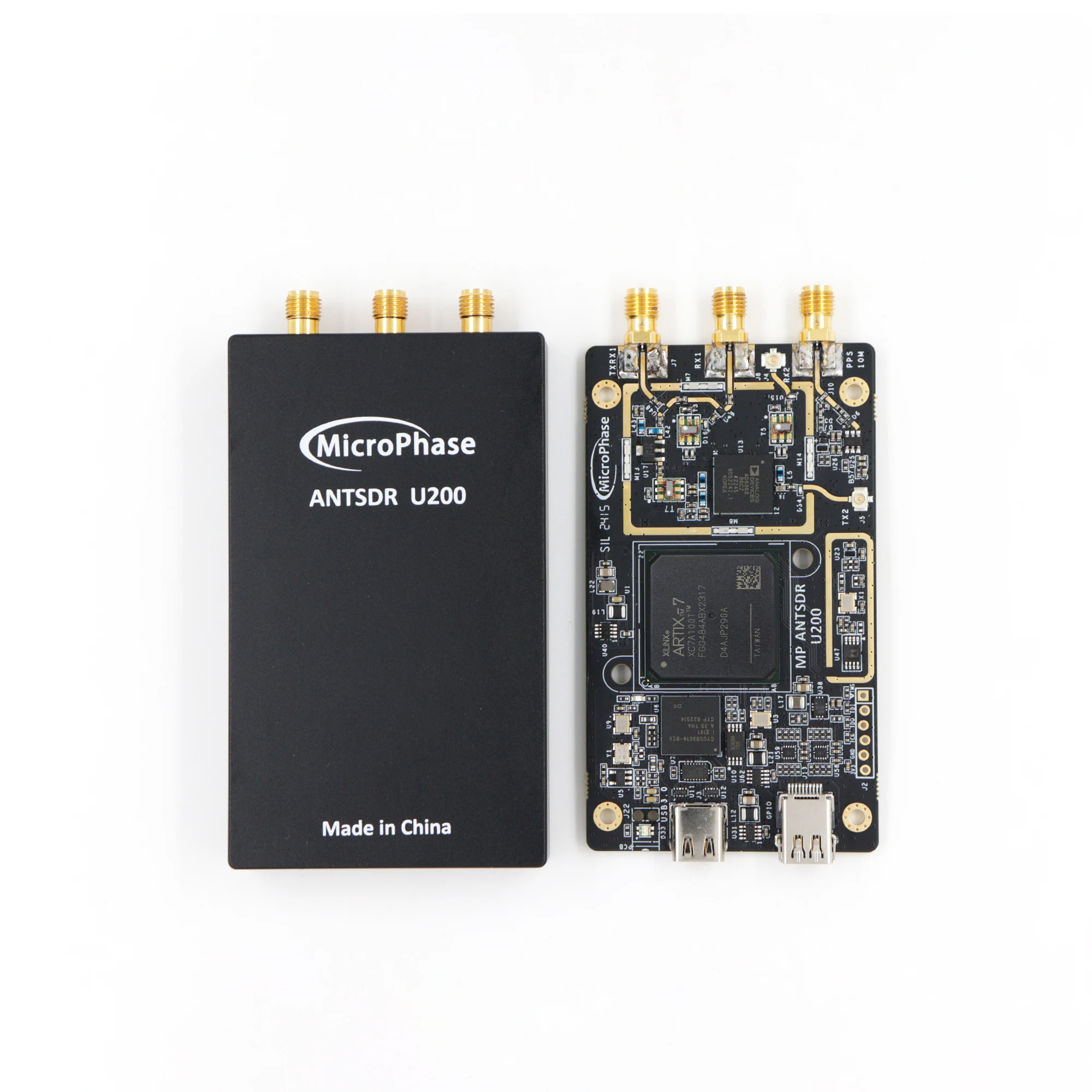

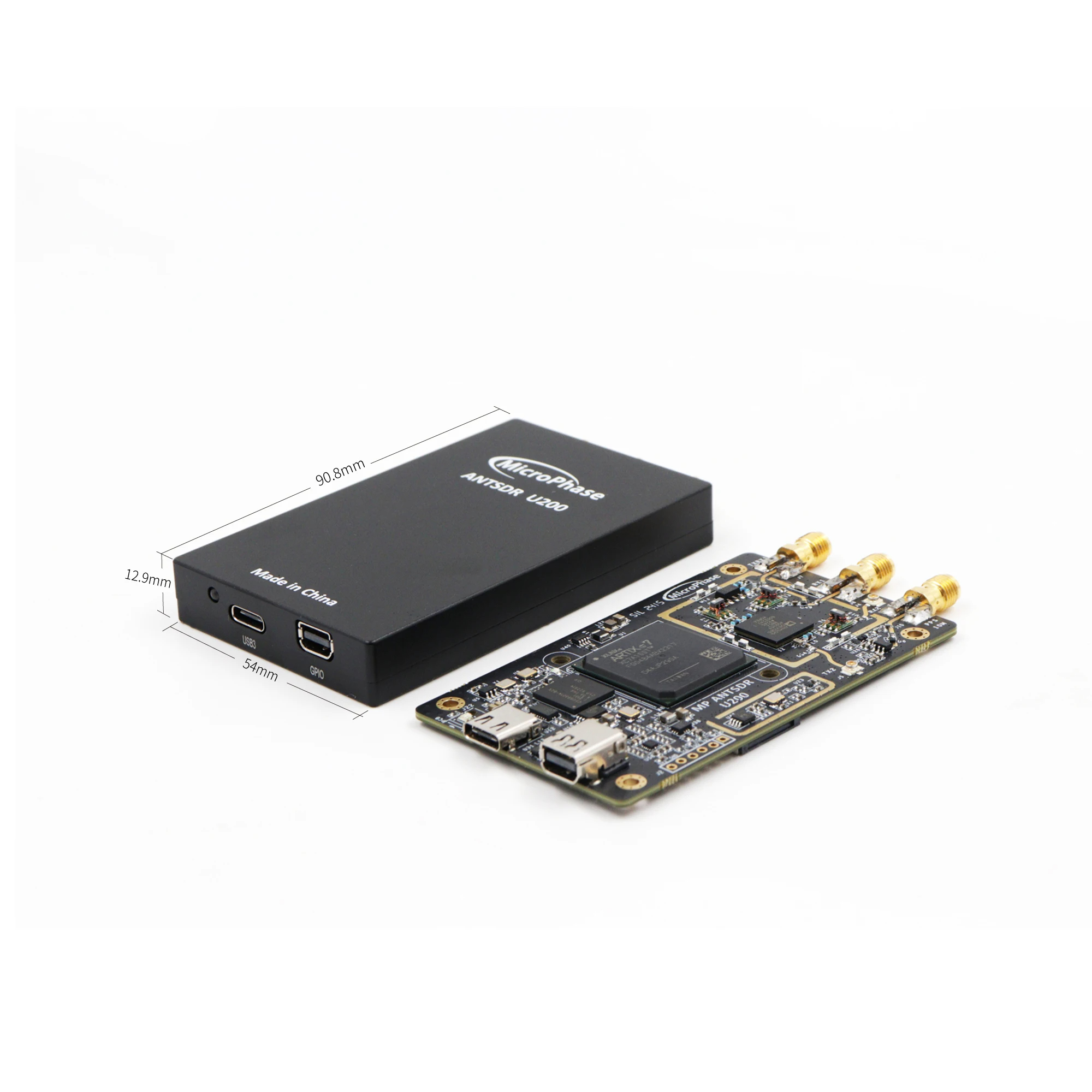

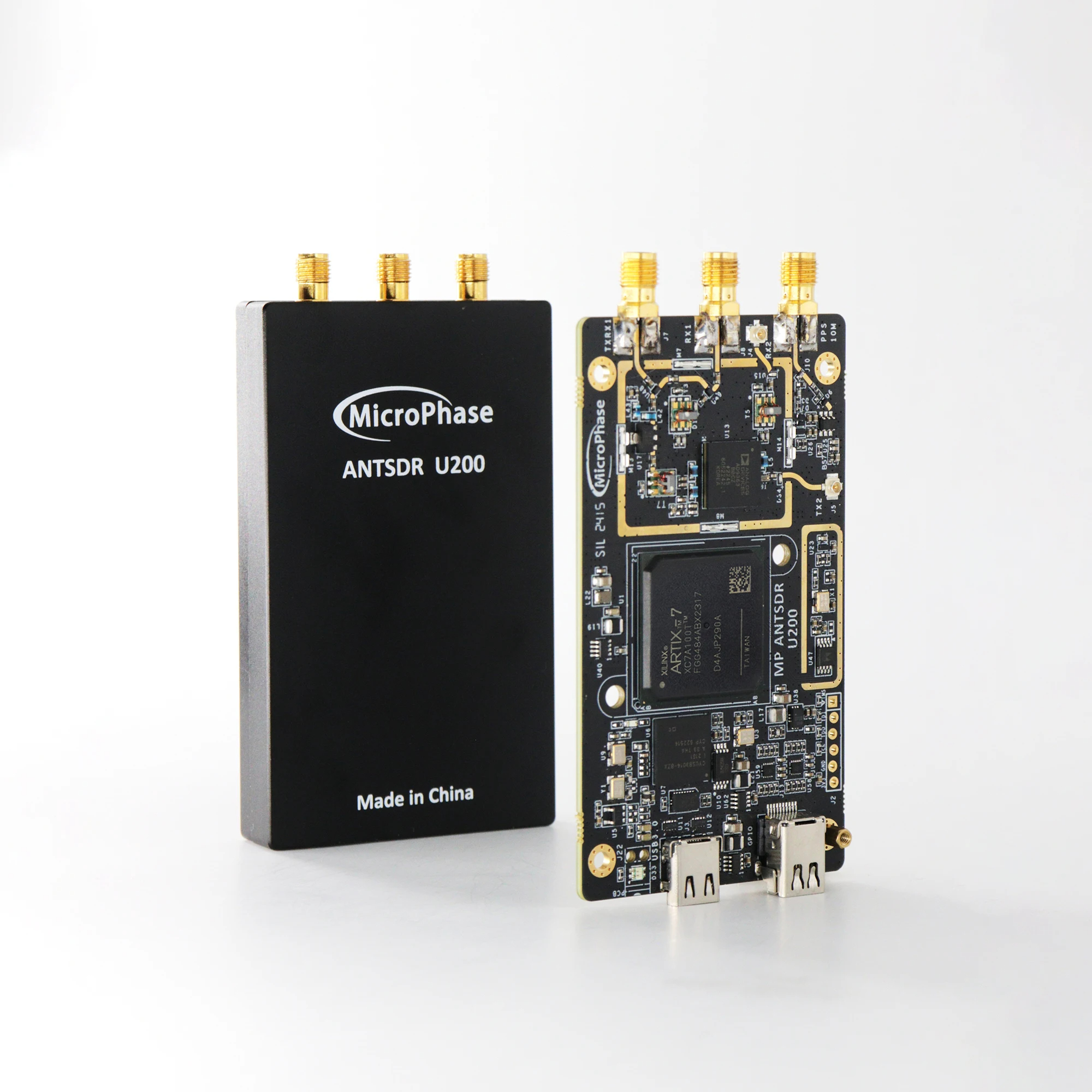

The MicroPhase ANTSDR U200 is a compact 1×1 SDR transceiver board powered by the ADI AD9363 RFIC. It covers 325 MHz–3.8 GHz with up to 56 MHz instantaneous bandwidth and delivers transmit power up to 10 dBm with a noise figure <8 dB.
Key Features and Specifications
- RFIC: AD9363 (325 MHz–3.8 GHz, 200 kHz–20 MHz BW)
- Channels: 1 TX & 1 RX (1×1 MIMO)
- ADC/DAC: 12 bit, 61.44 MSps each
- Transmit power: up to 10 dBm; noise figure <8 dB
- Clock: ±0.5 ppm VCTCXO; PPS/10 MHz reference
- Power: USB-C, 2–6 W consumption

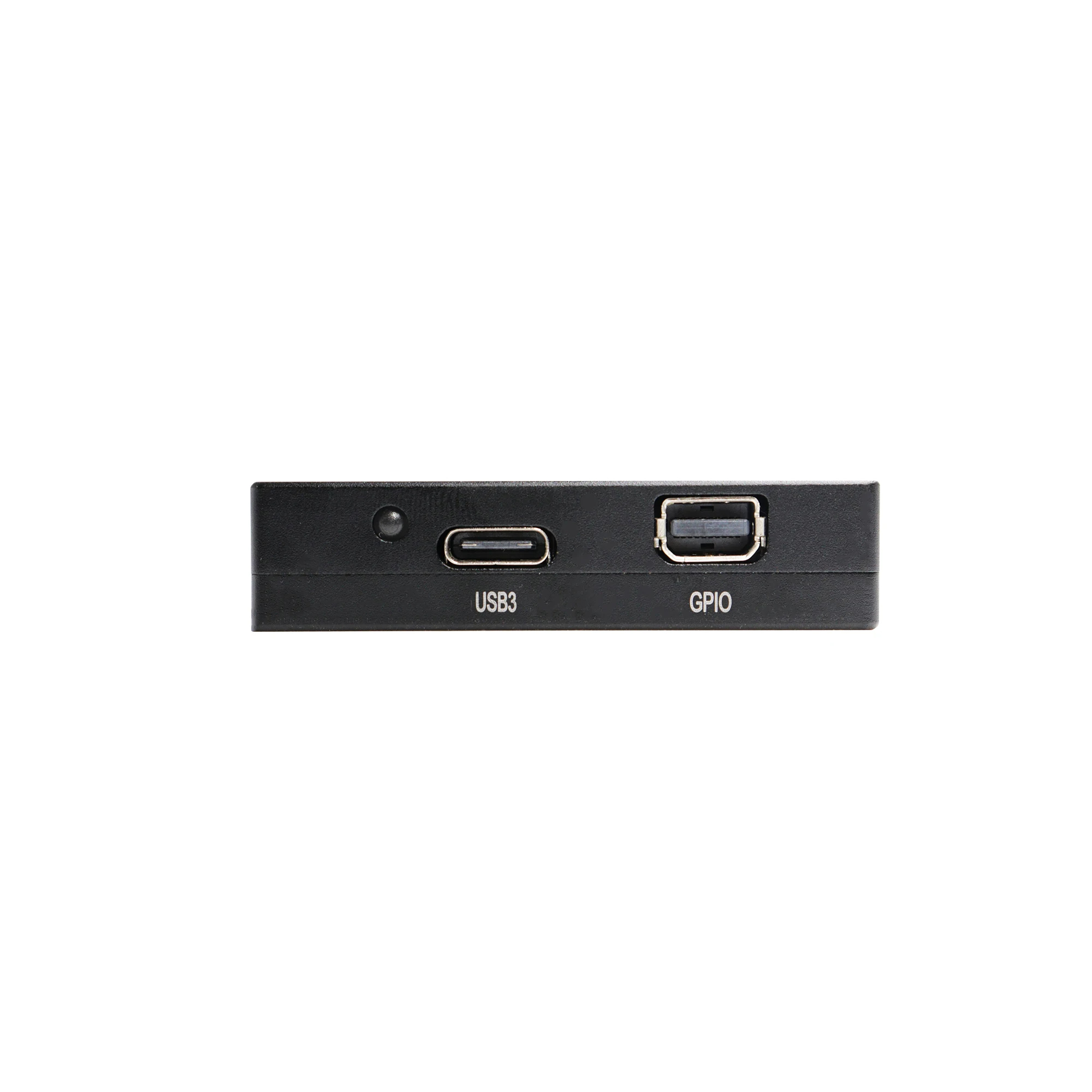

Connectivity
- USB 3.0 Type-C high-speed interface
- GPIO connector for custom I/O
API & Software Support
- API: USRP UHD (C/C++, Python)
- Firmware: Ettus USRP UHD
- Software: GNU Radio, SDRangel, Simulink, Gqrx, SDR++, srsRAN
Applications
- Spectrum detection and monitoring
- Satellite communication testing
- Drone detection and wireless sensing
- WiFi, LoRa, Zigbee prototyping
- Digital broadcasting and cellular research
