Red Pitaya STEMlab 125-14 Calibrated Kit IZD0004

The Red Pitaya STEMlab 125-14 Calibrated Kit IZD0004 is a versatile programmable test and measurement platform designed for electronics development, laboratory work, RF experimentation, education, and automated testing. It combines dual 14-bit 125MS/s analog inputs, dual 14-bit 125MS/s signal outputs, Xilinx Zynq FPGA processing, Gigabit Ethernet, and a comprehensive set of measurement accessories in one complete kit.

The Calibrated Kit is designed for users who want a ready-to-use STEMlab 125-14 setup with oscilloscope probes, logic analyzer hardware, RF adapters, terminations, Wi-Fi connectivity, an aluminium enclosure, and other essential accessories included.

Complete Calibrated STEMlab 125-14 Kit

The IZD0004 package includes the STEMlab 125-14 digitizer together with the hardware needed for a wide range of electronics and RF measurements. It is suitable for engineers, universities, radio amateurs, laboratories, and developers who want more than the basic board-only configuration.

Dual 14-Bit 125MS/s Analog Inputs

The STEMlab 125-14 provides two simultaneous analog input channels with 14-bit ADC resolution and sampling rates up to 125MS/s.

• 2 analog input channels
• 125MS/s sampling rate
• 14-bit ADC resolution
• DC to 60MHz analog bandwidth
• 1MΩ input impedance
• DC-coupled inputs
• Selectable ±1V and ±20V full-scale ranges

The combination of high resolution and wide bandwidth makes the platform suitable for oscilloscopes, data acquisition, RF experiments, signal analysis, and general-purpose electronics measurements.

Dual 14-Bit Signal Generator Outputs

Two integrated DAC channels allow the STEMlab 125-14 to generate test signals directly from the same device.

• 2 analog output channels
• 125MS/s sampling rate
• 14-bit DAC resolution
• DC to 60MHz output bandwidth
• ±1V full-scale output range
• 50Ω load impedance
• Short-circuit protection

This allows the platform to operate as both an oscilloscope and signal generator without requiring separate bench instruments for many common development tasks.

Xilinx Zynq-7010 FPGA and ARM Processing

The STEMlab 125-14 is built around the Xilinx Zynq-7010 SoC, which combines programmable FPGA logic with a dual-core ARM Cortex-A9 processor.

This architecture allows high-speed signal processing to be handled in FPGA hardware while Linux applications, networking, control software, and user programs run on the ARM processor.

Oscilloscope and Signal Generator

The browser-based oscilloscope application enables real-time waveform visualization, measurements, triggering, and signal generation. It can be used for circuit debugging, sensor analysis, waveform testing, and general electronics development.

Spectrum Analyzer

The STEMlab 125-14 can also operate as a spectrum analyzer, allowing users to inspect signals in the frequency domain and evaluate harmonics, interference, noise, and frequency components.

Bode Analyzer

The Bode Analyzer application can measure the gain and phase response of filters, amplifiers, control systems, and other devices under test using the integrated signal generator and measurement inputs.

Logic Analyzer Included

The Calibrated Kit includes both logic analyzer probes and the Logic Analyzer Extension Module, allowing the STEMlab platform to capture digital signals and decode common serial protocols.

• I2C decoding
• SPI decoding
• UART decoding
• CAN analysis support

Software Defined Radio

The STEMlab 125-14 can be used for software-defined radio applications and is compatible with SDR development environments such as GNU Radio and HPSDR-compatible software.

This makes it suitable for RF experimentation, amateur radio, digital signal processing, receiver development, and educational communications projects.

Streaming and Remote Acquisition

Signal data can be streamed to a remote computer or stored to compatible local media, making the platform useful for long-duration measurements, monitoring systems, automated experiments, and remote laboratories.

Calibration Support

The STEMlab platform includes calibration functionality for improving DC and frequency measurement accuracy. The Calibrated Kit is designed for users who require a complete measurement setup with the accessories necessary for practical laboratory use.

Gigabit Ethernet and Wi-Fi Connectivity

Gigabit Ethernet provides fast network connectivity for remote access, browser-based applications, data transfer, and automation. The included compatible Wi-Fi dongle also enables wireless network access where a wired Ethernet connection is not convenient.

Open-Source Development Platform

Red Pitaya STEMlab hardware and software are designed around an open development ecosystem. Users can modify existing applications, develop custom browser interfaces, create DSP algorithms, and implement custom FPGA designs.

• FPGA development with Xilinx Vivado
• C programming support
• Python development
• Jupyter Notebook support
• MATLAB integration
• LabVIEW integration
• SCPI remote-control support
• Custom web application development

Key Features

• Red Pitaya STEMlab 125-14 Calibrated Kit
• Manufacturer part number: IZD0004
• Xilinx Zynq-7010 SoC
• Dual-core ARM Cortex-A9 processor
• 512MB RAM
• 2 × 14-bit analog input channels
• 125MS/s ADC sampling rate
• DC to 60MHz input bandwidth
• 2 × 14-bit analog output channels
• 125MS/s DAC sampling rate
• DC to 60MHz output bandwidth
• Gigabit Ethernet
• USB 2.0
• Wi-Fi using included compatible dongle
• 16 digital I/O lines
• 4 auxiliary analog inputs
• 4 auxiliary analog outputs
• I2C, SPI and UART interfaces
• SATA daisy-chain synchronization support
• Logic Analyzer Extension Module included
• Oscilloscope probes and RF accessories included
• Aluminium enclosure included

Technical Specifications

• Manufacturer: Red Pitaya
• Manufacturer part number: IZD0004
• Model: STEMlab 125-14 Calibrated Kit
• Processor: dual-core ARM Cortex-A9
• FPGA: Xilinx Zynq-7010
• RAM: 512MB
• System storage: microSD up to 32GB
• Analog inputs: 2 channels
• ADC resolution: 14-bit
• ADC sampling rate: 125MS/s
• Input bandwidth: DC–60MHz
• Input impedance: 1MΩ
• Input coupling: DC
• Input range: ±1V / ±20V
• Analog outputs: 2 channels
• DAC resolution: 14-bit
• DAC sampling rate: 125MS/s
• Output bandwidth: DC–60MHz
• Output range: ±1V
• Output load: 50Ω
• Ethernet: 1Gbit
• USB: USB 2.0
• Wi-Fi: supported using compatible USB dongle

Expansion Interfaces

• 16 digital I/O lines
• 4 × 12-bit analog inputs, 0–3.5V
• 4 × 12-bit analog outputs, 0–1.8V
• I2C
• SPI
• UART
• Trigger input through extension connector
• SATA daisy-chain connection

Included Applications

• Oscilloscope
• Signal generator
• Spectrum analyzer
• Bode analyzer
• Logic analyzer
• Software defined radio
• Streaming
• Calibration tools
• SCPI remote-control server
• Jupyter Notebook development environment

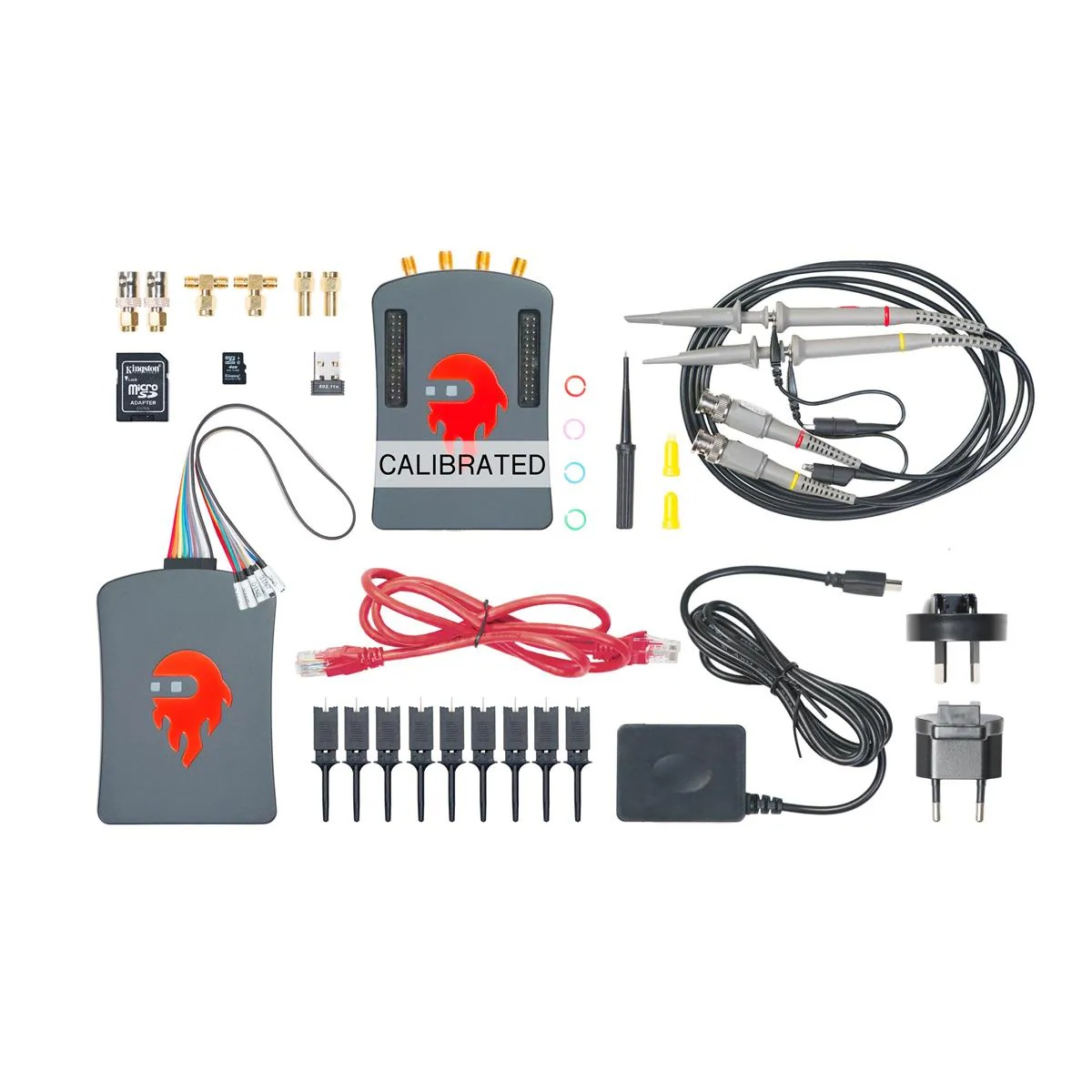

What’s in the Box?

• 1 × Red Pitaya STEMlab 125-14 digitizer board
• 1 × 16GB Class 10 microSD card
• 1 × 1m Ethernet cable
• 1 × 5V / 2A power supply
• 1 × aluminium case
• 1 × Logic Analyzer Extension Module
• Logic analyzer probes
• 2 × oscilloscope probes
• 2 × SMA-to-BNC adapters
• 2 × 50Ω terminations
• 2 × SMA T adapters
• 1 × compatible Wi-Fi dongle

Typical Applications

• Oscilloscope measurements
• Signal and waveform generation
• Spectrum analysis
• Logic analysis
• I2C, SPI and UART debugging
• Bode and frequency-response measurements
• Software-defined radio
• Digital signal processing development
• FPGA development
• Data acquisition
• Automated laboratory testing
• Electronics education
• University and research laboratories
• Amateur radio and RF experimentation

Complete Red Pitaya Measurement Platform

The Red Pitaya STEMlab 125-14 Calibrated Kit is an excellent choice for users who want a complete programmable measurement setup rather than a board-only package. Its combination of 14-bit 125MS/s acquisition, signal generation, FPGA processing, logic analysis, RF accessories, remote control, and open-source development support makes it suitable for both professional laboratories and advanced educational environments.
