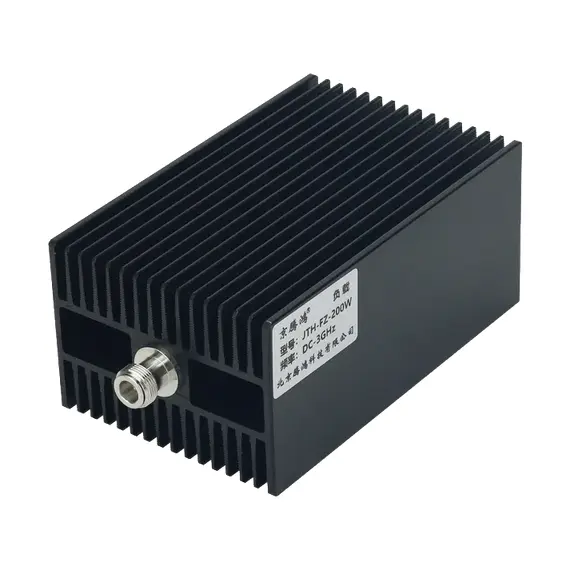

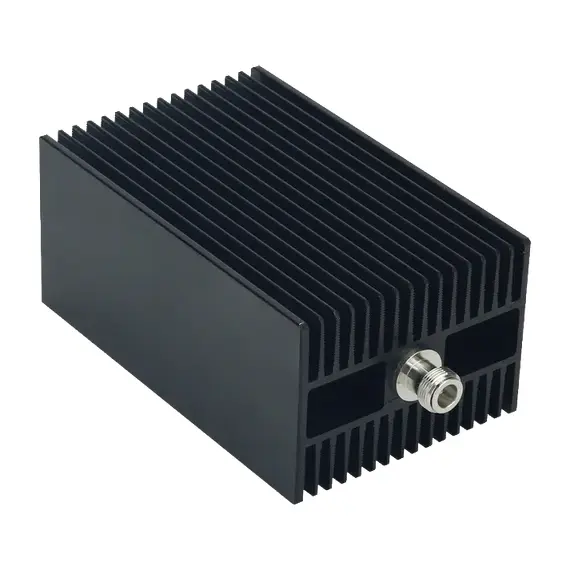

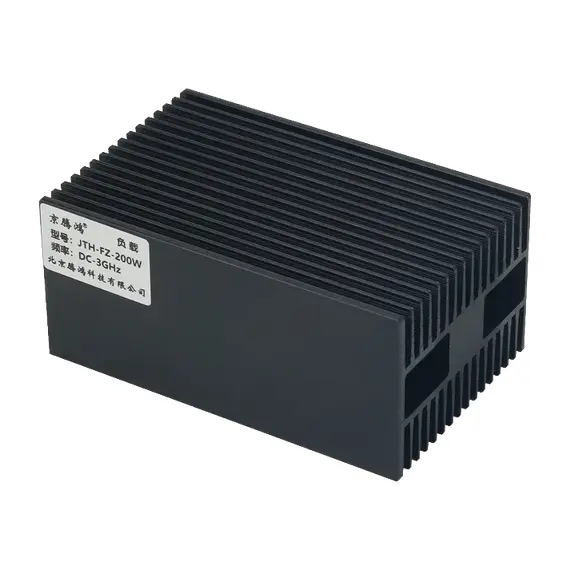

200W DC-3GHz 50 Ohm Coaxial Dummy Load N-Type Female for Walkie Talkie Mobile Radio
We offer free shipping for orders over 415 EUR. Free shipping also applies to products marked with the Free Shipping sticker, even if the order total is below this amount. Availability and delivery times may vary depending on your country.
- Order Protection: If your order is lost, we guarantee a replacement or a refund. Terms apply.
- Easy Returns: Enjoy a simple and hassle-free return process.
- Flexible Payments: Choose from multiple secure payment options that fit your needs.
- Best Prices: Get the best value on all our products.
The 200W DC-3GHz Coaxial Dummy Load with N-Type female connector is designed for testing high-power radio transmitters, mobile radios, walkie talkies, and RF systems across the full DC-3GHz frequency range. It provides a precise 50 Ohm termination that absorbs RF power safely while enabling accurate power and SWR measurements through power meters.

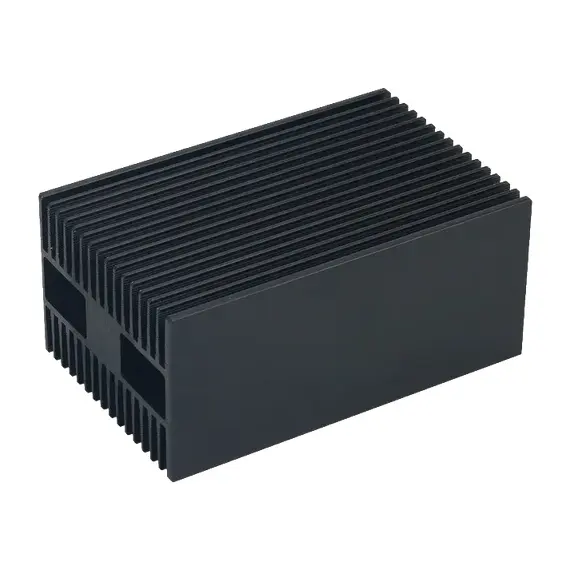

With robust 200W continuous power handling, low VSWR ≤1.2, and professional N-J female connector, this dummy load is ideal for service shops, amateur radio stations, and production testing of HF/VHF/UHF equipment. The large heatsink design (195×135×60mm, 1.5kg) ensures reliable cooling during extended high-power testing sessions.
Specifications
| Model | 200W/N-J Load |
| Frequency Range | DC – 3GHz |
| Impedance | 50 Ohm |
| Power Capacity | 200W continuous |
| VSWR | ≤ 1.2 |
| Connector | N-Type female (N-J) |
| Dimensions | 195 × 135 × 60 mm |
| Weight | 1500 g (1.5 kg) |
| Operating Temperature | -30°C to +65°C |
Key Features
- High 200W power handling for serious transmitter testing
- Wide DC-3GHz coverage for HF/VHF/UHF/microwave applications
- Professional N-Type female connector for secure connections
- Low VSWR ≤1.2 ensures accurate power meter readings
- Large heatsink for reliable cooling during extended use
- Heavy-duty 1.5kg construction for industrial applications
Applications
- High-power walkie talkie and mobile radio testing
- Shortwave radio amplifier power verification
- Base station transmitter alignment and SWR testing
- RF amplifier bench testing and quality control
- Safe transmission without radiating interference
Package Includes
- 1 × 200W DC-3GHz 50 Ohm Coaxial Dummy Load (N-Type female)
Perfect for professional radio service centers, amateur radio operators with high-power equipment, and RF testing facilities requiring a reliable, high-capacity dummy load for accurate transmitter evaluation and safe bench testing operations.
