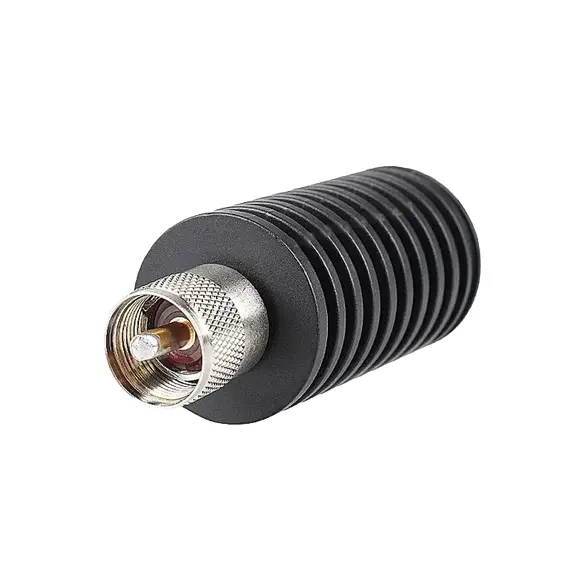

DL-50A 50 Ohm DC–1000MHz 100W Dummy Load M Male for SWR Meter and Walkie Talkie Testing

The DL-50A 50 Ohm Dummy Load is designed for accurate power and SWR testing of radio stations, walkie talkies, and RF equipment over a wide DC–1000MHz frequency range. Connected to an SWR/power meter or directly to the radio, it provides a stable 50 Ohm termination and converts RF energy into heat, making transmitter alignment and debugging safe and convenient.

Featuring an M male (M-P) connector, low SWR and a compact metal body, this dummy load is well suited for HF, VHF and UHF service work. It supports up to 15W average power and 100W peak, with SWR <1.15 from DC–800MHz and <1.2 from 800–1000MHz, ensuring accurate readings and minimal reflected power in the test setup.

Specifications

Features

• Provides a precise 50 Ohm load for SWR meters and RF power measurements.
• Ideal for safely testing and tuning walkie talkies and base radios by converting RF into heat.
• Wide DC–1000MHz coverage suitable for HF, VHF and UHF applications.
• Low SWR across the band for accurate, repeatable measurements.
• M male connector for easy connection to compatible meters and radio outputs.
• Robust, compact construction for bench, workshop or field use.

Package Includes

• 1 × DL-50A 50 Ohm DC–1000MHz Dummy Load (M male)

This dummy load is a practical accessory for radio amateurs, service technicians and RF hobbyists who need a reliable 50 Ohm terminator for SWR/power meters and transceiver testing without radiating a live RF signal.
