500MHz / 3GHz / 8GHz OLED RF Power Meter Settable Attenuation PC Software
€5627 €6609
500MHz / 3GHz / 8GHz OLED RF Power Meter Settable Attenuation PC Software
500M-RFPW-ZVYEZ3
Delivery
DHL express - Fast
Delivery time varies by country
from 3 EUR
FedEx express - Reliable international shipping
Delivery time varies by country
from 3 EUR
We offer free shipping for orders over 415 EUR. Free shipping also applies to products marked with the Free Shipping sticker, even if the order total is below this amount. Availability and delivery times may vary depending on your country.
Payment options
Explore and use a variety of other convenient payment methods available at the checkout page.
Our advantages
- Order Protection: If your order is lost, we guarantee a replacement or a refund. Terms apply.
- Easy Returns: Enjoy a simple and hassle-free return process.
- Flexible Payments: Choose from multiple secure payment options that fit your needs.
- Best Prices: Get the best value on all our products.
Description

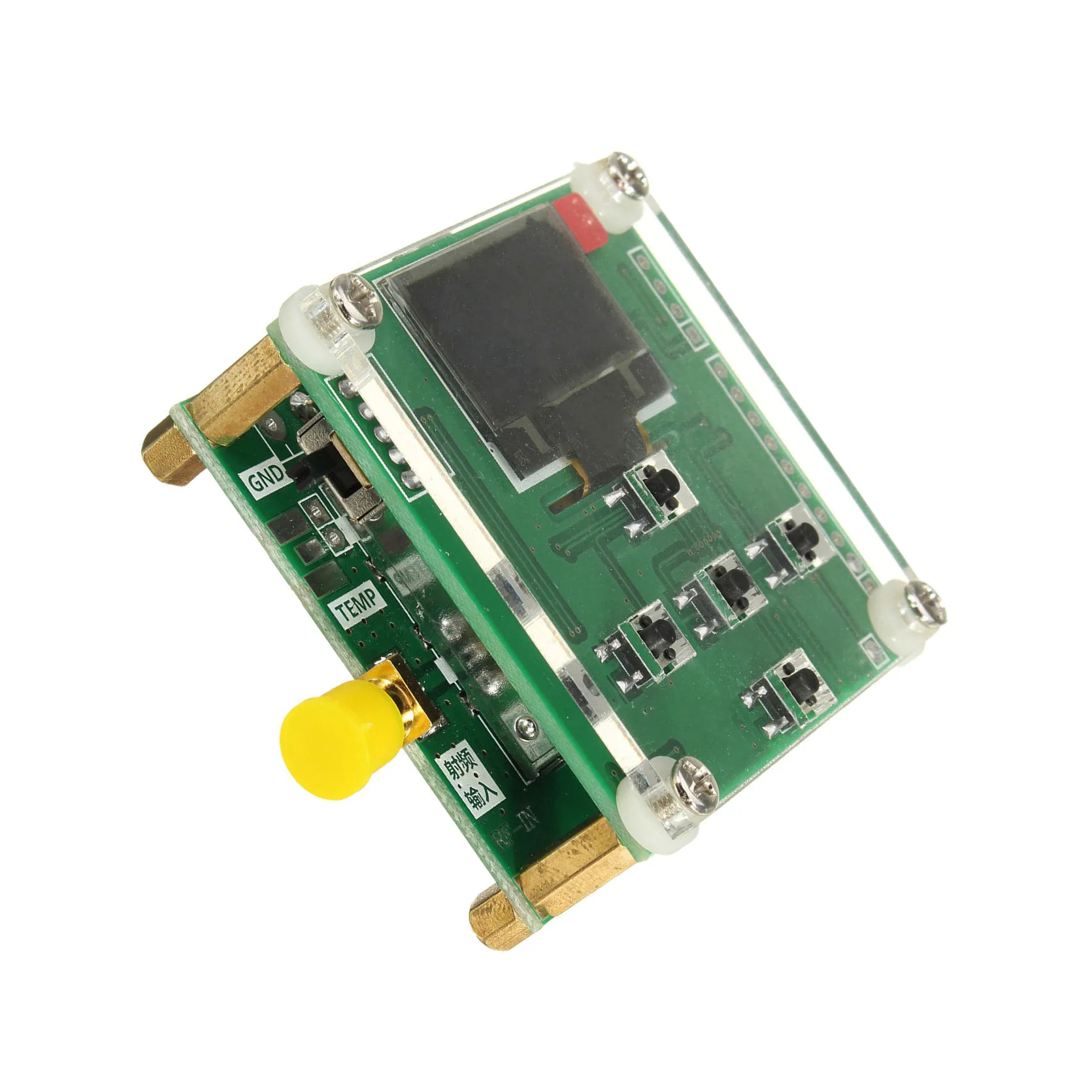

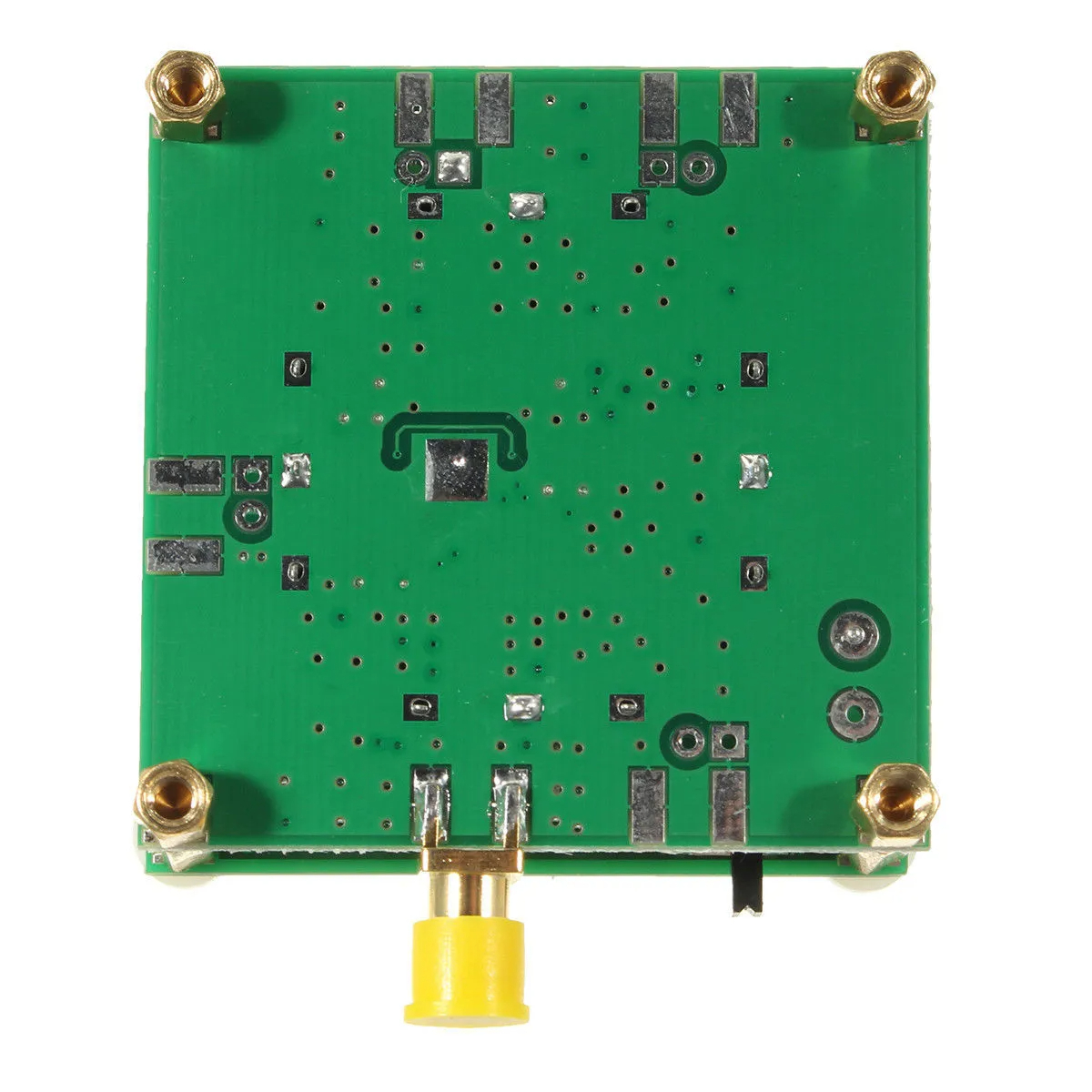

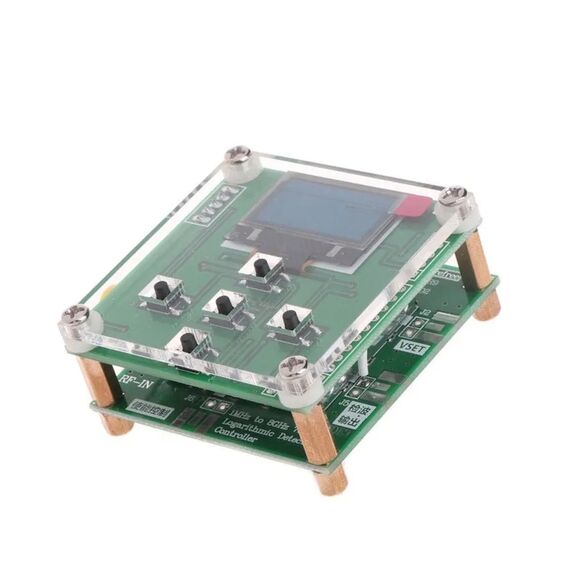

The RF Series OLED RF Power Meter is a high-performance, portable RF power meter with a 0.96" OLED display (128x64 pixels) and selectable models for 500MHz, 3GHz, or 8GHz frequency ranges. Powered by micro-USB (5V), it features compact size, high accuracy, fast measurement, and a wide dynamic range.
- Frequency Ranges: RF500: 1–500MHz, RF3000: 50–3000MHz, RF8000: 1–8000MHz
- Power Ranges: RF500: -65~+15dBm, RF3000: -45~+5dBm, RF8000: -55~-5dBm
- Resolution: 0.1dBm; Error: <±1dBm
- Dynamic Range: >80dB (RF500), >50dB (RF3000), >60dB (RF8000)
- Input Impedance: 50Ω
- PC Software: Configure, record, and share data easily
- Working Voltage: 5VDC (micro-USB), <50mA current
- Operating Temp: -10°C~65°C; Storage: -40°C~65°C
- Size: 50×50×25mm
Package Includes
- 1 × RF Power Meter (choose 500MHz, 3GHz, or 8GHz version)
- 1 × USB cable
Applications
- RF signal measurement and calibration
- Lab, field, and amateur radio use
- Wireless, IoT, and telecom testing
Features
Plug Type
RF500
