N1201SA+ RF Vector Impedance Analyzer | 34.4 MHz–2.7 GHz

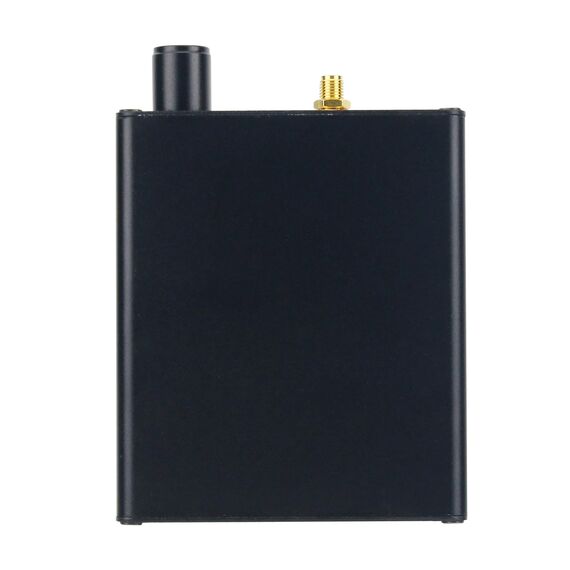

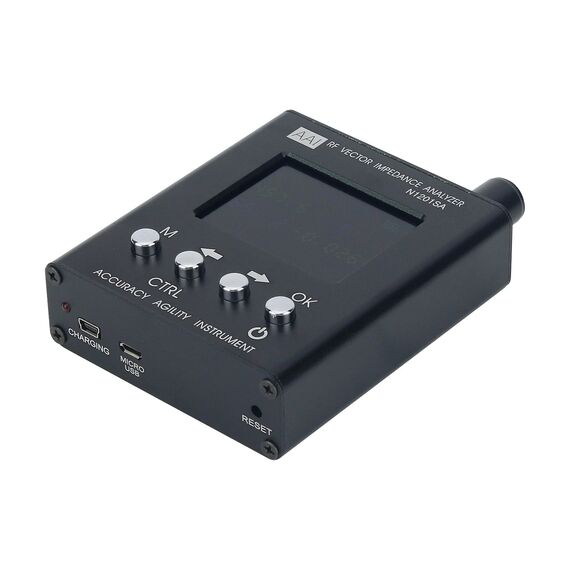

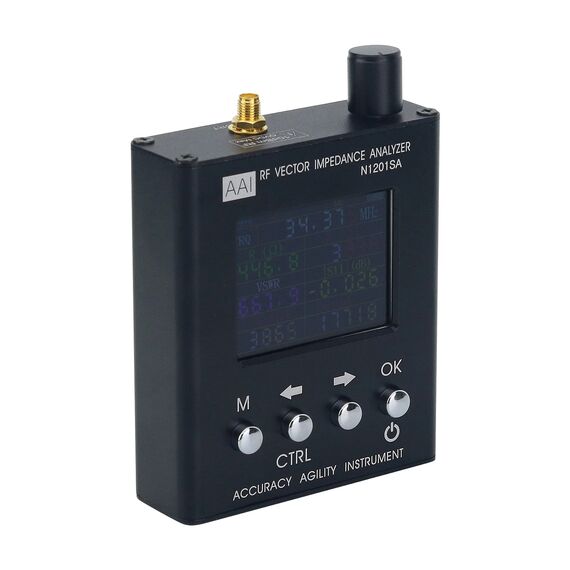

The N1201SA+ is a handheld RF vector impedance analyzer covering 34.375 MHz to 2700 MHz. Its 2.4″ TFT display delivers real-time readings of resistance (R), reactance (X), SWR, and S11. Powered by a 2000 mAh internal battery or USB charger, it’s ideal for field and lab measurements with its rugged SMA-K connector.

Key Features and Specifications

• Frequency range: 34.375 MHz–2700 MHz, 1 kHz steps
• Impedance range: 0.1 Ω–1000 Ω; SWR: 1.000–65; S11: 0 to –60 dB
• Display: 2.4″ TFT (320×240 QVGA), capacitive touch

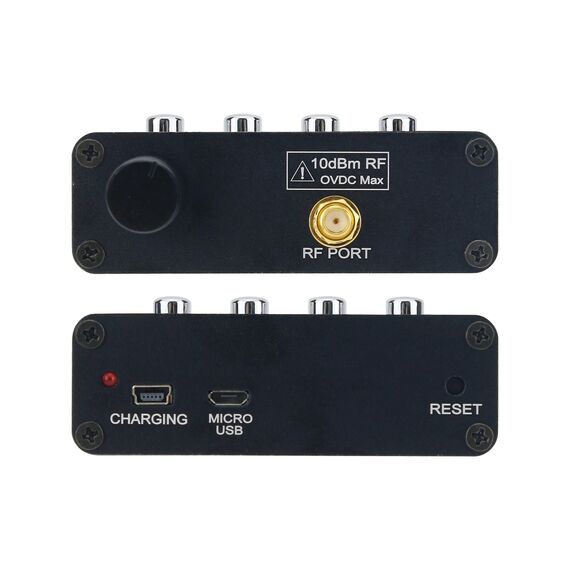

• Connector: SMA-K for RF I/O
• Frequency accuracy: ±3 ppm; directivity: >30 dB (2 GHz–2.7 GHz)
• Scan points: 280; output level: –18 dBm; power consumption: <1.5 W
• Battery: 2000 mAh (7.4 Wh); USB charger port

Operational Modes

• Single-point measurement
• Frequency-sweep (scan)
• Time-domain reflectometry (TDR)
• Auto-shutdown timer (5–60 min)
• Saved user settings on power-off

Package Contents

• N1201SA+ analyzer unit
• USB charging/data cable
• User manual (digital download)
