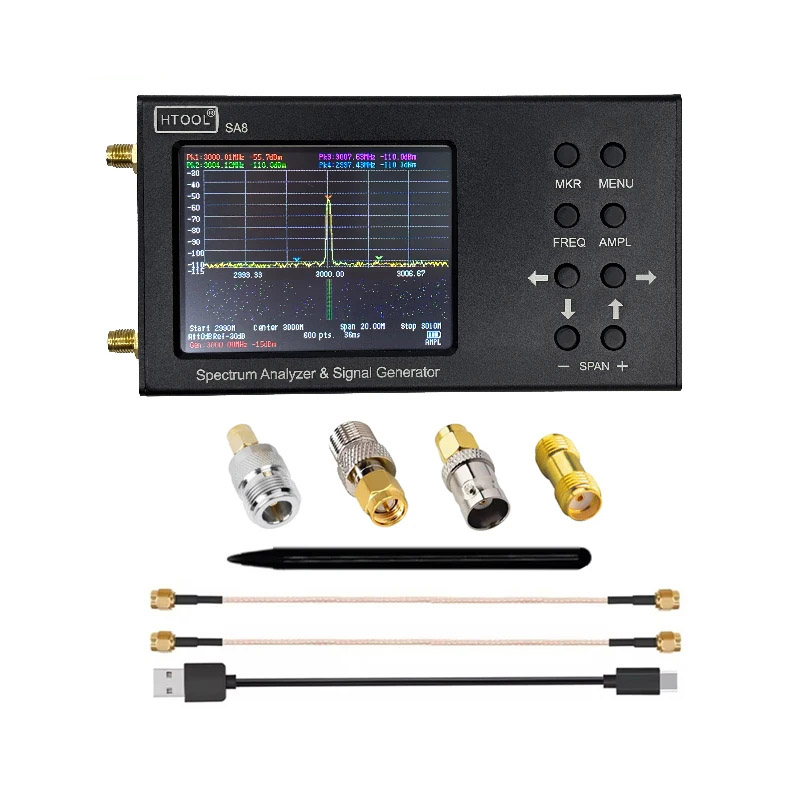

SA6 Plus SA8 Spectrum Analyzer Signal Source 35-6200MHz Portable RF Analyzer with Tracking Generator

The SA6 Plus / SA8 Spectrum Analyzer is a portable and versatile RF tool designed for real-time analysis and signal generation from 35 to 6200MHz. It displays the amplitude and frequency of spectral components for technologies like Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, and more.

• Frequency Range: 35–6200MHz (display), 35–4500MHz (measuring)
• Dynamic Range: 75dB (35–3000MHz), 70dB (3000–4500MHz)

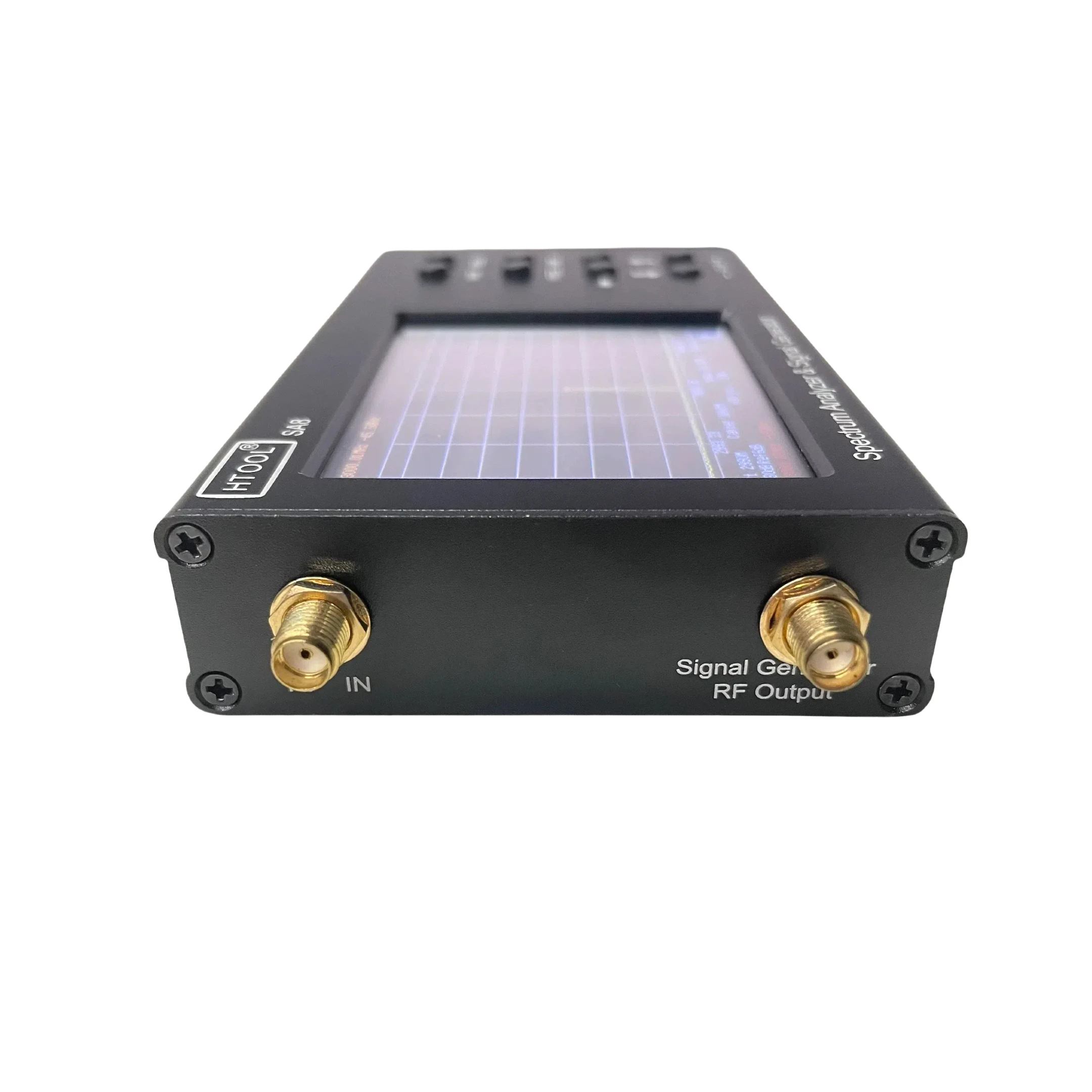

• Tracking Generator: Built-in, ideal for measuring filters, amplifiers, VSWR, and return loss (requires external directional coupler)
• Bandwidth: 170–200kHz
• Noise Floor: <–90dBm (up to 3000MHz), <–80dBm (4500–6200MHz)
• Impedance: 50Ω, VSWR < 1.5
• Attenuator: 0–30dB internal, tracking output –15 to –25dBm
• Display: Color touchscreen (3.2" or larger depending on model)
• Battery: 2500–3000mAh for 3–4 hours operation

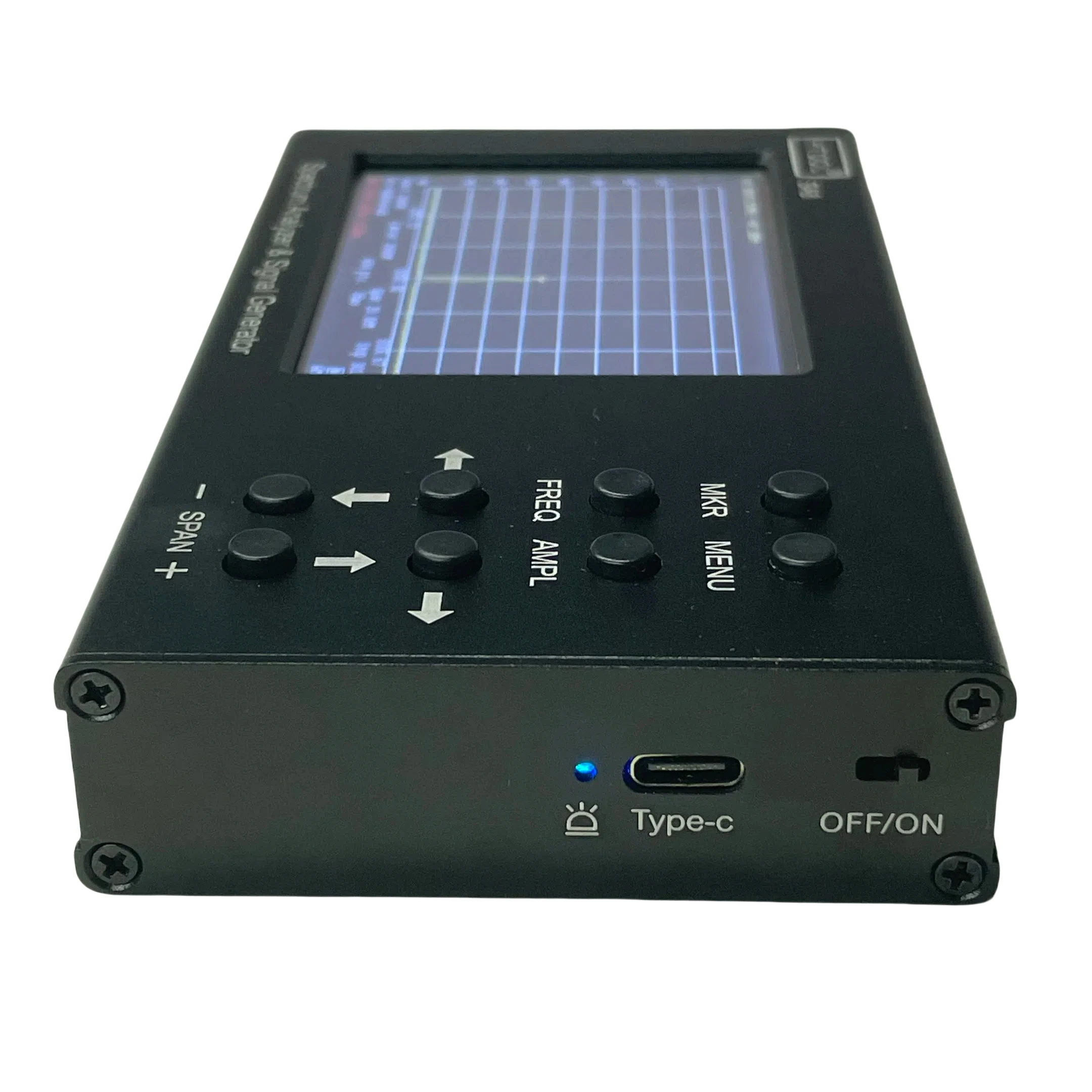

• USB Type-C: For charging, PC connection, and firmware updates
• Software: PC software for advanced analysis, data export, and screen mirroring
• Languages: English, Russian, Chinese

Applications

• RF signal testing (Wi-Fi, LTE, GSM, GPRS, GLONASS, etc.)
• Field work, service centers, and on-site high-frequency analysis
• VSWR and return loss measurement (with external coupler)
• Repair shops and amateur radio
• Educational and research labs
