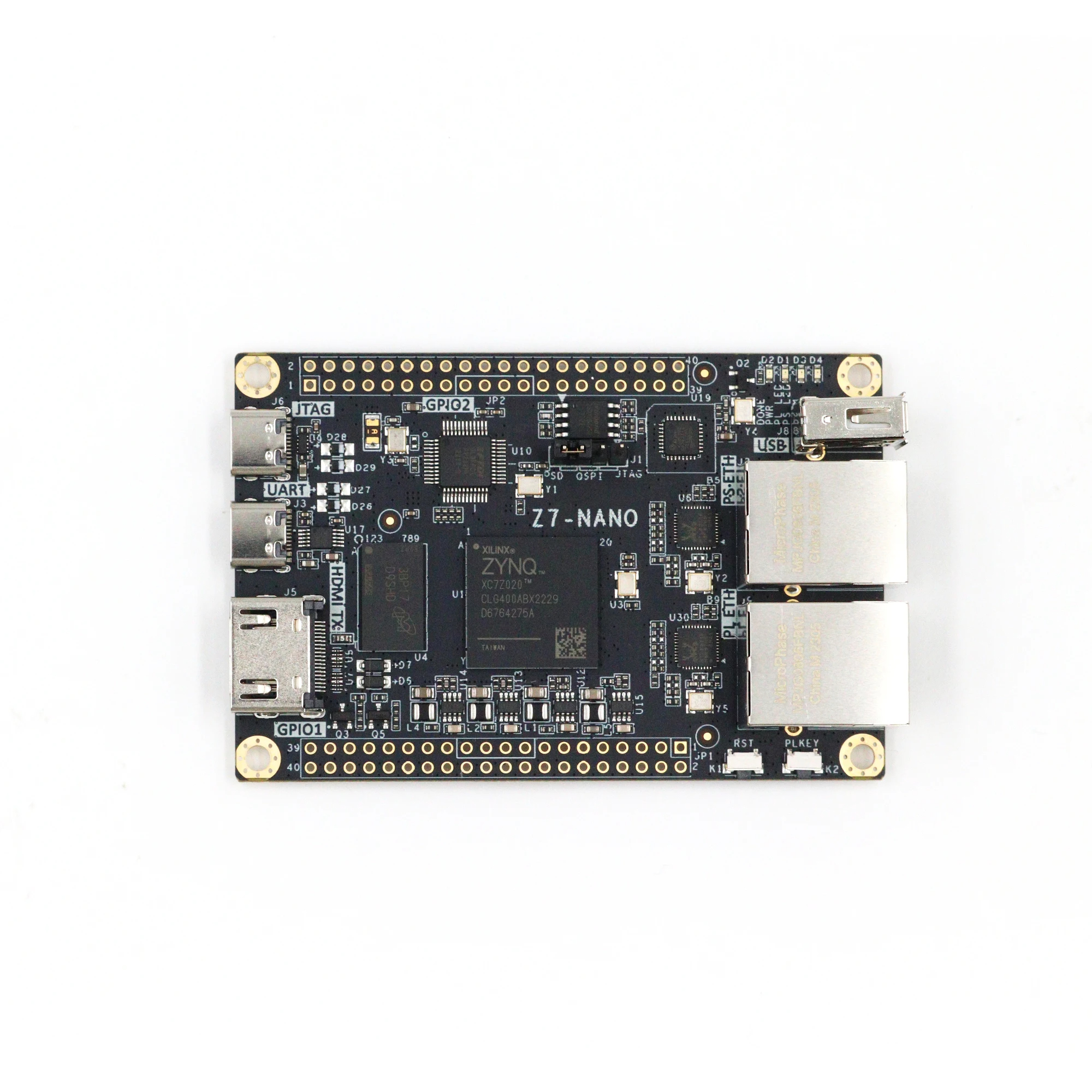

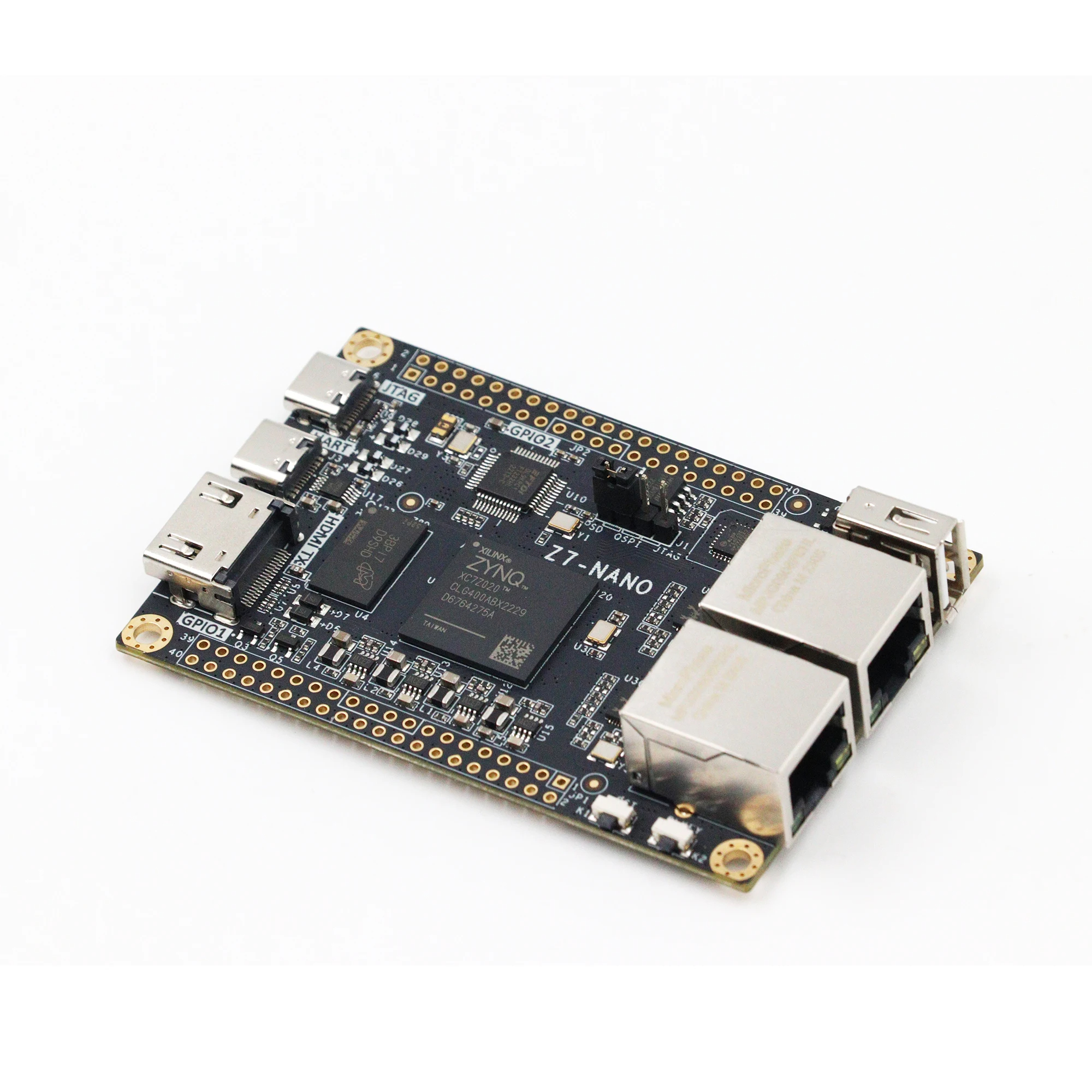

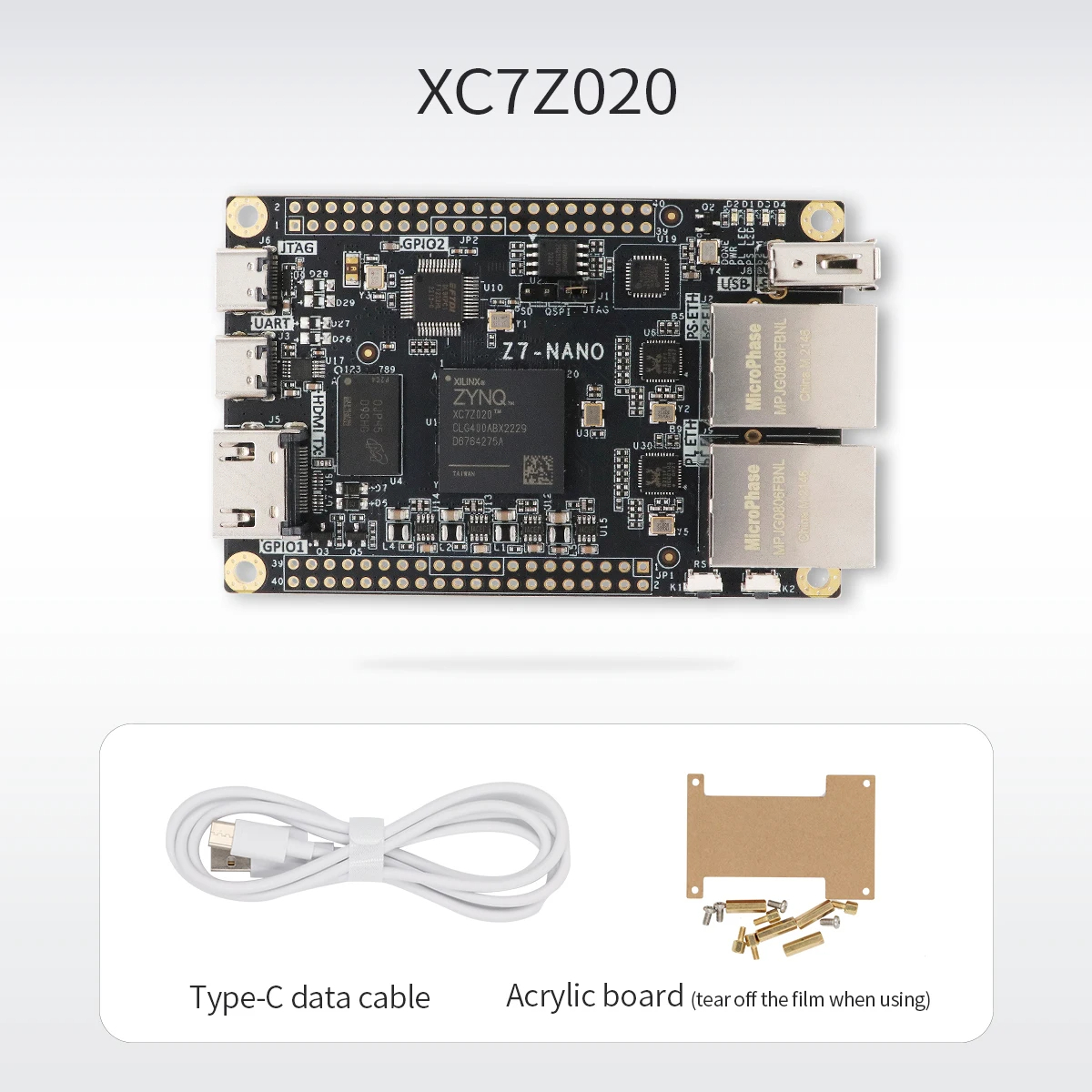

The Microphase Z7-Nano is a compact FPGA development board featuring the Xilinx Zynq-7000 SoC in two variants: Z7-Nano 7010 (XC7Z010CLG400-1) with 28K logic cells and 667 MHz dual-core Cortex-A9, or Z7-Nano 7020 (XC7Z020CLG400-2) with 85K logic cells and 766 MHz dual-core Cortex-A9.

Key Features and Specifications

  • DDR3: 4 Gbit @ 1066 Mbps
  • QSPI Flash: 128 Mbit for Zynq boot & user data
  • On-board USB-JTAG for programming & debugging
  • PS Clock: 33.3333 MHz; PL Clock: 50 MHz
  • Buttons & LEDs: 1 PS button, 1 PS LED, 1 PL LED
  • PCB: 8-layer immersion gold with power & ground planes

Connectivity & Peripherals

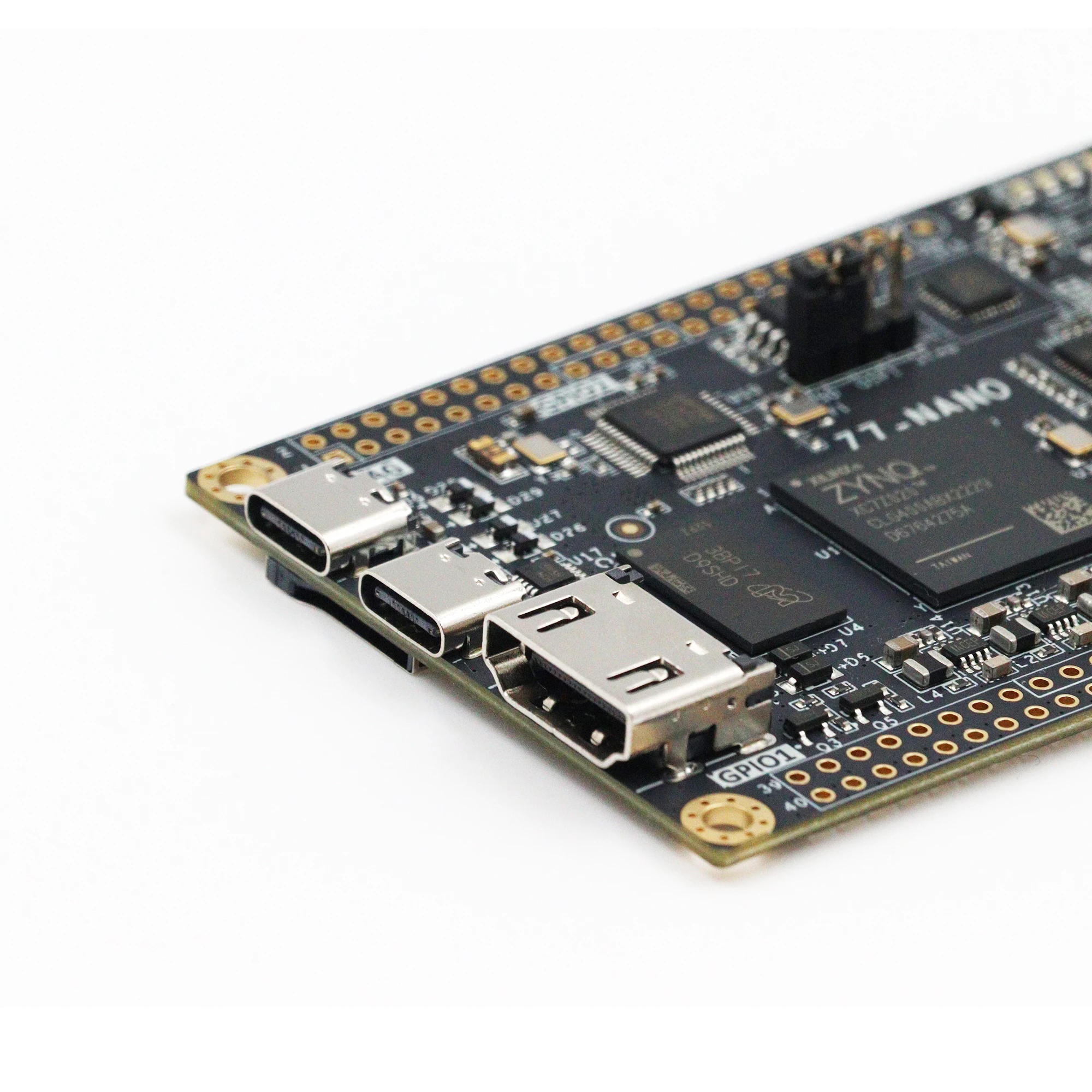

  • HDMI TX (1080p@60 Hz) configurable as RX (720p@60 Hz)

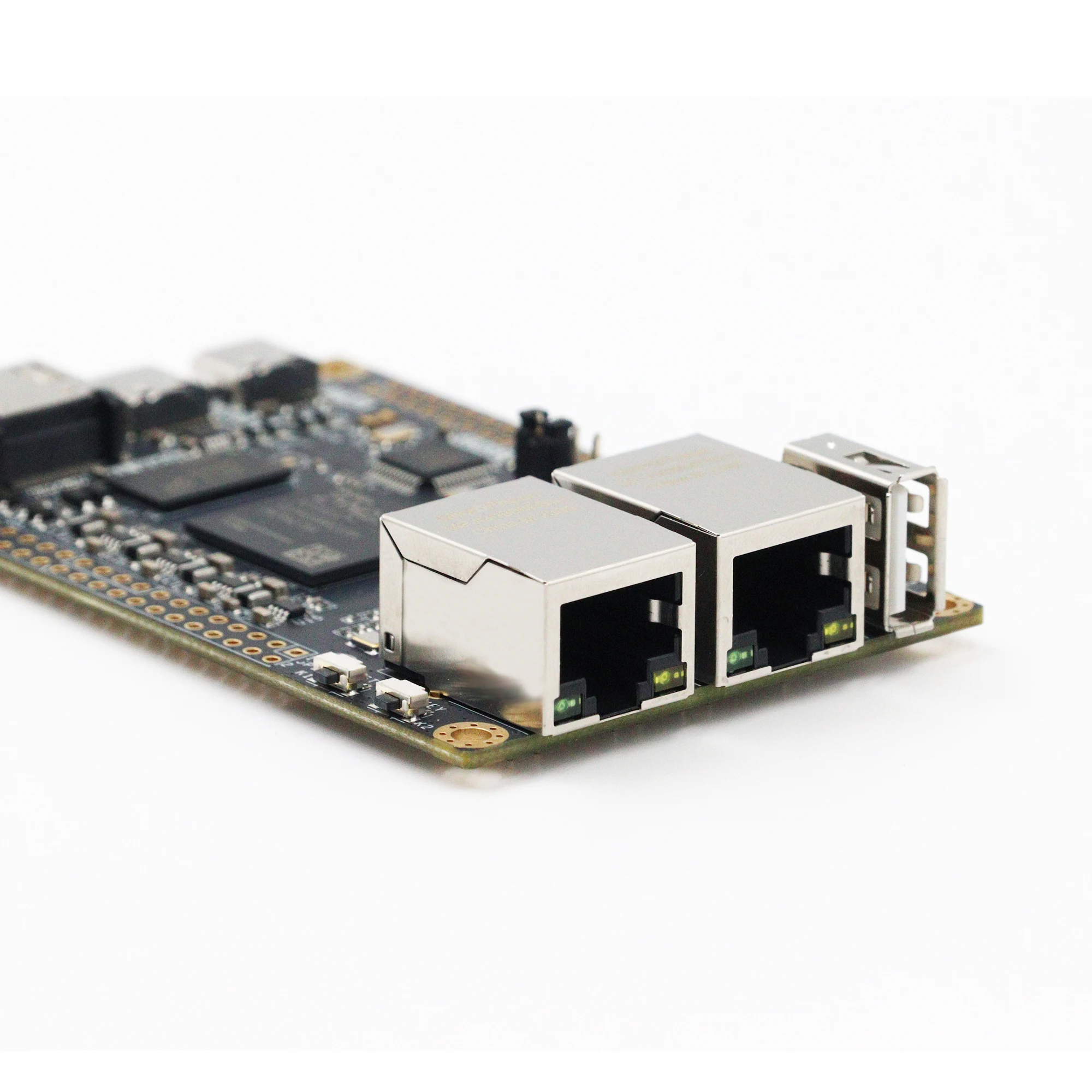

  • Dual Gigabit Ethernet (PS & PL sides)
  • USB Host & USB-UART for console & peripherals
  • Micro SD slot for PYNQ and file storage
  • GPIO Expansion: Two 40-pin headers (72 I/Os @ 3.3 V)

Applications

  • PYNQ-based embedded and AI development
  • FPGA prototyping and DSP acceleration
  • Network & multimedia application testing
  • Educational labs and research projects

Features for Microphase Z7-Nano FPGA Dev Board Zynq-7000 7010/7020, Dual GigE

Brand Name
MicroPhase
