PLUTO+ SDR AD9363 2T2R Radio SDR Transceiver Radio 70MHz-6GHz

PLT+PLTSQJD3HBW9
Write a review
32941
34675 You save: 1734
In stock
Black Friday Deals: Enjoy Savings and Unbeatable Offers All Week Long!
Promotion expires within:
Bundle 1
10 Days
Price in points: 336 points
Shipping time and rates:
+
Add to wish list Compare Ask a question
  • View all variations as list
Delivery
  • Without marking: Maximum 10 - 15 business days
  • Fast delivery: Maximum 10 business days
  • 5-Day Delivery: Maximum 5 business days in the EU
  • We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Payment options
Our advantages
Add to this product
  • PlutoSDR

PLUTO+ SDR Transceiver Radio 70MHz-6GHz Software Defined Radio For Gigabit Ethernet Micro SD Card

Production Description:

PLUTO+ is a software-defined radio platform that supports 2TX and 2RX, supports Gigabit Ethernet and Micro SD card. It refers to the design for well-known ADI ADALM-PLUTO and improves its shortcomings.

Features:

- ADC/DAC: AD9363 (Can hack to AD9361 or AD9364)

- 2 Transmit, 2 Receiving channel

- RF Range: 70MHZ~6GHZ

- Ref Clock: VCTCXO 40MHZ 0.5ppm

- SOC: for Zynq7010 FPGA: 28k

- RAM: 512M

- FLASH: 32M

- USB: 2.0, support OTG

- Ethernet: 1000Mb

- Micro SD can use to boot

- DC IN: 5V±0.5V-2A microUSB

Interfaces:

Please note that all IO levels are 1.8V.

When using the official firmware for ADI-PlutoSDR, please connect to URST-MI052.

When using Pluto+ firmware and need to support Ethernet, please connect URST-MIO46

When using SD card to boot, please connect SD-H to 1V8

When using JTAG to debug, please connect JTAG# to GND

Please connect EXCLK to GND when using external reference clock input

PTT Key Port:

- PTT drives optocouplers through GPIO0 (MI00), which requires an external relay or control circuit.

DFU KEY:

-At any time, you can press the DFU button and power on PLUTO+ again to enter the DFU mode, but you need to connect the URST jumper to MI052.

Ref CLK input IPEX:

- You can connect a cable to input an external high-precision reference clock for AD9363 through the IPEX interface.

- The main level should not exceed 3.3V, and the EXCLK jumper needs to be connected to GND to turn off the built-in clock

Calibrate the Frequency of Built-in VCTCXO:

-The frequency of the 40M clock can be fine-tuned by adjusting the adjustable resistor next to the VCTCXO, provided that you have a reference signal source.

Micro-SD:

Support booting via SD card, need to connect SD-H jumper to 1V8.

Features for PLUTO+ SDR AD9363 2T2R Radio SDR Transceiver Radio 70MHz-6GHz

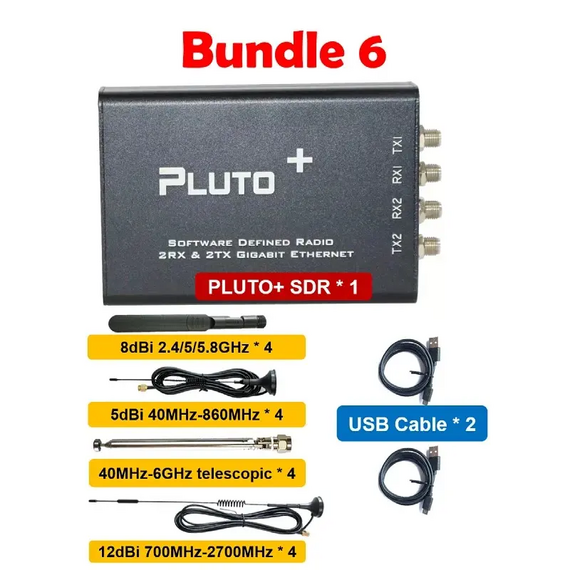

Bundle
Bundle 1

Reviews for PLUTO+ SDR AD9363 2T2R Radio SDR Transceiver Radio 70MHz-6GHz

5
5 out of 5
Reviews: 6
5 stars
100%
4 stars
0%
3 stars
0%
2 stars
0%
1 star
0%


Gunder Jönsson
Verified purchase
5
Comment
Product is as described.
Rostislav Zvenna
Verified purchase
5
Comment
Works well. I've been using it for 3 days now and had no problems.
Jules Brun
Verified purchase
5
Comment
Kit-as stated. Fully operational, receives, sends, provides a full duplex. Until I figured out how to use the second channel (RX2, tx2).
Denis Adamic
Verified purchase
5
Comment
I ordered the Pluto Plus and received it a week later, everything works and I am super excited to use this with DragonOS
Andrei Cinca
Verified purchase
5
Comment
L am verificat. Totul functioneaza. Multumesc
Miron Rusu
Verified purchase
5
Comment
Produs de inalta calitate. A fost impachetat bine. Sunt foarte multumit. O sa mai comand
