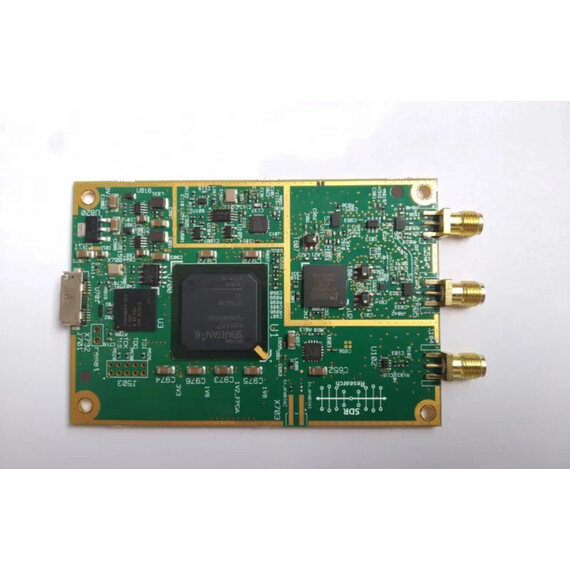

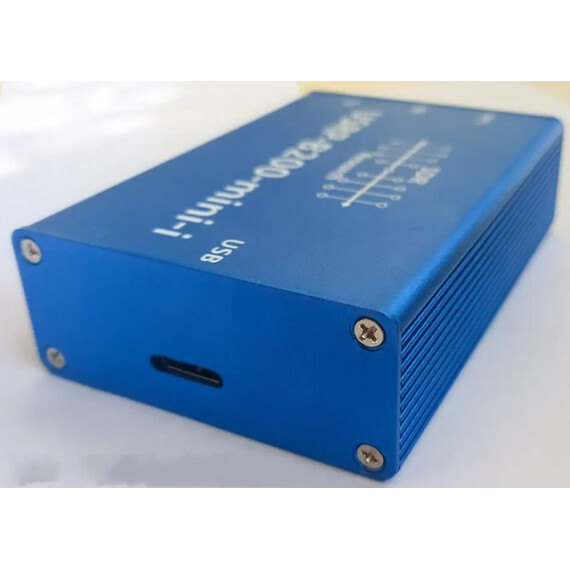

USRP B200-mini-i 70MHz- 6GHz Software Defined Radio Development Board Ettus

SRPBSRPO2DLHINXH
$80031
$84331 You save: $43.00
In stock
14 Days
Price in points: 801 points
Shipping time and rates:
+
Add to wish list Compare Ask a question
Delivery
  • Without marking: Maximum 10 - 15 business days
  • Fast delivery: Maximum 10 business days
  • 5-Day Delivery: Maximum 5 business days in the EU
  • We deliver to the following countries: All countries in the European Union, UK, USA, Canada. If you do not fall within these countries, you can check the checkout section to see if we deliver to your country.
Payment options
Our advantages

Features:
- Its performance indicators are consistent with the imported version, and its stability is better
- Using industrial-grade chips, supporting temperature range -40 to 85℃
- Highly integrated, radio frequency ranges from 70MHz to 6GHz
- Support maximum real-time bandwidth 56MHz, 61.44MS/s reference sampling rate
- Support high-speed USB 3.0 connection, for Windows and Linux
- Open source UHD supports multiple frameworks and open-source programs
- User-programmable XC6SLX75 FPGA for Spartan 6
- Adopt 12-bit AD9361 RFIC chip

Parameters:
Input/Output:
- DC voltage input: 5V

Conversion Module Parameters:
- ADC sampling rate (maximum): 61.44MS/s
- ADC resolution: 12bits
- ADC SFDR: 78dBc
- DAC sampling rate: 61.44MS/s
- ADC resolution: 12bits
- Maximum rate with host (16b): 61.44MS/s
- Local oscillator accuracy: ±2.0ppm
- Unlocked TCXO accuracy: ±7.5 ppm

Single-Channel RF Performance Parameters:
- Single sideband signal/image rejection: -35/50dBc
- 3.5GHz: 1.0degRMS
- 6GHz: 1.5degRMS
- Output power: >10dBm
- Input third-order intercept point: -20dBm
- Noise figure: <8dB

Physical Attributes:
- Size: 9 x 6 x 1.5cm
- Product weight: 150g

Package Included:
- 1 x URSP-B200-mini-i
