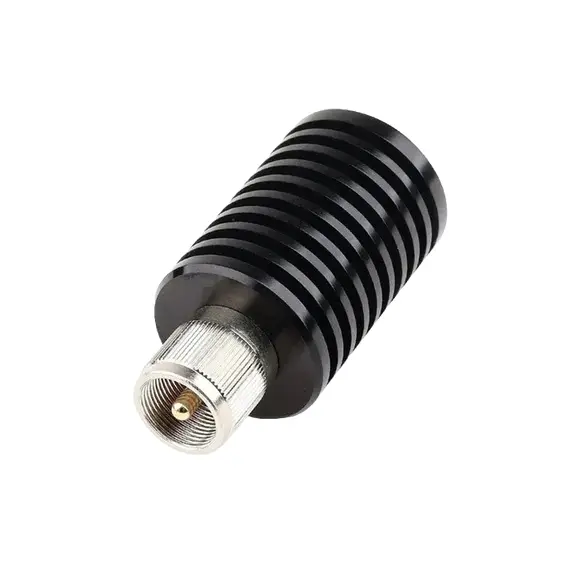

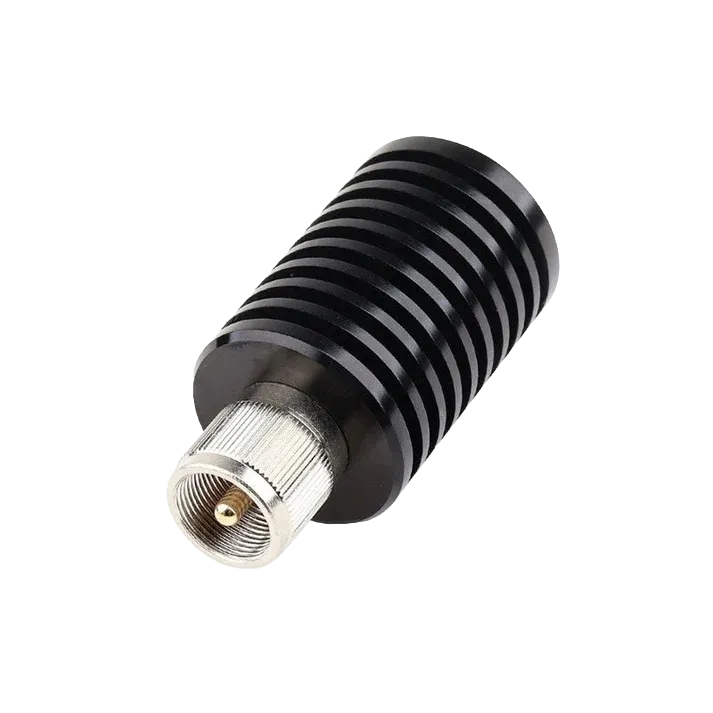

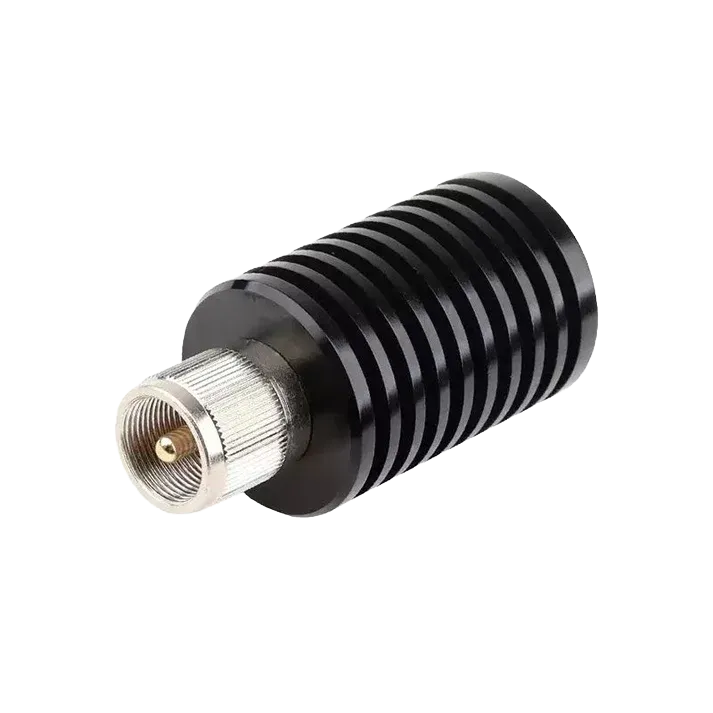

DL-30A Plus 50 Ohm DC–800MHz Coaxial Dummy Load SMA Male 25W RF Terminator

The DL-30A Plus 50 Ohm Coaxial Dummy Load is designed as a stable RF terminator for walkie talkies, mobile radios, and test equipment over a wide DC–800MHz frequency range. Connected in place of an antenna, it simulates the antenna feeder and safely absorbs RF power, making on-bench or service-mode testing easy and reliable.

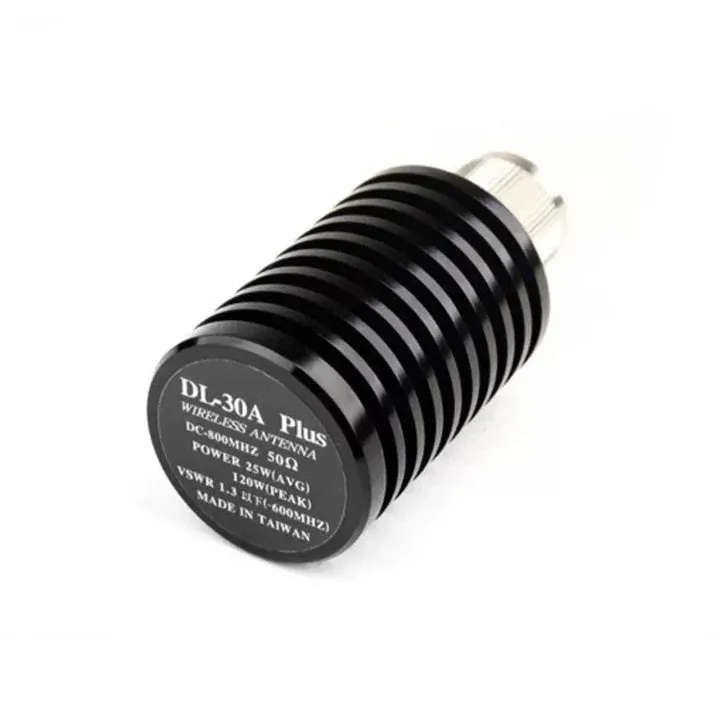

With a 50 Ohm impedance, SWR < 1.3 (up to 600MHz), and a power rating of 25W average (up to 120W peak), this dummy load is suitable for many HF, VHF, and UHF applications within its band. The compact metal body, SMA male connector, and solid 114g construction provide good mechanical stability and convenient direct connection to radios, analyzers, and RF test fixtures.

Specifications

Features

• Coaxial dummy load for RF testing, tuning, and service work
• Covers DC to 800MHz for HF, VHF, UHF, and many handheld radio bands
• 50 Ohm impedance for standard radio and RF test systems
• Low SWR for more accurate and predictable measurements
• SMA male connector for direct attachment to walkie talkies and instruments
• Robust, compact construction suitable for lab, workshop, or field use

Package Includes

• 1 × DL-30A Plus 50 Ohm DC–800MHz Coaxial Dummy Load (SMA male)

Ideal for radio technicians, ham operators, and RF engineers, this dummy load provides a simple, safe way to transmit into a controlled 50 Ohm load while testing or aligning walkie talkies and other RF equipment.
