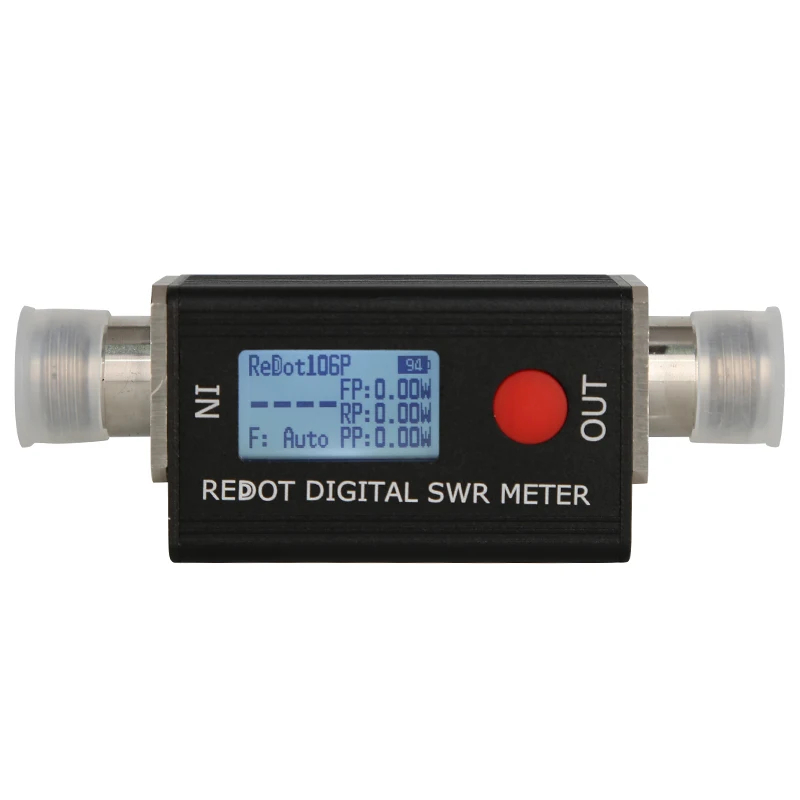

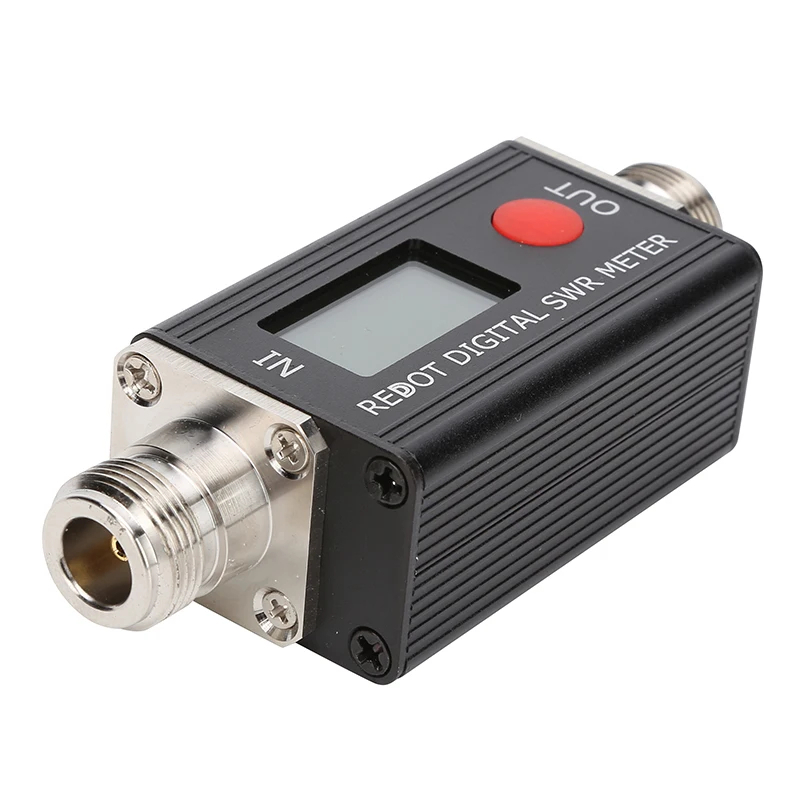

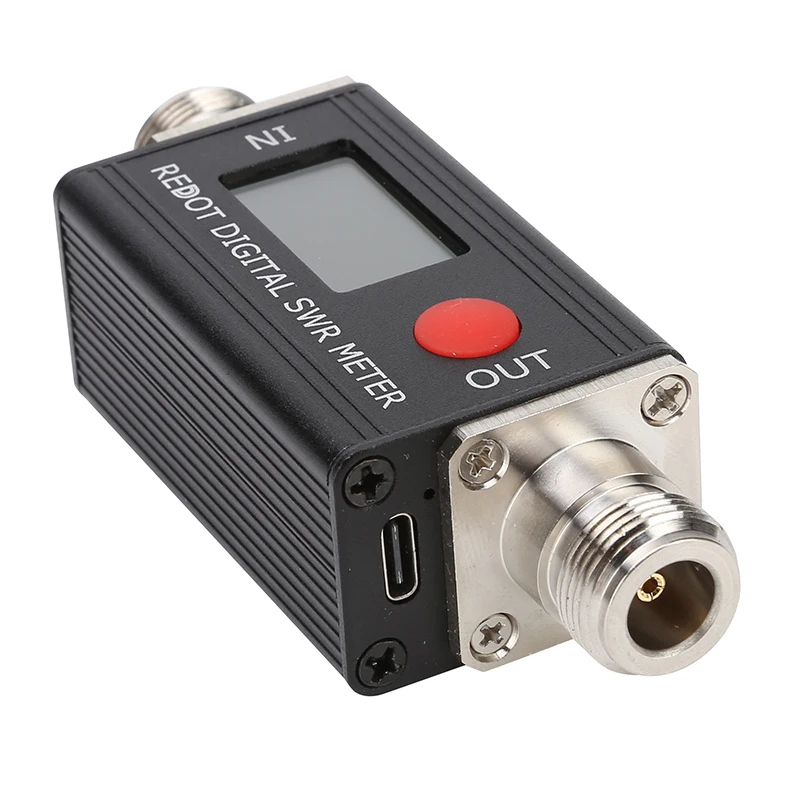

REDOT RD106P Digital SWR Meter SWR & Power Meter 120W FM VHF UHF 80-999MHz

The REDOT RD106P Digital SWR & Power Meter is a versatile, portable tool for FM, VHF, and UHF (80–999MHz) with max 120W power and VSWR display from 1.00 to 99.9. It supports DMR walkie talkies and RF devices, offering continuous and burst sampling, frequency compensation, and automatic sleep/wake for efficient operation.

• Frequency range: 80–999MHz
• VSWR display: 1.00–99.9
• Max power: 120W
• Power error: <10%
• Sampling: 100 times/sec (continuous), burst sampling auto-switch
• Display: 128x64 LCD
• RF interface: N-KF (50Ω)
• Battery: 3.7V/350mAh Li-ion, USB Type-C charging
• Size/Weight: 95×35×26mm, ~120g

Package Options

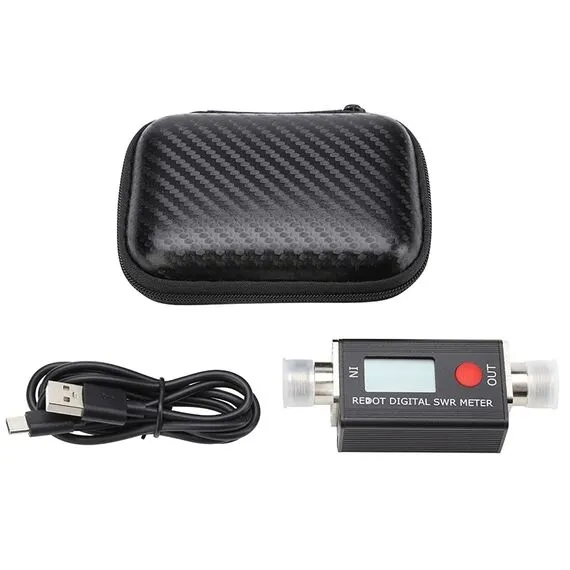

• Standard Package:
  • 1 × RD106P SWR meter
  • 1 × USB cable
  • 1 × Carrying bag
• KIT Package:
  • 1 × RD106P SWR meter
  • 1 × USB cable
  • 1 × Carrying bag
  • 1 × 5V 1A power adapter
  • 1 × N/M-JK converter
  • 1 × N/M-JJ converter
  • 1 × N/SMA-JK converter
  • 1 × N/SMA-JJ converter

Applications

• DMR walkie talkies
• RF testing and tuning
• FM, VHF, UHF radios
