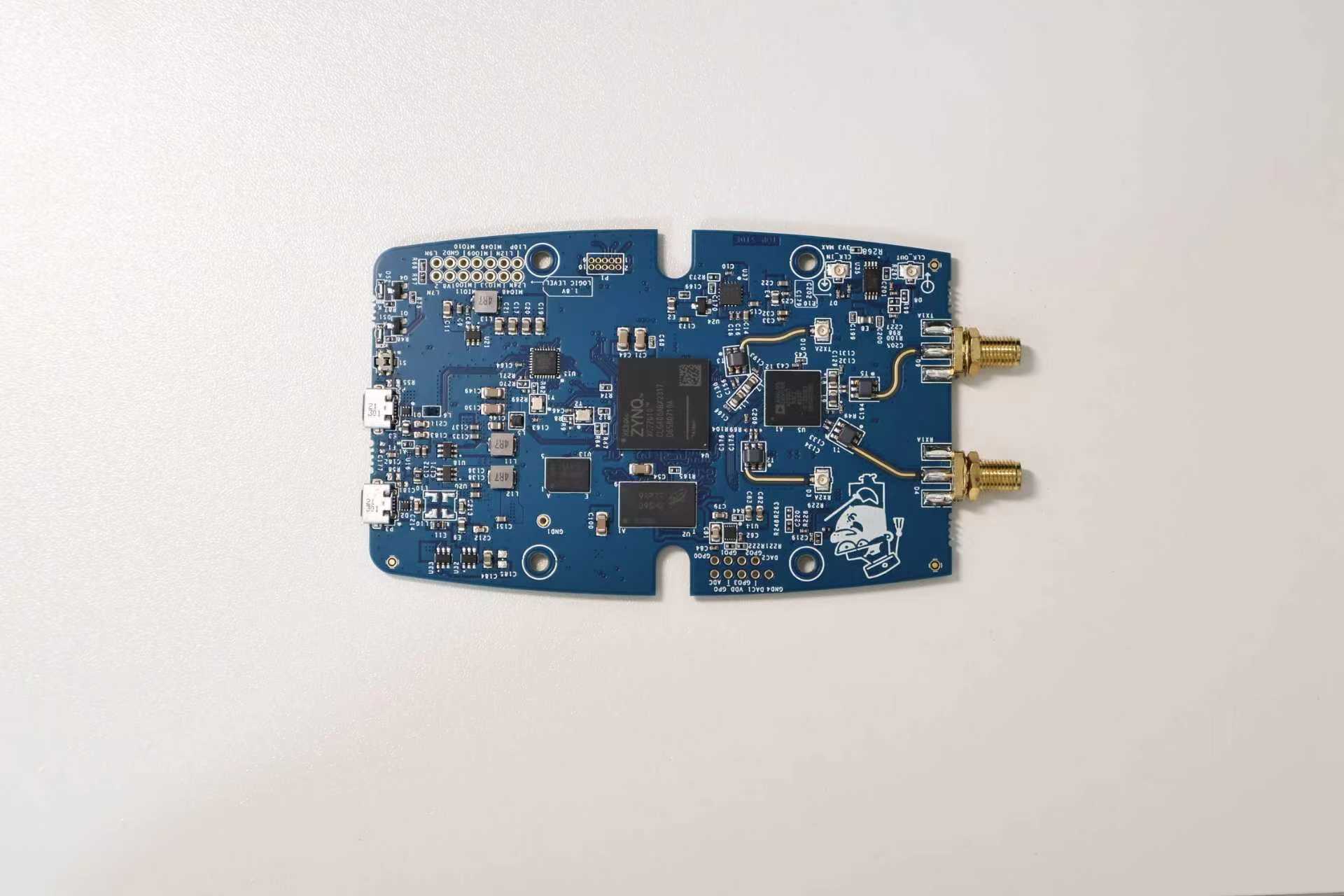

PlutoSDR (AD9363) Industrial Prototyping Guide

Why PlutoSDR Is Perfect for Industrial Prototyping

• Wide Frequency Coverage: 325–3800 MHz for IoT, industrial sensors, and factory automation
• Flexible Transceiver: AD9363 handles GSM, LTE, WiFi, LoRa, ZigBee, and more
• GLP FPGA (Zynq7010): Supports edge processing, custom modulation, fast DSP
• Low Power & Compact: USB-powered, portable for field and lab deployments
• Open Source Ecosystem: Compatible with Python, MATLAB, GNU Radio, and C libraries

Best Practices for Industrial Rapid Prototyping

• Define Clear Objectives Early: Know what you need to measure, validate, or control (RF power, link quality, spectrum activity, protocol compliance)
• Use Modular, Reusable Code: Scripts and flowgraphs in Python/Simulink make iteration seamless
  Python PlutoSDR Setup Guide
• Leverage Simulation, Then SDR Hardware: Model signal chains in MATLAB, Simulink, or gnuradio before deployment
• Start With Known Reference Signals: Test and calibrate the SDR with standard beacons (FM, GSM, WiFi, ZigBee) to validate hardware/software
• Monitor Real-Time Data Streams: Use IIO Oscilloscope, SDRangel, or custom dashboards for live debugging
• Document Every Iteration: Keep logs of config, firmware version, RF environment, antenna setup
• Iterate Rapidly, Validate Frequently: Use frequent build and test cycles—adjust filters, frequency, gains based on feedback

Key Industrial Use Cases for PlutoSDR

• Wireless IoT Device Prototyping: Validate sensors, edge nodes, and gateways with simulated RF, custom packet modulations, and spectrum scans
• Factory Automation Communication: Test wireless links over 433 MHz/868 MHz (LoRa, ZigBee, proprietary), verify robustness and spectral compliance
• Smart Metering Development: Build radio scripts for auto-discovery, time-sync, and protocol emulation against real meters
• RF Sensor Network Deployment: Rapidly deploy and characterize topologies for asset tracking, process monitoring, or anomaly detection
• Spectrum Analysis & Interference Detection: Scan ISM, sub-GHz, and 2.4 GHz bands for interference, harmonics, and spectral gaps
• Custom Protocol Research: Use the Zynq7010 FPGA for advanced waveform generation, specialty modulations, or hybrid analog/digital analysis

Practical Setup and Integration Tips

• Update PlutoSDR firmware for maximum compatibility (see ADI’s repo and guides)
• Set sample rates according to application needs; higher for spectral scans, lower for narrowband comms
• Use “ip:192.168.2.1” URI for remote streaming in Python, GNU Radio, SDRangel, MATLAB
• Benchmark USB throughput and buffer sizes for continuous real-time operation
  PlutoSDR USB Performance Details
• Maintain antenna matching for each use case—wideband for scans, tuned for comms

Best Results: Example Workflows

• RF Quick-Scan: Python script sets frequency, gain, sample rate, and saves IQ log—analyze in SDRangel/GNU Radio
• IoT Interoperability: Use MATLAB or Python to transmit and receive custom packets; log BER and latency across topologies
• Factory Floor LoRa Test: SDRangel flowgraph decodes LoRa, logs SNR and packet loss during machine ops
• ZigBee Automated Validation: Deploy PlutoSDR with protocol sniffer, run custom validation scripts for timing and power

Troubleshooting & Optimization

• No device detected: Check USB connection, drivers, firmware, and IIO context IP
• Signal dropouts: Reduce sample rate, adjust RX/TX buffer size, and monitor environment
• Poor performance: Benchmark on known signals, tune gain and bandwidth, switch antennas if needed
• Project not compiling: Validate API compatibility, check that Python packages (adi, gnuradio) and MATLAB are updated
