SDRstore.eu • 06/09/2026

Best SDR for 5G Research: USRP B210, X310, X410, and Lower-Cost Alternatives

Updated: June 2026. This guide compares the best software-defined radio platforms for 5G research, including USRP B210, USRP X310, USRP X410, LibreSDR B210 and B220 Mini, MicroPhase ANTSDR U220 and E316, bladeRF 2.0 micro, PLUTO+ SDR, and other lower-cost alternatives for 5G NR, srsRAN, OpenAirInterface, Open5GS, GNU Radio, MIMO, private-network labs, universities, and advanced wireless research.

Choosing the best SDR for 5G research is not as simple as buying the radio with the highest frequency range or the largest bandwidth number.

A university teaching laboratory may need an affordable 2×2 MIMO radio that works over USB 3.0. A telecom team testing handover may need independent RF chains and a high-speed Ethernet interface. A research institution working on neural receivers, beamforming, wideband channels, or 6G-oriented experiments may need an RFSoC platform with several synchronized channels and hundreds of megahertz of instantaneous bandwidth.

The correct SDR depends on the first experiment you intend to complete.

For many entry-level 5G NR projects, USRP B210 remains the most practical starting point. For advanced multi-cell, handover, and wider-bandwidth work, USRP X310 is a major upgrade. For high-end OpenAirInterface, AI-native PHY, multi-channel, and future-facing research, USRP X410 belongs in a different performance tier.

Lower-cost alternatives also matter. LibreSDR B210 and B220 Mini boards, MicroPhase ANTSDR U220 and E316 platforms, Nuand bladeRF 2.0 micro devices, and PLUTO+ SDR can be excellent tools for education, prototyping, GNU Radio, custom FPGA work, and selected 5G-related experiments.

However, not every 2×2 MIMO SDR is a drop-in replacement for USRP hardware in every software stack.

This guide explains which SDR to buy, when USRP B210 is enough, when X310 is worth the cost, what X410 adds, which lower-cost alternatives deserve consideration, and what additional hardware your laboratory may need.

Browse current professional SDR options in the USRP SDR devices, boards, and accessories category and the broader software-defined radio equipment category at SDRstore.eu.

Quick Answer: What Is the Best SDR for 5G Research?

SDR Platform	Best For	Main Advantage	Buyer Recommendation
USRP B210	Entry-level 5G SA labs, srsRAN, Open5GS, GNU Radio, education, and 2×2 MIMO experiments	Affordable USRP ecosystem entry with 70 MHz–6 GHz coverage, USB 3.0, and mature UHD support	Best overall starting point for many 5G research teams
USRP X310	Advanced 5G labs, independent RF chains, handover, wider bandwidth, 10 Gigabit Ethernet, and FPGA processing	Expandable daughterboard architecture, Kintex-7 FPGA, PCIe, and dual 10 Gigabit Ethernet	Best advanced lab upgrade before moving to RFSoC platforms
USRP X410	High-end OAI labs, AI-enhanced PHY research, wideband channels, multi-channel experiments, and 5G-to-6G work	Four independent TX and RX channels with up to 400 MHz instantaneous bandwidth per channel	Best premium research platform
LibreSDR B210 or B220 Mini	Budget-conscious labs, OAI-oriented experiments, teaching, and compact 2R2T prototyping	Lower-cost B210-style direction with AD9361 or AD9363 variants	Best low-cost USRP-style alternative to evaluate carefully
MicroPhase ANTSDR U220	USB 3.0 MIMO experiments, srsRAN-oriented prototyping, and university teaching labs	Compact AD9361 or AD9363-based 2×2 MIMO platform with up to 56 MHz bandwidth	Strong lower-cost USB alternative
MicroPhase ANTSDR E316	Embedded and Ethernet-connected wireless research	Zynq-7020 SoC, Gigabit Ethernet, MicroSD, GPS, PPS, and 2×2 MIMO	Best lower-cost embedded research platform
bladeRF 2.0 micro xA4 or xA9	Custom PHY work, FPGA acceleration, GNU Radio, waveform research, and portable MIMO development	47 MHz–6 GHz, 2×2 MIMO, USB 3.0, and a strong FPGA-oriented development ecosystem	Best Nuand alternative for custom modem development
PLUTO+ SDR	Affordable Pluto-style learning, Ethernet experiments, GNU Radio, and early RF prototyping	Low cost, 2TX and 2RX, Gigabit Ethernet, and MicroSD support	Best low-cost educational platform, but not a universal gNB replacement

The simplest recommendation is:

Choose USRP B210 if you are building your first practical 5G SA lab.
Choose USRP X310 if you need independent RF chains, handover experiments, larger FPGA resources, or high-speed Ethernet.
Choose USRP X410 if your work involves wideband channels, several synchronized channels, advanced OAI deployments, AI-enhanced PHY research, beamforming, or long-term 5G and 6G investment.
Choose LibreSDR, MicroPhase, bladeRF, or PLUTO+ when cost, embedded development, custom PHY work, or education matters more than following an official USRP reference architecture exactly.

What Does “5G Research” Actually Mean?

Different teams use the phrase “5G research” to describe very different projects.

Research Goal	What You Need	Recommended SDR Direction
Learn 5G NR concepts	Affordable radio, GNU Radio, virtual RF, and basic over-the-air or cabled tests	USRP B210, LibreSDR B220 Mini, ANTSDR U220, or PLUTO+ SDR
Build a small 5G SA private lab	Linux host, SDR RF front end, core network, test SIM, suitable UE, and clocking	USRP B210
Test COTS smartphone attachment	Compatible SA phone, programmable test SIM, controlled RF setup, and regulator-compliant configuration	USRP B210 or a higher-end USRP
Test handover between cells	Independent RF chains and a platform suited to multi-cell operation	USRP X310
Evaluate wider channels	More instantaneous bandwidth and a host interface that can sustain the data rate	USRP X310 or X410
Develop custom PHY algorithms	Programmable FPGA resources, RF access, software APIs, and reproducible test workflows	bladeRF xA9, X310, X410, or E316 depending on scale
Build AI-enhanced receivers	Real-time RF front end, GPU acceleration, OAI stack integration, and repeatable datasets	USRP X410
Research beamforming and advanced MIMO	Several synchronized channels, clocking, calibration, and RF-chain control	USRP X410 or a larger synchronized USRP architecture
Explore O-RAN and split architectures	Suitable CU, DU, RU, networking, timing, and software stack	USRP B210 for entry Split 8 work; more advanced RU platforms for Split 7.2x

The phrase “best SDR” only becomes meaningful after the laboratory defines the experiment, channel bandwidth, number of RF chains, software stack, synchronization requirements, and budget.

5G FR1 vs FR2: Understand the RF Scope First

Most lower-cost SDR research boards focus on sub-6 GHz and lower FR1-style experiments.

This includes common university and private-lab projects involving bands below approximately 6 GHz, such as selected mid-band and sub-GHz research configurations.

Millimeter-wave FR2 research is different.

A radio covering 6 GHz does not directly become a complete mmWave 5G platform. FR2 work may require additional upconversion and downconversion hardware, phased-array modules, beamforming hardware, calibration, specialized antennas, higher-frequency test equipment, and suitable over-the-air environments.

Your Goal	Recommended Direction
Learn 5G NR with lower-cost SDR hardware	Start with FR1-style experiments using B210, LibreSDR, U220, E316, bladeRF, or PLUTO+
Build a practical sub-6 GHz private-network lab	Use B210, X310, or X410 depending on bandwidth and channel count
Research higher-frequency and mmWave systems	Use a high-end SDR platform with suitable external RF front ends, antenna arrays, synchronization, and measurement equipment

Best Entry-Level SDR for 5G Research: USRP B210

The USRP B210 USB SDR is the strongest default recommendation for a laboratory starting practical 5G NR experiments.

It provides a good balance of capability, software compatibility, documentation, portability, and cost.

USRP B210 key features

70 MHz–6 GHz continuous RF coverage
2×2 MIMO architecture
Analog Devices AD9361 RFIC
Up to 56 MHz real-time bandwidth
USB 3.0 SuperSpeed connection
Full-duplex operation
Reprogrammable FPGA
UHD support
GNU Radio compatibility
External PPS reference input
External 10 MHz reference input
Compact single-board form factor

Why USRP B210 is so popular for 5G labs

It is significantly easier to deploy than rack-mount SDR platforms.
It connects through USB 3.0 rather than requiring a dedicated 10 Gigabit Ethernet network.
It supports 2×2 MIMO workflows.
It has broad community support.
It works with UHD-based software.
It is used in official srsRAN documentation for practical 5G SA experiments.
It is affordable enough for university teaching labs to purchase several units.
It remains useful for LTE, spectrum sensing, IoT, C-V2X, GNSS, and GNU Radio after the first 5G experiment is complete.

Choose USRP B210 if you want to:

Build your first 5G standalone lab
Experiment with srsRAN Project
Use Open5GS as a 5G core
Connect a compatible COTS handset in a controlled test setup
Learn UHD and GNU Radio
Build a university wireless-communications course
Test lower-bandwidth 5G NR configurations
Use one compact SDR for several teaching projects

USRP B210 limitations

USB 3.0 limits practical scaling compared with high-speed networked USRPs.
The available throughput depends on the host USB controller and configuration.
It is not the correct platform for every wideband experiment.
It is not suitable for every multi-cell or handover workflow.
Its FPGA resources are smaller than X310 and X410 platforms.
It is not a complete mmWave research system.

USRP B210 and srsRAN

USRP B210 is one of the most practical SDRs for learning srsRAN Project.

A typical entry-level 5G SA setup includes:

Linux host computer
srsRAN Project CU and DU
USRP B210 RF front end
Open5GS 5G Core
Compatible 5G SA user equipment
Programmable test SIM or test USIM with known credentials
Suitable antennas, attenuation, or a cabled RF setup
External clock source where improved stability is required

This makes B210 one of the best SDR choices for universities, student projects, training environments, and small professional labs.

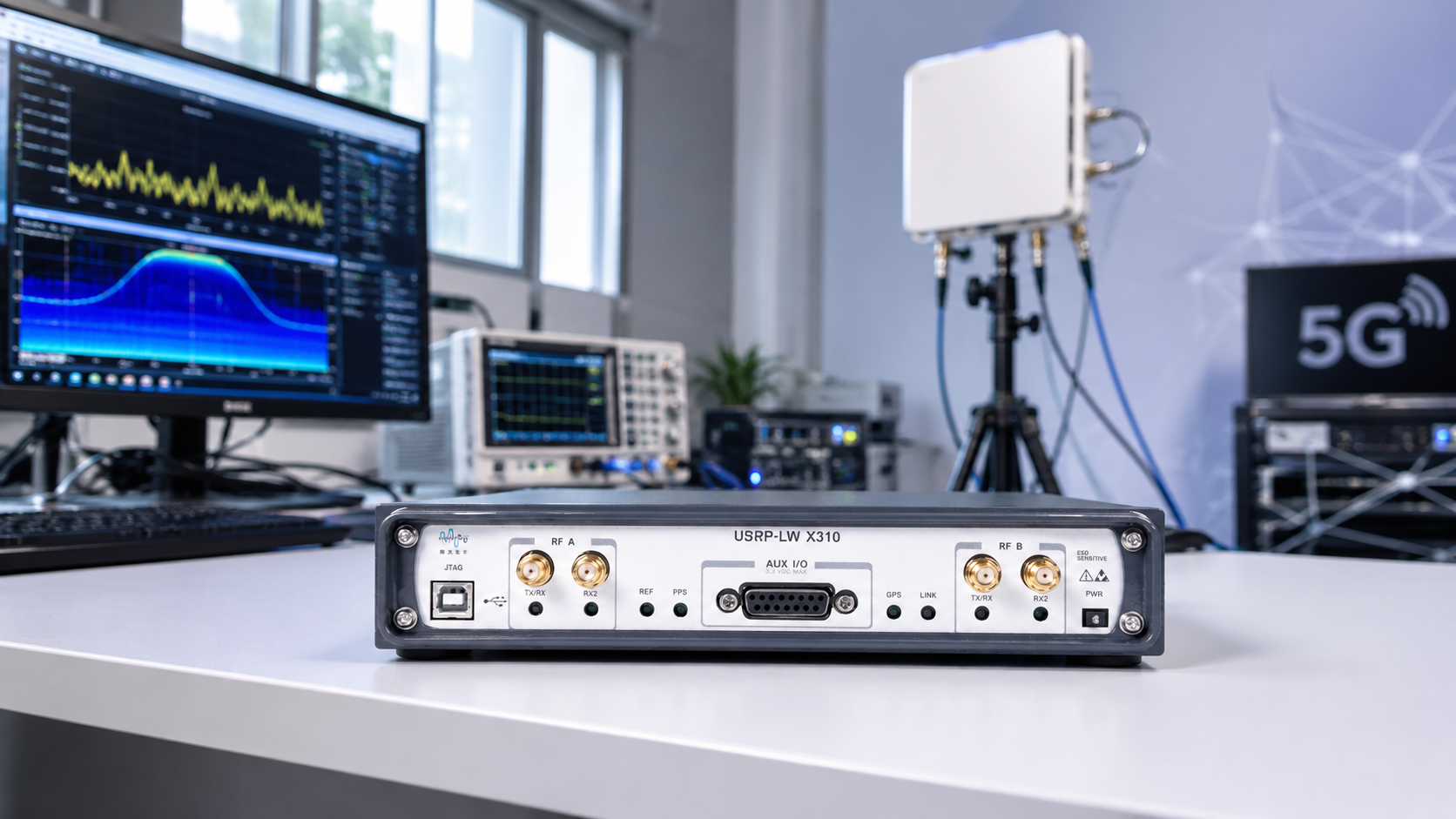

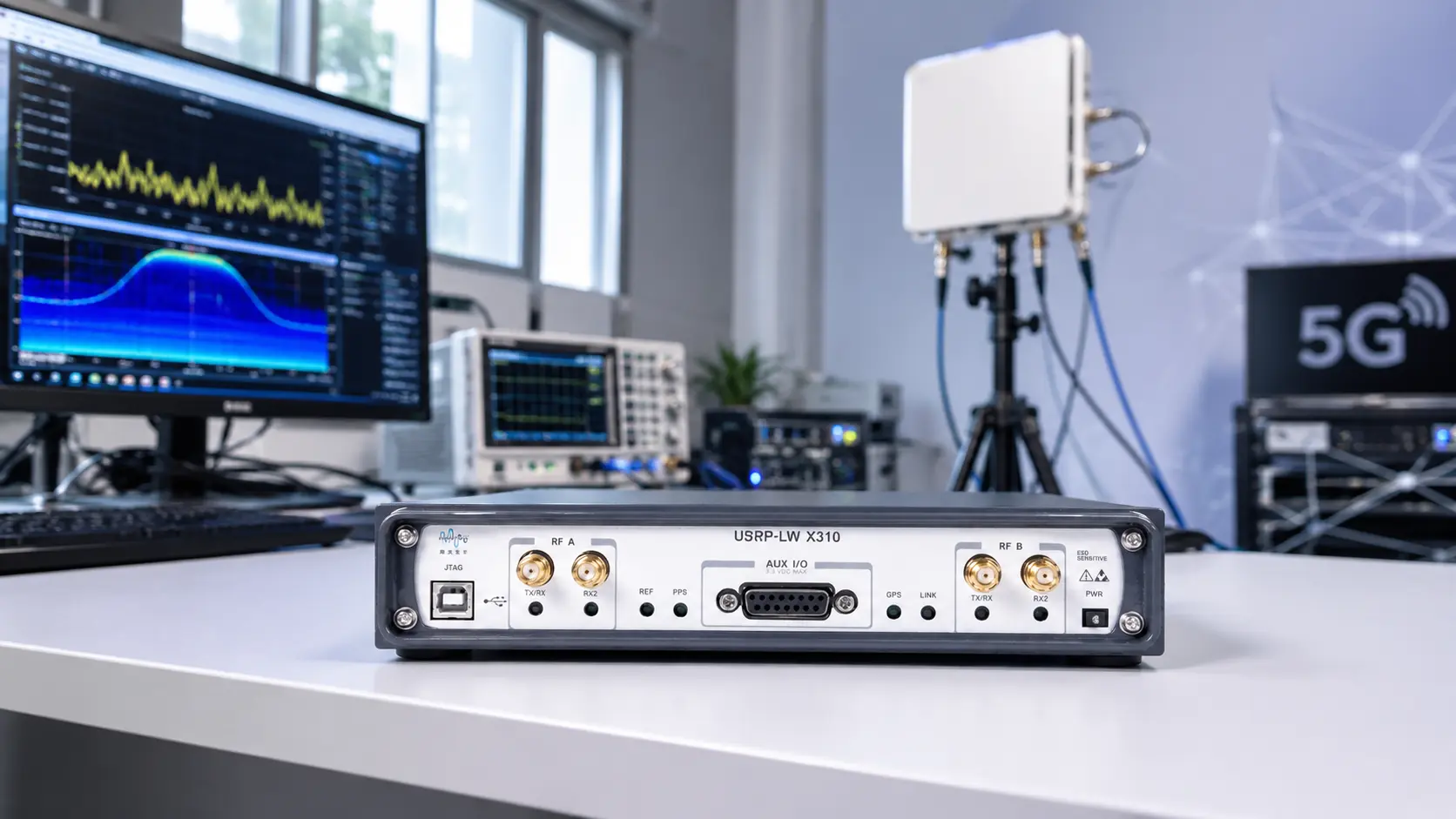

Best Advanced SDR for 5G Research: USRP X310

The USRP X310 SDR is the better choice when your research has outgrown USB-based entry-level hardware.

X310 is not simply a faster B210.

It is an expandable high-performance platform with daughterboard slots, a larger FPGA, high-speed Ethernet interfaces, PCIe options, and flexible clocking.

USRP X310 key features

Two wide-bandwidth RF daughterboard slots
Daughterboard selection covering DC–6 GHz
Up to 160 MHz bandwidth per slot with suitable daughterboards such as UBX-160
Xilinx Kintex-7 XC7K410T FPGA
Dual 10 Gigabit Ethernet interfaces
Dual 1 Gigabit Ethernet interfaces
PCIe interface options
Flexible clocking architecture
Optional GPS-disciplined oscillator
Coherent operation with OctoClock and OctoClock-G
Front-panel digital I/O
Desktop and rack-mountable form factor

Why X310 matters for 5G research

It supports significantly wider streaming workflows than B210.
It offers high-speed network interfaces for demanding host-based processing.
It provides larger FPGA resources for DSP development.
Its daughterboard architecture makes RF configuration more flexible.
It is better suited to advanced research testbeds.
It is used in official srsRAN handover documentation.
It is a strong platform for multi-cell, synchronization, and custom waveform research.

Choose X310 if you want to:

Build a serious 5G research laboratory
Experiment with independent RF chains
Test intra-gNB handover
Use 10 Gigabit Ethernet
Process wider channels
Run custom FPGA DSP
Use UBX daughterboards for wideband RX and TX
Synchronize several devices
Integrate USRP hardware into a rack-based lab
Support a longer-term university or professional research program

X310 limitations

The radio platform and daughterboards must be selected together.
It costs substantially more than B210.
High-bandwidth operation requires suitable host networking.
FPGA images and network configuration add setup complexity.
A 10 Gigabit Ethernet NIC is strongly recommended for demanding workflows.
It is not as integrated as X410.

Read the related guides:

Why X310 Is Better for Handover Research

Some 5G experiments require two independent RF chains.

Handover is an important example.

A two-cell intra-gNB handover experiment assigns each cell to a separate RF chain so the user equipment can move from one cell to another.

For this type of workflow, X310 is a better choice than B210.

Research Goal	USRP B210	USRP X310
Basic 5G SA experiment	Strong choice	Also suitable, but more expensive
USB-based compact lab	Strong choice	Not the main advantage
Independent RF-chain handover research	Not the preferred platform	Strong choice
10 Gigabit Ethernet streaming	No	Yes
Wideband daughterboard flexibility	No daughterboard architecture	Yes
Large custom FPGA workloads	More limited	Better suited

Best Premium SDR for 5G and 6G Research: USRP X410

USRP X410 is designed for advanced research institutions, telecom companies, large university labs, testbed operators, and teams building long-term wireless-research infrastructure.

It is not a budget upgrade.

It is a different class of platform.

USRP X410 key features

1 MHz–7.2 GHz operating range
Tunable up to 8 GHz
Four independent receive channels
Four independent transmit channels
Up to 400 MHz instantaneous bandwidth per channel
AMD Zynq UltraScale+ ZU28DR RFSoC
12-bit ADC
14-bit DAC
Sample clock rates up to 500 MS/s
Onboard digital downconversion
Onboard digital upconversion
Onboard soft-decision forward error correction resources
Two QSFP28 interfaces supporting 10 Gigabit Ethernet, 100 Gigabit Ethernet, and Aurora
PCIe Gen3 x8 interfaces
Built-in GPSDO
10 MHz clock reference
PPS time reference
Trigger input and output
Embedded Linux
Stand-alone or host-based operation
RFNoC development support

Choose X410 if you want to:

Build a premium 5G and 6G research platform
Run advanced OpenAirInterface testbeds
Research AI-enhanced physical-layer receivers
Develop neural receiver pipelines
Generate synchronized wireless datasets
Evaluate several RF channels
Work with wide instantaneous bandwidth
Research advanced MIMO and beamforming
Integrate GPU-accelerated inference into the RAN stack
Build scalable, networked research infrastructure
Invest in a platform that supports future-facing wireless research

X410 limitations

It is expensive.
It requires a suitable high-performance host system.
It may require 10 or 100 Gigabit Ethernet infrastructure.
It demands more advanced RF engineering.
It is unnecessary for a basic student project.
It does not support swappable RF daughtercards.
It is not a direct replacement for a simple USB SDR workflow.

USRP B210 vs X310 vs X410 Comparison

Feature	USRP B210	USRP X310	USRP X410
Main role	Entry-level and intermediate USB SDR	Advanced expandable networked SDR	Premium integrated RFSoC research platform
Frequency coverage	70 MHz–6 GHz	Depends on daughterboard selection, covering DC–6 GHz	1 MHz–7.2 GHz, tunable up to 8 GHz
TX channels	2	Depends on daughterboard configuration	4 independent channels
RX channels	2	Depends on daughterboard configuration	4 independent channels
Maximum bandwidth direction	Up to 56 MHz real-time bandwidth	Up to 160 MHz per slot with suitable daughterboards	Up to 400 MHz instantaneous bandwidth per channel
Host interface	USB 3.0	Dual 1 Gigabit Ethernet, dual 10 Gigabit Ethernet, and PCIe options	QSFP28, 10 Gigabit Ethernet, 100 Gigabit Ethernet, Aurora, and PCIe Gen3 x8
FPGA or RFSoC	Spartan-6 FPGA	Kintex-7 XC7K410T FPGA	Zynq UltraScale+ ZU28DR RFSoC
Daughterboards	No	Yes	No, fully integrated RF architecture
Built-in GPSDO	No	Optional GPSDO	Yes
Best software direction	srsRAN, GNU Radio, UHD, Open5GS, teaching labs	srsRAN advanced workflows, handover, GNU Radio, UHD, FPGA DSP	OAI, RFNoC, AI-native PHY, wideband 5G and 6G research
Best buyer	University, student, startup, or small laboratory	Advanced university lab or professional research team	Telecom R&D team, major research institution, or long-term testbed project

USRP B210 Is Not Automatically Worse Than X310 or X410

More expensive hardware is not always the right purchase.

A B210 may be the better choice when:

You are learning srsRAN for the first time.
You want a compact USB-based lab.
You are teaching students.
You want to buy several SDR units for a classroom.
You are testing lower-bandwidth configurations.
You do not need independent RF-chain handover.
You do not need hundreds of megahertz of bandwidth.
You want a well-documented starting point.

X410 does not make a simple learning project better automatically. It makes advanced projects possible.

Best Lower-Cost USRP-Style Alternative: LibreSDR B210 and B220 Mini

SDRstore.eu offers the LibreSDR B210 Mini and B220 Mini 2R2T SDR Development Board.

This is one of the most interesting lower-cost options for laboratories that want a compact 2R2T board and are willing to validate software compatibility carefully.

LibreSDR B210 and B220 Mini direction

Compact 2R2T SDR design
AD9361 or AD9363 model variants
Xilinx Artix-7 FPGA variants
Windows and Linux support direction
UHD-compatible workflow direction
Pluto-style workflow direction
OpenAirInterface-oriented support direction
Lower-cost laboratory experimentation

Choose LibreSDR if:

You want a lower-cost 2R2T board.
You are comfortable validating drivers and firmware.
You want an SDR for teaching, prototyping, and OAI-oriented experiments.
You do not require the official Ettus hardware ecosystem for every deployment.
You are building several affordable laboratory nodes.

Choose official USRP B210 instead if:

You need the safest documentation path.
You need official Ettus support.
You want to follow existing UHD and srsRAN tutorials as closely as possible.
Your organization values standardization over minimum purchase price.

MicroPhase ANTSDR U220: Lower-Cost USB 3.0 MIMO Platform

The MicroPhase ANTSDR U220 is another compact option for budget-conscious wireless research.

ANTSDR U220 listed features

70 MHz–6 GHz coverage
AD9361 or AD9363 RFIC variants
2×2 MIMO architecture
Up to 56 MHz instantaneous bandwidth per channel
USB 3.0 high-speed connection
Compact board form factor
srsRAN-oriented product direction
GNU Radio and RF development use cases

Choose U220 if:

You want a lower-cost USB 3.0 SDR.
You need 2×2 MIMO.
You want an education or prototyping board.
You are comfortable testing the exact software stack and chipset variant.
You are building a budget-conscious lab.

Verify the selected chipset, firmware, drivers, and software compatibility before standardizing a large deployment.

MicroPhase ANTSDR E316: Best Lower-Cost Embedded Ethernet Alternative

The MicroPhase ANTSDR E316 is more interesting when you want an embedded and network-connected architecture.

ANTSDR E316 listed features

70 MHz–6 GHz coverage
AD9361 or AD9363 RFIC variants
2×2 MIMO
Up to 56 MHz instantaneous bandwidth
Xilinx Zynq-7020 SoC
1 GB DDR3 memory
Gigabit Ethernet
USB-JTAG
USB-UART
USB-OTG
MicroSD support
GPS and PPS support

Choose E316 if:

You want a compact embedded SDR.
You prefer Gigabit Ethernet over a USB-only architecture.
You want Zynq-based development.
You need MicroSD boot or embedded workflows.
You are building remote or distributed experiments.
You want a lower-cost platform for advanced GNU Radio and custom development.

bladeRF 2.0 micro: Best Alternative for FPGA and Custom PHY Development

Nuand bladeRF 2.0 micro is one of the strongest alternatives for teams interested in custom modem development, FPGA acceleration, GNU Radio, portable 2×2 MIMO research, and wireless-protocol experimentation.

SDRstore.eu offers:

bladeRF 2.0 micro key features

47 MHz–6 GHz RF coverage
61.44 MHz sampling rate
Support for wider sampling modes depending on configuration
2×2 MIMO streaming
USB 3.0 SuperSpeed
Compact portable design
GNU Radio compatibility through libbladeRF
Windows, Linux, and macOS support
Clocking options for synchronized experiments
FPGA-oriented development workflow

bladeRF xA4 vs xA9

Feature	bladeRF xA4	bladeRF xA9
Main strength	Lower-cost 2×2 MIMO development	Much larger FPGA for acceleration and custom DSP
RF coverage	47 MHz–6 GHz	47 MHz–6 GHz
Sampling rate	61.44 MHz direction	61.44 MHz direction
MIMO	2×2	2×2
FPGA direction	Suitable for lighter custom logic	Large 301KLE Cyclone V FPGA for more ambitious hardware acceleration
Best buyer	Student, developer, or lower-cost lab	Team developing custom modem or FPGA signal-processing chains

Choose bladeRF if:

You want to build custom waveform pipelines.
You want to accelerate DSP in HDL.
You want a portable 2×2 MIMO platform.
You use GNU Radio and SoapySDR.
You value FPGA flexibility.
You are building research tools rather than following only USRP-specific tutorials.

Do not treat bladeRF as a universal B210 replacement

bladeRF is a capable platform, but USRP-based tutorials commonly assume UHD hardware.

Check the target framework, drivers, APIs, and community support before choosing bladeRF for a specific 5G stack.

PLUTO+ SDR: Best Low-Cost Learning Platform

The PLUTO+ SDR AD9363 2T2R Transceiver is one of the lowest-cost ways to begin exploring Pluto-style SDR development with Ethernet and two transmit plus two receive channels.

PLUTO+ SDR listed features

AD9363 RF transceiver
2 transmit channels
2 receive channels
Listed 70 MHz–6 GHz tuning range
Gigabit Ethernet
USB 2.0 OTG
MicroSD boot support
External reference-clock option
Zynq7010 FPGA
512 MB RAM
Compact board form factor

Choose PLUTO+ SDR if:

You want an affordable educational SDR.
You are learning GNU Radio.
You want Ethernet connectivity.
You want Pluto-style software workflows.
You want to explore basic 2T2R experiments.
You want a low-cost platform before investing in USRP hardware.

Do not choose PLUTO+ as your only platform if:

You need official UHD documentation.
You need a validated production-style 5G gNB testbed.
You need large sustained host bandwidth.
You need advanced handover workflows.
You need the same deployment path as an X310 or X410 reference architecture.

Read our guides:

What About ADALM-PLUTO?

Standard ADALM-PLUTO is an excellent RF learning platform.

It is based on the AD9363 and Zynq-7010 architecture, provides one transmit channel and one receive channel, supports half-duplex or full-duplex operation, and offers up to 20 MHz instantaneous bandwidth within its official RF range.

It is useful for:

Digital-communications education
GNU Radio
MATLAB and Simulink
Python and libiio workflows
Basic RF prototyping
Modulation and demodulation learning

It is not the first recommendation for a serious 5G SA gNB lab.

What About HackRF One and HackRF Pro?

HackRF One and HackRF Pro are useful wideband development SDRs, but they are not the best starting platforms for a 5G NR base-station laboratory.

Their strengths include:

Wide frequency coverage
Portable RF exploration
GNU Radio
Authorized signal-generation experiments
Half-duplex development workflows
Portable PortaPack use for compatible HackRF hardware

Their main limitation for this article is duplex architecture.

A proper 5G lab normally benefits from full-duplex, synchronized, multi-channel hardware with a software stack designed for cellular research.

Choose USRP, bladeRF, MicroPhase, LibreSDR, or Pluto-style full-duplex platforms instead when your actual goal is 5G NR experimentation.

Lower-Cost SDR Alternatives Comparison Table

SDR	RF Direction	Channels	Host Interface	Best Use	Important Note
LibreSDR B210 or B220 Mini	70 MHz–6 GHz direction depending on selected model	2R2T	Compact board workflow	Budget OAI-oriented and USRP-style labs	Validate software and firmware compatibility carefully
ANTSDR U220	70 MHz–6 GHz	2×2 MIMO	USB 3.0	Lower-cost srsRAN-oriented prototyping	Confirm selected AD9361 or AD9363 variant
ANTSDR E316	70 MHz–6 GHz	2×2 MIMO	Gigabit Ethernet, USB, MicroSD	Embedded networked SDR research	Good for Zynq-oriented development
bladeRF 2.0 micro xA4	47 MHz–6 GHz	2×2 MIMO	USB 3.0	Portable GNU Radio and custom PHY projects	Not a drop-in UHD replacement
bladeRF 2.0 micro xA9	47 MHz–6 GHz	2×2 MIMO	USB 3.0	FPGA-accelerated modem and DSP development	Choose xA9 when FPGA space matters
PLUTO+ SDR	Listed 70 MHz–6 GHz	2TX and 2RX	Gigabit Ethernet and USB OTG	Affordable learning and early prototyping	Not a universal 5G gNB platform
Standard ADALM-PLUTO	Officially 325 MHz–3.8 GHz	1TX and 1RX	USB 2.0	Education and digital-communications fundamentals	Limited for demanding 5G research

What Is srsRAN Project?

srsRAN Project is an open-source 5G CU and DU implementation designed for mobile-wireless research and development.

A practical laboratory may use:

srsRAN Project for the RAN
Open5GS for the 5G Core
UHD for USRP RF drivers
USRP B210 or another compatible RF front end
Programmable test SIM cards
Compatible 5G SA handsets or test UEs
External clocking for improved stability

srsRAN research directions

5G SA private-network labs
COTS UE attachment
O-RAN CU and DU splits
Handover experiments
Core-network integration
Kubernetes deployment
Near-real-time RIC and xApp workflows
Non-terrestrial-network experiments
Performance monitoring
Teaching and demonstrations

What Is OpenAirInterface?

OpenAirInterface, usually shortened to OAI, is another important open-source cellular research ecosystem.

It is commonly used for:

5G Core
gNB research
UE research
PHY experimentation
AI-enhanced receiver development
GPU integration
RAN research
O-RAN integration
Dataset generation
Advanced 5G and 6G testbeds

OAI hardware direction

Project Stage	Recommended SDR Direction
Low-cost learning and early experimentation	B210, LibreSDR, U220, E316, or Pluto-style SDR depending on the software path
Advanced general-purpose lab	X310
High-bandwidth AI-enhanced PHY and future-facing testbed	X410

UHD, GNU Radio, ZMQ, and RFNoC Explained

Software or Framework	What It Does	Best Hardware Direction
UHD	USRP Hardware Driver API for Ettus and compatible USRP workflows	B210, X310, X410, and validated compatible alternatives
GNU Radio	Graph-based SDR signal-processing framework	USRP, bladeRF, PlutoSDR, PLUTO+, MicroPhase, and many other SDRs
ZMQ	Virtual-radio transport for software-only and lab-debug workflows	Useful before enabling over-the-air RF
RFNoC	FPGA-oriented network-on-chip framework for advanced USRP processing	X410 and suitable higher-end USRPs
libiio	Analog Devices software interface used by Pluto-style platforms	ADALM-PLUTO, PLUTO+, and related devices
libbladeRF	Nuand bladeRF software interface	bladeRF devices

Do You Need 2×2 MIMO?

Not every beginner experiment requires 2×2 MIMO.

However, 2×2 hardware is a sensible minimum direction for many laboratories because it provides a more useful upgrade path.

2×2 MIMO is useful for:

Spatial-diversity experiments
MIMO waveform research
Multi-antenna learning
Channel-estimation projects
Beamforming fundamentals
LTE and 5G prototyping
Custom OFDM experiments
Wireless-security research in controlled environments

When 1×1 may still be enough

Introductory GNU Radio exercises
Spectrum sensing
Single-channel receiver projects
Basic waveform generation
Early software development using virtual RF
Cost-sensitive student labs

Do You Need Independent RF Chains?

This is one of the most important questions in the entire buying process.

Two available RF channels do not always mean that every advanced multi-cell experiment is possible.

Independent RF chains matter for:

Multi-cell handover
Independent tuning
Advanced MIMO research
Direction finding
Coherent radio experiments
Separate cell configurations
Advanced synchronization workflows

Choose X310 or a higher-end synchronized architecture when your project specifically requires independent RF chains.

How Much Bandwidth Do You Need?

Research Goal	Bandwidth Direction	Recommended SDR
Introductory 5G NR and student projects	Lower and moderate bandwidth	B210, LibreSDR, U220, E316, bladeRF, or PLUTO+
Practical private 5G SA lab	Moderate bandwidth	B210
Advanced channel experiments	Wider bandwidth	X310 with suitable daughterboards
High-bandwidth OAI, AI, and future-facing PHY research	Very wide bandwidth	X410

More bandwidth increases:

Host CPU load
Memory requirements
Network traffic
Storage requirements
FPGA-processing demands
RF calibration complexity
Cost

Buy enough bandwidth for the research program. Do not buy maximum bandwidth only for marketing value.

USB 3.0 vs Gigabit Ethernet vs 10 Gigabit Ethernet vs 100 Gigabit Ethernet

Interface	Typical SDR Direction	Best Use
USB 2.0	ADALM-PLUTO	Education and lower-bandwidth learning
USB 3.0	B210, U220, bladeRF	Compact real-time labs and portable SDR development
Gigabit Ethernet	E316 and PLUTO+	Embedded, remote, and network-connected experiments
10 Gigabit Ethernet	X310 and X410	High-throughput lab work and wider streaming
100 Gigabit Ethernet	X410	Premium wideband and multi-channel research infrastructure

Clocking and Synchronization Matter

A 5G research laboratory may work without an external clock during early experiments.

However, improved timing and frequency stability often become important when connecting commercial user equipment, running longer tests, synchronizing devices, comparing repeatable measurements, or building multi-radio systems.

Common synchronization tools

10 MHz reference clock
PPS time reference
GPS-disciplined oscillator
OctoClock
OctoClock-G
GPS antenna compatible with the selected GPSDO voltage
Matched cables
Phase-coherent RF chains where required

Use external synchronization when:

The UE struggles to connect reliably.
You run long-duration experiments.
You synchronize several SDR units.
You test handover.
You perform coherent MIMO experiments.
You compare repeatable RF measurements.
You generate time-aligned datasets.

Do You Need Antennas, Filters, Attenuators, and Amplifiers?

The SDR is only one component of a 5G research setup.

A controlled RF lab may also require:

Band-appropriate antennas
Shielded enclosures
Dummy loads
Fixed attenuators
Variable attenuators
Directional couplers
RF cables
DC blocks
Band-pass filters
Low-noise amplifiers for selected receive paths
Power amplifiers only when technically justified and legally permitted
Spectrum analyzer
Vector network analyzer
Stable power supplies

Start with a cabled RF setup when practical

SDR TX → suitable attenuation → SDR RX or UE test path

Use appropriate attenuation and input protection.

Do not connect SDR transmit output directly into a sensitive receiver input without verifying levels.

Legal and Safety Warning for Private 5G Labs

Operating a private 5G network on cellular frequencies may be regulated or restricted in your country.

Use:

Authorized frequencies
Shielded test environments
Conducted RF connections
Suitable attenuation
Low transmit power
Test SIM cards
Known credentials
Regulator approval where required
Qualified RF engineering practices

Do not transmit into licensed mobile bands without authorization.

Do not use SDR hardware to interfere with public cellular networks.

Best SDR by 5G Research Project

Your Project	Recommended SDR	Why
First 5G SA lab with Open5GS	USRP B210	Practical documentation path and mature UHD support
University classroom with several stations	B210, LibreSDR, or ANTSDR U220	Balanced cost and capability
Budget embedded research node	ANTSDR E316	Zynq SoC, Gigabit Ethernet, MicroSD, GPS, and PPS
Low-cost GNU Radio and Pluto-style learning	PLUTO+ SDR	Affordable Ethernet-connected 2T2R direction
Custom modem acceleration in HDL	bladeRF 2.0 micro xA9	Large FPGA and portable 2×2 MIMO platform
Handover experiments	USRP X310	Independent RF-chain workflow and 10 Gigabit Ethernet
Wideband lab with daughterboard flexibility	USRP X310	UBX options, Kintex-7 FPGA, and rack-mount architecture
AI-enhanced PHY and neural receiver research	USRP X410	RFSoC, multi-channel architecture, high bandwidth, and OAI reference designs
Large synchronized research platform	USRP X410 or synchronized higher-end USRP architecture	Advanced channel density, clocking, and network interfaces

Best SDR by Buyer Type

Buyer Type	Recommended SDR
Student learning 5G fundamentals	PLUTO+ SDR, LibreSDR, U220, or B210 depending on budget
University teaching lab	USRP B210
University lab purchasing several lower-cost nodes	LibreSDR B220 Mini, ANTSDR U220, or PLUTO+
Research team building embedded nodes	ANTSDR E316
FPGA and modem developer	bladeRF 2.0 micro xA9
Advanced 5G RAN research lab	USRP X310
Telecom R&D team	USRP X310 or X410
AI-native PHY or 6G-focused institution	USRP X410

Host Computer Requirements

The SDR is not the only performance bottleneck.

The host computer must process samples in real time.

Host requirements depend on:

Channel bandwidth
Number of RF channels
Sample rate
Duplex mode
Selected 5G stack
Core-network placement
Operating system
Virtualization
Network interface
CPU clock speed
Physical CPU cores
Memory
GPU requirements
Storage speed

General host direction

SDR Platform	Host Direction
B210, U220, bladeRF	Modern Linux PC with reliable USB 3.0 controller and sufficient CPU performance
E316 and PLUTO+	Linux PC with suitable Gigabit Ethernet and project-appropriate software
X310	Linux workstation with suitable 10 Gigabit Ethernet NIC for demanding workflows
X410	High-performance bare-metal Linux workstation with suitable 10 or 100 Gigabit Ethernet and project-specific CPU or GPU resources

Real-time workloads are sensitive to latency, CPU scheduling, network buffers, and operating-system configuration.

Common Buying Mistakes

Buying X410 for a first student experiment

Start with B210 unless your project already requires X410 capabilities.

Buying B210 for a handover experiment that requires independent RF chains

Use X310 or another platform suited to independent RF-chain workflows.

Assuming every 2×2 SDR is a drop-in replacement

Check the software stack, driver, API, firmware, FPGA image, host interface, and documentation path.

Ignoring the host computer

A powerful SDR cannot compensate for an underpowered or poorly configured host.

Ignoring synchronization

Add a suitable reference clock when timing stability, repeatability, or multi-radio synchronization matters.

Buying by frequency range alone

Frequency coverage does not tell you channel count, bandwidth, duplex behavior, linearity, FPGA capacity, driver support, or host-interface performance.

Buying HackRF only because it reaches 6 GHz

HackRF is useful for wideband experimentation, but it is not the first recommendation for a full-duplex 5G NR research lab.

Transmitting on cellular frequencies without authorization

Use authorized frequencies, cabled RF paths, shielding, attenuation, and regulator-approved workflows.

Skipping attenuation during cabled testing

SDR receiver inputs can be damaged or overloaded. Calculate levels and use suitable RF attenuation.

Recommended 5G Research Upgrade Path

Begin with ZMQ virtual RF when learning the software stack.
Use USRP B210 for your first practical over-the-air or cabled 5G SA lab.
Add test SIM cards, compatible UEs, suitable attenuation, antennas, and clocking.
Move to X310 when independent RF chains, handover, 10 Gigabit Ethernet, wider bandwidth, or larger FPGA resources become necessary.
Add synchronized radios when studying MIMO, multi-cell, and repeatable RF experiments.
Move to X410 when the research program requires multi-channel RFSoC hardware, hundreds of megahertz of bandwidth, AI-enhanced PHY, advanced OAI deployments, or future-facing 6G experimentation.

Where to Browse SDR Equipment for 5G Research

Request a Quote for University and Laboratory Purchases

Universities, companies, research laboratories, integrators, and purchasing departments can request a formal quotation directly from SDRstore.eu.

Use the Add to Quote button on product pages or the document icon on product cards to request:

Formal quotations
Bulk pricing
Several SDR units
Complete laboratory configurations
Accessories and RF cables
Antennas
Clocking equipment
Test and measurement tools
Invoice details for internal approval

Read the guide: Request a Quote Online: A Faster Way to Get Custom Pricing from SDRstore.eu.

Related SDRstore.eu Guides

Official Resources

Final Verdict: Best SDR for 5G Research

USRP B210 is the best SDR for most teams starting practical 5G research.

It offers 70 MHz–6 GHz coverage, 2×2 MIMO, full-duplex operation, up to 56 MHz real-time bandwidth, USB 3.0, UHD, GNU Radio, and a strong documentation path for srsRAN and Open5GS experiments.

Choose USRP X310 when your research needs independent RF chains, handover, daughterboard flexibility, 10 Gigabit Ethernet, PCIe, a larger FPGA, wider streaming, and a rack-based laboratory architecture.

Choose USRP X410 when the research program requires four independent TX and RX channels, up to 400 MHz instantaneous bandwidth per channel, RFSoC processing, 10 or 100 Gigabit Ethernet, built-in GPSDO, advanced OAI architectures, AI-enhanced physical-layer research, and a long-term 5G-to-6G platform.

Choose LibreSDR B210 or B220 Mini, MicroPhase ANTSDR U220, ANTSDR E316, bladeRF 2.0 micro, or PLUTO+ SDR when your team needs a lower-cost platform for teaching, GNU Radio, custom FPGA work, prototyping, or embedded research.

Do not buy only by price, frequency range, or bandwidth.

Choose the SDR that matches the software stack, RF-chain requirements, channel count, host interface, clocking plan, bandwidth, legal test environment, and first experiment your team intends to complete.

FAQ

What is the best SDR for 5G research?

USRP B210 is the best starting recommendation for many 5G research teams. It offers 70 MHz–6 GHz coverage, 2×2 MIMO, full-duplex operation, USB 3.0, UHD support, and a strong srsRAN documentation path.

Is USRP B210 good for 5G research?

Yes. USRP B210 is widely used for entry-level and intermediate 5G NR experiments, private-lab setups, srsRAN, Open5GS, GNU Radio, COTS UE attachment, and university teaching.

Can USRP B210 run srsRAN?

Yes. srsRAN documentation includes practical 5G SA examples using USRP B210 as the RF front end with Open5GS as the core network.

Should I buy USRP B210 or X310?

Choose B210 for an affordable compact USB-based lab. Choose X310 when you need independent RF chains, handover experiments, 10 Gigabit Ethernet, wider bandwidth, daughterboard flexibility, or larger FPGA resources.

Should I buy USRP X310 or X410?

Choose X310 for an advanced expandable SDR lab with daughterboards and 10 Gigabit Ethernet. Choose X410 for premium multi-channel RFSoC research, wider bandwidth, integrated GPSDO, advanced OAI deployments, and 5G-to-6G projects.

What frequency range does USRP B210 cover?

USRP B210 covers 70 MHz–6 GHz continuously.

What frequency range does USRP X310 cover?

USRP X310 coverage depends on the selected daughterboards. Suitable daughterboards cover DC–6 GHz, with options such as UBX for wideband transmit and receive experiments.

What frequency range does USRP X410 cover?

USRP X410 operates from 1 MHz–7.2 GHz and can tune up to 8 GHz.

How much bandwidth does USRP B210 support?

USRP B210 provides up to 56 MHz of real-time bandwidth.

How much bandwidth does USRP X310 support?

USRP X310 supports up to 160 MHz bandwidth per slot when paired with suitable wideband daughterboards such as UBX-160.

How much bandwidth does USRP X410 support?

USRP X410 supports up to 400 MHz of instantaneous bandwidth per channel.

Is X310 better than B210 for handover research?

Yes. Handover experiments that require independent RF chains are better suited to X310. B200-series devices are not suitable for every independent-chain handover workflow.

What is the cheapest SDR for learning 5G?

PLUTO+ SDR, LibreSDR B210 or B220 Mini, and ANTSDR U220 are lower-cost options for education and prototyping. USRP B210 remains the safer choice when you want the strongest UHD and srsRAN documentation path.

Is LibreSDR B220 Mini a USRP B210 replacement?

LibreSDR B220 Mini is an interesting lower-cost USRP-style alternative, but verify drivers, firmware, chipset, operating system, and software compatibility before treating it as a drop-in replacement for a specific research deployment.

Is ANTSDR U220 good for 5G research?

ANTSDR U220 is a useful lower-cost 2×2 MIMO USB 3.0 platform for srsRAN-oriented prototyping, education, and RF research. Confirm the exact chipset and software stack before standardizing a deployment.

Is ANTSDR E316 good for 5G research?

ANTSDR E316 is useful for embedded and Ethernet-connected wireless research because it combines a Zynq-7020 SoC, 2×2 MIMO, Gigabit Ethernet, MicroSD, GPS, and PPS support.

Is bladeRF 2.0 micro good for 5G research?

bladeRF 2.0 micro is a strong platform for GNU Radio, portable 2×2 MIMO research, custom PHY development, and FPGA acceleration. It is not a universal drop-in replacement for UHD-based USRP tutorials.

Is PLUTO+ SDR good for 5G research?

PLUTO+ SDR is a useful low-cost platform for Pluto-style learning, GNU Radio, Ethernet experiments, and early 2T2R prototyping. It is not the first recommendation for a validated high-throughput 5G gNB laboratory.

Can HackRF One be used for 5G research?

HackRF One can be useful for wideband RF exploration and authorized half-duplex experiments, but it is not the preferred platform for a full-duplex 5G NR research lab.

Do I need a GPSDO for 5G research?

Not always for early tests. A GPSDO or suitable external clock becomes valuable when timing stability, synchronization, repeatable measurements, UE attachment reliability, multi-radio operation, and handover experiments matter.

Can I run a private 5G network legally?

Rules vary by country. Use authorized frequencies, shielded or cabled test setups, low power, attenuation, test SIM cards, and regulator approval where required. Do not interfere with public cellular networks.

Do I need 10 Gigabit Ethernet for 5G research?

Not for every project. B210 works over USB 3.0. X310 benefits from 10 Gigabit Ethernet for demanding workflows. X410 can use 10 or 100 Gigabit Ethernet for high-throughput and multi-channel research.

Which SDR is best for university 5G labs?

USRP B210 is the strongest default choice for university labs. Use lower-cost alternatives for larger teaching fleets, X310 for advanced research, and X410 for premium long-term 5G and 6G testbeds.

Which SDR is best for AI-enhanced 5G receiver research?

USRP X410 is the strongest recommendation because it supports several channels, very wide bandwidth, RFSoC processing, high-speed interfaces, and documented OAI neural-receiver research workflows.

How do I request a quote for several SDR devices?

Add products to a quote request directly from SDRstore.eu product pages using the Add to Quote button or from product cards using the document icon. This is useful for universities, companies, laboratories, and bulk purchases.

Comments

No posts found

Write a review
